ISO 4136 Weld Transverse Tensile Test Machine | Metallic Weld Joint Testing | UnitedTest

ISO 4136 standard covers destructive transverse tensile testing for metallic welded butt joints, measuring weld tensile strength and fracture location. UnitedTest manufactures ISO 4136 compliant weld testing machines for industrial weld quality inspection and material certification.

ISO 4136 is an international standard for destructive mechanical testing of welds in metallic materials, specializing in transverse tensile test procedures for welded butt joints. This standard fully defines standardized specifications for test specimen dimensions, sample extraction methods, machining requirements, and complete testing workflows to ensure accurate, consistent, and repeatable weld performance evaluation.

Conducted on metallic welded butt joints, the ISO 4136 transverse tensile test accurately determines three core inspection indicators: the tensile strength (Rm) of the welded joint, the precise fracture location including weld metal, heat-affected zone (HAZ), and parent base metal, as well as basic fracture surface morphological observation. Universally applicable to all product forms of metallic materials and all butt joint welding processes, this test serves as a fundamental quality verification method for industrial welding production.

Widely adopted in metal fabrication, structural engineering, pipeline manufacturing, automotive and aerospace industries, ISO 4136 testing validates weld structural integrity, verifies welding process reliability, supports batch quality control, and ensures compliance with industrial welding safety standards.

UnitedTest designs and manufactures high-precision ISO 4136 compliant transverse tensile testing machines for metallic weld joints. Our professional testing equipment strictly follows standard specimen processing and test procedures, delivering reliable tensile strength data and fracture analysis results for welding laboratories, manufacturing factories, and third-party material testing institutions worldwide.

Test Principle

A continuously increasing uniaxial tensile load is applied to a test coupon cut transversely across the butt weld until complete rupture occurs. The weld axis is positioned at the centre of the specimen’s parallel gauge section. The test captures ultimate tensile force, tensile strength, fracture location and fracture‑surface features. General tensile‑testing fundamentals follow ISO 6892‑1 (room‑temperature) and ISO 6892‑2 (elevated‑temperature).

Test Specimen Details

Specimens shall be taken transversely from butt‑welded joints, keeping the weld centred within the parallel length Lc after machining. For small‑diameter pipes (D ≤50), full‑section pipe specimens can be used.

Cutting methods must not alter material properties. For steel thicker than 8 mm, shearing is forbidden. Thermal cutting must leave at least 8 mm stock for final machining. Non‑ferrous metals (aluminium, copper alloys) may only use sawing, milling or water‑jet cutting; shearing and thermal cutting are prohibited.

Three main specimen types are defined: flat specimens for plates, flattened/machined specimens for pipes, and cylindrical solid‑section specimens.

Specimen thickness ts normally matches base‑metal thickness adjacent to the weld. For thickness > 30 mm, multiple sub‑specimens can be taken across the joint full thickness, with each sampling position recorded.

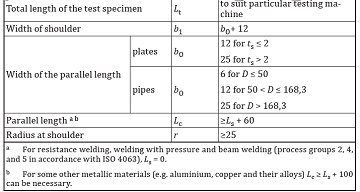

Key dimensional rules: parallel length Lc ≥ Ls+60mm; for aluminium‑ and copper‑base alloys, Lc ≥ Ls+100mm; shoulder radius r ≥25mm. Width b0 of parallel section differs for plates and different pipe diameter range.

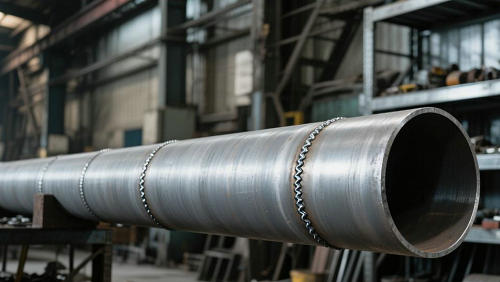

ISO 4136 Transverse Tensile Test for Welded Joints

Test Equipment required for ISO 4136 Transverse Tensile Test for Welded Joints

Tensile testing machine

Calibrated and verified per ISO 7500‑1 for force‑measurement accuracy, capable of smooth, continuous tensile loading.

Grips: matching specimen geometry for plates, pipes or cylindrical bars to ensure axial loading without bending.

Auxiliary tools

1. Measuring tools: callipers / micrometres to measure original cross‑section area S0, width and thickness of specimen parallel section.

2. Extensometer (optional): required only if elongation values need to be recorded.

3. Auxiliary tools: for marking, macro‑etching (to reveal weld boundary for fracture‑location inspection).

Core Test Parameters & Mandatory Stipulations

Loading mode: gradual, continuous tensile loading following ISO 6892‑1 / ISO 6892‑2 loading schemes. Strain‑rate options from ISO 6892 series are permitted.

Original cross‑section area S0 of parallel length is determined according to ISO 6892‑1.

For pipe specimens, flattening is allowed only on gripped ends; parallel gauge section must retain original thickness profile without deformation.

Mount the prepared specimen into tensile‑machine grips, ensuring proper axial alignment.

Apply steadily increasing tensile load until specimen fractures. Record maximum force Fm. Install extensometer if elongation data is required.

After fracture: record fracture location (weld metal, heat‑affected zone or base metal). Macro‑etching may be used to identify weld boundaries if visual observation is ambiguous.

Visually inspect fracture surfaces. Document defects (type, size, quantity) such as voids, inclusions, fish‑eyes; only central zones of fish‑eyes are classified as imperfections.

Test Procedures of ISO 4136 Transverse Tensile Test for Welded Joints

Select and mark specimen location from welded joint.

Extract with allowable method (no property alteration).

Machine to dimensions according standard.

ISO 4136 Transverse Tensile Test for Welded Joints

Measure dimensions, compute S₀.

Mount in tensile machine, align axially.

Apply load continuously per ISO 6892-1 / 6892-2.

Record Fm, note fracture location.

Examine fracture surface for imperfections.

Compile test report: Mandatory report content includes reference to ISO 4136:2022, specimen type/dimensions/location, test temperature, heat‑treatment details, fracture location and observed fracture‑surface imperfections. Annex A provides an example test‑report form.

Test Applications (Industry Fields)

ISO 4136 transverse tensile test is widely used for weld‑procedure qualification (e.g. ISO 15614 series), welder performance testing and product quality verification for butt‑welded metallic components:

- Pressure‑vessel and boiler manufacturing

- Oil‑gas pipeline and tubular component fabrication

- Heavy‑duty machinery, structural steel construction

- Railway, shipbuilding and offshore engineering

- Aerospace, automotive welded assemblies

- Aluminium, copper and alloy welded structures

It applies to all butt‑joint welding processes including fusion‑welding, resistance‑welding, beam‑welding etc. for all metallic product forms (plate, tube, solid bar).

Related Stadard:

ISO 14272	Resistance welding - Destructive testing of welds - Specimen dimensions and procedure for cross tension testing of resistance spot and embossed projection welds
ISO 14273	Resistance welding - Destructive testing of welds - Specimen dimensions and procedure for tensile shear testing resistance spot and embossed projection welds
ISO 6892‑1	- Metallic materials — Tensile testing — Part 1: Method of test at room temperature (core tensile‑test baseline)
ISO 6892‑2	Metallic materials — Tensile testing — Part 2: Method of test at elevated temperature (for high‑temperature weld tensile tests)
ISO 5173	Destructive tests on welds in metallic materials — Bend tests
ISO 5178	Longitudinal tensile test for welds (related but different orientation)
ISO 9016	Destructive tests on welds in metallic materials — Impact tests — Test specimen location, notch orientation and examination
ISO 4136	Destructive tests on welds in metallic materials — Transverse tensile test

Keywords: ISO 4136 weld transverse tensile test,metallic weld destructive testing machine,welded butt joint tensile strength tester,weld fracture location analysis equipment,weld metal HAZ parent metal fracture test,ISO 4136 weld Rm tensile strength measurement,industrial weld quality control tester,metal welding mechanical performance test rig,structural weld integrity verification machine,weld specimen tensile testing apparatus,automotive aerospace weld certification equipment,metallic material welding process validation tester,butt weld joint destructive test instrument

A single column tensile tester is a sophisticated material testing instrument designed for measuring mechanical properties of various materials under tension, compression, bending, shear, and other loading conditions. As the name suggests, it features a single vertical column supporting a moving crosshead that applies force to test specimens.

Vice Tensile test fixture for plastics is based on the test standatd ASTM D638, determination of the tensile properties of unreinforced and reinforced plastics in the form of standard dumbbell-shaped test specimens when tested under defined conditions of pretreatment, temperature, speed.

Q1: What is ISO 4136:2022?

A1: ISO 4136:2022 is the international destructive test standard for transverse tensile test of metallic butt‑welded joints. It defines specimen geometry, sample preparation, test workflow, result evaluation and reporting, to measure tensile strength and record fracture location of weld joints.

Q2: Why is ISO 4136 transverse tensile test important?

A2: It is a core qualification test for welded butt joints. It verifies whether weld strength matches base‑metal performance, detects hidden weld defects, validates WPS (Welding Procedure Specification), and guarantees safety of load‑carrying welded components for pressure equipment, pipelines and steel structures. It delivers repeatable, comparable test data accepted by global certification bodies.

Q3: What is the difference between ISO 4136 and ISO 6892‑1?

A3: ISO 6892‑1 is the general tensile‑test standard for plain metallic base material without welds. ISO 4136 applies to welded joints: it adds special specimen sampling rules, weld‑centred geometry, weld‑fracture observation and weld‑defect recording. ISO 4136 follows ISO 6892‑1 for basic loading and force calculation but focuses on weld joint performance.

Q4: Which welded joints does ISO 4136 apply to?

A4: It applies to **all metallic butt‑weld joints** (steel, aluminium, copper and alloys) for plate, tube / pipe and solid bar products, for fusion welding, resistance welding and beam welding processes defined in ISO 4063. It is not for fillet weld testing.

Q5. How is a transverse weld specimen different from a longitudinal one?

A5: The transverse specimen is cut perpendicular to the weld axis, so the load pulls directly across the weld, HAZ, and fusion line. This exposes weaknesses (lack of fusion, HAZ softening/hardening) that a longitudinal specimen—loaded parallel to the weld—would mask.

Q6: What does fracture‑location result mean? Fracture in weld metal, is it always fail?

A6: Fracture location is recorded but ISO 4136 itself does **not set pass‑fail criteria. Acceptance rules come from your product or application standard (e.g. ISO 15614 welding procedure qualification). Fracture inside weld metal does not automatically mean rejection; ultimate tensile strength value and defect condition shall be evaluated together. Macro‑etching can help identify weld boundary if fracture boundary is unclear.

Q7: Can I test full‑section small‑bore pipe directly?

A7: Yes. For small‑diameter pipes with outer diameter D ≤ 50 mm, full‑section pipe specimens can be used without flattening the gauge section. Flattening is allowed only on gripping ends of pipe specimens, must not deform parallel length Lc.

Q8: Why choose ISO 4136 Transverse Tensile Test Machine from UnitedTest?

A8: UnitedTest is a professional manufacturer of universal tensile testing machines fully compliant with ISO 4136:2022, the international standard for destructive transverse tensile tests on metallic welded butt joints.

Our UTM systems support complete ISO 4136 test workflows: specimen tensile loading, maximum force capture, tensile‑strength calculation, fracture‑location recording and standardized test‑report output for weld quality verification, welding procedure specification (WPS) qualification and welder performance assessment.

Designed for testing laboratories, welding workshops, pressure‑vessel factories, pipeline manufacturers, shipbuilding, railway and offshore industries, UnitedTest ISO 4136 test equipment works for flat plate specimens, pipe / tubular specimens and solid‑section cylindrical weld coupons.

Key Compliance & Features for ISO 4136:2022

- Force‑measurement system meets ISO 7500‑1 calibration requirement for reliable weld‑tensile‑test data.

- Built‑in software templates for ISO 4136:2022; auto‑calculates original cross‑section area S0, ultimate tensile force Fm and tensile strength Rm.

- Compatible with optional extensometer for elongation measurement when needed.

- Interchangeable grips: flat specimen grips, pipe‑specimen fixtures, round‑bar grips for different weld‑coupon geometries.

- Supports test‑temperature logging, fracture‑result note input, defect description and ISO 4136‑format test‑report export, matching Annex A report example.

- Electromechanical and servo‑hydraulic UTM models available for different force ranges from 10 kN up to 1000 kN.

UnitedTest provides one‑stop solutions including equipment supply, fixture customization, on‑site commissioning and technical guidance for ISO 4136 transverse tensile tests. Whether you perform weld‑procedure qualification, incoming‑material inspection or production‑lot quality control, our testing machines deliver stable, repeatable results recognised for international welding certification.
