ISO 3036 Standard | Pendulum Puncture Strength Test Machine for Paperboard & Corrugated Fibreboard | UnitedTest

UnitedTest manufactures fully ISO 3036 compliant pendulum puncture resistance testers for packaging factories, carton R&D labs and third-party packaging inspection facilities worldwide.

ISO 3036 Board — Determination of puncture resistance using a pendulum device is an international impact test standard. It measures the total energy needed for a swinging pendulum fitted with a triangular pyramid probe to fully pierce paperboard and corrugated fibreboard, with all test outcomes recorded in joules (J).

Our ISO 3036 pendulum puncture tester strictly follows pendulum swing rules, probe geometry and energy calculation requirements of this standard, delivering repeatable puncture energy data for packaging quality control and material performance comparison.

Core Test Principle

A weighted pendulum with a fixed triangular pyramid puncture head is released horizontally from a 90° rest position to deliver impact energy onto a clamped board specimen. The test measures the total energy consumed to:

Initiate perforation of the board surface;

Propagate tearing, bending and shear deformation across the board;

Fully penetrate the test piece with the probe passing through the material.

This absorbed energy value is defined as puncture resistance. Two distinct puncture test methodologies exist and yield non-comparable results (especially for heavy-weight board):

Pendulum impact method (ISO 3036 specified dynamic impact);

Constant-speed penetration static test (separate unrelated standard).

Test Specimen (Test Piece) Specifications

Minimum dimension: 175 mm × 175 mm square;

Clearance rule: puncture impact zone ≥60 mm away from specimen edges, scores, folds or printed graphics;

Quantity: 10 valid tests per material side, total 20 replicates per material:

5 tests per side: board cross direction / flute parallel to pendulum rotation axis;

5 tests per side: board cross direction / flute perpendicular to pendulum rotation axis.

Test Equipment of ISO 3036 Pendulum Puncture Resistance Test of Board

Recommend UnitedTest Cardboard Puncture Resistance Tester mainly consist of below:

Pendulum arm	90° circular arc arm with fixed rotation axis; effective puncture head distance from rotation axis = 267 ±1 mm (loose tolerance +12.5 mm allowed for legacy instruments); pendulum rests horizontally at release position (90° vertical swing from static gravity balance);
Triangular pyramid puncture head	Right-angle triangular pyramid, height 25.0 ±0.7 mm; all edge radii 1.0–1.6 mm; geometric symmetry axis vertical when probe midpoint aligns with pendulum rotation horizontal plane; base edge parallel to pendulum rotation axis;
Interchangeable weights	To select energy range so result falls between 20–80 % of max scale value.
Release mechanism	Must not impart acceleration/deceleration to pendulum.
Slip-off collar	Fits tightly on the puncture head neck, detaches after penetration to prevent corrugated board spring-back from braking the pendulum; collar friction energy loss ≤0.25 J and must be deducted from final results;
Clamping device	Two horizontal plates, effective clamping ≥ 175 × 175 mm. Upper plate has equilateral triangle opening (100 ± 2 mm sides); lower plate preferably matching, or circular Ø 90 ± 2 mm (existing instruments up to Ø 100 mm allowed). Clamping force 250–1000 N.
Measurement indicator	Digital or friction-loaded pointer. Scale divisions in joules. (Legacy instruments may show GE units or kgf·cm: 1 GE = 0.0298 J; 1 kgf·cm = 0.098 J.)

Calculation & Precision Stipulations

1 Calculation Rules

Compute arithmetic mean puncture resistance from all valid replicates; round results matching scale resolution rules (0.1 J / 0.2 J);

Two-side data comparison: if mean values of front/back material sides differ by >10% of the higher value, report both sides separately; otherwise report the combined average.

2 Precision Data (Interlaboratory Test)

Round-robin testing across 5 labs from 4 countries generated standard repeatability & reproducibility limits for greyboard samples:

790 g/m² solid greyboard (4.6 J average): repeatability limit r=0.8 J, reproducibility limit R=1.6 J;

1890 g/m² thick greyboard (11.8 J average): repeatability limit r=1.1 J, reproducibility limit R=1.9 J;

Statistical basis: limits = standard deviation × 2.77 (95% confidence interval for normal distribution).

Step-by-Step Standard Test Procedures of ISO 3036 Pendulum Puncture Resistance Test of Board

1, Complete instrument pre-adjustment, levelling and friction loss calibration;

2, Mount interchangeable pendulum weights to match the energy range where expected results sit 20%–80% of full scale;

3, Place conditioned flat specimen between clamping plates, apply constant 250–1000 N clamping force and record clamping load if equipped with force sensor;

4, Slide the slip-off collar onto the puncture head neck, reset drag pointer to maximum scale value;

5, Lock pendulum at horizontal release position via release mechanism;

6, Trigger release to let pendulum swing, fully piercing the specimen with the triangular probe;

7, Record energy reading: nearest 0.1 J for scales ≤12 J, nearest 0.2 J for scales >12 J;

8, Correct raw readings by subtracting pre-measured pendulum air/bearing friction energy loss (if ≥1%);

9, Repeat full procedure to complete 20 directional replicates per material; discard invalid tests where specimen slips or incomplete penetration occurs.

Applicable Industry Fields

ISO 3036 covers all solid paperboard and corrugated fibreboard, primarily serving:

Packaging & logistics industry (core application): shipping cartons, e-commerce boxes, heavy-duty industrial packaging, agricultural produce boxes, household appliance packaging; simulates sharp-object impact damage during sorting, stacking, transit and manual handling;

Paper & board manufacturing: raw material quality grading, new fibre formulation development, corrugated flute structure performance comparison;

Packaging design & testing laboratories: compliance verification for export packaging, cost-performance optimisation of board grades;

Third-party certification & regulatory testing: cross-border packaging material conformity assessment aligned with ISO international trade standards.

Related standard:

ISO 3036	Board — Determination of puncture resistance using a pendulum device
GB/T 2679.7	Board-Determination of puncture resistance
ISO 2759	Board - Determination of bursting strength
GB/T 6545	Corrugated fibreboard--Determination of bursting strength
GB/T 1539	Board—Determination of bursting strength
GB/T 16717	Packing containers―Heavy duty corrugated boxes
TAPPI T 803	American equivalent pendulum puncture test for containerboard; closest parallel industry standard to ISO 3036, referenced for instrument calibration;

Why This Test Matters for Board Materials

Puncture resistance simulates real-world impact/handling abuse (e.g. corners being dropped, forks penetrating, sharp objects in transit) that compression/stiffness tests don't capture.

Especially critical for corrugated fibreboard used in shipping cases — a low puncture value often predicts field failure even if compression strength looks acceptable.

The pendulum method captures the combined energy of piercing + tearing + bending, which is the actual failure mode in logistics.

As noted in the Introduction, results from pendulum vs. constant-speed methods diverge on heavy grades, so having a standardized pendulum method (ISO 3036) ensures comparability across labs/suppliers for packaging board.

Keywords: UnitedTest ISO 3036 pendulum puncture resistance tester, ISO 3036 corrugated fibreboard puncture strength test machine, paperboard pendulum piercing energy testing equipment, triangular pyramid pendulum probe puncture test ISO 3036, joule unit cardboard impact puncture analyzer, ISO 3036 standard packaging board puncture energy tester

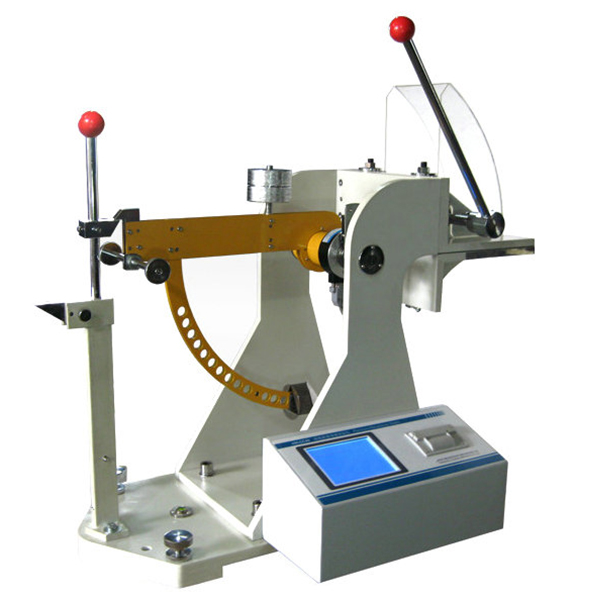

Cardboard Puncture Resistance Tester used to measure the puncture resistance strength of corrugated cardboard. A wide range of applications and is an essential everyday tool for cardboard, carton production, research, and inspection in enterprises and departments.

Q1: What is ISO 3036 used to measure?

A1: It measures the puncture resistance of solid board and corrugated fibreboard via pendulum impact. The result is the total energy (in joules, J) required for a triangular pyramid probe to fully pierce, tear and bend open the board specimen under dynamic impact.

Q2: Why is ISO 3036 test different from constant-speed puncture tests? Can results be compared?

A2: ISO 3036 is a dynamic pendulum impact test simulating sudden sharp blows in logistics; constant-speed penetration is a slow static test. The standard explicitly states their outputs are non-comparable, especially for heavy thick board grades, due to different material deformation mechanisms under impact vs slow loading.

Q3: What material types does ISO 3036:2025 apply to?

A3: All solid paperboard and corrugated fibreboard, mainly packaging carton materials, including greyboard, single-wall/multi-wall corrugated board for shipping boxes, e-commerce packaging and industrial cases.

Q4: Why is ISO 3036 puncture resistance testing critical for packaging board manufacturers and end users?

A4: It mimics real transit hazards: sharp pallet edges, metal staples, protruding goods and automated sorting impact forces that cause box perforation and product leakage/damage.

Provides a globally unified quality metric for cross-border packaging trade, eliminating inconsistent regional testing methods.

Supports material optimisation: engineers adjust grammage, fibre blends and corrugated flute designs to balance puncture protection and raw material cost.

Serves as a batch QC filter: defects like washboarding, poor fibre bonding or surface cracks drastically lower puncture energy, identifying unqualified board rolls early.

Forms mandatory compliance evidence for packaging specifications set by retailers, logistics firms and export certification bodies.

Q5: How does puncture resistance differ from burst strength or edge crush test (ECT)?

A5: Puncture resistance (ISO 3036): Resistance to sharp point penetration and tearing under sudden impact.

Burst strength: Resistance to uniform internal hydraulic pressure.

ECT: Resistance to vertical crushing load during stacking.

All three reflect separate packaging failure modes and are complementary performance indicators.

Q6: What key dimensional tolerances must the puncture head meet per ISO 3036:2025?

A6: Height of right-angle triangular pyramid: 25.0 ±0.7 mm

All cutting edge radii: 1.0 mm to 1.6 mm

Distance from pendulum rotation axis to probe effective point: 267 ±1 mm (legacy machines allow +12.5 mm tolerance for midpoint horizontal plane alignment only)

Q7: What is the function of the slip-off collar on the puncture head?

A7: After the probe penetrates the board, the collar slides off the probe neck to hold the specimen hole open. It prevents spring-back of corrugated flutes from contacting the pendulum arm, which would absorb extra energy and produce falsely low test readings. The friction energy lost when the collar slips off must be ≤0.25 J and compensated in final results.

Q8: What clamping force range is required for specimens?

A8: Clamping force shall be between 250 N and 1000 N. The specimen must not slip during impact; if the machine cannot measure clamping force, users must apply sufficient tightness to avoid sliding.

Q9: Why must test results fall between 20%–80% of the selected scale’s maximum value?

A9: Readings near full scale or near zero introduce large relative measurement errors due to machine friction, pointer drag and pendulum energy loss. The 20%–80% window ensures data falls within the equipment’s most accurate linear measurement range.

Q10: What minimum size are ISO 3036 test pieces, and what edge clearance rule applies?

A10: Minimum specimen dimension is 175 mm × 175 mm. The puncture impact zone must be at least 60 mm away from all specimen edges, scores, creases or printed graphics to avoid edge strength interference.

Q11: How many replicate tests are required for a full material test, and why two directions?

A11: A total of 20 valid replicates are required unless parties agree otherwise: 10 per material side (5 parallel, 5 perpendicular to pendulum rotation axis). Corrugated flutes and paper cross-direction fibres have anisotropic strength; testing two directions captures full directional puncture performance differences.

Q12: Can I test printed areas of carton board? What must I do if I do?

A12: Printed areas are permitted in finished packaging testing, but printing can increase test result variation. If printed regions are used as specimens, this detail must be clearly recorded in the final test report.

Q13. What is the "Collar" on the puncture head, and why does it matter?

A13: The collar is a ring that sits on the neck of the pyramid head. After the head punches through the board, the collar slips off to keep the hole open. Without it, corrugated board acts like a spring—it snaps back against the pendulum arm and slows it down. This would make your results look artificially high (more energy absorbed) because you're measuring the energy to bend the board back, not just the energy to puncture it. The standard requires compensating for the friction of this collar (max 0.25 J).

Q14: When do I need to compensate test results for machine friction losses?

A14: If total energy loss from pendulum bearings and air resistance is ≥1% of the full measuring scale, the raw reading must be adjusted to offset this friction loss. Collar slip friction loss (max 0.25 J) also requires compensation.

Q15: How should I round final puncture resistance results?

A15: Results ≤12 J: round to the nearest 0.1 J

Results above 12 J: round to the nearest 0.2 J
