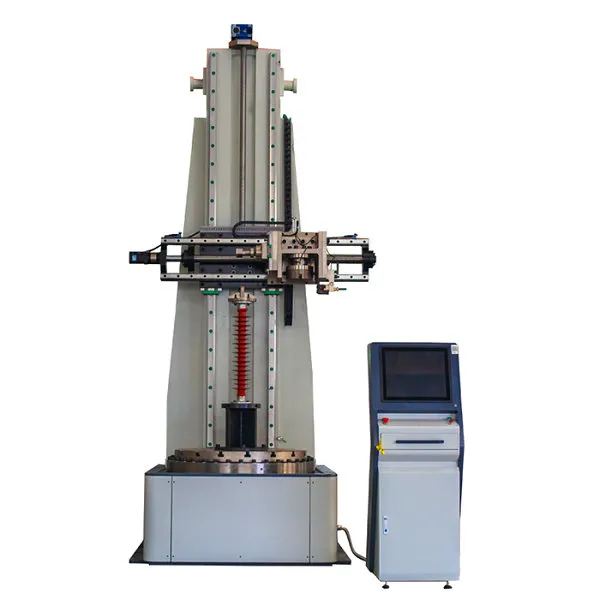

Model: UT1069FN IEC 61109, IEC 60383 Insulator Cantilever, torsion strength testing machine
UT1069FN Insulator Torsion bending testing machine is suitable for
bending and torsion testing of products such as column insulators, pin
insulators, rod-shaped insulators, rod-shaped composite insulators,
lightning arresters, hollow insulators, and wall-thru bushings. It
complies with the standard testing methods of IEC 61109 and IEC 60383.

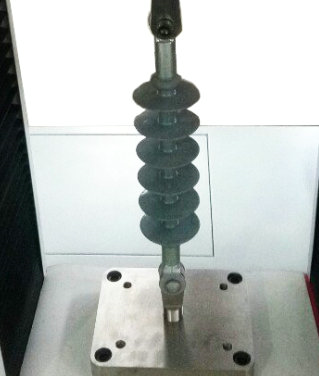

UnitedTes UT1069FN insulator Torsion bending testing machine can be used for pillar insulators, composite insulators, pin insulators, rod insulators, rod composite insulators, glass insulators, lightning arresters, and sheaths. Bending and torsion testing of insulators, porcelain core rods, composite core rods, bushings, hollow insulators, wall bushings, etc. Meet the bending test, torsion test, deflection test under load and mechanical test one by one for pillar porcelain insulators of 1000kV and less.
General introduction
UT1069FN Insulator Torsion bending testing machine is suitable for
bending and torsion testing of products such as column insulators, pin
insulators, rod-shaped insulators, rod-shaped composite insulators,
lightning arresters, hollow insulators, and wall-thru bushings. It
complies with the standard testing methods of IEC 61109 and IEC 60383.
UnitedTes UT1069FN insulator Torsion bending testing machine can be used for pillar insulators, composite insulators, pin insulators, rod insulators, rod composite insulators, glass insulators, lightning arresters, and sheaths. Bending and torsion testing of insulators, porcelain core rods, composite core rods, bushings, hollow insulators, wall bushings, etc. Meet the bending test, torsion test, deflection test under load and mechanical test one by one for pillar porcelain insulators of 1000kV and less.

Key Feature
During the experiment, the load should be increased steadily and without impact before reaching 75% of the specified failure load. Then, the load should be increased at a rate of 35% -100% of the specified bending failure load per minute until the test specimen fails (obvious failure phenomenon can be observed, or the load indication value of the testing machine no longer increases). At this time, the load value is the bending failure load of the test specimen.
For pillar insulators, the load should be steadily and without impact increased before 50% of the specified failure load. Then, the load should be increased at a rate of 35% -100% of the specified bending failure load per minute until the test specimen fails (obvious failure phenomenon can be observed, or the load indication value of the testing machine no longer increases). At this time, the load value is the failure load of the test specimen.
If only a withstand load test is required, the load shall be increased to the standard specified test load. If the test specimen does not damage under this load, this test shall be passed.
During the experiment, the load should be uniformly and without impact raised to the specified individual load values, and kept under this load for 10 seconds. The test sample should not be damaged, the adhesive should crack (excluding small gaps between the adhesive and metal accessories), or there should be obvious permanent deformation of the metal accessories, as well as obvious displacement phenomena between various parts.
When using a four-way (or multi-directional) load test, the load should be immediately removed (or the specific product standard residence time should be used) after the test load is added to the specified test load value. The test sample should not be damaged, the adhesive should not crack (excluding small gaps between the adhesive and metal accessories), or there should be obvious permanent deformation on the metal accessories and obvious displacement phenomena between various parts. For each direction of the experiment, the sample should be rotated 90 degrees. Angle (or angle calculated based on the number of test directions).
2.3.
The complete post insulator is installed on a rigid support, and a bending load is applied to the free end of the test specimen. The offset at each load point is measured at 20%, 50%, and 70% of the mechanical failure load.
The complete post insulator is installed on a rigid support, and a bending load is applied to the free end of the test specimen. The offset at each load point is measured at 20%, 50%, and 70% of the mechanical failure load.
Main technical specification
1. Driving power form: full electronic servo loading
2. Maximum sample height: 1000mm-6000mm, customizable
3. Accuracy level: Level 1
4. Maximum bending load: 50kN
5. Bending measurement accuracy: within ±0.5% of the indicated value
6. Bending stroke: 1000mm
7. Bending control method: electronic servo closed-loop control (force, displacement, deformation closed-loop arbitrary program control)
8. Maximum torque: 20kN.m
9. Effective measurement range of torsion test force (kN): 1%~100%F•S
10. Torsional load measurement accuracy: within ±1% of the indicated value
11. Four-point bending conversion mode: 90° automatic completion
12. Torsion angle measurement accuracy: 0.1°
13. Torsion control method: servo motor closed-loop control (force, displacement, angle closed-loop arbitrary program control)
14. Working flange diameter: Ф800m
