Home >> Products >> Universal Testing Machine >> Horizontal Testing Machine >> horizontal tensile test machine

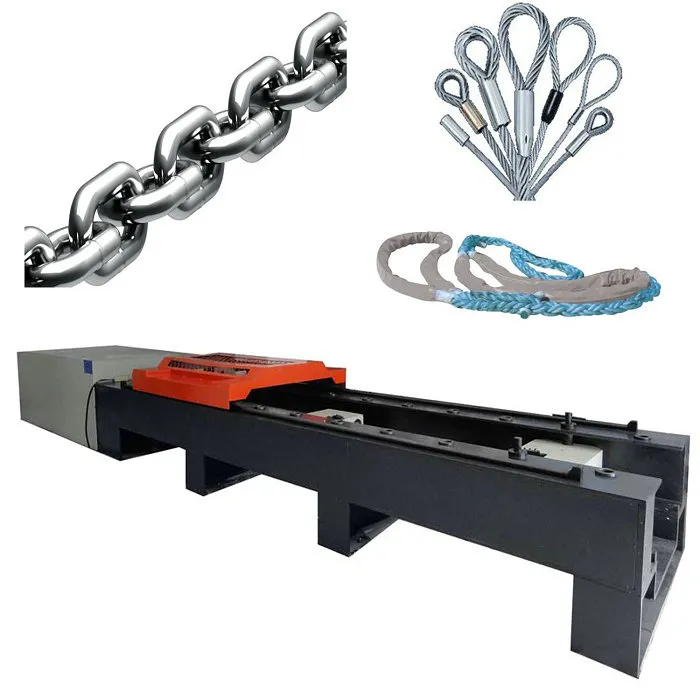

horizontal tensile test machine

Model: LDW, Electronic, computer control

Electronic horizontal tensile test machine can be used for tensile testing of various metal materials, steel wires, power fittings, chains, lifting belts, electric wires and cables, and other relatively long specimens. It can perform tests and research on electric wires and cables under increasing tensile stress, breaking tensile force, breaking strength, and elongation, as well as measure rated breaking force (RTS), maximum allowable tension (MAT), 20% RTS, 40% RTS, 60% RTS, and 2%~100% RTS; OPGW tensile performance; stress-strain properties of electric wires and cables; and creep performance of electric wires and cables over 1000 hours. It is widely used in metal products, construction structures, ships, military industry, and other fields. The microcomputer-controlled electronic horizontal tensile testing machine adopts our company's mature universal testing machine technology and incorporates a steel frame structure to convert a vertical test into a horizontal one. This increases the tensile space (which can be extended to over twenty meters, something a vertical test cannot achieve), meeting the requirements for testing large or full-size specimens.

Request a Quote >

General introduction

This testing machine uses an integrated steel plate welded frame structure. It is driven by an AC servo motor connected to a ball screw, with a load sensor measuring the force. The tensile space can be adjusted in stages according to the specimen's length. The computer screen displays the test force and test curve, and the test data is automatically processed according to the test method requirements. This machine is an ideal inspection device for coal and electricity enterprises, coal mining machinery, safety production inspection institutes, and technical supervision agencies. It is suitable for tensile load and failure tests of products such as electrical wires and cables, porcelain insulators, double hooks, steel strands, safety belts, waist ropes, and foot straps, requiring flexible and convenient operation, slow and stable loading, and strong machine bearing capacity.

The main machine of the testing machine is designed to be aesthetically pleasing, easy to operate, and has stable and reliable performance, with no pollution, low noise, and high efficiency. The auxiliary tools are designed to match the main machine, featuring a wedge-type sliding structure with manual or automatic rotational clamping, so that the specimen is unaffected by additional forces. Clamping is convenient, reliable, and slip-free.

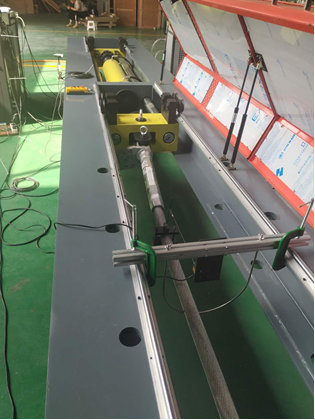

horizontal tensile test machine

Key Features

Main features
High-Strength Main Frame
Product Performance:

1. The testing machine is pollution-free, low noise, easy to operate and high efficiency;
2. The main engine shell adopts aluminum alloy shell, which is beautiful and generous;
3. The main engine is an integral floor-standing vertical structure, with high rigidity, stable performance and beautiful appearance;
4. Stretching and compression are realized in independent dual spaces, avoiding the cumbersome need to replace different test accessories in the same use space;
5. The main engine structure is strong and durable. Thick ball screws and guide light bars, thickened beams and bases constitute a strong rigid frame to meet the test of high-strength materials;
6. The upper and lower beams of the main machine and the worktable are synchronized with CNC processing as a whole to ensure excellent alignment, and when conducting axial tests, to ensure that the specimen is minimally affected by the lateral force under the load, and accurate stress and strain results are obtained;
7. The lead screw is a precision-ground ball screw, and the thread mother is made of cast copper material, which is wear-resistant. The lead screw pair has a small friction coefficient, high transmission efficiency, high precision and high strength;
8. The reduction mechanism composed of reducer, synchronous tooth belt and precision ball screw pair has a simple structure to ensure the synchronous movement of the lead screw and help the system to be centered.
9. With high-power motor with reserve power, preloaded bearing, low-tension synchronous toothed transmission belt, and precision ball screw pair, it can minimize the energy stored during the test process, so as to obtain better test performance and obtain more accurate modulus and strain values. The effect is particularly significant when testing high-strength materials, such as aviation composites and metal alloys.
10. The test process is controlled by AC servo motor and speed regulation system, with high control accuracy, smooth, high efficiency and low noise (low speed).
There is basically no noise). In addition, the control speed range is greatly widened (0.001-500mm/min), which is not only conducive to the low-speed test of conventional materials (metal, cement, concrete, etc.), but also conducive to the high-speed test of non-metallic materials (rubber, film, etc.), and is also convenient to quickly adjust the test space when no load and save auxiliary test time. The test speed meets the current test speed requirements of all conventional metal and non-metallic materials in China.
11. Multi-specification fixture adapter and multiple accessory options can realize the mechanical testing of a variety of materials and give the equipment more test functions;
12. The concentric ring and locating pin fully ensure the upper and lower coaxiality of the test fixture, so that the specimen is completely stressed in the axial direction;
13. The force value measurement adopts imported high-precision spoke load sensor, which has high comprehensive accuracy, high sensitivity and good repeatability. The test is not affected by external forces after random calibration, which can ensure the accuracy of the test process and parameters.
14. The force direction of the sensor is the same during tensile, compression and other tests, and the calibration and calibration are simple and convenient.
15. Sensors of different specifications can be configured according to the requirements, so that the test range is greatly widened to meet the measurement requirements of different test loads.
16. Deformation measurement is carried out using high-precision electronic extensometers or large-deformation extensometers;
17. Displacement measurement is realized through the displacement measurement system built into the AC servo motor;
18. The safe portable wireless remote control creatively integrates multiple functions, is very convenient to use, and greatly simplifies high-voltage configuration, reducing the use of discrete electrical components, thereby effectively lowering the electrical failure rate;
19. It allows fast/slow adjustment of the crosshead during specimen clamping, with flexible operation and easy switching;
20. It has the function of returning to the initial position after the test, efficiently and quickly;
21. It features comprehensive limit protection, overload and overcurrent protection, automatic shutdown upon test fracture, and other functions, making it reliable and safe;

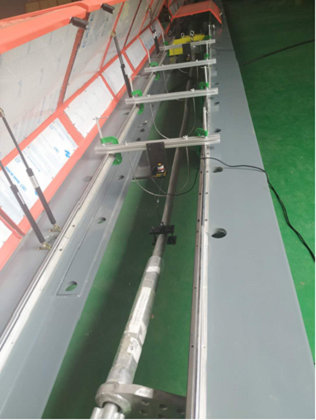

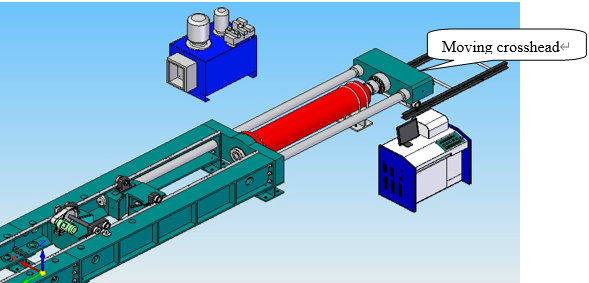

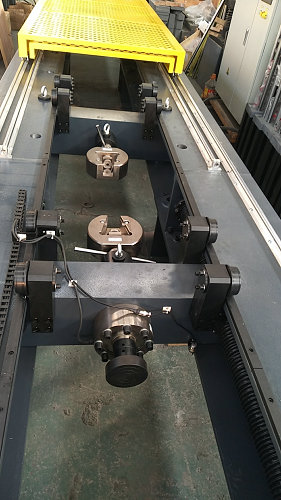

Main frame: main consist of oil cylinder, 1000KN oil cylinder, moving crosshead, pulling rod, two sides frame, front/back tensile fixture base and high accuracy load cell.
Oil cylinder base, frame is steel welding structure, moving crosshead, front/back pulling base consiste the loading unit.
On the pulling base, crosshead have latch type fixture, can do the steel rope, hang belt, lockset etc., test sample tensile test.


1. Uses an AC servo motor and AC servo speed control system to manage the testing process, greatly improving control accuracy and quality. It operates smoothly, efficiently, and quietly (virtually silent at low speed) with a greatly expanded speed range. This is beneficial for low-speed testing of conventional materials (metals, cement, concrete, etc.) as well as high-speed testing of non-metallic materials (rubber, plastics, etc.). It can also be used for quickly adjusting the test space when idle, saving auxiliary testing time. The test speeds meet the requirements for all conventional metal and non-metal material tests currently in China.
2. The reduction mechanism is composed of a synchronous toothed belt and a precision ball screw pair for a "strong-to-strong" connection, making the structure simpler and more streamlined, significantly improving transmission efficiency. The height of the left workbench and the main machine are also reduced, resulting in a more coordinated appearance.
3. Features a single-space tensile structure, which is convenient to operate and avoids the hassle of switching different test fixtures when performing tensile and compression-bending tests in the same space.
4. Can be configured with sensors of different specifications according to requirements, greatly expanding the test range to meet measurement needs for different testing loads.
5. The main machine has a stylish and aesthetically pleasing design.
6. Adopts advanced control technology with three closed-loop control modes for stress, strain, and displacement. The control loops can automatically switch between modes, and transitions between modes are smooth and impact-free. It can simultaneously display test force, peak value, displacement, speed, test status, and test curves.
7. Capable of controlling and maintaining test force, deformation, and displacement at set rates.
8. Allows for fast/slow adjustment of the crossbeam during specimen clamping, enabling flexible operations and easy switching.
9. Features a function to return to the initial position after the test ends, improving efficiency and speed.
10. Equipped with comprehensive limit protection, overload and overcurrent protection, and automatic shutdown after specimen fracture, ensuring reliability and safety.

Main technical specification

Max. Load	100KN/200Kn/300KN/500KN/600KN/1000KN
Load range	0.4%-100%FS
Load accuracy:	±1%
Load resolution:	1/500000, no scale
Displacement resolution	0.001mm
Deformation measuring accuracy	±1%
Speed range	0.001~500mm/min, stepless
Stress control speed accuracy	±1%(0.001~10mm/min); ±0.5%(10~500mm/min)
Constant load, deformation, displacement control range	1%-100%FS
Tensile test max. space (not include piston stroke)	3m/6m/10m/20m (according requirement)
Effective Width	500mm
Loading head stroke	1200mm
Compression platen	Dia. 150mm
Sample clamping method	Pin type
Safety device	With protection cover (full cover, hydraulic/pneumatic type, automatic lifting/closing).
Weight	5.5 tons

Main accessories (Standard delivery with machine)

High Stiffness Frame (welded with steel plate)	1 set
Servo driving system: Servo motor:	1 set
Load cell :	1 set
Import precision ball screw pairs	1 set
Deceleration system (precision planetary gear reducer plus arc tooth synchronous belt drive)	1 set
Two-channel program-controlled amplifier.	1 set
Photoelectric encoder	1 set
Tensile testing fixture (Pin type for cable tensile test)	1 set
Compression test fixture(Φ150mm) for calibration	1 set
Safety cover (The test space within 10 meters of the full coverage hydraulic (pneumatic) automatic lifting;work efficiency improvement	1 set
Tool kit (screwdriver, spanner etc.,)	1 set
Full digital closed-loop control system.	1 set
Professional testing software(SmartTest, English version)	1 set
Metal tensile testing method (ISO 6892);
Compression testing method (ASTM E9);
Customize testing method function available.
Computer (HP or LENOVO computer, 19-inch LCD monitor, English Win10 system)	1 set
Printer (HP A4 color inkjet printer)	1 set
Documents (Manual, packing list, certificate)
