plastics 3 points bending grip

plastics 3 points bending grip

ASTM D790, ISO 178

Plastics 3 points bending grip used to measure the flexural modulus or flexural strength of a plastic material, conform with stanard ASTM D790, ISO 178.  Plastic Flexural tests/bending test are generally used to determine the flexural modulus or flexural strength of a material. The material is laid horizontally over two points of contact (lower support span) and then a force is applied to the top of the material through either one or two points of contact (upper loading span) until the sample fails. The maximum recorded force is the flexural strength of that particular sample.


General introduction

Plastics 3 points bending grip used to measure the flexural modulus or flexural strength of a plastic material, conform with stanard ASTM D790, ISO 178.  Plastic Flexural tests/bending test are generally used to determine the flexural modulus or flexural strength of a material. The material is laid horizontally over two points of contact (lower support span) and then a force is applied to the top of the material through either one or two points of contact (upper loading span) until the sample fails. The maximum recorded force is the flexural strength of that particular sample.


Test procedure: For ASTM D790, the test is stopped when the specimen reaches 5% deflection or the specimen breaks before 5%. For ISO 178, the test is stopped when the specimen breaks. Of the specimen does not break, the test is continued as far a possible and the stress at 3.5% (conventional deflection) is reported.


Specimen: 3.2mm x 12.7mm x 125mm (0.125" x 0.5" x 5.0")

Test Speed:   R = ZL2/6d


where:

R = rate of crosshead motion, mm (in.)/min,

L = support span, mm (in.),

d = depth of specimen, mm (in.), and

Z = rate of straining of the outer fiber, mm/mm/min (in./

in./min). Z shall be equal to 0.01.


Span: for most material "Materials 1.6 mm (1⁄16 in.) or Greater in Thickness"

the span is 16 times of thickness, mean Span = 16*3.2= 51.2mm.  (Refer standard ASTM D790 section 7)


Test Fixture Loading Noses and Supports: Radius 5mm, diameter 10mm.

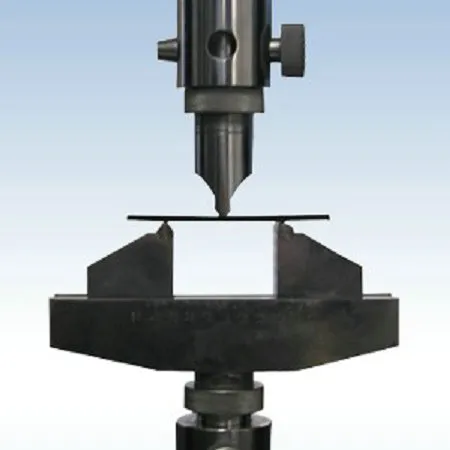

plastics 3 points bending grip

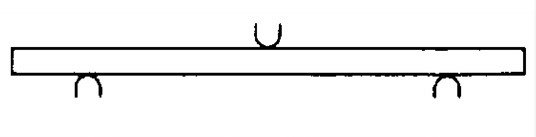

The specimen is deflected until rupture occurs in the outer surface of the test specimen or until a maximum strain of 5.0 % is reached, whichever occurs first.

plastics 3 points bending grip


ISO 178 plastic non-metal 3 point bending Flexure test fixture: Flexure tests/bending test are generally used to determine the flexural modulus or flexural strength of a material. The material is laid horizontally over two points of contact (lower support span) and then a force is applied to the top of the material through either one or two points of contact (upper loading span) until the sample fails. The maximum recorded force is the flexural strength of that particular sample.

Generally, there are two types of flexural test/bending tests:

3-point bend and 4-point bend. The materials that are tested using the flex test method vary from metal, plastic, wood, laminates, particle board, dry wall, ceramic tile to glass. Bending tests vary greatly based on the product being tested.

There are a variety of industry standards which are mostly based on the sample material under test. Flexure test/Bending tests generally involve the measurement of ductility of a sample material. Bending tests may involve taking the sample material to a specific limit and determining the load measurement and its relationship to a load specification (pass/fail). Or, it may involve bending a material until the material experiences a break and determining both the load and deflection required to initiative the break limit.

Features

  • Standard

ASTM D790 Testing for Flexural Properties of Plastics and Insulating Materials
ASTM F2606 Bending Balloon Vascular Stents 3 Point Test Machine

ISO 178 Plastics-Determination of Flexural Properties
ISO 14125 Plastic Composites Flexure Bend Test Machine

Specification

Compression Rating: 1kN / 10Kn , standard up to 300kN, depending on adapter specimen requirement.
Max Sample Span: 300mm or 600mm, or even 3000mm for large specimen
Standard Mandrel Sizes: 10mm, 20mm, 30mm, or customized.
Adapter Couping: 40mm female clevis with 12/16/20mm locking pin

Accessories

Upper loading nose.
Lower span (adjustable).
Roller.
Connection pin.

Standard

ISO 178 Plastics flexural / bending test –

ISO 178 Plastics - Determination of flexural properties

ISO 178 specifies a method for determining the flexural properties of rigid and semi-rigid plastics under defined conditions. A standard test specimen is defined, but parameters are included for alternative specimen sizes for use where appropriate. A range of test speeds is included.


ISO 178 test method is used to investigate the flexural behaviour of the test specimens and to determine the flexural strength, flexural modulus and other aspects of the flexural stress/strain relationship under the conditions defined. It applies to a freely supported beam, loaded at midspan (three-point loading test).

ASTM D790 Bending Test Flexural Properties of Unreinforced and Reinforced Plastics –

ASTM D790: Standard Test Methods for Flexural Properties of Unreinforced and Reinforced Plastics and Electrical Insulating Materials

ASTM D790 determines flexural (bending) properties for unreinforced plastics, reinforced plastics, high‑modulus composites and electrical insulating materials via three‑point bending on simply‑supported rectangular beam specimens. It applies to rigid and semi‑rigid materials. Flexural strength cannot be calculated if the specimen neither yields nor fractures on its outer surface before reaching 5 % maximum outer‑fiber strain.

ASTM D7264 Flexural test for Polymer Matrix Composites –

ASTM D7264 Standard Test Method for Flexural Properties of Polymer Matrix Composite Materials

ASTM D7264 measures flexural strength, flexural modulus, flexural strain and load‑deflection response under quasi‑static beam bending conditions. Two distinct loading procedures (A and B) are defined in this standard.


ASTM C203 Flexural Testing for Block-Type Thermal Insulation –

ASTM C203 — Standard Test Methods for Breaking Load and Flexural Properties of Block-Type Thermal Insulation

ASTM C203 evaluates breaking load and flexural properties (flexural strength / modulus of rupture) of pre‑formed block‑type thermal insulation and cellular plastics by simple‑beam bending tests.


ISO 1209-2 Flexural Strength & Apparent Flexural Modulus Testing for Rigid Cellular Plastics –

ISO 1209-2 Rigid cellular plastics - Determination of flexural properties - Part 2: Determination of flexural strength and apparent flexural modulus of elasticity

ISO 1209-2 specifies a three-point bending test method to determine, on rigid cellular plastics: Flexural strength (R) — the maximum fibre stress the foam develops in bending; Apparent flexural modulus of elasticity (E) — the stiffness in bending.

The word "apparent" is deliberate: cellular plastics are not homogeneous continua — the measured stiffness includes shear deflection and local cell-wall crushing/indentation under the loading and support edges, so E is an engineering, configuration-dependent value, not a true material constant valid for all geometries.

ASTM C1018 flexural performance of fiber-reinforced concrete (FRC)​ –

ASTM C1018 Standard Test Method for Flexural Toughness and First-Crack Strength of Fiber-Reinforced Concrete (Using Beam With Third-Point Loading)

ASTM C1018‑97 defines a four‑point (third‑point) bending test for fiber‑reinforced concrete (FRC). It quantifies first‑crack strength, toughness indices, and residual‑strength factors derived from the area under load‑deflection curves, to characterize post‑crack energy‑absorbing capacity of fiber‑reinforced concrete beams under static flexural loading. Absolute toughness values are specimen‑geometry‑dependent; toughness indices are dimensionless and unit‑independent for material comparison.

ASTM C1609 Flexural Test of Fiber Reinforced Concrete –

ASTM C1609 Standard Test Method for Flexural Performance of Fiber-Reinforced Concrete (Using Beam With Third-Point Loading)

ASTM C1609 evaluating the flexural performance of fiber‑reinforced concrete (FRC) using simply‑supported square‑section beams under third‑point (four‑point) bending loading with closed‑loop servo‑controlled testing equipment. It characterizes both pre‑cracking and post‑cracking flexural response via complete load‑net‑deflection curves, rather than only obtaining a single ultimate rupture strength value as for ordinary concrete beams.

ISO 16402 Acrylic resin cement Flexural fatigue testing –

ISO 16402:2008, Implants for Surgery - Acrylic Resin Cement - Flexural Fatigue Testing of Acrylic Resin Cements Used in Orthopaedics, is an international standard dedicated to testing the flexural performance of acrylic resin bone cement applied in orthopedic surgeries. It plays a critical role in ensuring the long-term mechanical stability of bone cement, which is essential for the success of orthopedic implants.

Bone Cement Four-Point Bending Fatigue Test is primarily used to evaluate the fatigue performance of bone cement materials under four-point bending conditions. Specifically, it can conduct mechanical performance tests, such as fatigue durability and lifespan, on specimens of bone cement, biomaterials, surgical implant materials, and medical materials. By simulating real-world stress conditions, the tester assesses the bending strength, fatigue life, deformation characteristics, and performance of bone cement under various environmental conditions. These test results are crucial for ensuring the reliability and safety of bone cement in practical applications, aiding in product design optimization, production process improvement, and overall product quality enhancement.

ASTM D6109 Flexural Test of Unreinforced and Reinforced Plastic Lumber –

ASTM D6109 – Standard Test Methods for Flexural Properties of Unreinforced and Reinforced Plastic Lumber and Related Products


As Per ASTM D6109, "The test methods are suitable for determining the flexural properties for any solid or hollow manufactured plastic lumber product of square, rectangular, round, or other geometric cross section that shows viscoelastic behavior. The test specimens are whole "as manufactured" pieces without any altering or machining of surfaces beyond cutting to length. As such, this is a test method for evaluating the properties of plastic lumber as a product and not a material property test method. Flexural strength cannot be determined for those products that do not break or that do not fail in the extreme outer fiber."

Applicable Products: Plastic lumber products
