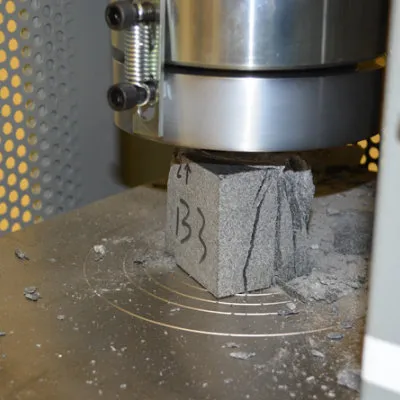

Refractories Crush Modulus Rupture Test grip

Refractories Crush Modulus Rupture Test grip

ASTM C133

Refractories Crush Modulus Rupture Test grip uses ro generate the compressive load on tes sample, Compressive strength is one of the most widely used parameters for evaluating refractories. Strength can be measured at room temperature or at any temperature for which suitable test equipment exists.

Room temperature (cold) strength (CCS) measurements cannot be used directly to predict service performance, but do provide a good tool for evaluating the degree of bond formation during production.

Room temperature testing also indicates the ability of brick to withstand handling and shipping without damage and to withstand abrasion and impact in relatively low-temperature applications. Strength testing at elevated temperatures is valuable in assessing the ability of a material to survive stresses caused by restrained thermal expansion, thermal shock and mechanical loading. Impact and abrasion resistance depend on material strength, as well.

Conform with standard ASTM C133: Standard Test Methods for Cold Crushing Strength and Modulus of Rupture of Refractories.

General introduction

Refractories Crush Modulus Rupture Test grip uses ro generate the compressive load on tes sample, Compressive strength is one of the most widely used parameters for evaluating refractories. Strength can be measured at room temperature or at any temperature for which suitable test equipment exists.

Room temperature (cold) strength (CCS) measurements cannot be used directly to predict service performance, but do provide a good tool for evaluating the degree of bond formation during production.

Room temperature testing also indicates the ability of brick to withstand handling and shipping without damage and to withstand abrasion and impact in relatively low-temperature applications. Strength testing at elevated temperatures is valuable in assessing the ability of a material to survive stresses caused by restrained thermal expansion, thermal shock and mechanical loading. Impact and abrasion resistance depend on material strength, as well.

It is also common to use high temperature strength numbers to predict resistance to erosion and corrosion by metals and slags, although other properties, such as mineral composition and porosity, may be of equal or greater importance. Two types of strength tests are common.

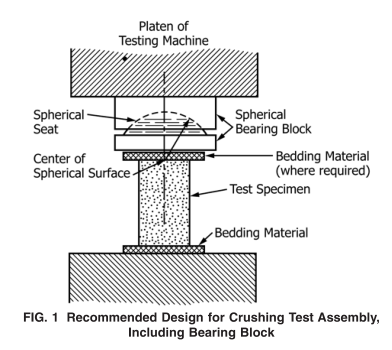

The modulus of rupture (MOR) test measures the flexural (transverse) breaking strength and the crushing strength test measures the compressive strength. Both tests have a version for cold (ambient) temperatures and high (service) temperatures. The cold crushing strength (CCS) and cold modulus of rupture tests are described by ASTM C133. In the cold crushing strength test, a sample 41/2” x 41/2” x 21/2” or 3” is loaded at a standard rate using a suitable mechanical testing machine. The load is applied vertically to the 41/2” x 41/2” face of the sample until failure. The crushing strength is calculated by dividing the maximum load supported by the sample over the surface area of the face which receives the load.

Refractories Crush Modulus Rupture Test grip

Specification

Compression fixture Diameter:100mm, 120mm.
Prefered sample size:
1, for compression strength: 10mm lenth, 10mm width, 4mm thickness.
2, for compression modulus test: 50mm lenth, 10mm width, 4mm thickness.

Standard

ASTM C203 Flexural Testing for Block-Type Thermal Insulation –

ASTM C203 — Standard Test Methods for Breaking Load and Flexural Properties of Block-Type Thermal Insulation

ASTM C203 evaluates breaking load and flexural properties (flexural strength / modulus of rupture) of pre‑formed block‑type thermal insulation and cellular plastics by simple‑beam bending tests.


ASTM C133 Cold Crushing Strength and Modulus of Rupture of Refractories Test –

ASTM C133 determines the cold crushing strength and the modulus of rupture (MOR) of dried or fired refractory shapes of all types. This test method determines room temperature flexural strength in 3-point bending for cold modulus of rupture and compressive strength for cold crushing strength. This method is useful in research, design, manufacturing, and developing purchasing specifications.

Strength is one of the most widely used parameters for evaluating refractories. Strength can be measured at room temperature or at any temperature for which suitable test equipment exists. ASTM C133 Refractory CCS & MOR Testing Machine
