What Is Hydrostatic Pressure Testing?

What Is Hydrostatic Pressure Testing?

Hydrostatic pressure testing is a controlled method used to determine whether a pipe, fitting, or piping assembly can withstand internal pressure without unacceptable leakage, deformation, or rupture. During the test, the specimen is filled with water, sealed with suitable end closures, conditioned at a specified temperature, and pressurized according to an applicable standard. The pressure may be held constant for a defined period or increased until the specimen fails, depending on the purpose of the test.

For thermoplastic and composite pipes, pressure alone does not tell the whole story. Performance also depends on temperature and exposure time. A pipe that survives a short pressure peak may still creep or crack after remaining under a lower pressure for hundreds or thousands of hours. A complete laboratory program may therefore include both short-term burst testing and long-term constant-pressure testing.

What Does a Hydrostatic Pressure Test Measure?

Hydrostatic pressure testing can answer several questions about a piping product.

It can verify whether a specimen remains leak-tight under a specified internal pressure for a required holding time. This is useful for product qualification, production quality control, and verification of pipes, fittings, and assembled joints.

It can also measure time to failure under constant pressure. The specimen remains pressurized until leakage, rupture, or another defined failure occurs. The recorded result allows engineers to compare materials, formulations, production batches, and processing conditions.

A short-time hydraulic burst test answers a different question: what maximum pressure can the sample resist under a controlled, rapidly increasing load? The equipment records burst pressure, failure time, and failure mode. This result is valuable for rapid quality checks, but it should not be used by itself to predict long-term service life.

Finally, multiple tests performed at different hoop stresses and temperatures can provide data for long-term strength evaluation. Standards such as ISO 9080 use stress-rupture data and statistical extrapolation to classify the long-term hydrostatic strength of thermoplastic pipe materials.

Why Is Water Used Instead of Compressed Air?

Water is commonly used because it is readily available, compatible with many plastic piping materials, and far less compressible than air or gas. Compressed gas stores substantial energy. If a sample or connection fails during pneumatic testing, that energy may be released suddenly. A water-filled test system generally stores less elastic energy, making hydrostatic testing the preferred method when the product and test standard permit it.

Hydrostatic testing is still a high-pressure operation. A water jet can injure personnel, a failed hose can move violently, and an incorrectly installed end closure may become a projectile. The test area should therefore use secure connections, appropriate pressure limits, shielding, controlled depressurization, and restricted access. Trapped air must be removed before pressurization because an air pocket increases both pressure instability and stored energy.

How Does the Test Work?

Internal water pressure creates circumferential stress, commonly called hoop stress, in the pipe wall. The stress level is related to the applied pressure and the specimen dimensions, particularly its outside diameter and wall thickness. Accurate dimensional measurement is therefore part of specimen preparation, not an optional inspection.

Thermoplastics are sensitive to both time and temperature. Higher temperature generally accelerates creep, while higher hoop stress tends to shorten the time to failure. Meaningful test results require controlled pressure, stable temperature, properly conditioned samples, accurate timing, and calibrated measurement devices.

Depending on the method, a specimen may be tested with water inside while the outside is surrounded by water, air, or another controlled liquid. Water-in-water testing is common because a circulating bath can provide stable, uniform temperature control. In a multi-station system, each station should control its assigned pressure independently so that the failure of one specimen does not interrupt other long-duration tests.

The Two Main Types of Pipe Hydrostatic Testing

Constant-Pressure Testing

In a constant-pressure test, the specimen is subjected to a specified internal pressure at a controlled temperature for a stated period or until failure. The duration may range from a short qualification period to thousands of hours, depending on the standard and the test objective.

The result may be reported as a pass or fail after the required holding time, or as the measured time to failure. ASTM D1598 addresses time-to-failure testing of plastic pipe under constant internal pressure. ISO 1167 provides a general method for determining the resistance of thermoplastic pipes, fittings, and assemblies to internal pressure at a given temperature.

Short-Time Burst Testing

In a burst test, pressure rises continuously at a controlled rate until the specimen fails or reaches a specified minimum pressure. ASTM D1599 covers the short-time hydraulic pressure resistance of plastic pipe, tubing, and fittings.

Burst testing is useful for batch comparison, incoming inspection, process monitoring, and design verification. However, it represents short-duration behavior. It cannot replace sustained-pressure testing when the objective is to evaluate creep resistance, time to failure, or long-term hydrostatic strength.

Typical Hydrostatic Pressure Testing Procedure

1. Select the Applicable Standard

The product standard and test method determine specimen geometry, conditioning time, test temperature, target pressure or hoop stress, pressure ramp, duration, failure criteria, and report format. A generic pressure multiplier should not replace the exact conditions specified for the pipe material and product.

2. Prepare and Measure the Specimen

The sample is cut to the required length and inspected for damage. Outside diameter and wall thickness are measured with suitable calibrated instruments. The laboratory records the sample identification, material, dimensions, production batch, and preparation details. These measurements may be used to calculate the internal pressure needed to produce the required hoop stress.

3. Install the End Closures

End closures are selected according to sample diameter, pressure, material, test duration, and standard requirements. They must seal reliably without creating an unintended failure point. Misalignment, damaged seals, or unsuitable closure geometry can cause leakage at the ends and invalidate the result.

4. Fill the Sample and Remove Air

The specimen is completely filled with water. Air is vented from the highest practical point until a continuous air-free stream appears. Proper venting improves pressure stability and reduces stored energy in the test assembly.

5. Condition the Specimen

The sealed sample is placed in a constant-temperature bath or other specified environment for the required conditioning period. The entire specimen must reach the test temperature before loading begins. Starting too early can distort pressure-control and time-to-failure results.

6. Apply and Maintain Pressure

Pressure is raised according to the required ramp. During a sustained-pressure test, the controller maintains the target value for the specified duration. During a burst test, pressure continues to increase at the defined rate until failure or until the minimum required pressure is reached.

7. Record the Test

The system records pressure, time, and temperature. For extended tests, automatic monitoring is essential. When a specimen leaks or ruptures, the system should stop timing for that station, preserve its data, and allow unaffected stations to continue operating.

8. Depressurize and Inspect

After the test, pressure is released in a controlled manner before anyone handles the specimen or closures. The operator records the failure location and appearance. A useful report distinguishes failure in the free pipe length from leakage at an end seal, a fitting, an assembled joint, or a test connection.

What Equipment Is Required?

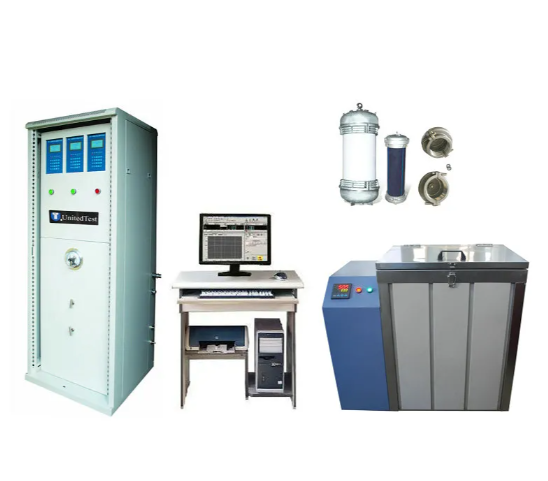

A laboratory pipe hydrostatic pressure testing system normally includes a pressure-generating unit, independent pressure-control stations, calibrated sensors, connection lines, end closures, a constant-temperature tank or chamber, and data acquisition software.

The pressure range should cover the intended constant-pressure and burst tests while maintaining suitable measurement resolution. The number of stations should reflect laboratory throughput and test duration; long-term samples may occupy a station for weeks or months. Independent station control allows different samples to run at different pressures and for different durations.

Temperature control is equally important. Adequate bath circulation reduces temperature gradients between specimens. The software should display real-time pressure, create pressure-time curves, log failures, and generate traceable reports. Suitable end closures are needed for every relevant pipe and fitting size.

How Are Results Interpreted?

A stable pressure reading alone does not prove that a specimen has passed. Acceptance must follow the referenced product specification. Typical criteria include no leakage, no rupture, no prohibited deformation, and completion of the required holding time. For a burst test, the sample must reach the specified minimum pressure within the required loading conditions.

Failure mode matters. A rupture in the free pipe length may reveal a material or manufacturing issue. Leakage at an end closure may indicate incorrect installation rather than weak pipe. Failure at a joint may point to assembly error, pipe-and-fitting incompatibility, or a joint design problem. Exact failure locations and photographs make the data more useful for root-cause analysis.

Long-term strength assessment requires multiple specimens tested at several stress levels and temperatures. The relationship between hoop stress, temperature, and failure time is then evaluated statistically. ISO 9080 provides a framework for extrapolating long-term hydrostatic strength from a body of test data. One short burst result cannot provide the same information.

Common Causes of Unreliable Results

Residual air, inaccurate wall-thickness measurements, poor temperature control, inadequate conditioning, and leaking end seals are frequent sources of error. Other problems include expired sensor calibration, an uncontrolled pressure ramp, incorrect specimen identification, and incomplete failure records.

Test pressure should not be chosen only from the nominal pressure rating printed on the pipe. It must be based on the material, measured dimensions, temperature, duration, end-closure configuration, and exact standard or product specification. If any of these inputs are wrong, a technically precise testing machine can still produce a misleading result.

Common Standards for Plastic Pipe Testing

ISO 1167 covers the determination of resistance to internal pressure for thermoplastic pipes, fittings, and assemblies used to convey fluids. ASTM D1598 covers time-to-failure testing under constant internal pressure. ASTM D1599 covers resistance to short-time hydraulic pressure for plastic pipe, tubing, and fittings. ISO 9080 addresses the determination of long-term hydrostatic strength by extrapolating data from multiple pipe tests.

The correct edition and any applicable product-specific standard should always be confirmed before testing. The test-method standard explains how to conduct the test, while the product specification normally defines the actual temperature, stress, duration, sample quantity, and acceptance criteria.

Why Hydrostatic Pressure Testing Matters

Hydrostatic pressure testing connects material properties, manufacturing quality, and actual pressure-bearing performance. It can reveal variations caused by resin formulation, extrusion conditions, wall thickness, contamination, fitting manufacture, or joint design. Pipe manufacturers use it for product development, type testing, batch verification, production control, and customer documentation. Quality inspection organizations and research laboratories use the same principles to compare materials and validate piping products under repeatable conditions.

For laboratories and pipe manufacturers that need equipment for these methods, UnitedTest supplies pipe hydrostatic pressure testing solutions for thermoplastic and composite pipes, including HYD-B and HYD-C systems, independent multi-station pressure control, constant-temperature tanks, and end closures for pipes and fittings. Systems can be configured for ISO 1167, ASTM D1598, and ASTM D1599 programs, with pressure range, station quantity, specimen diameter, temperature control, and reporting functions selected according to the samples and testing requirements.
