Triaxial Testing: A Beginner's Guide for Geotechnical Testing Engineers

May. 13, 2026

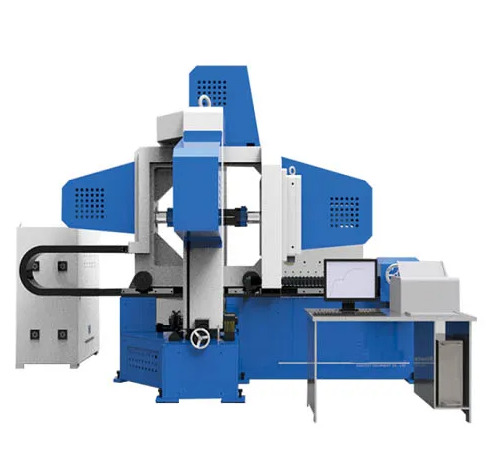

Triaxial testing is one of the most widely used laboratory methods in geotechnical engineering for evaluating soil strength and deformation behavior under controlled stress conditions. It plays a critical role in modern civil engineering design, helping engineers predict how soil will perform when subjected to loads from structures such as buildings, roads, embankments, tunnels, and retaining systems.

For beginners in geotechnical testing, triaxial testing may seem complex at first. However, once the core principles are understood, it becomes a logical and highly practical method for simulating real ground conditions in the laboratory.

This guide explains the fundamentals of triaxial testing, its purpose, test types, procedures, and engineering applications in a clear and structured way.

What is Triaxial Testing?

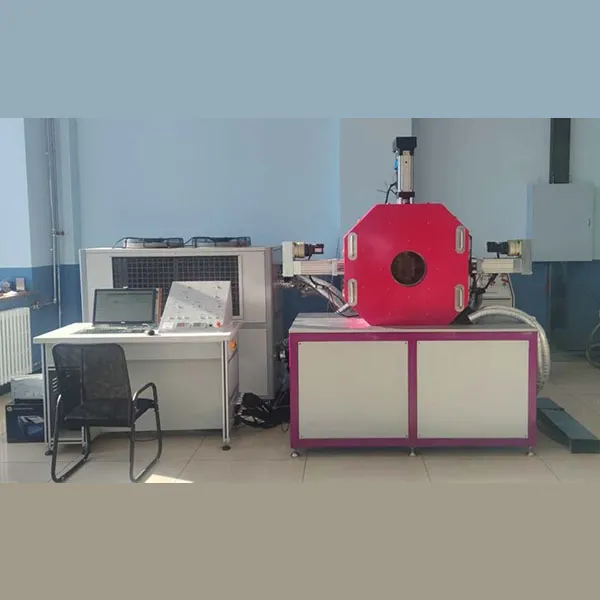

Triaxial testing is a laboratory soil testing method used to determine the mechanical properties of soil under different stress environments. In this test, a cylindrical soil sample is placed inside a sealed chamber and subjected to controlled pressure from all sides, while an additional vertical load is applied until the sample fails.

The term “triaxial” refers to the three principal stresses acting on the soil specimen:

· Vertical stress (applied load)
· Radial confining pressure (from surrounding fluid)
· Intermediate stress condition within the sample

By controlling these stresses, engineers can simulate in-situ conditions more realistically than simpler tests, allowing for a better understanding of soil strength and deformation characteristics.

Why Triaxial Testing is Important

Soil behavior in the field is highly variable and depends on stress history, drainage conditions, and loading rate. Triaxial testing helps engineers reproduce these conditions in a controlled laboratory environment.

The results from triaxial tests are used to determine key soil parameters such as:

· Shear strength
· Cohesion (c)
· Internal friction angle (φ)
· Stress-strain relationship
· Pore water pressure response

These parameters are essential for designing safe and stable geotechnical structures. Without accurate soil strength data, construction projects could face risks such as settlement, slope failure, or foundation instability.

Basic Working Principle

The triaxial test works by applying two types of stress to a soil sample:

1. Confining pressure (σ₃):

A uniform pressure applied around the sample using water or air inside the triaxial chamber. This simulates the pressure exerted by surrounding soil in the ground.

2. Axial stress (σ₁):

A vertical load applied using a loading piston, increasing stress until the soil fails.

The difference between axial stress and confining pressure is called deviator stress, which increases gradually during the test until failure occurs.

This controlled stress environment allows engineers to study soil behavior under different loading and drainage conditions.

Types of Triaxial Tests

Triaxial testing is generally divided into three main types, depending on how drainage is controlled and how the soil is loaded.

1. Unconsolidated Undrained (UU) Test

The UU test is a fast method used to determine the undrained shear strength of soil.

Key characteristics:

· No consolidation stage before testing
· No drainage allowed during loading
· Quick results, typically completed in a short time
· Represents short-term loading conditions

This test is commonly used for clay soils where rapid loading occurs, such as during construction or sudden loading events.

2. Consolidated Undrained (CU) Test

The CU test is one of the most commonly used triaxial tests in engineering practice.

Key characteristics:

· Soil is first allowed to consolidate under confining pressure
· No drainage during shear stage
· Pore water pressure is measured during testing
· Provides both total and effective stress parameters

This test closely simulates real field conditions where soil is loaded after consolidation but does not drain quickly during loading, such as during rapid construction phases.

3. Consolidated Drained (CD) Test

The CD test represents long-term soil behavior under fully drained conditions.

Key characteristics:

· Soil is fully consolidated before shear
· Drainage is allowed throughout the test
· Very slow testing process
· No excess pore water pressure buildup

Because drainage is fully allowed, this test reflects long-term stability conditions, making it suitable for analyzing structures like embankments and slopes over time.

Triaxial Test Procedure

Although different test types vary slightly, the overall triaxial testing process generally follows three main stages.

1. Sample Preparation

A cylindrical soil sample is carefully prepared, typically with a height-to-diameter ratio of 2:1. The sample may be undisturbed (taken from the field) or remolded in the laboratory.

The specimen is then wrapped in a rubber membrane and placed inside the triaxial chamber. Porous stones are added at the top and bottom to allow drainage when required.

2. Saturation and Consolidation

Before shearing, the sample is saturated to remove air voids. This ensures that pore water pressure measurements are accurate.

In many tests, a consolidation phase is included, where confining pressure is applied and the sample is allowed to stabilize. During this stage, water may be allowed to drain depending on the test type.

This stage simulates the natural stress conditions the soil experiences underground.

3. Shearing Stage

Once preparation is complete, axial load is applied at a controlled rate while confining pressure is maintained constant.

Depending on the test type:

· In undrained tests, pore pressure builds up inside the sample
· In drained tests, water is allowed to flow freely

The test continues until the soil reaches failure, which is typically observed at significant deformation levels.

Key Data Collected

During triaxial testing, several important measurements are recorded:

· Axial load
· Axial deformation (strain)
· Confining pressure
· Pore water pressure (if applicable)
· Volume change (in drained tests)

From these values, engineers derive stress-strain curves and determine soil strength parameters used in design calculations.

Applications in Geotechnical Engineering

Triaxial test results are widely used in various engineering applications, including:

· Foundation design and bearing capacity analysis
· Slope stability evaluation
· Earth dam and embankment design
· Tunnel and underground structure analysis
· Retaining wall design

Because it provides realistic stress conditions, triaxial testing is considered one of the most reliable methods for soil strength evaluation.

Advantages and Limitations

Advantages

· Simulates real stress conditions effectively
· Allows control over drainage conditions
· Provides detailed stress-strain behavior
· Measures pore water pressure directly

Limitations

· Requires specialized and expensive equipment
· Testing process can be time-consuming
· Sensitive to sample disturbance
· Requires experienced operators for accurate results

Conclusion

Triaxial testing is a fundamental laboratory method in geotechnical engineering that provides essential insights into soil behavior under controlled stress conditions. By replicating real-world loading scenarios, it helps engineers design safer and more reliable infrastructure.

For beginners in geotechnical testing, understanding triaxial testing is an important step toward mastering soil mechanics and its practical engineering applications.
