ASTM G154 Fluorescent UV Lamp Exposure Test for Exposure of Materials

Share:

ASTM G154 Fluorescent UV Accelerated Weathering Tester | UnitedTest

UnitedTest manufactures reliable ASTM G154 compliant fluorescent ultraviolet weathering chambers, designed to perform accelerated UV exposure testing for non-metallic materials used across multiple industries.


ASTM G154 Standard Practice for Operating Fluorescent Ultraviolet (UV) Lamp Apparatus for Exposure of Materials sets consistent guidelines for operation, measurement and control of fluorescent UV accelerated weathering chambers. This testing method simulates outdoor aging degradation triggered by solar ultraviolet radiation, heat, and moisture such as dew or rain on non-metallic specimens.


It is critical to note that ASTM G154 only specifies equipment operating protocols. It needs to be used alongside material-specific standards to define exposure cycles and performance assessment criteria and cannot support independent test evaluation. Additionally, this standard is not suitable for corrosion testing of bare metal materials. Laboratories utilize UV weathering test data to predict service life, compare formulation stability, and assess color fading, surface cracking and other aging defects of plastics, coatings, textiles and coatings.


Test Principle

Natural sunlight’s UV segment is the primary driver of polymer, coating and plastic degradation (chain scission, oxidation, discoloration, cracking). This test uses fluorescent UV lamps to isolate and amplify damaging UV wavelengths under controlled temperature, paired with cyclic moisture exposure (condensation or water spray) to replicate real outdoor dew/rain cycles.

By compressing years of natural outdoor weathering into hundreds/thousands of laboratory hours, the test accelerates UV-induced material aging. Different lamp types match distinct end-use spectral environments, to reproduce degradation modes consistent with actual service conditions.


Types of Lamps (Light Sources)

The spectral power distribution (SPD) of the lamp is the single most important factor determining test severity. G154 recognizes three principal fluorescent UV lamp families:

Lamp typePeak emissionPrimary application

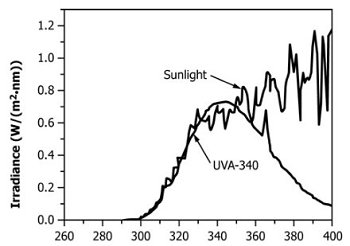

UVA‑340~343 nm

Simulates the short‑ and mid‑wave UV of direct outdoor sunlight (295‑365 nm). Recommended for realistic correlation.

ASTM G154 Fluorescent UV Lamp Exposure Test for Exposure of Materials

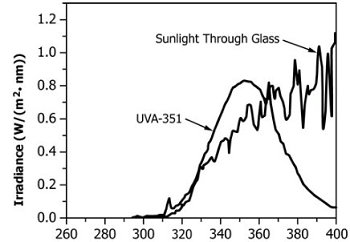

UVA‑351~350 nm

Simulates sunlight filtered through window glass; used for indoor / behind‑glass applications.

ASTM G154 Fluorescent UV Lamp Exposure Test for Exposure of Materials

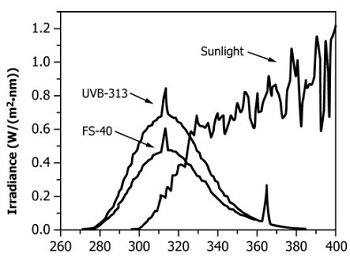

UVB‑313 (incl. FS‑40)~313 nm

Emits significant radiation below 295 nm (the natural solar cut‑on). Not recommended for sunlight simulation; used for rapid, aggressive QC screening.

May generate degradation mechanisms not seen outdoors.

ASTM G154 Fluorescent UV Lamp Exposure Test for Exposure of Materials


Test Specimen Specifications

Preparation rules follow ASTM G151 general guidance: uniform surface, clean, defect-free test faces; mark identification on non-test areas only.

Sample quantity requirements:

Minimum 3 replicate specimens per material for statistical analysis of property changes.

Two control reference materials must be tested simultaneously: one known poor weather durability, one known good durability, for comparative benchmarking.

Blank corrosion-resistant panels must fill empty rack slots to guarantee uniform UV and heat exposure across all samples.


Test Equipment of ASTM G154 Fluorescent UV Lamp Exposure Test for Exposure of Materials

Recommend UnitedTest QUV Accelerated Weathering Tester Minly consist of below:

Test Chamber

Constructed with UV/corrosion-resistant materials; no brass, copper or plain steel near specimens to avoid contamination.

Uniform UV irradiance across specimen rack (per ASTM G151 uniformity rules).

Edge positions at lamp ends deliver ≥90% of central irradiance; exclude edge slots if samples do not fully fill racks.

Integrated moisture generation system: two valid moisture modes:

Condensation: Heat water to generate vapor that condenses on cold specimen surfaces (most common).

Intermittent demineralized water spray.

Fluorescent UV lamp

one or more lamps of a single type, positioned so that irradiance uniformity on the specimen plane meets the requirements of ASTM G151.

UVA-340 (peak 343 nm): Simulates direct outdoor sunlight UV spectrum; minimal emission below 295 nm (the natural solar UV cut-off wavelength on Earth surface).

Most widely used for outdoor-exposed materials.

UVA-351 (peak 350 nm): Matches UV spectrum filtered by ordinary window glass; designed for indoor materials behind transparent glazing.

UVB-313 (peak 313 nm, including FS-40 variant): Emits high-energy short-wave UV below 295 nm that does not exist in natural sunlight; causes ultra-fast, often non-realistic degradation.

Only used for severe screening tests, not authentic sunlight simulation.

Measuring InstrumentsRadiometer: Tracks UV irradiance at specimen plane, traceable to national metrology institutes (NMI).

Black Panel Thermometer (BPT, primary temperature control sensor)

Uninsulated BPT: For thin/highly thermally conductive samples (metal-backed coatings, thin films).

Insulated BPT: For thick, insulating materials (solid plastics, foams).

Mounted on specimen racks to receive identical UV/heat exposure as test samples.

Water quality control system: Spray water conductivity <5 μS/cm, solids <1 ppm, silica <0.2 ppm, pH documented in reports.

Specimen holders: Aluminum or stainless steel only, no reactive alloys.


Test Parameters

ParameterDescription / Typical range
Lamp typeUVA‑340, UVA‑351, or UVB‑313
Irradiance levele.g., 0.89 W/m² at 340 nm for UVA‑340 (commonly used set‑point)
Cycle structureLight‑only, light‑dark, light‑condensation, or light‑spray periods
Black‑panel temperatureTypically 50‑70 °C during UV phase; ~50 °C during condensation
Chamber air temperatureControlled as needed
Moisture mode & durationCondensation (often 4 h) or spray periods
Total exposure durationSet by the referencing standard; commonly hundreds to thousands of hours
Repositioning scheduleRequired if irradiance uniformity falls below 90 % of centre value

Lamps must be rotated, specimens repositioned regularly if edge irradiance is 70–90% of central value, to equalize cumulative UV exposure for all samples. If edge irradiance ≥90% of center, repositioning is optional but recommended.

Test interruption (maintenance, inspection) must be minimized; intermediate inspections or test termination should end during dry UV phases, not wet condensation cycles.


Standard Test Procedures of ASTM G154 Fluorescent UV Lamp Exposure Test for Exposure of Materials

Specimen preparation: Clean, mark ID on non-test zones, record initial physical properties (color, gloss, tensile strength, hardness) before exposure; retain unexposed reference samples stored in dark environment.

Chamber setup: Install selected lamp type (no mixed lamps), calibrate radiometer and black panel thermometer, fill empty rack slots with blank panels.

Mount specimens without mechanical stress; place reference control materials alongside test samples.

Program custom cyclic exposure parameters (UV dry period + moisture condensation/spray period, temperature targets).

Start continuous cyclic exposure; perform scheduled specimen repositioning/lamp rotation to balance irradiance variance.

Periodic inspection (if required): Handle samples only when dry, avoid touching test surfaces, restore original orientation after inspection.

Complete full exposure duration (defined by radiant energy or cycle count).

Post-exposure property testing: Quantify all degradation indicators per standardized evaluation methods.

Compile full test report per ASTM G151 and ASTM G154 Clause 10 requirements.

Regular equipment maintenance and recalibration after test completion.


Applicable Industry Fields

ASTM G154 fluorescent UV aging testing is widely used for all non-metallic materials requiring outdoor/indoor light durability validation:

Coatings & Paints: Automotive exterior/interior coatings, architectural wall/roof paints, industrial protective coatings, wood varnishes, coil coatings.

Plastics & Polymers: Outdoor plastic components, roofing sheets, window profiles, electronic plastic housings, packaging films, foam materials, rubber elastomers.

Construction Materials: Sealants, adhesives, composite siding, decorative laminates, outdoor flooring.

Automotive & Transportation: Interior trim, window gaskets, exterior plastic trims, tire sidewall materials.

Printing & Textiles: Outdoor advertising ink, UV-print labels, awning fabrics, outdoor garment textiles.

Consumer Goods: Outdoor furniture, cosmetic containers, sporting equipment, decorative plastic ornaments.


Related Test Standard:

ASTM G154Standard Practice for Operating Fluorescent Ultraviolet (UV) Lamp Apparatus for Exposure of Nonmetallic Materials
ISO 4892-3Plastics — Methods of exposure to laboratory light sources — Part 3: Fluorescent UV lamps
GB/T 16422.3Plastics—Methods of exposure to laboratory light sources—Part 3: Fluorescent UV lamps
ISO 16474-3Paints and varnishes - Methods of exposure to laboratory light sources - Part 3: Fluorescent UV lamps
ASTM G155Xenon arc lamp weathering test (full-spectrum simulation including visible light, complementary to G154 UV-only testing).
SAE J2020Automotive‑specific UV‑weathering test that operates within the G154 framework.
ASTM B117 / G85Salt‑spray / cyclic‑corrosion tests – often combined with G154 in a “UV + corrosion” sequence for protective‑coating qualification.
ASTM D4329Standard Practice for Fluorescent Ultraviolet (UV) Lamp Apparatus Exposure of Plastics


Keywords: UnitedTest ASTM G154 tester, ASTM G154 fluorescent UV weathering chamber, UV accelerated weathering test machine, fluorescent ultraviolet exposure testing equipment, ASTM G154 non-metallic material UV aging test chamber, fluorescent UV lamp accelerated weathering apparatus, UV dew rain simulation material aging tester, outdoor solar ultraviolet simulation weathering equipment, plastic coating fading accelerated exposure test machine

Related products and device

ASTM G154 QUV Accelerated Weathering Tester

QUV Accelerated Weathering Chamber adopts the fluorescent ultraviolet lamp that best simulates the UV segment spectrum in sunlight, and combines temperature control, moisture supply and other devices to simulate the sunlight (UV segment) that causes discoloration, brightness, intensity reduction.

Related Standard

ASTM G155 Xenon Arc Lamp Test for Exposure of Materials Metals & Alloys

ASTM G155: Standard Practice for Operating Xenon Arc Lamp Apparatus for Exposure of Materials


The ASTM G155 test apparatus exposes specimens to light, heat, and optionally moisture, often to attempt to replicate specimen property changes observed in outdoor and indoor end-use environments. Exposures are not intended to simulate the deterioration caused by localized weather phenomena, such as atmospheric pollution, biological attack, and saltwater exposure.


ASTM D4329 Ultraviolet (UV) Lamp Exposure of Plastics

ASTM D4329 covers specific procedures and test conditions based on practices ASTM G151 as well as ASTM G154.  ASTM D4329 also covers the preparation of test specimens, the test conditions best suited for plastics, and the evaluation of test results.


ASTM D4329 useage:

Polymers can have their mechanical, electrical and optical properties significantly altered when exposed under outdoor conditions such as light, heat and water. This method is intended to prompt property changes associated with end-use conditions, including the effects of daylight, moisture in addition to heat. The simulation of the deterioration provoked by localized weather, such as, atmospheric pollution, biological attack, and saltwater exposure is not intended by the exposure used in this practice. For a combination of fluorescent light exposure and salt water, you should consider ASTM D5894.

Frequently Asked Questions — ASTM G154 Fluorescent UV Weathering Test

Q1. What exactly is ASTM G154?

A: ASTM G154‑23 is a standard practice that defines how to operate a fluorescent ultraviolet (UV) lamp apparatus for exposing non‑metallic materials to accelerated weathering conditions. It specifies the basic principles for operating the equipment—lamp selection, irradiance control, temperature, moisture, specimen mounting, and reporting—but it deliberately does not, on its own, produce a specific test result. To obtain meaningful data, G154 must be used together with a material‑specific method or product standard that defines the exact exposure cycle and the way property changes are evaluated.


Q2. Why is the ASTM G154 test important for materials?

A: Sunlight's UV portion, combined with moisture and heat, is the primary driver of photo‑oxidative degradation in polymers, coatings, and other non‑metallic materials. G154 matters because it:

Accelerates durability evaluation — compresses years of outdoor exposure into weeks or months, enabling rapid material screening and formulation optimisation.

Provides controlled, reproducible UV stress — isolates the UV factor (with heat and moisture) to drive consistent, comparable degradation.

Supports comparative ranking — lets engineers compare alternative formulations, suppliers, or designs under identical conditions.

Enables early failure detection — reveals fading, chalking, cracking, gloss loss, embrittlement, and adhesion loss before a product reaches the market.

Serves as a global quality‑control and compliance tool — widely cited in automotive, construction, and consumer‑goods procurement specs.

Reduces cost and time — far cheaper and faster than multi‑year outdoor exposure, while still giving engineering‑level insight.

Facilitates international trade — alignment with ISO 4892‑3 / ISO 16474‑3 means results are recognised globally.


Q3: What materials cannot be tested under ASTM G154?

A: 1) Bare metal for corrosion testing (the scope explicitly excludes this; salt spray or cyclic corrosion standards apply for metal corrosion).

2) Materials intended to withstand saltwater, heavy industrial atmospheric pollution, or biological mold/rot environments—this standard does not simulate these localized weathering factors.

3) Test setups mixing different UV lamp types (UVA-340 / UVA-351 / UVB-313) in one chamber are prohibited by the standard.


Q4: Why do I need two different control reference materials for every test batch?

A: G154 recommends one control material with known poor weather durability and one with excellent durability. They act as internal benchmarks: if the control samples show unexpected aging performance, it indicates chamber parameter drift, lamp degradation or operational error, making test data unreliable. Minimum 3 replicates of each test material are also required for statistical analysis.


Q5: Can I directly convert ASTM G154 test hours to real outdoor service years?

A: No direct universal conversion factor exists. The UV intensity, spectral distribution, temperature and moisture cycles in the lab differ from variable natural outdoor conditions (season, latitude, climate). Each material needs separate correlation testing with natural outdoor exposure to map lab hours to real service life; G154 only provides comparative ranking of material durability, not absolute lifespan conversion.


Q6: Can I mix UVA and UVB lamps in the same UV chamber following ASTM G154?

A: Absolutely not. Clause 6.1.1 of G154 strictly forbids mixing different lamp types. Mixed lamps create uneven, inconsistent spectral irradiance across specimens, leading to invalid, unreproducible test results. All lamps in one chamber must be identical model.


Q7: Why is black panel thermometer (BPT) used instead of chamber air temperature for control?

A: Material surface temperature under UV irradiation is the key factor driving thermal oxidation aging, not surrounding air temperature. Black panels absorb UV light and heat up identically to dark-colored test specimens, reflecting actual surface thermal conditions during exposure. Two types of BPT are specified: uninsulated for thin/high-conductivity samples, insulated for thick insulating plastics/foams.


Q8: Should I stop the test cycle during wet condensation phase for inspection or termination?

A: No. The standard advises ending all interruptions, intermediate inspections and full exposure runs during the dry UV phase. Condensation/wet phases leave residual moisture on specimens that can alter surface properties and skew post-exposure test measurements.


Q9: When can I compare test results from two different UV chambers under ASTM G154?

A: Two scenarios:

Same model equipment: Comparison is only permitted after proving consistent test reproducibility of the target material across the two devices.

Different model equipment: Comparison is invalid unless a formal material correlation study is completed following ASTM D6631 guidance.

Without proven reproducibility/correlation, cross-chamber data comparison is not recognized as valid per G154.


Q10: What mandatory information must be included in an ASTM G154 test report?

A: The report must comply with ASTM G151 and include: specimen details, lamp type & batch information, calibrated irradiance setpoint, full cyclic exposure schedule (UV dry time, condensation/spray time, black panel temperature), total radiant exposure duration, water quality data, equipment calibration records, control material aging performance, post-exposure property test results, and specimen repositioning procedures. Results without complete parameter documentation are deemed invalid.


Q11: What ISO standards are technically equivalent to ASTM G154?

A: 1) ISO 4892-3: Plastics — Laboratory light exposure, fluorescent UV lamp method (for plastic materials).

2) ISO 16474-3: Paints and varnishes — Laboratory light exposure, fluorescent UV lamp method (for coatings). Both standards align technically with G154’s equipment and operation rules.


Q12: What are the key limitations of ASTM G154 fluorescent UV testing I need to note?

A: Lacks full visible and infrared light spectrum unlike xenon arc testers (ASTM G155); cannot fully replicate color fading driven by visible light.

UVB-313 lamps produce non-natural short-wave UV that creates unrealistic degradation modes.

Cannot simulate salt spray, acid rain, industrial pollution or biological degradation.

Only delivers comparative durability ranking; cannot directly calculate real-world service lifespan without separate outdoor correlation data.

Not applicable for bare metal corrosion assessment.
