ASTM F2942: Standard Guide for in vitro Axial, Bending, and Torsional Durability Testing of Vascular Stents

While radial fatigue (pulsatile durability) is covered by ASTM F2477, real-world vascular implants face complex, multi-directional mechanical stresses. ASTM F2942 fills this critical gap by providing a standardized scientific framework to evaluate how vascular stents and endografts withstand non-radial, cyclic deformations in vitro. It specifies in vitro test methodologies to evaluate the cyclic durability of vascular stents under non-radial mechanical deformations (axial, bending, and torsion) that occur in vivo due to musculoskeletal motion, breathing, or cardiac activity.

ASTM F2942 Vascular Implants Axial, bending, torsional and compression durability testing

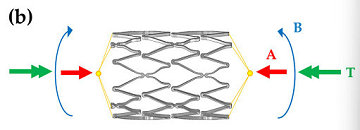

These deformations—axial (stretching/compression), bending (flexion), and torsional (twisting)—mimic the relentless mechanical environment of the human body. For instance, a stent in the superficial femoral artery experiences extreme axial and bending stresses every time a patient takes a step, while renal or coronary stents deal with the cyclical motions of breathing and heartbeats. This guide is essential for medical device manufacturers, researchers, and regulatory bodies to predict long-term device reliability, optimize designs, and ensure patient safety before clinical trials.

Test Principle of ASTM F2942

The fundamental scientific principle of ASTM F2942-19 is to simulate the specific, non-radial cyclic mechanical loads that a vascular stent encounters in vivo. Unlike the uniform squeezing motion of a pulsating artery, this standard focuses on the multi-planar stresses induced by musculoskeletal movements and cardiac cycles.

By subjecting the stent to controlled, repetitive axial, bending, or torsional strains, the test determines the device's resistance to structural fatigue, fretting wear (especially in overlapping stents), and eventual fracture. It provides empirical evidence of durability, helping engineers understand if a stent can survive hundreds of millions of deformation cycles without losing its functional

Test Metnods

ASTM F2942 stipulated three independent deformation test modes and two test strategies:

Test methods
Axial Durability Test	Subjects the stent to cyclic compression and tension along its longitudinal axis. The stent is either directly fixed at its ends or, more realistically, deployed inside a mock vessel that is then cyclically stretched and released.
Bending Durability Testing	Subjects the stent to cyclic flexion. 1, Column Buckling: Inducing a bend through axial compression. 2, Bending on a Mandrel: Cyclically bending the stent around a fixed, curved form. 3, Bending in an Arc Without a Mandrel: Freely bending the stent/mock vessel into a specified radius of curvature.
Torsional Durability Testing	Cyclic twisting about the longitudinal axis (one end fixed, the other rotated).
Test Strategies
Test-to-Success (TTS)	The stent is subjected to a predetermined, physiologically relevant cyclic load for a specific number of cycles (runout). Success is defined as the absence of fracture or functional failure at the end of the test.
Fatigue-to-Fracture (FTF)	Guided by ASTM F3211, this method applies varying, often extreme, deformation amplitudes to a population of stents to intentionally induce fracture. It maps the stress-strain life curve, helping engineers calculate safety factors and validate computer models (like Finite Element Analysis).

Test Device and equipment required for ASTM F2942 Vacular Stent Axial, Torsional, Bending Test

Recommend UnitedTest medical implants testeing system, Vascular stents testing machine. conform with ASTM F2942, ASTM F2477, ISO 25539, ISO 7198 stipulation:

Vascular Stent Uniaxial Tension/Compression Durability Testing Machine	Perform accelerated axial fatigue and durability testing on vascular stents.

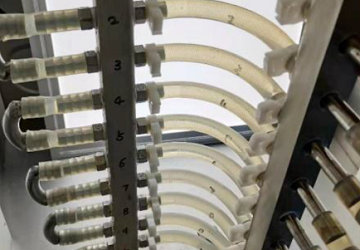

Vascular Stent Bending Durability Tester	Perform accelerated bending fatigue testing on vascular stents in accordance with ISO 25539 and ASTM F2942.
Vascular Stent Torsion Durability Tester	Perform accelerated torsional fatigue testing on vascular stents in accordance with ISO 25539 and ASTM F2942 standards, Evaluating their long-term structural integrity under cyclic torsional loading.
Multi‐Axis Fatigue Torsional & Bending testing system	Combined multi-axis fatigue testing, different test can execute in the same one machine.

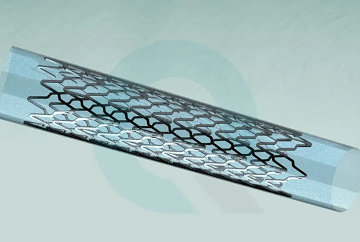

Mock Vessels	Artificial blood vessels, typically made of durable elastomeric materials. Their inner diameter (ID), wall thickness, coefficient of friction, and elasticity must be carefully controlled to simulate the constraints of real human anatomy without causing artificial kinking or slippage.
Other Instrumentation & Measurement	Displacement Sensors: Laser micrometry, Linear Variable Displacement Transducers (LVDTs), or high-speed cameras to dynamically verify that the applied deformation perfectly matches the intended clinical simulation. Cycle Counting System: A fail-safe mechanism to precisely track the number of applied deformation cycles. Temperature Control: Heating jackets or thermal baths to maintain strict physiological temperatures.

Test Specimen information:

The preparation of the test specimen is highly rigorous to ensure clinically relevant results:

Implant Quality: Unless otherwise justified, specimens must be fully processed, finished, and ideally sterilized (as sterilization can alter material fatigue properties).

Worst-Case Sizing: Testing must focus on the most failure-prone dimensions. This includes the worst-case deployed diameter, the most susceptible stent length, and unique strut patterns. Finite Element Analysis (FEA) is often used to justify these selections.

Overlapped Configurations: If stents are expected to overlap in clinical use (a common practice), durability testing of overlapped stents must be performed to evaluate dangerous fretting and wear between the devices.

Pre-Conditioning: Before deployment, specimens should be tracked through a representative vascular model to simulate the real-world mechanical stresses of the clinical delivery process.

Key Test Parameters:

Parameter	Standard Value	Notes
Temperature	37 ± 2 °C	Physiological body temperature
Test Medium	PBS (pH 7.4 ± 0.5)	Distilled water or air allowed with justification
Deformation Verification	Mandatory	Confirm actual stent deformation matches target via imaging/calibration
Cycle Count	Clinically defined	No fixed value; based on intended service life and anatomyASTM International
Frequency	Stable, low harmonic	Consistent cyclic deformation; avoid overheating

Test Requirements and Stipulations

Boundary Conditions: User must justify physiologically relevant deformation amplitudes (via literature, cadaver, or FEA studies).

Mock Vessel: Must prevent migration, avoid kinking/ovalization, and maintain diameter during testing.

Failure Definition: Fracture = complete separation of a stent element (strut, apex, bridge); fracture does not always equal clinical failure.

Inspection: Periodic fracture checks; post-test examination via microscopy/SEM to map fracture locations and assess fretting (especially overlapped/braided stents).

Termination: End at target cycles (TTS) or at first fracture (FTF).

Reporting: Full documentation of parameters, deformation verification, fracture data, and protocol deviations.

ASTM F2942 Test Application

ASTM F2942-19 is exclusively used in the cardiovascular and endovascular medical device industry:

Stent Manufacturers: R&D design validation, production quality controlASTM International.

Regulatory Submissions: Required data for FDA pre-market approval (PMA) and CE marking.

Biomedical Engineering: Compare materials (316L SS, CoCr, Nitinol) and manufacturing processesASTM International.

Testing Laboratories: Third-party qualification for peripheral, coronary, renal, and iliac stents; stent-grafts for aneurysms/vascular trauma.

Related Test Stadnard:

ISO 7198	Determination of Dynamic Radial Compliance for Tubular Vascular Grafts.
ISO 25539-1/-2	Cardiovascular Implants – Endovascular Devices. Equivalent covering similar durability requirements with ASTM F2477.
ASTM F2514	Guide for Finite Element Analysis (FEA) of Metallic Vascular Stents.
ASTM F3067	Guide for Radial Loading of Balloon-Expandable and Self-Expanding Vascular Stents.
ASTM F3211	Guide for Fatigue-to-Fracture (FtF) Methodology for Cardiovascular Devices
ASTM F2477	Test method for radial/pulsatile durability (complements F2942 non-radial testing)

Test Procedures of ASTM F2942 Axial, Bending, Torsional Durability Testing of Vascular Stents

The execution of the test follows a meticulous, highly monitored protocol:

1, Deployment: The stent is deployed into the mock vessel (or directly mounted) in a manner that minimizes end-effects and ensures the simulated vessel ID matches the worst-case clinical scenario.

2, Cyclic Loading: The apparatus applies the predetermined cyclic deformations. Throughout the test, the operator must continuously monitor the system to ensure parameters remain stable.

3, Fracture Detection: Because detecting tiny strut fractures inside an opaque mock vessel is difficult, advanced techniques are employed. These include using translucent mock vessels, high-intensity strobe lighting, borescopes, or high-resolution real-time X-ray imaging.

4, Test Termination: The test concludes upon reaching a prespecified cycle count (runout) or upon the detection of the first fracture (event-triggered).

5, Post-Mortem Analysis: After termination, the stent is carefully removed and subjected to forensic microscopy or Scanning Electron Microscopy (SEM). Engineers document the exact location of any through-strut fractures, analyze the fracture surface to determine the failure origin, and assess any fretting wear marks.

Vascular Stent Uniaxial Tension Durability Testing Machine is designed to perform accelerated axial fatigue and durability testing on vascular stents in accordance with ISO 25539 and ASTM F2942 standards, evaluating their long-term structural integrity under cyclic axial loading.

Vascular Stent Bending Durability Tester is designed to perform accelerated bending fatigue testing on vascular stents in accordance with ISO 25539 and ASTM F2942 standards, evaluating their long-term structural integrity under cyclic bending loading.

UTCA-VST6 Vascular Stent Torsion Durability Tester is designed to perform accelerated torsional fatigue testing on vascular stents in accordance with ISO 25539 and ASTM F2942 standards, evaluating their long-term structural integrity under cyclic torsional loading.

Multi‐Axis Fatigue Torsional & Bending testing system understake this task, used to check the torsion and bending, tension test for the Intramedullary lengthening nail/Intramedullary leg lengthening implants nails.

Radial Pulsatile Accelerated Durability Tester is designed to perform accelerated pulsatile durability testing on vascular implants such as stents or valve frames, in accordance with relevant requirements of ISO 25539 and ASTM F2477.

Q1: What exactly is ASTM F2942?

A: ASTM F2942 is the international standard guide for testing the non-radialdurability of vascular stents. While most people know that arteries pulse (radial motion), stents are actually subjected to much more complex mechanical stresses inside the human body. This standard specifically provides the scientific framework for testing three specific types of cyclic deformation: axial (stretching and compression), bending (flexion), and torsional (twisting).

Q2: Why is this test so critically important for vascular stents?

A: Because the human body is not a rigid pipe. A stent placed in the superficial femoral artery (in your thigh) experiences extreme bending and squishing every time you take a step. A stent near your lungs bends every time you breathe, and coronary stents twist with every heartbeat. If a stent can survive the pulse but cracks after a million steps, it's a catastrophic failure. ASTM F2942 is vital because it bridges the gap between simple lab testing and the chaotic, multi-directional mechanical reality of the human anatomy.

Q3: The standard mentions two testing philosophies: "Test-to-Success" (TTS) and "Fatigue-to-Fracture" (FTF). What's the difference?

A: This is a crucial distinction in medical device testing.

Test-to-Success (TTS) is the pragmatic approach. You subject the stent to a clinically relevant number of cycles (e.g., 10 years' worth of walking). If it survives without breaking, it passes.

Fatigue-to-Fracture (FTF) is the scientific, data-driven approach. You push the stent until it breaksunder various extreme stresses. By mapping out exactly when and where it fails, engineers can calculate a precise "safety factor," proving mathematically just how durable the device truly is.

Q4: Why does the standard emphasize testing inside a "mock vessel" rather than just gripping the stent directly?

A: Direct gripping can create artificial stress points (called "test artifacts") right where the machine holds the stent, which can lead to false failures that wouldn't happen inside a human. By deploying the stent inside a mock vessel (usually made of a special elastic polymer), you simulate the friction, confinement, and support of a real artery. However, the standard allows for direct fixation if the manufacturer can scientifically prove that their gripping method doesn't skew the results.

Q5: What happens if a stent fails the ASTM F2942 test?

A: Failure gives engineers an incredible amount of actionable data. If a stent fractures during testing, the team will use high-powered microscopes (like Scanning Electron Microscopes or SEM) to find the exact crack origin. They might discover that a specific junction in the metal struts is too sharp, acting as a stress concentrator. This allows them to go back to the drawing board to smooth out the design, adjust the manufacturing process, or change the alloy before the device ever reaches a patient.

Q6: Is this test required by regulatory agencies like the FDA?

A: While ASTM F2942 is technically a "guide" rather than a strict pass/fail mandate, it is considered a foundational document in the cardiovascular industry. For any company trying to get a new peripheral or coronary stent approved by the FDA or CE-marked for Europe, providing ASTM F2942 data is practically mandatory. It is the universally accepted way to prove to regulators that your device can handle the long-term mechanical stresses of the human body.

Q7: How is ASTM F2942 different from ASTM F2477?

A: ASTM F2477 tests radial/pulsatile durability (blood pressure–driven expansion); ASTM F2942 tests non‑radial durability (axial, bending, torsion). They are complementary for full stent fatigue validation.

Q8: Why must overlapped stents be tested if used clinically?

A: Overlapped stents have higher stress concentrations and risk fretting wear, which can cause premature fracture. The standard requires testing overlap configurations that match clinical practice.

Q9: Does ASTM F2942 define fixed cycle counts?

A: No—users must justify cycle counts and deformation levels based on in vivo data, cadaver studies, or FEA to match clinical anatomy and lifetime loading.
