ASTM F2722 Test of Mobile Bearing Knee Tibial Baseplate Rotational Stops

Share:

ASTM F2722 Standard Practice for Evaluating Mobile Bearing Knee Tibial Baseplate Rotational Stops

ASTM F2722 is an in-vitro laboratory standard that assesses the mechanical performance and structural integrity of rotational stop features in mobile-bearing total knee replacement (TKR) prostheses under simulated deep-flexion daily activities.


Test Principle

This test simulates dynamic rotational loading and motion corresponding to deep squatting (a high‑flexion daily activity) to evaluate:

The ability of rotational stop features (limiting rotation to ±20° or less) to withstand cyclic torsional loading

Resistance to deformation, fracture, dissociation, or functional loss of the tibial bearing and baseplate

Comparative in-vitro performance of different mobile-bearing knee designs under worst-case rotational constraint.


The Test methods and mechanical idea:

ASTM F2722 deliberately creates a conservative worst-case in the lab:

Lock the femur at the manufacturer's claimed maximum flexion angle (per ASTM F2083 protocol) — this drives contact posteriorly, maximizing moment about the bearing's neutral point.

Set the tibial baseplate flat (zero slope) — i.e. its flat superior surface is perpendicular to the force axis — so there's no geometric slope assistance hiding the rotation-resisting loads.

Align the rotation axis through the bearing's neutral point (midpoint of the line connecting the lowest points of medial & lateral condyle superior surfaces). This ensures the torque is applied where rotation naturally pivots, not eccentrically.

Hold a 2000 N axial compressive force (keeps components seated — represents a high-compressive-load deep-squat scenario).

Cyclically drive torque to 14 N·m (the stop feature's design limit) and back near zero in both directions, up to 220,000 cycles (~30 deep-squat events/day × 20 years per the rationale).


Test Specimen Information

System Type: Mobile-bearing knee constructs (femoral component, mobile bearing, tibial baseplate) with rotational stops.

Metallic Parts: Full manufacturing (machining, surface treatment) without sterilization (no effect on mechanical properties).

Polymer (UHMWPE) Parts: Sterilized per clinical practice; artificially aged per ASTM F2003 (unless aging causes no detrimental effect).

Selection Rules:

Use the thinnest bearing component (worst-case for cold‑flow deformation).

All dimensions within production tolerances; component sizes and selection rationale must be documented.


Test Equipment Required for ASTM F2722:

ItemRequirement per ASTM F2722

Mechanical testing system

(UnitedTest UTDST model)

Capable of torque control (±14 N·m range) and simultaneous axial force control (2000 N), with programmable sinusoidal/cyclic waveform & cycle counter
Test chamberEntirely non-corrosive (acrylic, stainless steel, etc.), removable for cleaning, sized so bearing surfaces stay fully immersed in the lubricant bath
Temperature controlMaintain bath at 37 ± 2 °C throughout
Mounting fixturingRigid mount for femoral component at max-flexion angle; tibial baseplate mountable at zero slope (⊥ to force axis) without interfering with tibiofemoral rotation
InstrumentationLoad cell + torque transducer with calibrated accuracy; cycle counter; optional data logging of torque-angle hysteresis for condition monitoring
Lubricant supplyRO/DI/distilled water reservoir & circulation/heating system


Specific Test Parameters

ParameterValue / ToleranceRationale / Note
Axial compressive force2000 N, held within ±2 % (i.e. ±40 N)Representative of high compressive load in deep flexion; mainly to keep components in contact
Applied torquePeak = 14 N·m (≈ 2 × the peak torque measured in telemetrized knee studies, cycled back to < 3 % of peak = 0.42 N·mIntentionally conservative (2× physiologic) to accelerate detection of weakness
Torque control accuracyPeak torque within ±3 %
Cycle target220,000 cycles (if no failure)≈ 30 deep-squat occurrences/day × 20 years (Appendix X1)
Rotation rate / frequency 0.5 – 3.0 Hz per complete cycle (internal→external→internal)Kept in this range to minimize viscoelastic high-frequency effects
Lubricant / environmentImmersion in water (RO / DI / distilled), 37 ± 2 °C

Maintains UHMWPE at near-physiologic temperature;

water is acceptable because the failure mode is structural/stop-feature overload, not wear-particle driven

Tibial slope in testZero slope — flat portion of tray perpendicular to force axisWorst-case for pure rotational stop loading (no posterior slope to share the shear)
Femoral flexionMounted at maximum flexion angle claimed by manufacturer (per F2083 method)Drives contact posterior, maximizing stop engagement severity
Rotation axisThrough the neutral point of the mobile bearing on the tibial baseplateMust be justified if you choose a different axis


Step-by-step ASTM F2722 Test Procedures

Step 1 — Mount the femur

Rigidly mount the femoral component at the manufacturer's maximum flexion angle (per F2083 protocol) to the machine's compression axis.

Position so the femur contacts the mobile bearing at the bearing axis, allowing rotation about the neutral point.

Step 2 — Mount the tibial baseplate

Mount the tibial baseplate so its flat superior articulating surface is perpendicular to the compressive force axis (zero slope).

Mounting must not interfere with tibiofemoral rotation.

Step 3 — Assemble & align

Seat the mobile bearing on the tray.

Either the femoral component or the tibial baseplate can be the moving side (depends on your machine's kinematics).

Set components in 0° rotational alignment relative to each other.

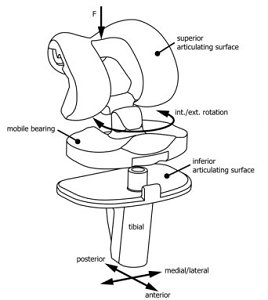

ASTM F2722 Test of Mobile Bearing Knee Tibial Baseplate Rotational Stops

Step 4 — Immerse & apply axial load

Add lubricant (water, 37±2°C).

Apply 2000 N and hold it within ±2 %.

Step 5 — Cyclic rotational loading

Apply 14 N·m peak torque to drive the bearing against the rotational stop (both internal and external directions per your test plan).

Cycle torque down to < 0.42 N·m (≤3% of peak) before reversing.

Peak torque held within ±3%.

Rotate at 0.5–3.0 Hz.

Step 6 — Run & monitor

Continue until fracture/disassociation, loss of control, or 220,000 cycles.

Step 7 — Document

Photograph the sample.

Describe the physical condition and, if failed, the failure mode in detail.


Test Application (Industry Field)

This test is used exclusively in the orthopedic medical device industry for:

R&D and validation of mobile-bearing TKR systems.

Pre-market quality control and regulatory clearance.

Comparative assessment of rotational stop design and UHMWPE material performance.

Ensuring durability under deep‑flexion torsional loading.


Related Test Standard:

DesignationTitleWhat it purpose
ASTM F2083Specification for Knee Replacement ProsthesisProvides the method to determine / justify the maximum flexion angle at which the femoral component is mounted
ASTM F2722Practice for Evaluating Mobile Bearing Knee Tibial Baseplate Rotational StopsStop-feature overload under deep-flexion rotation
ASTM F2723Test Method for Evaluating Mobile Bearing Knee Tibial Baseplate/Bearing Resistance to Dynamic Disassociation  Bearing jumping out of the tray under dynamic conditions
ASTM F2724Test Method for Evaluating Mobile Bearing Knee DislocationDislocation events
ASTM F2777   Test Method for Evaluating Knee Bearing (Tibial Insert) Endurance & Deformation Under High FlexionUHMWPE tibial insert posterior-edge fatigue / creep / fracture (axial, not rotational)


Quick comparison: ASTM F2722 vs. F2777

FeatureASTM F2722 (Rotational Stops)ASTM F2777 (High-Flexion Edge Loading)
Loading modeTorque-controlled rotational (14 N·m)Force-controlled axial (2275 N)
Axis stressedRotational — stop impingementPosterior-edge cantilever — creep/fracture
Tibial slopeZero slope (⊥)Max recommended posterior slope
FlexionMax flexion (F2083)Max flexion (F2083)
Cycles220,000220,000
FluidWater, 37°CDI water, 37°C
Key failureStop damage, delamination, disassociation from over-rotationPosterior-edge fracture, disassociation from distraction
Requires rotational stop?✅ Yes❌ No (works for fixed or mobile)


Related products and device

ASTM F2722 Mobile Bearing Knee Tibial Baseplate Rotational Fatigue testing system

Multi‐Axis Fatigue Torsional & Bending testing system understake this task, used to check the torsion and bending, tension test for the Intramedullary lengthening nail/Intramedullary leg lengthening implants nails.

ASTM F2722 Mobile Bearing Knee Tibial Baseplate dynamic testing machine

Electronic Dynamic Testing Machine for high-precision cyclic and vibration testing of materials and components, featuring accurate frequency control, stable performance, and laboratory-grade reliability.

Related Standard

ASTM F2777 knee bearing (tibial insert) endurance fatigue test and deformation under high flexion

ASTM F2777 knee bearing (tibial insert) endurance fatigue test and deformation under high flexion


Used to evaluate the durability and deformation performance of knee joint pads under high bending load conditions. It simulates the stress and deformation of the knee joint during daily activities, such as walking, running, and the impact and pressure experienced during sports. During the tests, specific testing equipment and simulated physical movements are used to apply continuous and high-frequency loads to the knee joint, mimicking actual usage scenarios. By assessing the performance variations of knee joint pads under different bending cycles, such as deformation resistance, rebound performance, and durability, it is possible to determine the quality and lifespan of the pads, providing a basis for the design and improvement of knee protection products. This testing method is of great significance for the research and development as well as quality control of knee protection devices and sports goods.

ASTM F2724 Test Method of Dislocation mobile bearing Knee

ASTM F2724 provides a standardized in‑vitro method to evaluate whether a mobile‑bearing total knee can resist dislocation modes where the mobile insert either: spin‑out and spit‑out failure modes of the UHMWPE bearing insert.

ISO 14879-1 Fatigue test of metallic tibial trays of total knee joint replacement system

ISO 14879 - 1 is a core international standard formulated by the International Organization for Standardization (ISO) for the mechanical performance evaluation of metallic tibial trays in total knee replacements (TKR). The standard covers two major types of tests: static mechanical testing (to evaluate the ultimate load - bearing capacity and stiffness of the tibial tray) and cyclic fatigue testing (to simulate long - term physiological loading and assess durability).

ASTM F1800 Knee Tibial tray Fatigue testing

ASTM F1800 Cyclic Fatigue Testing of Metal Tibial Tray Components of Total Knee Joint Replacements, covers a procedure for the fatigue testing of metallic tibial trays used in knee joint replacements using a cyclic, constant-amplitude force. It applies to tibial trays that cover both the medial and lateral plateaus of the tibia. This practice may require modifications to accommodate other tibial tray designs.




ASTM WK51649 Femoral knee component fatigue testing system

ASTM WK51649 Femoral knee component fatigue testing system - Fatigue Testing of Total Knee Femoral Components Under Closing Conditions

ASTM WK51649 is a draft standard (work item) under development by ASTM Committee F04.22 on Arthroplasty . It proposes a test method for evaluating the fatigue resistance of total knee femoral components under closing conditions, similar in scope to ASTM F3210. (ASTM F3210-22e1 Standard Test Method for Fatigue Testing of Total Knee Femoral Components Under Closing Conditions)


ASTM WK51649 Fatigue testing of the metal femoral component of a total knee joint prosthesis is conducted to establish the F-N curve at different load levels and to determine the fatigue limit of the sample under 10 million cycles.

ASTM F3210 Fatigue Testing of Total Knee Femoral Components – ASTM F3210 Fatigue Testing of Total Knee Femoral Components is intended to determine the fatigue behavior of knee femoral components under closing conditions. This test method simulates a clinically severe condition in which all bony support is lost, and one single condyle supports the complete load at 90° of tibiofemoral flexion.
ASTM F1798 Spinal Implant Subassembly Static and Fatigue Testing System

ASTM F1798 provides standardized methods for mechanically testing the interconnections within spinal implant systems. It is for evaluating the uniaxial static/fatigue strength and loosening resistance of interconnection mechanisms in spinal arthrodesis implant subassemblies, providing a standardized way to characterize mechanical performance of connections like rod-clamp, screw-rod, and hook-rod assemblies. It is critical for design validation, regulatory compliance, and clinical safety in the spinal implant industry.

ASTM F2706 Fatigue Static Test of Spinal implant constructs

ASTM F2706 is a critical biomechanical evaluation tool in the medical device industry, specifically for spinal implants. ASTM F2706 establishes standardized mechanical test methods to evaluate the static (strength) and fatigue (long-term durability) performance of spinal implant assemblies intended for use in the occipito-cervical (OC) and cervico-thoracic (CT) regions (from the skull to the upper back). It simulates a worst-case scenario: a complete vertebrectomy (removal of a vertebra), creating a highly unstable spine segment that the implant must stabilize.

FAQs — ASTM F2722 (Rotational Stops for Mobile Bearing Tibial Baseplates)

Q1: What does F2722 actually test?

A: It's a laboratory practice that grabs a mobile-bearing tibial construct (femoral component + UHMWPE insert + tibial tray), holds the femur at maximum flexion, keeps a 2000 N compressive load on it, and then cyclically twists the bearing against its rotational stop with ±14 N·m torque — up to 220,000 cycles — to see whether the stop feature (and the polyethylene around it) survives without fracture, material loss, or disassociation.


Q2: Can't we catch stop damage in a standard wear simulator (ISO 14243)?

A: Not reliably. Wear simulators are built for gait-cycle wear (walking patterns: flexion-extension, AP translation, modest rotation). The specific risk F2722 targets is different:

In deep flexion (squatting/kneeling), tibial axial rotation can approach or exceed 20°, driving the bearing hard into the rotational stop.

That creates localized, repetitive, high-pressure contact at a geometric stress concentrator (a post corner, a rim wall, a boss fillet) — not the broad condylar contact wear simulators stress.

Over time + oxidation (aged UHMWPE), that zone can crush, delaminate, crack, or shed chunks, potentially leading to disassociation or third-body havoc.

Appendix X1 candidly notes that earlier multi-gait work showed only slight deformation after ~125,000 deep-squat cycles — but also that rotational stop damage wasn't the primary focus of those studies. F2722 was created to make it the focus, with a conservative 2× physiologic torque and a defined worst-case geometry.


Q3: 14 N·m sounds made up. What's the basis?

A: The standard tells you directly (§5.2.3 & reference 1):

14 N·m = 2 × the peak torque measured in telemetrized knee studies (Taylor et al., J. Arthroplasty1998, in vivo force/data from instrumented implants).

So it's deliberately conservative / accelerated — you're not just testing at "normal," you're testing at 2× normal peak to flush out weak geometry faster.

That's also why the test isn't pretending to be a clinical prediction model — it's an in-vitro comparison screen under a recognized worst-case multiplier.


Q4. Internal vs. external stop — do I have to test both directions? My stop is symmetrical, so one direction is enough, right?

A:If the rotational stop geometries are non-symmetrical, you must test both internal and external stops.

If they're symmetrical, one direction is often representative — but you still need to justify that symmetry in the report.

Same sample may be reused for the second direction only if the first test didn't cause damage that would corrupt the second result.


Q5. Why is this especially important for UHMWPE as a material?

A: Because the weak link is usually the polymer–metal interaction at the stop, not the metal alone. Three UHMWPE-specific realities:

Localized stress concentration: A stop is by definition a geometric discontinuity — a post, wall, or boss corner. UHMWPE has great bulk toughness, but under repeated stop-impingement it can develop subsurface damage zones that don't show up in a tensile coupon.

Creep changes the story over time: Cold flow can shift where and how the stop engages. What starts as "clean contact" can migrate into edge-binding or wedging 50k–150k cycles later.

Oxidation embrittlement (F2003 aging): If the UHMWPE has undergone chain scission / oxidation near the surface, the stop-contact zone becomes the place where brittle-like chipping or delamination initiates — exactly the debris pathway you don't want in a joint. ASTM F2722 forces all three (geometry + creep + aged material) into one repeated, quantifiable ordeal, rather than letting any one factor hide behind averaged gait-cycle wear.


Q6: What failure modes can this test detect?

A: It identifies fracture, delamination, excessive creep, disassociation, abnormal motion, and structural damage to the rotational stop.


Q7: Can test results directly predict in vivo performance?

A: No. Results are for in vitro design comparison only; actual in vivo loading and kinematics differ from laboratory conditions.
