ASTM F2777 knee bearing (tibial insert) endurance fatigue test and deformation under high flexion


Used to evaluate the durability and deformation performance of knee joint pads under high bending load conditions. It simulates the stress and deformation of the knee joint during daily activities, such as walking, running, and the impact and pressure experienced during sports. During the tests, specific testing equipment and simulated physical movements are used to apply continuous and high-frequency loads to the knee joint, mimicking actual usage scenarios. By assessing the performance variations of knee joint pads under different bending cycles, such as deformation resistance, rebound performance, and durability, it is possible to determine the quality and lifespan of the pads, providing a basis for the design and improvement of knee protection products. This testing method is of great significance for the research and development as well as quality control of knee protection devices and sports goods.


Test Principle

This test simulates in vitro the near posterior edge loading that occurs during high‑flexion daily activities (e.g., squatting, kneeling) for bicompartmental/tricompartmental knee prostheses. It applies cyclic dynamic loading combined with maximum flexion and controlled internal rotation to evaluate:

Fatigue and cyclic creep performance of UHMWPE bearings

Resistance to deformation, vertical distraction, posterior tilt, fracture, and disassociation from the tibial tray

Comparative performance between different material, manufacturing, and design schemes under worst‑case loading

Results are for in vitro comparison only and cannot directly predict in vivo performance.

Core Purpose:

Evaluate durability of tibial inserts under high flexion conditions (like squatting or kneeling).

Simulate posterior edge loading - a critical failure mode in high-flexion knee designs.

Provide a standardized benchmark for comparing different implant designs.

Support regulatory submissions by documenting mechanical performance.


Specific Test Methods

ASTM F2777 is one integrated method rather than a menu of unrelated tests, but it explicitly calls out three linked assessments:

A. Main endurance run (fatigue/creep under high flexion edge loading)

Cyclic sinusoidal axial force applied through the femoral component centerline, contacting the bearing close to its posterior edge.

Run until fracture/disassociation or until the 220,000‑cycle target is reached (≈30 high‑flexion motions/day × 20 years per the rationale).

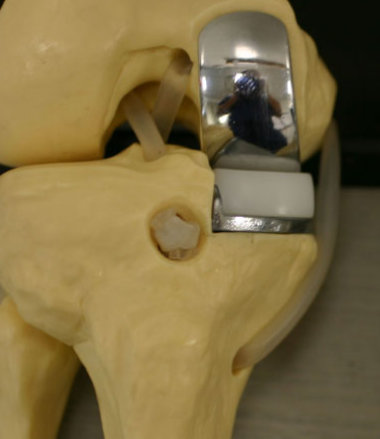

ASTM F2777 knee bearing (tibial insert) endurance fatigue test and deformation under high flexion

B. Geometric deformation quantification (the “deformation” part)

Before testing: dense grid of points on the UHMWPE superior surface (≤1.5 mm spacing) using a CMM or non‑contact 3D scanner at 20 ± 2 °C.

After testing: same measurement repeated after a defined recovery wait (≥90 min dry, ambient temp, to allow creep recovery before measurement) to compute thickness/shape changes, and the report must address manufacturing thickness tolerance + measurement system tolerance.

Also: vertical distraction (feeler gauges under each condyle) and posterior bearing tilt displacement before/after, when appropriate for the design.

C. Constraint/laxity sanity checks (used as supporting characterization)

On one representative sample, perform the A–P Draw Test and Rotary Laxity Test from ASTM F1223 at the same flexion angle used in the ASTM F2777 setup, before and after, to document whether deformation altered constraint behavior.

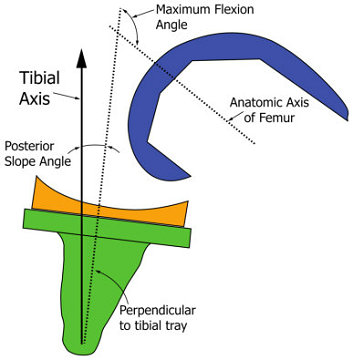

For this mechanical test, a maximum bending angle and a rotation of the tibial insert (internal rotation of 20°) around the superior-inferior axis must be selected.

The yield performance in the worst-case scenario is determined after a dynamic load of 220,000 N for 2,275 cycles.To assess the creep performance, the change in play between the tibial base plate and the insert is measured before and after the high flexion fatigue test.

Additionally, before and after the fatigue test, the "AP Pull Test" and the "Rotational Play Test" (according to ASTM F1223) are carried out and compared to each other.The values expressed in SI units should be accepted as standard. No other units of measurement are included in this standard.

ASTM F2777 knee bearing (tibial insert) endurance fatigue test and deformation under high flexion

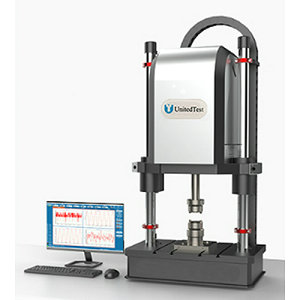

UnitedTest UTDS series electromagnetic equipment provides precise sine wave load control, offering comprehensive testing tooling to meet the experimental condition requirements in the standards, as well as accurate and effective experimental plans (SOP), helping in the mechanical performance analysis of tibial braces.


Test Specimen Information

Material: UHMWPE tibial bearing inserts; metallic femoral/tibial components.

Preparation:

Metallic parts: Complete manufacturing (machining, surface treatment) without sterilization (no effect on mechanical properties).

UHMWPE parts: Sterilized per clinical practice; artificially aged per ASTM F2003 (unless aging has no detrimental effect).

Selection Rules:

Use the smallest compatible tibial tray for the bearing size.

Use the thinnest bearing component (worst‑case cold‑flow effect).

Applicability: Bicompartmental/tricompartmental TKR; adaptable to unicompartmental TKR with sufficient constraint.


ASTM F2777 Required Test Equipment

Requires a servo‑hydraulic or electrodynamic axial fatigue/testing machine (UNITEDTEST Brand) configured for controlled dynamic loading, plus purpose‑built fixtures:

ItemRequirement in ASTM F2777
Testing machineDeliver sinusoidal dynamic axial force; force accuracy/control as above; cycle counting instrumentation.
Fixtures

Corrosion‑resistant, enclose/mount femoral component + tibial tray; maintain orientations; allow varus–valgus self‑alignment; force applied through femoral component centerline;

optionally fix components with bone cement (ISO 5833) or high‑strength epoxy.

Fluid bathContainer/system to fully immerse contact surfaces in DI water at 37±2 °C
CalibrationDynamic force calibration/verification mindset aligned with ISO 4965‑1 (to manage errors from off‑axis loading, slope‑induced bending, etc.)


Test Parameters / Stipulated Values

ParameterStipulated value / requirement
Force waveformSinusoidal, dynamic
Peak force≈ 2275 N (represents ~2.9×BW for ~80 kg per appendix rationale)
R‑ratio (min/max)R = 0.1 (so min ≈ 227.5 N)
Frequency0.5 – 2.0 Hz (fixed)
Target cycles (runout)220,000 cycles if no fracture/disassociation
EnvironmentImmersed in deionized water, 37 ± 2 °C; temperature maintained
Pre‑conditioningUHMWPE bearing equilibrated in DI water at 37±2°C before start
Measurement temperature20 ± 2 °C for CMM/scan grid
Recovery before post‑measurement≥90 min dry after test before repeating deformation metrology
Force accuracyApplied force error ≤ ±2% at max force; system must keep max/min forces within ±2% of max, and stop if not
Force calibration referencePer ISO 4965‑1 (dynamic force calibration for uniaxial fatigue systems)
Worst‑case sizingUse smallest tibial tray compatible with the bearing size; use thinnest bearing thickness in system scope
Slope & flexionUse largest recommended posterior slope; flex femur to maximum recommended flexion (aligned as per ASTM F2083 method)


Step‑by‑step ASTM F2777 Test Procedures

1, Pre‑test Measurement

Dense grid measurement on UHMWPE superior surface (CMM/3D scan) at 20±2 °C.

Optionally: record A–P draw and rotary laxity per F1223 on one representative sample.

2, Specimen prep & aging

Age UHMWPE per F2003 if required; otherwise justify.

Equilibrate bearing in DI water at 37±2 °C before cycling.

3, Mounting & orientation

Mount tibial tray at largest recommended posterior slope. Install bearing per mfr method.

Measure initial distraction/tilt if applicable.

Mount femoral component at maximum recommended flexion (including slope accounted per F2083 method).

Position femur so it contacts bearing close to posterior edge; document contact points.

Align components in neutral rotation first to set max flexion, then apply 20° internal rotation:

** Mobile bearing: rotate tibial tray internally 20° relative to femur/bearing (simulate tibial rotation).

** Fixed bearing: rotate tibial tray 20° relative to femoral component (or use smaller angle if justified by ASTM F1223‑determined limit) so that one condyle sits near max posterior contact.

Force line set through femoral component centerline, intersecting at or posterior to contact points.

4, Immersion & cyclic loading

Immerse in DI water, 37±2 °C.

Apply sinusoidal force: peak 2275 N, R = 0.1, frequency 0.5–2.0 Hz.

Run until fracture/disassociation or 220,000 cycles.

5, Post‑test assessment

Immediate post‑test checks (distraction/tilt) before removing bearing.

If survived: repeat dense grid metrology after ≥90 min dry recovery; repeat ASTM F1223 laxity checks; compile deformation maps vs baseline.


Related Standards

ASTM F2083Specification for knee replacement prostheses, references ASTM F2777 for mobile bearing evaluation
ASTM F2003Practice for artificial aging of UHMWPE materials
ASTM F1223Test methods for knee joint simulation, referenced for laxity measurements
ASTM F2722/F2723Additional tests for mobile bearing stability and dislodgement resistance
ASTM F1223Test Method for Total Knee Replacement Constraint (A‑P Draw & Rotary Laxity Tests).
ISO 4965-1Dynamic force calibration for uniaxial fatigue testing
ISO 5833 Surgical acrylic resin cements
ISO 14243‑1 / ISO 14243‑3Loading/displacement parameters for total knee prosthesis wear testing


Industry / Application Field

Total Knee Replacement (TKR) manufacturers (bicondylar/tricompartmental systems; mobile‑bearing and fixed‑bearing inserts).

Contract research & ISO 17025 test labs doing implant verification/comparison.

Regulatory & quality engineering contexts: FDA recognizes ASTM F2777‑23 as relevant to device performance testing (recognized consensus standard listing).

Related products and device

ASTM F2777 Knee bearing (tibial insert) Fatigue testing system

Multi‐Axis Fatigue Torsional & Bending testing system understake this task, used to check the torsion and bending, tension test for the Intramedullary lengthening nail/Intramedullary leg lengthening implants nails.

ASTM F2777 Knee bearing dynamic testing machine

Electronic Dynamic Testing Machine for high-precision cyclic and vibration testing of materials and components, featuring accurate frequency control, stable performance, and laboratory-grade reliability.

Related Standard

ISO 14879-1 Fatigue test of metallic tibial trays of total knee joint replacement system

ISO 14879 - 1 is a core international standard formulated by the International Organization for Standardization (ISO) for the mechanical performance evaluation of metallic tibial trays in total knee replacements (TKR). The standard covers two major types of tests: static mechanical testing (to evaluate the ultimate load - bearing capacity and stiffness of the tibial tray) and cyclic fatigue testing (to simulate long - term physiological loading and assess durability).

ASTM F1800 Knee Tibial tray Fatigue testing

ASTM F1800 Cyclic Fatigue Testing of Metal Tibial Tray Components of Total Knee Joint Replacements, covers a procedure for the fatigue testing of metallic tibial trays used in knee joint replacements using a cyclic, constant-amplitude force. It applies to tibial trays that cover both the medial and lateral plateaus of the tibia. This practice may require modifications to accommodate other tibial tray designs.




ASTM WK51649 Femoral knee component fatigue testing system

ASTM WK51649 Femoral knee component fatigue testing system - Fatigue Testing of Total Knee Femoral Components Under Closing Conditions

ASTM WK51649 is a draft standard (work item) under development by ASTM Committee F04.22 on Arthroplasty . It proposes a test method for evaluating the fatigue resistance of total knee femoral components under closing conditions, similar in scope to ASTM F3210. (ASTM F3210-22e1 Standard Test Method for Fatigue Testing of Total Knee Femoral Components Under Closing Conditions)


ASTM WK51649 Fatigue testing of the metal femoral component of a total knee joint prosthesis is conducted to establish the F-N curve at different load levels and to determine the fatigue limit of the sample under 10 million cycles.

ASTM F3210 Fatigue Testing of Total Knee Femoral Components – ASTM F3210 Fatigue Testing of Total Knee Femoral Components is intended to determine the fatigue behavior of knee femoral components under closing conditions. This test method simulates a clinically severe condition in which all bony support is lost, and one single condyle supports the complete load at 90° of tibiofemoral flexion.
ASTM F1798 Spinal Implant Subassembly Static and Fatigue Testing System

ASTM F1798 provides standardized methods for mechanically testing the interconnections within spinal implant systems. It is for evaluating the uniaxial static/fatigue strength and loosening resistance of interconnection mechanisms in spinal arthrodesis implant subassemblies, providing a standardized way to characterize mechanical performance of connections like rod-clamp, screw-rod, and hook-rod assemblies. It is critical for design validation, regulatory compliance, and clinical safety in the spinal implant industry.

ASTM F2706 Fatigue Static Test of Spinal implant constructs

ASTM F2706 is a critical biomechanical evaluation tool in the medical device industry, specifically for spinal implants. ASTM F2706 establishes standardized mechanical test methods to evaluate the static (strength) and fatigue (long-term durability) performance of spinal implant assemblies intended for use in the occipito-cervical (OC) and cervico-thoracic (CT) regions (from the skull to the upper back). It simulates a worst-case scenario: a complete vertebrectomy (removal of a vertebra), creating a highly unstable spine segment that the implant must stabilize.

ASTM F2722 Test of Mobile Bearing Knee Tibial Baseplate Rotational Stops

ASTM F2722 is an in-vitro laboratory standard that assesses the mechanical performance and structural integrity of rotational stop features in mobile-bearing total knee replacement (TKR) prostheses under simulated deep-flexion daily activities.

FAQs — ASTM F2777-23 (Tibial Insert Endurance & Deformation Under High Flexion)

Q1: What is the core purpose of ASTM F2777-23?

A: It is a standard test method to evaluate endurance, deformation, fatigue, and fracture resistance of UHMWPE tibial bearing inserts in knee prostheses under high‑flexion, posterior edge loading conditions (e.g., squatting, kneeling).


Q2: Why is this test particularly important for UHMWPE as a material?

A: UHMWPE's clinical strengths (low friction, tough, forgiving) come with material behaviours that only show up under implant‑specific boundary conditions:

Viscoelastic creep ("cold flow") — under sustained/repeated compressive overhang, the rim bows, thins, and can lose locking engagement.

Oxidative embrittlement — if radiation‑sterilized and aged, subsurface cracking susceptibility rises; edge stress concentrates that.

Geometry‑driven stress concentration — the failure isn't about bulk tensile strength; it's about unsupported posterior rim thickness, radius profile, and how the tray constrains the insert. A generic ASTM dogbone fatigue coupon won't catch a bad rim geometry.

System interaction — locking mechanisms, snap‑fit retention, stem constraints, and tray rigidity all change how load reaches the rim. F2777 tests the real assembled construct, not the polymer in isolation.


Q3: Why is the peak force set to 2275 N?

A: 2275 N equals 2.9× body weight for an 80 kg person, matching measured in vivo joint forces during high‑flexion activities (>130° flexion) in clinical studies.


Q4: Why run 220,000 test cycles?

A: 220,000 cycles simulate ~30 high‑flexion movements per day for 20 years, representing long‑term clinical service life.


Q5: What is the key setup difference between fixed and mobile bearing knees?

A:Mobile bearing: 20° internal rotation of the tibial tray; femoral and bearing centerlines stay collinear.

Fixed bearing: 20° internal rotation; only one femoral condyle contacts the posterior edge of the bearing.


Q6: How is this different from ISO 14243 (wear simulator)?

F2777ISO 14243‑1 / ‑3
PurposeCatch edge‑cantilever fracture, disassociation, excessive creep under high flexionMeasure wear volume / particle generation under gait‑like load–motion cycles
KinematicsEssentially static orientations (max flexion, set rotation, posterior contact) + pure axial cyclingDynamic multi‑DOF motions (flexion–extension, AP translation, tibial rotation, etc.)
Outcome metric  Cycles to fracture/disassociation or deformation map after 220k cyclesWear mass / volumetric loss per million cycles
OverlapUses similar fluid‑temp thinking and references ISO 14243 load‑split philosophy for med/lat force distribution


Q7: What's the Test Setup and Conditions?

A: Sample Preparation:

  • UHMWPE components must undergo artificial aging according to ASTM F2003 unless manufacturer can demonstrate aging has no detrimental effect

  • Metallic components follow complete manufacturing processes (machining, surface treatment) up to sterilization

  • Minimum of 5 specimens required for statistical significance

Loading

Cyclic Loading Parameters:
  • Peak Load: 2,275 N (approximately 232 kgf) - representative of high flexion activities

  • Load Ratio (R): 0.1 (minimum force = 227.5 N)

  • Frequency: 0.5 to 2.0 Hz (cycles per second)

  • Test Duration: 220,000 cycles or until failure (whichever occurs first)

  • Load applied through femoral component centerline to ensure even distribution

  • For mobile bearings, tibial tray rotated 20° internally relative to femoral component to simulate worst-case posterior contact

  • Fixed-bearing designs: After 20° internal rotation, only one femoral condyle contacts at maximum posterior point

Test Sequence

  1. Conditioning:
    • 37°C water bath immersion until thermal equilibrium

  2. Test Execution:
    • Apply cyclic load with femoral component flexed to manufacturer's maximum recommended angle

    • Maintain precise alignment throughout 220,000 cycles

  3. Post-Test Evaluation:
    • Repeat initial measurements to quantify deformation

    • Inspect for cracks, fractures, or dissociation from tibial tray

    • Measure creep recovery after 90+ minutes at room temperature

Success/Failure Criteria

The test passes if:
  • No catastrophic failure (fracture or complete dissociation) occurs before 220,000 cycles

  • Deformation measurements remain within manufacturer's specifications

  • No evidence of progressive damage that would compromise clinical performance


Q8: What' s the Essential Fixture Components?

Fixture ElementFunctionDesign Requirements
Tibial Tray HolderFixes tibial baseplate at specified posterior slope angleCorrosion-resistant material, adjustable to manufacturer's recommended slope
Femoral Component Mount   Positions femoral component at maximum flexion angle    Allows precise angle adjustment and maintains alignment during loading
Force Application SystemDelivers cyclic 2,275 N load through femoral centerlineRigid connection to testing machine, self-aligning to prevent bending moments
Water ChamberContains 37°C deionized water for test environmentSealed enclosure to maintain temperature and full immersion
Measurement SystemTracks vertical distraction and bearing tiltNon-contact methods preferred (e.g., laser sensors) to avoid interference
