ASTM F2706 Fatigue Static Test of Spinal implant constructs

ASTM F2706 - Standard Test Methods for Occipito-Cervical and Occipito-Cervico-Thoracic Spinal Implant Constructs in a Vertebrectomy Model.

This standard is a critical biomechanical evaluation tool in the medical device industry, specifically for spinal implants. ASTM F2706 establishes standardized mechanical test methods to evaluate the static (strength) and fatigue (long-term durability) performance of spinal implant assemblies intended for use in the occipito-cervical (OC) and cervico-thoracic (CT) regions (from the skull to the upper back). It simulates a worst-case scenario: a complete vertebrectomy (removal of a vertebra), creating a highly unstable spine segment that the implant must stabilize.

Test Principle:

The principle is to create a pure moment (bending force) across the implant construct in a controlled laboratory setting. The UHMWPE blocks are mounted in the tester such that when the machine applies a force, it induces a bending moment in the primary anatomical planes:

Flexion-Extension;

Lateral Bending;

Axial Rotation.

Tests are performed separately for each loading mode. The construct is loaded while submerged in warm saline, and its resistance to deformation (stiffness) and ultimate failure load is measured.

ASTM F2706 Test Methods:

The standard defines three static and two fatigue test methods to assess the mechanical performance of spinal implant constructs.

Static Test	Compression bending	Determines the construct's ultimate strength, stiffness, and yield properties under a single, continuously increasing load until failure occurs.
	Tensile bending
	Torsion
Dynamic fatigue test	Compression-tension bending fatigue	Evaluates the implant's long-term durability by applying a repeated load for a specified number of cycles (e.g., 5 million cycles) or until failure, to establish a load-versus-cycle (S-N) curve.
	Torsion fatigue

Test Equipment required for ASTM D2706 test:

Static/Fatigue Testing Machine: A servo-hydraulic or electromechanical testing system capable of applying both static and dynamic cyclic loads with precise control and data acquisition.

Environmental Chamber: A bath or chamber to contain physiological saline solution maintained at 37 ± 2°C to simulate in vivo body conditions, which is crucial for corrosion-fatigue interactions.

Specialized Fixturing (UHMWPE Blocks): The test specimen is mounted between blocks made of Ultra-High Molecular Weight Polyethylene (UHMWPE). These blocks represent the remaining vertebrae (or skull base) and have standardized geometry and screw hole patterns to ensure consistent load application and comparison between different implant designs.

Motion Tracking System: Often used (e.g., digital image correlation or extensometers) to measure displacements and calculate angular range of motion (ROM) of the construct.

Test Specimen Info:

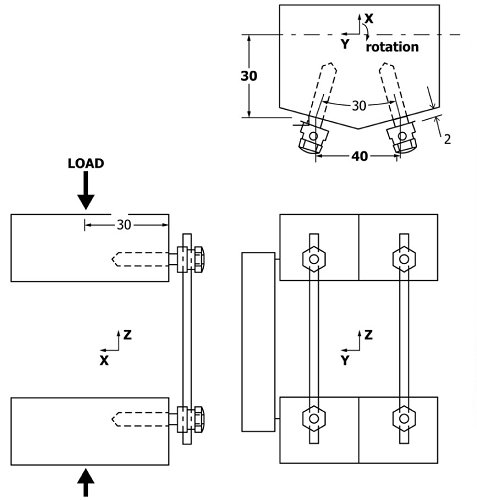

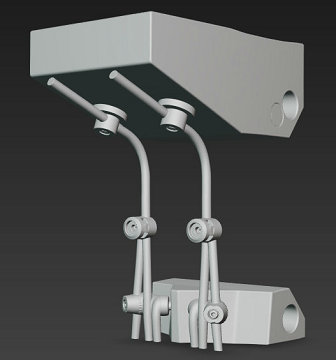

Implant Constructs: OC/OCT assemblies (rods, hooks, screws, connectors) mounted on two UHMWPE test blocks (superior and inferior) with a defined gap to simulate vertebrectomy.

ASTM F2706 Fatigue Static Test of Spinal implant constructs

Test Blocks: UHMWPE with tensile strength of 40 ± 3 MPa to eliminate bone variability.

Specimen Preparation: Implants are fixed to blocks per manufacturer’s instructions; constructs must be intact and free of defects.

Test Procedures of ASTM F2706 for the spinal implants:

Specimen Assembly: The complete implant is assembled and rigidly fixed into the upper and lower UHMWPE blocks according to the standard's specified screw placement and torque.

Mounting: The block-implant-block construct is mounted into the testing machine's fixtures. The fixtures are designed to apply a pure moment while allowing unconstrained motion in the other planes.

ASTM F2706 Fatigue Static Test of Spinal implant constructs

Environmental Conditioning: The entire assembly is submerged in a 37°C saline bath.

Preconditioning: A small number of load cycles may be applied to seat the components.

Loading procedure:

Static Test: A continuously increasing rotational displacement or moment is applied at a controlled rate until the construct catastrophically fails or reaches a defined endpoint. Load and displacement are continuously recorded.

Fatigue Test: A cyclic sinusoidal load (typically at 2-5 Hz) is applied at a specific load level based on a percentage of the static failure load. Testing continues until failure (e.g., screw breakage, rod fracture) or completion of the target cycle count (e.g., 5 million cycles).

Data Analysis: Calculate stiffness (Nm/degree), yield moment, ultimate failure moment, and for fatigue tests, determine the run-out load (the load at which no failure occurs).

Why This Test is Important for Spinal Implants:

Biomechanical Relevance: The OC/CT junction is highly mobile and bears the weight of the head. This test replicates the severe instability it must stabilize, providing clinically relevant performance data.

Patient Safety: It ensures that implants have sufficient strength to withstand physiological loads without acute failure and fatigue resistance to survive a patient's lifetime of movement (often termed "endurance limit").

Regulatory Necessity: It is a mandatory part of the pre-clinical testing portfolio for regulatory clearance/approval of new spinal implant systems in major markets.

Informs Surgical Practice: Understanding the mechanical performance helps surgeons select appropriate constructs for different pathologies and patient sizes.

Drives Innovation: Provides a benchmark that drives manufacturers to develop stronger, more durable, and lower-profile implant systems.
