ASTM F2634 Complete Technical Guide to the Tensile-Impact Test for PE Butt Fusion Joints

Share:

ASTM F2634 PE Pipe Butt Fusion Joint Tensile-Impact Tester | UnitedTest

UnitedTest manufactures high-performance ASTM F2634 compliant tensile-impact testing machines for laboratory evaluation of polyethylene butt fusion joint integrity in plastic piping systems.


ASTM F2634 Standard Test Method for Laboratory Testing of Polyethylene (PE) Butt Fusion Joints Using Tensile-Impact Method establishes a high-speed tensile impact test procedure to assess the short-term mechanical integrity of polyethylene butt fusion welds. Although ASTM F2634 is often compared with ISO 13953, the two standards feature fundamental differences in strain rate: ASTM F2634 adopts impact loading speed, while ISO 13953 applies slow static tensile loading. This test method is widely utilized to qualify on-site field welds and optimize butt fusion process parameters. When combined with long-term hydrostatic pressure testing, it delivers comprehensive data to validate both short-term and long-term service performance of PE pipe welded joints.


- Applicable pipe: Nominal diameter ≥ 2.37 in (60.3 mm), wall thickness ≥ 0.25 in (6.3 mm)

- Only for butt-fused PE pipe joints; not applicable to electrofusion, saddle fusion or small-diameter pipes below 60.3 mm OD


Test Principle & Specific Test Method:

1. A machined dogbone tensile impact coupon is cut longitudinally across a full butt fusion weld, with the fusion interface centered at the narrow reduced gage section.

2. The specimen is loaded under high-speed tensile impact with a pre-set free travel impact stroke (minimum 0.25 in /6.4 mm) to deliver rapid strain rate loading, simulating sudden shock loads that buried pipelines may encounter during installation, ground shift or impact damage.

3. High-frequency data acquisition continuously records force, displacement, velocity and energy throughout the test until full rupture.

4. Key evaluation metrics are captured:

   - Yield point, yield stress, yield energy;

   - Maximum breaking force, rupture energy;

   - Rupture mode classification (ductile = acceptable; brittle = defective).

5. The fusion interface is positioned at the specimen’s weakest gage cross-section to concentrate impact tensile stress on the weld, forcing failure at or near the joint for direct weld quality assessment.


Rupture Mode Definitions

- Ductile Rupture (Pass): Specimen exceeds base material yield point, with extensive plastic elongation; rupture either occurs in base pipe outside the weld or adjacent to the fusion line with heavy material tearing. Confirms complete molecular bonding between melted PE surfaces.

- Brittle Rupture (Fail): No yield threshold reached, clean flat split directly along the fusion interface with negligible plastic deformation. Indicates incomplete fusion, surface contamination, improper heating/pressure or severe pipe misalignment.


Test equipment of ASTM F2634 Tensile-Impact Test for PE Butt Fusion Joints:

Equipment ComponentSpecifications
High-Speed Tensile-Impact Test Machine

1. Fixed and movable crosshead members with pin clevis tooling to mount specimens; pull axis aligns with specimen’s longitudinal centerline.

2. Impact drive mechanism with minimum 0.25 in free stroke to deliver impact tensile load at controlled constant velocity.

3. Precision load sensor: Accuracy ±1% of indicated load value.

4. Position displacement sensor: Accuracy ±1% of indicated position.

5. Data Acquisition System (DAS): Minimum sampling rate of 1 kHz to log force, displacement, velocity, energy vs time curves.

6, Speed upto 152mm/s.

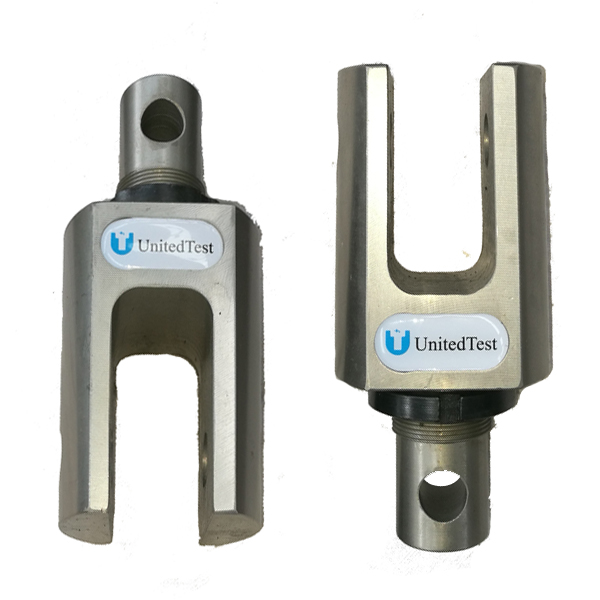

Grips

UnitedTest Pipe Tensile Test Pin Type Grip.

Matches traction holes pre-drilled on test pieces to transmit tensile force perpendicularly to the weld plane.

ISO 13953 Complete Guide to the Butt-Fused PE Joint Tensile Test

Auxiliary ToolsMachining templates, fine abrasive sandpaper (600 grit or finer), permanent marking tools for specimen identification, temperature-controlled conditioning chamber.


Test Sample information:

ASTM F2634 Complete Technical Guide to the Tensile-Impact Test for PE Butt Fusion Joints

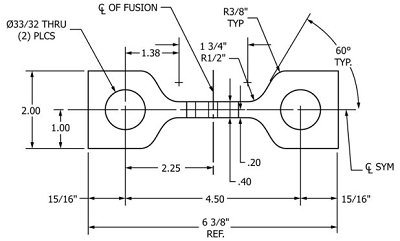

Standard Specimen of ASTM F2634

1. Cut longitudinal strips across the full butt fusion joint; internal and external fusion beads shall remain intact (contrast with ISO 13953 which allows bead removal).

2. Machine smooth gage section without notches, gouges or undercuts exceeding tolerance limits.

3. Mark ID outside the gage zone only; no engraving on the critical narrow test section.

4. Retain un-fused base pipe specimens as control reference samples for comparison.


Sampling Quantity

- Pipe OD 2 in to 4 in: Minimum 2 specimens, taken 180° apart (top and bottom center of weld circumference)

- Pipe OD ≥ 4 in: Minimum 4 specimens, evenly spaced 90° around the weld circumference


Key Test Parameters

1. Tensile Impact Crosshead Speed (strain rate dependent on pipe wall thickness):

   - Wall thickness <1.25 in (32 mm): 6 in/s (152 mm/s), tolerance +0.5 / -1 in/s

   - Wall thickness >1.25 in (32 mm): 4 in/s (102 mm/s), tolerance +0.5 / -1 in/s

2. Impact Free Stroke: Minimum 0.25 in (6.4 mm) before load contact with specimen

3. DAS Sampling Rate: ≥1000 Hz (1 kHz) continuous recording until rupture

4. Measurement Precision: Width/thickness measured to nearest 0.001 in; record minimum gage dimensions for area calculation.


Test Stipulations (Key Requirements):

Scope limitation: Applies to pipe specimens with diameter ≥ 2.37 in. (60.3 mm) and wall thickness ≥ 0.25 in. (6.3 mm).

Bead retention: Fusion beads must remain on both inner and outer surfaces.

Impact mechanism: Requires 0.25 in. minimum free travel before load transfer.

Data acquisition: Must record force, energy, and velocity curves at ≥ 1 kHz.

Comparison requirement: Each coupon's results must be compared to test results for coupons machined from the base (un-fused) pipe material.

Combined testing: When used with the elevated-temperature sustained pressure test of ASTM D3035, both short-term and long-term joint strength are verified.

Dimension measurement: Width and thickness measured to 0.001 in. (0.025 mm) accuracy, in ≥ 3 places in the gauge section; the smallest value is recorded.


Test Procedures of ASTM F2634 Tensile-Impact Test for PE Butt Fusion Joints:

1. Machine and finish all test specimens following dimensional and surface finish rules, mark unique identification numbers.

2. Condition all coupons at 23±2 °C for minimum 1 hour prior to testing.

3. Set tensile impact machine to specified crosshead speed matching pipe wall thickness, calibrate load and position sensors.

4. Measure gage width and wall thickness at three positions per specimen, record minimum values into the data acquisition system.

5. Pin the specimen into clevis fixtures, align specimen longitudinal axis with machine pull direction to avoid bending bias.

6. Input metadata: pipe size, DR ratio, PE material grade, fusion parameters, lab technician ID, test date.

7. Initiate high-speed tensile impact test; DAS continuously records force, position, instantaneous velocity and cumulative energy at 1 kHz sampling rate until full specimen rupture.

8. After rupture, document rupture mode (ductile outside joint / ductile adjacent to joint / brittle interfacial split) with photos if required.

9. Repeat for all sampled specimens and base pipe control samples.

10. Compile force/time, energy/time curves, tabulate maximum force, yield stress, yield energy, rupture energy and average test velocity for each coupon.


Industrial Application Fields

ASTM F2634 is the primary tensile impact weld qualification standard for the North American plastic piping market, applied across these sectors:

1. Buried HDPE/MDPE natural gas distribution pipelines (compliant with ASTM D2513 gas pipe specification)

2. Municipal potable water PE pressure pipe systems following ASTM D3035 OD-controlled PE pipe standards

3. Industrial chemical fluid conveyance PE piping, landfill leachate pipe networks

4. On-site construction weld acceptance testing for field butt fusion joints

5. PE pipe manufacturer factory quality control for fusion procedure qualification

6. Third-party material certification, new PE resin development and fusion parameter R&D optimization

7. Combined with long-term sustained pressure testing (ASTM D3035) to validate full lifecycle joint performance for buried infrastructure


Related Test Standard:

ISO 13953Polyethylene(PE) pipes and fittings - Determination of the tensile strengt and failure mode of test pieces from a butt-fused joint
ASTM F2634Standard Test Method for Laboratory Testing of Polyethylene (PE) Butt Fusion Joints using Tensile-Impact Method
GB/T 19810Polyethylene(PE)pipe and fittings-Determination of the tensile strength and failure mode of test pieces from a butt-fused joint
ASTM F1804Determining allowable tensile load for PE gas pipe during pull‑in installation


Keywords: UnitedTest ASTM F2634 tester, ASTM F2634 tensile-impact tester, PE butt fusion joint tensile impact test machine, polyethylene pipe weld integrity testing equipment, ASTM F2634 high-speed tensile impact test for PE butt fusion welds, difference between ASTM F2634 and ISO 13953 pipe joint testing, strain rate controlled polyethylene weld impact tester, field PE pipe fusion joint qualification laboratory equipment, short and long term performance verification for plastic pipe welded joints

Related products and device

ASTM F2634 PE Butt Fusion Joints High Speed Tensile-Impact Testing Machine

WDW Series Computer Control Electronic Universal Testing Machine made by UNITEDTEST range from 100N to 600KN load capacity with various models like single columns, table type, door frame type etc., is used to perform tension, compression, flexure/bending, shearing, peeling etc., test for metal and nonmetal specimens.

ASTM F2634 PE Butt Fusion Joints Test Grips

Textile fabric tensile fixtures complying with ASTM D5035 and ISO 13934.1 are specialized clamping devices for testing the tensile strength and elongation at break of textiles. They are designed based on the strip method specified by both standards, which guarantees the test accuracy.

Related Standard

ISO 13953 Complete Guide to the Butt-Fused PE Joint Tensile Test

ISO 13953 Polyethylene(PE) pipes and fittings - Determination of the tensile strengt and failure mode of test pieces from a butt-fused joint

ISO 13953 specifies a destructive tensile test method for assessing the quality of butt‑fused joints in polyethylene (PE) pipes and fittings by measuring the tensile strength and failure mode of machined test pieces taken from the welded joint. It only applies to PE pipes with nominal outer diameter dn≥90 mm, and serves as a core quality verification tool alongside other joint test methods for plastic piping systems.

ISO 6259-3 Tensile test for Thermoplastics Polyolefin pipes

ISO 6259-3 Thermoplastics pipes -- Determination of tensile properties -- Part 3: Polyolefin pipes


ISO 6259-3 specifies a method of determining the tensile properties of polyolefin (polyethylene, cross-linked polyethylene, polypropylene, and polybutene) pipes, and the following properties: the stress at yield and the elongation at break.


Sample size:

Type 1 Dog bone : 150mm length, 20mm width

Type 2 Dumbell :  115mm length, 20mm width

Type 3:  250mm length

ISO 527-1, ISO 527-2 Tensile Test of Plastics Composites & plastics

ISO 527-1 covers the test procedures for determining tensile properties of plastics and plastic composites. Tensile properties of plastics that are determined through the practices of ISO 527-1 include tensile strength, tensile modulus and other properties related to stress strain characteristics of plastic materials.

ISO 527-2 specifies the test conditions for determining the tensile properties of moulding and extrusion plastics, based upon the general principles given in ISO 527-1. The methods described in ISO 527-2 are selectively suitable for use with the following range of materials: rigid and semi-rigid thermoplastics moulding, extrusion and cast materials, including compounds filled and reinforced by, for example, short fibres, small rods, plates or granules but excluding textile fibres (see ISO 527-4 and ISO 527-5).

FAQs for ASTM F2634 Tensile-Impact Test for PE Butt Fusion Joints

Q1: What pipes can ASTM F2634 test? Can I test DN50 small PE pipe?

A1: ASTM F2634 applies only to PE pipes with nominal outer diameter ≥2.37 in (60.3 mm) and wall thickness ≥0.25 in (6.3 mm). Pipes smaller than 60.3 mm OD are outside its scope, and other dedicated test methods must be used for small-diameter butt fusion joints. This standard only covers butt-fused joints, not electrofusion or saddle fusion connections.


Q2: What is the core difference between ASTM F2634 and ISO 13953 (the similar standard noted in F2634)?

A2: 1. Loading speed: F2634 uses high-speed tensile impact (4 / 6 in/s), ISO 13953 uses slow static tensile pull (5 mm/min quasi-static loading).

2. Impact stroke: F2634 requires a minimum 0.25 in (6.4 mm) free travel impact stroke to simulate dynamic shock loads; ISO 13953 has no impact stroke.

3. Specimen rule: F2634 mandates retaining inner/outer fusion beads on specimens; ISO 13953 allows bead removal.

4. Post-weld waiting rule: F2634 only requires 1 h pre-test conditioning; ISO 13953 enforces a 24 h minimum cooling period after welding before testing.

5. Evaluation output: F2634 calculates yield energy and rupture energy (toughness metrics); ISO 13953 only calculates static tensile strength.

FeatureASTM F2634ISO 13953
Loading modeTensile-impact (high strain rate)Quasi-static tensile
Test speed4 or 6 in./s (102 or 152 mm/s)5 mm/min (0.083 mm/s)
Strain rate~1,800× fasterSlow
Fusion beadMust remainMay be removed
Min. pipe diameter2.37 in. (60.3 mm)90 mm (3.54 in.)
Min. wall thickness0.25 in. (6.3 mm)Not strictly specified
Primary outputEnergy to yield & rupture + force-time curveTensile strength + failure mode
Conditioning time≥ 1 hour≥ 6 hours
Sampled measurementsForce, energy, velocity (≥ 1 kHz)Force only


Q3: Can I grind off the fusion bead on the specimen before machining, like ISO 13953 permits?

A3: No, ASTM F2634 strictly requires retaining both internal and external fusion beads on all test coupons. Removing beads will invalidate test results, as beads reflect actual field weld geometry and influence stress distribution at the joint.


Q4: Why is ASTM F2634 tensile-impact test far more critical than slow static tensile tests like ISO 13953 for PE pipeline safety?

A4: 1. Simulates real dynamic field loads: Buried PE pipelines experience sudden impact loads (ground settlement, excavation shocks, vehicle overloading, thermal shock). PE exhibits drastically lower ductility at high strain rates; static slow pull often passes weak welds that fail brittlely under real-world shock.

2. Detects hidden cold fusion defects: Minor welding flaws (surface contamination, insufficient melt penetration, uneven heating) invisible to visual inspection will trigger brittle rupture under high-speed impact, while passing static tensile tests.

3. Measures joint toughness via energy metrics: Yield energy and rupture energy quantify how much shock energy the weld can absorb before breaking—this is the key indicator for long-term underground service durability.

4. North American regulatory compliance: US and Canadian gas/water pipeline codes require F2634 results for weld procedure qualification, a mandatory precondition for pipeline installation.

5. Full lifecycle validation pairing: When combined with ASTM D3035 long-term sustained pressure creep testing, F2634 verifies both short-term impact resistance and long-term static creep performance of joints.


Q5: What is the difference between ductile rupture (pass) and brittle rupture (fail) under F2634?

A5:- Ductile Rupture (Acceptable Joint): Specimen reaches the base pipe yield point with large plastic elongation; rupture either occurs outside the fusion line in the base PE material or adjacent to the weld with heavy material tearing. Confirms full molecular interdiffusion between melted PE surfaces.

- Brittle Rupture (Defective Joint): The specimen never hits the material yield point, with almost no plastic deformation; a clean flat split forms directly along the fusion interface. This signals incomplete fusion, dirty pipe surfaces, incorrect heating/pressure, or severe pipe misalignment during welding.


Q6: Why does the standard center the butt fusion weld exactly inside the specimen’s narrow gage section?

A6: The narrow gage strip is the specimen’s weakest cross-section. Centering the weld here concentrates all high-speed impact tensile stress directly on the fusion joint, forcing failure at or near the weld instead of the intact base pipe. This ensures test results reflect only weld quality, not pure base pipe tensile performance.


Q7: How many test specimens do I need to sample for a 20 mm wall thickness pipe with OD 350 mm (over 4 in)?

A7: For pipe OD ≥4 in, a minimum of 4 specimens evenly spaced at 90° around the weld circumference are required. Additional replicates are recommended to capture full circumferential weld uniformity variation. For pipe OD 2–4 in, only 2 specimens taken 180° apart are needed.


Q8: What crosshead test speed do I use for 20 mm wall and 40 mm wall PE pipes?

A8: - Wall thickness < 1.25 in (32 mm): 6 in/s (152 mm/s) impact speed (applies to 20 mm wall pipe)

- Wall thickness > 1.25 in (32 mm): 4 in/s (102 mm/s) impact speed (applies to 40 mm wall pipe)

Speed tolerance is +0.5 / -1 in/s.


Q9: Does the fixed 6.4 mm (0.25 in) free impact stroke change the maximum recorded force value?

A9: No. The 6.4 mm free travel stroke only impacts total rupture energy absorbed by the specimen during testing. Maximum peak force depends solely on the specimen’s cross-sectional area (gage width × wall thickness) and dynamic yield strength of PE resin; stroke length does not alter peak force magnitude.


Q10: What estimated maximum force range can I expect for 20 mm and 40 mm wall PE100 pipe with good ductile welds in F2634?

A10: The standard fixed gage width is 0.40 in (10.16 mm):

1. 20 mm wall (6 in/s test speed): Ductile good weld peak force = 5.3 ~ 6.7 kN; brittle defective weld = 2.0 ~ 3.3 kN

2. 40 mm wall (4 in/s test speed): Ductile good weld peak force = 9.4 ~ 11.8 kN; brittle defective weld = 4.1 ~ 6.5 kN

PE80 resin will produce roughly 10–15% lower peak force than PE100/PE4710 materials.


Q11: Why do I need to test un-fused base pipe control specimens alongside welded coupons?

A11: Base pipe control samples establish a benchmark for baseline yield stress, yield energy, rupture energy and peak force. Welded joint results are compared against this reference to judge if the fusion weld matches the base pipe’s mechanical performance under impact loading.


Q12: What data acquisition sampling rate is mandatory for the test machine?

A12: The Data Acquisition System (DAS) must record force, displacement and velocity at a minimum sampling rate of 1 kHz (1000 readings per second) throughout the full test until specimen rupture. Low sampling rates will miss critical yield point and peak force data.


Q13: If a specimen breaks entirely in the base pipe far away from the fusion joint, can I use this data to evaluate weld quality?

A13: No. Only specimens rupturing at or adjacent to the butt fusion joint are valid for weld quality assessment. Coupons breaking in un-fused base pipe are still recorded for comparative material benchmarking but cannot be used to pass/fail the weld procedure.


Q14: What mandatory content must be included in a formal F2634 test report?

A14: The report must contain:

1. Reference to ASTM F2634-15 (Reapproved 2021) and supporting standards (D2513, D3035, D883)

2. Full pipe identification: OD, DR ratio, PE resin grade, manufacturer code, complete butt fusion parameter matrix

3. Specimen count, circumferential sampling positions, bead retention status, base pipe control test results

4. Test temperature, conditioning duration, impact crosshead speed

5. Per-coupon data: average velocity, maximum force, yield stress, yield energy, rupture energy, rupture mode classification

6. Force/time graphical plots for every specimen

7. Test anomalies, equipment deviations, lab name, technician ID and test date


Q15: If a batch of butt fusion joints fails the ASTM F2634 test, what corrective actions are required?

A15: The full butt fusion process must be reviewed and adjusted: check heating plate temperature, fusion soak time, applied fusion pressure, pipe surface cleaning procedure, pipe alignment, and cooling hold duration. New welded joint samples must be manufactured with revised parameters and retested via F2634; unqualified weld procedures cannot be used for field pipeline construction or factory pipe fabrication.
