ASTM F1798 Spinal Implant Subassembly Static and Fatigue Testing System

Share:

ASTM F1798 Spinal Arthrodesis Implant Interconnection Tester | UnitedTest

ASTM F1798 evaluates static and fatigue properties of interconnection mechanisms and subassemblies for spinal arthrodesis implants. UnitedTest manufactures ASTM F1798 compliant testing machines for spinal implant connection strength and loosening resistance validation.


ASTM F1798 defines a standardized mechanical test method for assessing interconnection mechanisms within spinal arthrodesis implant systems. This standard evaluates uniaxial static strength, fatigue performance and loosening resistance of spinal implant subassembly connections, including rod-clamp, screw-rod, and hook-rod assemblies.

The test results characterize the mechanical reliability of spinal implant joint connections, supporting product design validation, regulatory compliance assessment and clinical safety verification within the spinal implant manufacturing sector.


UnitedTest designs and manufactures precision ASTM F1798 testing machines for spinal implant interconnection subassemblies. Our test equipment delivers stable static and fatigue test data for spinal implant R&D, quality control and medical device certification.

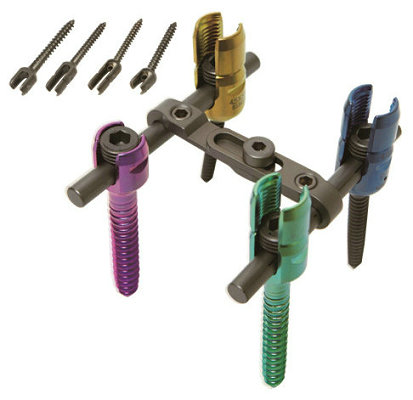

This includes connections like:

Set screw to rod (in pedicle screw systems);

Vertebral body screw to plate (in anterior cervical plates);

Cross-connector to rod;

Any other mechanical junction point in a spinal implant assembly.

The standard's primary goal is to evaluate the static (strength) and fatigue (long-term durability) performance of these connection points, which are often the weakest links in a spinal construct.

ASTM F1798 Spinal Implant Subassembly Static and Fatigue Testing System

ASTM F1798 Test Principle:

This is an in‑vitro uniaxial mechanical test principle. Spinal implant interconnections bear combined loads in human body; the standard decomposes complex multi‑axial physiological loading into separate single‑axis static and cyclic loads/moments along global/local spinal coordinate systems (global A‑P X, medial‑lateral Y, cranial‑caudal Z axes; local coordinate aligned to each interconnection position).

Static test: Load‑to‑failure to capture yield load/moment, ultimate load/moment, gripping capacity, permanent subassembly deformation after unloading. Yield point corresponds to permanent deformation = 0.020 × active length of longitudinal element; subassembly failure includes fracture, plastic deformation, loosening or slippage disabling load‑bearing capacity.

Fatigue test: Apply sinusoidal cyclic load‑controlled loading. Determine maximum run‑out load/moment: the highest amplitude at which specimens complete 2.5 × 10⁶ cycles without failure. Two loading modes are allowed: fluctuating loading (R‑ratio defined) or fully‑reversed loading (R = ‑1.00), selected based on the component’s physiological loading mode.


Note: Simplified uniaxial lab loading cannot reproduce full multi‑axial in‑vivo spinal loading; results support relative ranking between designs instead of absolute clinical performance prediction.


ASTM F1798 Test Equipment Required:

Static universal Testing Machine

Universal/servo‑hydraulic or electromechanical test frame with force/moment calibration per ASTM E4.

Record load‑displacement / load‑angle curves; cycle counter for fatigue cycles; visual inspection tools for fretting and surface corrosion observation

Fatigue testing machineA servo-hydraulic or electromechanical test frame capable of applying both static and cyclic axial loads (tension/compression).
Custom test fixtures / clamps

Rigid fixtures for securing longitudinal elements (rods/plates). The active length of longitudinal element for most subassembly tests is fixed as 50 mm between rigid supports.

Special sleeves/collars for axial gripping and axial torque tests; moment‑arm fixtures for moment loading; dedicated metallic/polymer test blocks for polyaxial screw tulip‑shank disassociation test

Torque measurement tools:To record assembly tightening torque and post‑test loosening torque of threaded fasteners (set‑screws, nuts).


Specific Test Methods described in the ASTM F1798:

Tests are executed only along relevant loading directions according to implant design, including static load‑to‑failure tests and cyclic fatigue run‑out tests

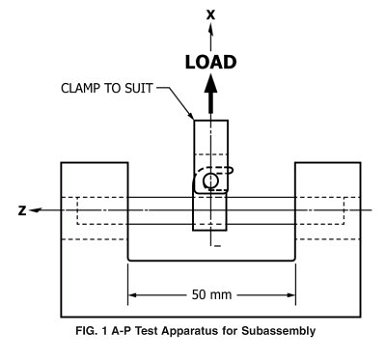

Anterior‑Posterior (A‑P, X‑axis) static & fatigue test

Apply load perpendicular to longitudinal rod, evaluate A‑P interconnection performance. (Fig.1)

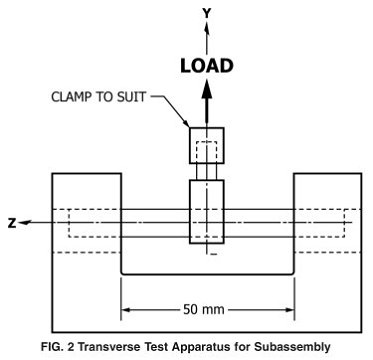

Transverse (Y‑axis) static & fatigue testApply transverse lateral load perpendicular to the rod (Fig.2)
Axial gripping capacity (Z‑axis) test

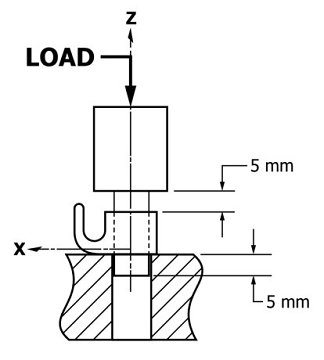

Pull‑out test for interconnection clamping capability (Fig 7a,7b).

Gripping capacity is defined as maximum load/moment within 1.5 mm permanent displacement or 5° permanent rotation between connected parts

Flexion‑extension moment (My) testApply bending moment parallel to longitudinal element (Fig 3a,3b)
Transverse moment (Mx) testApply lateral bending moment (Fig 4)

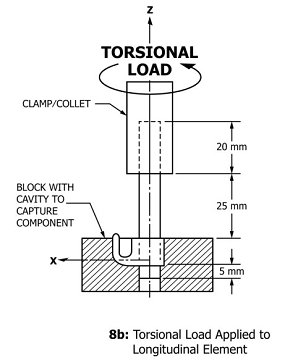

Axial torque (Mz) gripping testMeasure torsional anti‑loosening performance of threaded connections (Fig 8a‑8c)
Polyaxial screw tulip‑shank disassociation testTest at neutral angle and maximum designed angulation of polyaxial pedicle screws (Figure 9), assess separation resistance between screw tulip housing and screw shank

For fatigue: adopt run‑down / half‑interval staircase method. The target run‑out life is 2.5 × 10⁶ cycles. Three consecutive specimens must survive 2.5 million cycles without failure to confirm the maximum run‑out load/moment. Alternative starting points: run‑up method or 75 % of static ultimate load/moment


Test Procedure for ASTM F1798 Spinal Implant Subassembly Static and Fatigue Testing System:

Step 1: Specimen preparation & assembly

Select unused subassembly specimens. Assemble all components strictly following manufacturer instructions, apply specified tightening torque, crimping or locking mechanisms. Record tightening‑torque values for threaded fasteners. Prepare baseline loosening‑torque measurement for fatigue‑test specimens before cyclic loading. Mount specimen into corresponding fixture according to target test mode (A‑P, transverse, axial gripping, moment, torque, tulip‑shank disassociation). Ensure alignment matches global‑local coordinate‑system rules; confirm 50 mm active‑length setup for subassembly tests.

Step 2: Static‑test procedure

Run load‑to‑failure test at specified loading rate. Continuously record load‑displacement or load‑angle curve. Terminate test upon specimen failure (fracture, gross slippage, excessive permanent deformation). After unloading, measure subassembly permanent deformation. Measure post‑test loosening torque of threaded fasteners. Repeat for minimum 5 static specimens per loading direction. Extract key metrics: yield load/moment, ultimate load/moment, gripping capacity, and identify failure mode.

Step 3: Fatigue‑run‑out procedure

Set sinusoidal load‑controlled cyclic loading with correct R‑ratio (fluctuating or fully‑reversed). Select initial amplitude: either 75 % of static ultimate load/moment, run‑up pre‑test, or staircase run‑down starting amplitude.

  • If specimen fails before 2.5 × 10⁶ cycles: decrease load amplitude for next specimen.

  • If specimen survives 2.5 × 10⁶ cycles (run‑out): adopt half‑interval adjustment. Continue staircase run‑down / half‑interval until three consecutive specimens achieve run‑out without failure. Document cycle‑to‑failure or run‑out status for every sample. After each fatigue test, measure post‑cycling loosening torque; inspect fretting and surface corrosion on disassembled parts.

Step 4: Report generation

Report must include specimen traceability, fixture dimensions, loading configuration, deviations from standard procedure, tightening‑torque statistics, static metrics (yield, ultimate, gripping capacity with mean ± standard deviation), full load‑deflection curves, visible fretting/corrosion description, test‑environment details, loading‑rate, fatigue R‑ratio, semi‑log plots of load/moment versus cycles‑to‑failure, maximum run‑out load/moment for each direction, loosening‑torque statistics, and any fixture‑or‑construct failures unrelated to target interconnection mechanism.


ASTM F1798 Spinal Implant Subassembly Static and Fatigue Testing System
ASTM F1798 Spinal Implant Subassembly Static and Fatigue Testing SystemASTM F1798 Spinal Implant Subassembly Static and Fatigue Testing SystemASTM F1798 Spinal Implant Subassembly Static and Fatigue Testing System


Industry Application Field

ASTM F1798‑24 belongs to orthopaedic spinal implant testing within the medical‑device industry, widely applied in:

1. R&D mechanical evaluation of spinal arthrodesis fixation systems (pedicle‑screw‑rod systems, hook‑rod constructs, cross‑connectors, polyaxial‑screw tulip‑shank interfaces, rod‑to‑rod connectors).

2. Comparative mechanical screening of new implant designs and material‑modified implant components (titanium‑alloy, PEEK‑composite spinal‑fixation parts) before full‑construct testing.

3. Pre‑market regulatory submission documentation (FDA‑recognized consensus standard for spinal‑implant device applications).

4. Quality‑verification of interconnection‑mechanism batches (subassembly‑level mechanical characterization).

Important limitation: F1798 only targets isolated interconnection subassemblies; it shall be complemented by full‑construct testing to assess whole‑implant‑system performance


Keywords: ASTM F1798 spinal arthrodesis implant tester,spinal implant interconnection mechanism test machine,spinal implant subassembly static fatigue tester,rod clamp assembly strength test rig,screw rod spinal implant testing equipment,hook rod implant loosening resistance tester,spine implant mechanical performance analyzer,orthopedic spinal implant validation tester,medical spinal implant fatigue test system,spinal arthrodesis implant quality control apparatus,spine implant regulatory compliance test machine,orthopaedic implant subassembly laboratory tester,spinal implant connection durability test instrument
