ASTM F1717 Spinal Implant Constructs Test

Share:

ASTM F1717 Standard Test Methods for Spinal Implant Constructs in a Vertebrectomy Modelis a fundamental standard for evaluating the static and fatigue mechanical performance of spinal implant assemblies. Unlike ISO 12189, which focuses on a single device(an interbody cage), ASTM F1717 tests the entire posterior spinal construct—typically rods, screws, and cross-connectors—stabilizing a segment where a vertebral body has been removed (a "vertebrectomy" or "corpectomy" model). It simulates worst-case spinal instability to assess the implant's ability to maintain alignment and support loads.


Test Principle:

The principle is to create a standardized, worst-case biomechanical model of spinal instability and measure the construct's response. By fixing the implant into the UHMWPE blocks separated by a defined gap (span length, L), the test:

Isolates the performance of the implant hardware itself.

Applies pure, calculable bending moments (M) and forces (F). For example, in compression bending, the bending moment on the rod is calculated as M = (F * L) / 2.

Quantifies stiffness, yield load, ultimate load, and run-out cycles (for fatigue) in a reproducible laboratory environment.


ASTM F1717 Test Method:


Static Test
Compression - bendingApply axial compression and bending loads at a rate of 25 mm/min to measure stiffness, yield load, and ultimate load.
Tension - bendingApply axial tension and bending loads to assess the implant’s performance under distraction.
TorsionApply a torque of up to 10 Nm (lumbar) or 2 Nm (cervical) to evaluate rotational stability.
Fatigue testApply sinusoidal cyclic compression - bending loads (frequency ≤15 Hz, load ratio R = 0.1) until 5 million cycles or failure.
Vertebrectomy modelNo anterior support is provided; the implant bears the full load, which is a "worst - case" simulation that differs from ISO 12189’s anterior support model.


Test Equipment:
Equipment TypeSpecific Requirements
Fatigue Testing machineServohydraulic or electromechanical, capable of static (load/displacement control) and cyclic loading, load capacity ≥25 kN (lumbar) or ≥5 kN (cervical), frequency ≤15 Hz
Load/torque cellLoad cell accuracy class 0.5; torque cell accuracy ±1% for torsion tests
Test fixture

UHMWPE test blocks (2 blocks for vertebrectomy) with implant - matching holes; fixtures for compression - bending, tension - bending, and torsion alignment; adjustable gap (lumbar: 50 mm; cervical: 20 mm) to simulate the missing vertebra.

ASTM F1717 Spinal Implant Constructs Test

Environmental chamberOptional, for 37°C and simulated body fluid (saline/Ringer’s solution) to mimic in - vivo corrosion conditions.


Test Specimen Information:

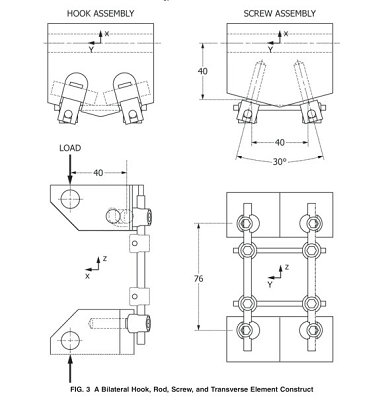

Implant Construct: The complete assembly to be tested (e.g., two longitudinal rods, four pedicle screws, possibly cross-connectors).

Vertebral Body Analogs:Two UHMWPE blocks. Their standardized material properties (modulus, density) provide a consistent and repeatable substrate for screw purchase, eliminating the variability of human cadaver bone.

Dimensions: The standard specifies critical geometric parameters:

Block Size: 75mm x 50mm x 40mm.

Span Length (L):The distance between the inner screws (typically 76mm for a "long" model, simulating a complete vertebrectomy). This is the most critical variable as it determines the bending moment on the rods.

ASTM F1717 Spinal Implant Constructs Test

Test Application:

Comparative Evaluation: To compare different rod materials (titanium vs. cobalt-chrome vs. PEEK), diameters, screw designs, or cross-linking mechanisms.

Design Verification & Validation: A mandatory part of the design process for any posterior stabilization system.

Quality Control & Benchmarking: For lot-release testing or comparing against predicate devices.

Regulatory Submission: Required evidence for FDA 510(k), CE Mark (under MDR), and other global regulatory pathways.


ASTM F1717 Test Procedures:

Construct Assembly: The implant (rods, screws) is assembled and rigidly fixed into the two UHMWPE blocks according to the manufacturer's surgical technique. The span length (L) is meticulously measured and recorded.

Fixture setup: Install UHMWPE blocks with a standard gap (50 mm for lumbar, 20 mm for cervical).

Static testing:

Compression/tension - bending: Load at 25 mm/min until yield or fracture, and record load - displacement curves.

Torsion: Apply torque at 0.5°/s and measure rotational stiffness.

Fatigue testing:

Lumbar: 0.5–5 kN cyclic load (R = 0.1); cervical: 0.1–1 kN.

Load at ≤15 Hz until 5 million cycles or failure.

Data recording: Record yield load, ultimate load, stiffness, cycle count, and failure mode.

Result reporting: Submit comparative data (e.g., S - N curves) and failure analysis.


Related Standards:
StandardRelationship
ISO 12189Complementary; ASTM F1717 is for vertebrectomy (no anterior support, rigid implants), while ISO 12189 is for anterior support (flexible implants)
ASTM F2706Extends to occipitocervical constructs, with similar vertebrectomy model but adjusted torque/load parameters
ASTM F1798
Standard Test Method for Evaluating the Static and Fatigue Properties of Interconnection Mechanisms and Subassemblies Used in Spinal Arthrodesis Implants
ASTM F2193Standard Specifications and Test Methods for Components Used in the Surgical Fixation of the Spinal Skeletal System
ISO 14879General spinal implant mechanical testing requirements, which ASTM F1717 supplements with specific vertebrectomy test protocols
ASTM F2077Static testing for interbody cages; ASTM F1717 focuses on posterior assemblies
FDA Recognized StandardIt is recognized for 510(k) submissions for spinal implants


Why the Test is Important for the Spine Device:

The ASTM F1717 test is critically important because it directly assesses the primary mechanical function of posterior spinal constructs: to provide immediate and lasting stability in an unstable spine segment.

Predicts Clinical Performance: It simulates the high-stress scenario of a corpectomy, where the implant must bear all physiological loads (compression, torsion, tension). A construct that performs poorly here is at high risk of failure in vivo.

Prevents Mechanical Failure: Identifies weak points in the construct design—whether it's screw loosening, rod bending/fracture, or set-screw slippage—before the device is ever implanted in a patient.

Ensures Safety & Efficacy: Regulatory bodies rely on data from this standardized test to ensure that marketed devices have a baseline level of mechanical integrity, protecting patients from catastrophic implant failures that could lead to revision surgery, nerve damage, or spinal deformity.

Drives Innovation: Provides a level playing field for comparing new, potentially improved technologies (e.g., minimally invasive systems, novel alloys) against established designs.
