ASTM F1044 Standard Test Method for Shear Testing of Calcium Phosphate Coatings and Metallic Coatings.

ASTM F1044 is a standard test method developed to evaluate the shear strength of coatings on metallic substrates, specifically targeting continuous calcium phosphate coatings (like hydroxyapatite) and metallic coatings. Its primary purpose is to measure either the adhesive strength between the coating and substrate or the cohesive strength within the coating itself when subjected to a force parallel to the coating plane.

Test Principle:

The core principle of ASTM F1044 is to subject coated-substrate specimen assemblies to pure axial shear stress parallel to the coating’s surface plane (eliminating eccentric loading and bending stresses). A tensile testing machine applies a constant-rate shear load to the assembly until complete separation of components occurs. The maximum failure load is recorded, and the adhesion strength (coating-substrate interface) or cohesion strength (internal coating) is calculated using the formula

S = F / A

(where S = shear strength, F = maximum failure load, A = cross-sectional area of the coated substrate).

This principle quantifies how well a coating resists shear forces, either at the coating-substrate bond or within the coating itself.

ASTM F1044 Specific Test Methods and testing equipment:

1, Test methods
Aligned Interface Method	Applicability: For both calcium phosphate coatings and metallic coatings (the universal method for all coatings covered by the standard). Core Process: The test assembly consists of two solid metal components (one coated, one uncoated) bonded together (via polymeric adhesive or thermomechanical processes like sintering/diffusion bonding). Shear load is applied parallel to the coating plane, with strict alignment to ensure pure axial shear stress.
Lap Shear Method	Applicability: Exclusively for metallic coatings (particularly porous metallic coatings). Core Process: Porous coated metal substrate plates are bonded (via polymeric adhesive, bone cement, or sintering) and subjected to single shear loading on the porous coated area. A dedicated jig ensures the load axis aligns with the adhesive/coating plane (shimming is used for precise alignment).
2, Test equipment and device
Tensile testing machine	A tensile testing machine conforming to ASTM E4 (Practices for Force Verification of Testing Machines). It must be capable of applying and measuring load accurately. Capable of recording maximum failure load; fixed cross-head speed of 0.25 cm/min (0.1 in/min) for all load applications.

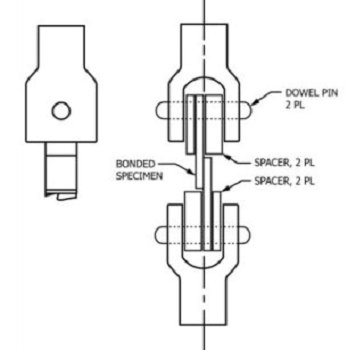

Gripping Devices	Aligned Interface Method: Dedicated shear gripping device (with precise dimensional tolerances), an adapter (consisting of Double Yoke, Dowel Pin, and Sample Holder) to mate the fixture to the tensile machine, and a standardized test assembly schematic for alignment.
Gripping Devices	Lap Shear Method: Precision-machined bonding fixture (minimizes specimen movement during adhesive curing; not required for sinter-bonded coatings), and loading grips made of hardened steel (minimum Rockwell C60 hardness). Fitted steel bolts reduce device distortion under load, and smooth tongue-clevis interfaces ensure uniform load distribution.

Test Specimen Information:

Sample size: Minimum of 5 specimens per test;

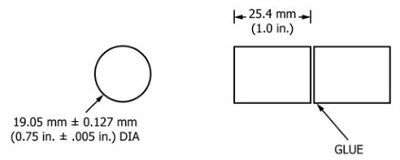

Aligned Interface Specimen: Two solid metal pieces (one coated, one uncoated; uncoated surface may be roughened for better adhesion).

Nominal cross-sectional area of the coated substrate = 2.84 cm² (0.44 in²) (alternative areas require equivalence proof and reporting).

ASTM F1044 Shear Testing for Calcium Phosphate and Metallic Coatings

Lap Shear Specimen: Metallic coating substrate plates (porous) conforming to standard dimensional designs (equivalent designs allowed; deviations must be reported). Shimming is used to align the load axis with the adhesive/coating plane.

ASTM F1044 test procedures detaisl guide:

Step 1: Specimen Fabrication	Produce ≥5 specimens, apply the coating using production-scale processes (including all post-treatments), and clean/degrease bonding surfaces to remove loose particles/debris.
Step 2: Assembly Bonding/Curing
(Options 1) Polymeric Adhesive Bonding	FM 1000 (reference): Align the film at the coating’s center → apply 0.138 MPa (20 psi) constant pressure via a calibrated spring → cure in an oven at 176°C (350°F) for 2–3 hours (optimize time for oven type/load) → cool to room temperature → remove excess adhesive (no specimen damage). 3M 2214-NMF: Apply a thin, even adhesive layer → butt coated faces together and squeeze out excess adhesive → cure in the lap shear fixture (maintain mild pressure/axial alignment to keep bonding faces parallel).
(Option 2) Direct Thermomechanical Fabrication (Metallic Coatings Only)	Sinter/diffusion bond the coated substrate assembly (no adhesive) in a single process with coating application; verify the coating’s microstructure/morphology matches production parts via inspection.
Step 3: Load Application	Aligned Interface: Mount the assembly in grips (specimen long axis perpendicular to shear load, aligned with grip centerline) → apply load at 0.25 cm/min (0.1 in/min) → test until complete component separation → record maximum failure load. Lap Shear: Mount the cured specimen in the lap shear test assembly → apply load at the same constant speed → test until separation → record maximum failure load.
Step 4: Calculation & Reporting	Calculate shear strength via S=F/A (cross-sectional area measured to 0.06 cm²/0.01 in² precision). Report mandatory data: material/ adhesive identification, coating application process details, dimensional data (bond area, coating thickness), number of tested specimens; failure load values (max/min/mean), and failure mode (cohesive = internal coating failure; adhesive = coating-substrate interface failure) for each specimen.

Importance of the Test for Materials:

ASTM F1044 is an indispensable destructive test for coated metal materials—especially medical implant materials—for the following critical reasons:

(1) Ensures Medical Implant Safety & Performance

For load-bearing medical implants (e.g., hip, knee, dental implants), coating shear strength directly impacts implant longevity and patient safety. Calcium phosphate coatings promote osseointegration (bone bonding), while metallic coatings enhance wear/corrosion resistance; a weak coating-substrate bond or internal coating failure leads to coating delamination, implant loosening, and catastrophic clinical failure. This test validates that coatings can withstand in-vivo shear forces.

(2) Enables Comparative Coating Evaluation

The standard provides a repeatable, standardized method to compare adhesion/cohesion strength across different coating types, application techniques, and post-treatments. This is critical for material developers to select optimal coatings and for manufacturers to maintain consistent production quality (quality control for batch-to-batch testing).

WDW Series Computer Control Electronic Universal Testing Machine made by UNITEDTEST range from 100N to 600KN load capacity with various models like single columns, table type, door frame type etc., is used to perform tension, compression, flexure/bending, shearing, peeling etc., test for metal and nonmetal specimens. Matched with UNITEDTEST design and produced various test fixture, like peel, flexure, puncture, tear, pneumatic grip, belt tension etc., this UTM can be used to almost all materials include but not limited to steel rod, rubber, steel wire, plastic, seat belt, textile, wood, panel etc., mechanical performance inspection.

Coating static shear strength testing refers to ASTM F1044, F1160 standard, evaluating the shear force of continuous calcium phosphate coating or metal coating on the substrate, or the bonding strength between coatings parallel to the horizontal plane after shearing.

Q1: What is the primary purpose of the ASTM F1044 shear test?

A: ASTM F1044 is a standard test method for evaluating the shear adhesion strength (between calcium phosphate/metallic coatings and dense metal substrates) and shear cohesion strength (internal bonding within the coating itself) at ambient temperatures. It measures how well coatings resist shear stress parallel to their surface plane, core to validating coating integrity for coated metal components—especially medical implants.

Q2: What types of coatings and substrates does ASTM F1044 apply to?

A: It applies to continuous calcium phosphate coatings (e.g., hydroxylapatite, tribasic calcium phosphate) and metallic coatings bonded to dense metal substrates. The test is designed for these coating-substrate combinations, with two dedicated methods for universal (all coatings) and metallic-only testing.

Q3: Why is ASTM F1044 considered critical for medical implant materials?

A: It is indispensable for load-bearing medical implants (e.g., orthopedic, dental implants) for two key reasons:

Calcium phosphate coatings drive osseointegration (bone bonding), and metallic coatings boost wear/corrosion resistance—a weak shear bond (coating-substrate or internal coating) causes delamination, implant loosening, and clinical failure.

The test provides objective, standardized data to validate that coatings can withstand in-vivo shear forces, a core requirement for regulatory compliance (e.g., FDA, EU MDR) for medical devices.

Q4: What are the critical specifications for the test specimen?

A:Size: For the Aligned Interface Method, the standard cross-sectional area of the coated substrate is 2.84 cm² (0.44 in²).

Representativeness: Specimens must be coated using the same materials, processes, and equipment as the actual medical implant. All post-coating treatments (heat treatment, passivation, sterilization) must also be replicated.

Preparation & Inspection: Coatings must be visually inspected; specimens with defects in critical areas are rejected. Coating thickness must be measured and must not vary by more than ±15% for lap shear specimens.

Quantity: A minimum of five specimens should be tested.

Q5: What must be included in the test report?

A: The report must detail: materials and adhesive used; coating application method; specimen dimensions (area, thickness); number of specimens tested; all failure loads (max, min, mean); and the mode of failure (adhesive or cohesive) for each specimen.

Q6: Can ASTM F1044 test results be used directly to calculate a coating’s environmental stress resistance?

A: No. The standard explicitly notes that test results are heavily influenced by processing variables (e.g., substrate preparation, coating technique, post-coating heat treatment) and cannot be used as intrinsic values for calculating a coating’s ability to withstand specified environmental stresses. It is used for comparative evaluation (not absolute engineering calculation).

Q7: Can thermomechanical bonding (no adhesive) be used in ASTM F1044 testing?

A: Yes, but only for metallic coatings. For sintered or diffusion-bonded metallic coating systems, specimens (aligned interface or lap shear) can be fabricated in a single process with coating application (no polymeric adhesive). The coating’s microstructure/morphology must be verified to match production parts via inspection.
