UnitedTest Bally Flexometer | ASTM D6182‑23 Leather Finish Flexibility & Adhesion Test

Information on the most widely used ASTM standards within the materials testing industry

Descriptions of the most prominent lSO standards within the materials testing industry

Standards including EN, DIN, JlS, and more

Mechanical testing of polymer materials in the automotive industry is directly related to the safety of components and the reliability of the entire vehicle. UnitedTest can cover mechanical performance testing for automotive interior and exterior parts, as well as functional components, adapting to automaker standards and providing comprehensive testing solutions including tensile, impact, and fatigue tests.

Mechanical testing in the battery industry determines the tensile and puncture resistance of core components such as separators and electrodes, directly affecting battery safety and cycle life. UnitedTest can cover full-dimensional mechanical testing of battery materials, compatible with national and international standards, and provide customized testing solutions.

Mechanical testing in the consumer goods industry determines product durability and safety, such as impact resistance for toys and fatigue resistance for home appliances, making it core to compliance and quality. UnitedTest can cover mechanical tests for all categories of consumer goods, including tensile, impact, and hardness tests, compatible with national and international standards, and offers customized testing solutions.

In the field of medical and biomedical sciences, mechanical testing determines the safety and compatibility of implanted devices and biomaterials, making it a core part of regulatory approval. UnitedTest can cover a full range of tests including tensile, fatigue, and wear tests, compatible with national and international standards, and provides customized biomechanical testing solutions.

Material strength is a course that most engineering fields are required to study in university education. This interesting course is very practical and makes use of testing equipment in the materials laboratory.

Mechanical testing of industrial products and components is essential to ensure their load-bearing, fatigue resistance, and impact resistance, directly preventing production accidents and ensuring stable operation of equipment. UnitedTest can cover a full range of tests including tensile, hardness, and fatigue, complying with national and international standards, and provides customized industrial mechanical testing solutions.

Mechanical testing in the plastic pipe industry determines ring stiffness, impact resistance, and tensile performance, directly preventing pipe bursts and deformation risks. UnitedTest can cover full-dimensional mechanical testing of pipes, complies with ISO,ASTM,EN et.c, international standards, and provides customized testing solutions.

In the construction engineering and building materials industry, mechanical testing determines the compressive and tensile properties of materials such as concrete and steel, which is core to ensuring the safety and durability of buildings. UnitedTest can cover the full range of building material mechanical tests, complies with ISO, ASTM international standards, and provides customized testing solutions for compressive, tensile, and other properties.

Mechanical testing in the food and beverage industry involves the compressive and tensile performance of packaging and the safety of food texture, directly ensuring storage, transportation safety, and the eating experience. UnitedTest can cover all-dimensional mechanical testing for packaging and food texture, comply with national and international standards, and provide customized testing solutions.

Mechanical testing in the packaging industry determines the packaging's resistance to compression, impact, and tension, directly ensuring the safety of contents during storage and transportation. UnitedTest can cover comprehensive mechanical testing for packaging, complying with ISO, ASTM Standards, and provides customized testing solutions for compression, drop, tear, and more.

Mechanical testing in the transportation industry concerns the load-bearing and fatigue resistance performance of core components such as vehicles, tracks, and containers, directly ensuring transport safety and equipment durability. UnitedTest can cover mechanical testing for all types of transportation materials, complying with national and international standards, and provides customized testing solutions including tensile, fatigue, and impact tests.

Metallurgical testing examines the properties of metallic materials to determine if a particular metal is appropriate for its intended use.

Testing of polymer materials covers mechanical, thermal, and chemical properties, verifying strength, heat resistance, composition, and ensuring product quality and compliance.

UnitedTest offer world-class testing solution in testing for polymeric materials, including elastomers, thermoplastics, composites, coatings, and structural adhesives in a variety of industries.

Testing of rubber and elastomers is used to assess the various properties and performance of materials under different conditions. This is crucial for ensuring the safety, functionality, and quality of rubber and elastomer products used in industries such as automotive, construction, consumer goods, and aerospace.

Conduct adhesive testing using various testing methods to determine their performance and characteristics in applications across multiple industries such as aerospace, automotive, construction, packaging, industrial, medical, and energy, thereby supporting application development and quality assurance.

UnitedTest supply machine and testing solution for tension, compression, fracture toughness, direct shear, triaxial and ultrasonic velocity are common concrete and rock testing applications.

UnitedTest has helped a number of companies involved in the wood, paper, cardboard, and corrugated industry with their testing needs. Our materials testing systems are capable of testing raw materials, components, and finished products.

UnitedTest testing system is trusted by leading medical device manufacturers, universities, and medical research laboratories worldwide. Whether testing tissues or bioresorbable materials, stents, or sutures, UnitedTest offers a variety of single-actuator and dual-actuator systems to meet your biomedical testing needs.

Mechanical testing in the textile fabric industry determines core properties such as fabric tensile strength, tear resistance, and wear resistance, directly affecting product durability and safety. UnitedTest can cover comprehensive mechanical tests for textiles, complying with national standards / ISO standards, and provides customized testing solutions including tensile, tear, and puncture tests.

The mechanical testing of industrial components directly determines the load-bearing, fatigue resistance, and wear resistance of the parts, helping to avoid equipment failure risks. UnitedTest can cover a full range of tests including tensile, hardness, and fatigue, is compatible with ISO/ASTM/GB standards, and provides customized mechanical testing solutions for industrial components.

Mechanical testing in the glass-ceramics industry determines core properties such as flexural strength, hardness, and fracture toughness, directly helping to avoid brittleness and failure risks. UnitedTest can cover comprehensive testing for flexural strength, hardness, and fracture toughness, compatible with national and ISO/ASTM standards, and provides customized testing solutions.

Tensile test evaluates material resistance to stretching, measuring strength/elongation critical for quality control. UnitedTest offers universal tensile testers (10-600KN) compliant with ASTM/ISO standards, providing tailored solutions for metals, polymers, medical & industrial materials.

Compression test assesses material resistance to compressive loads, measuring strength/deformation critical for quality validation. UnitedTest offers compression testing machines compliant with ASTM/ISO standards, providing tailored solutions for concrete, plastics, metals and industrial components.

Flexural & Bend tests evaluate material resistance to bending forces, measuring strength, stiffness and ductility for quality assurance. UnitedTest provides flexural testing machines (3-point/4-point bend) compliant with ASTM/ISO standards, offering tailored solutions for composites, plastics, metals and construction materials.

Torsion Test evaluates material resistance to rotational forces, measuring torsional strength/ductility critical for fasteners, insulators, shafts. UnitedTest offers torsion testers compliant with ASTM A938/ISO 16047, providing tailored solutions for automotive, aerospace, fastener industries.

Fatigue Test assesses material durability under cyclic loading, critical for predicting service life of industrial components. UnitedTest offers fatigue testing systems (axial/bending/torsion) compliant with ASTM E466/ISO 12106, providing tailored solutions for automotive, aerospace and manufacturing sectors.

Peel Test measures material adhesion strength by evaluating resistance to peeling forces, critical for adhesives, films, packaging. UnitedTest offers peel testers compliant with ASTM D903/ISO 8510, covering 90°/180° peel tests, and tailored solutions for packaging, automotive, textile industries.

Impact Test evaluates material resistance to sudden shock loads, critical for assessing toughness and fracture risk. UnitedTest offers impact testers (Charpy/Izod/fall weight) compliant with ASTM E23/ISO 148, providing tailored solutions for metals, plastics, glass and industrial components.

Tear & Shear Test evaluates material resistance to tearing and shearing forces, measuring critical strength parameters for quality control. Tear tests (Elmendorf/trouser/trapezoidal) assess resistance to crack propagation in films/fabrics, while shear tests measure resistance to parallel forces in joints/bolts. UnitedTest provides universal testing machines (10KN-600KN) with specialized fixtures for both tests, compliant with ASTM D624/D3164 and ISO standards, serving automotive, packaging and construction industries.

Hardness test measures material's resistance to permanent indentation, critical for quality control. UnitedTest offers universal hardness testers (Rockwell/Brinell/Vickers) compliant with ASTM/ISO standards, plus tailored hardness testing solutions for diverse industrial needs.

Biaxial/triaxial tests evaluate material performance under multi-axis loads, critical for biomaterials, metals and composites. UnitedTest provides compliant testing machines (ASTM/ISO) for planar biaxial, static/fatigue triaxial tests, with tailored solutions for industrial & biomedical needs.

Friction and wear tests assess material resistance to friction, abrasion and wear, critical for industrial material performance validation. UnitedTest offers tribometers compliant with ASTM G99/ISO standards, covering pin-on-disk, four-ball tests, and tailored friction & wear testing solutions for diverse industries.

Pressure test evaluates material/component resistance to static/dynamic pressure, critical for sealing, strength and safety validation. UnitedTest offers pressure testing machines compliant with ASTM/ISO standards, covering burst, hold-pressure tests, and tailored solutions for industrial, automotive & medical sectors.

Fire test assesses material flammability, heat resistance and fire-retardant performance, critical for safety compliance across industries. UnitedTest offers fire testing equipment compliant with ASTM/ISO/UL standards, providing tailored fire test solutions for building materials, plastics and industrial components.

Non-destructive Test (NDT) evaluates material/component integrity without damage, critical for safety & quality across industries. UnitedTest offers ultrasonic/X-ray/magnetic particle NDT equipment compliant with ASTM/ISO standards, plus tailored NDT solutions for aerospace, automotive & manufacturing sectors.

ASTM D6182 Leather Finish Flexibility & Adhesion Tester | UnitedTest

ASTM D6182 test assesses cracking, delamination and discoloration of leather surface finish under repeated flexing, visual rank‑rated 0‑5 for dry and wet finished leather. UnitedTest supplies ASTM D6182 compliant leather coating performance testing equipment for tanneries and quality labs.

ASTM D6182 is a widely‑adopted standard test method for evaluating the flexibility and adhesion performance of surface finish coatings applied onto finished leather. This test exposes dry or wet finished leather specimens to repeated flexing cycles and inspects the surface for coating cracking, delamination, peeling and discoloration damage, with wet‑blue leather excluded from its scope.

As a non‑quantitative visual rating test, ASTM D6182 generates a damage rank from 0 to 5 instead of numerical mechanical measurement values, helping leather manufacturers judge coating resilience under bending stress. It is essential for quality inspection of footwear leather, furniture upholstery leather, garment leather and automotive leather materials, verifying whether surface finishing can withstand daily bending deformation without cosmetic failure.

UnitedTest manufactures professional ASTM D6182 compliant leather finish flexibility and adhesion testing machines. Our equipment simulates real‑world repeated flexing conditions, supporting both dry‑state and wet‑state specimen testing to deliver consistent visual‑assessment test data for tanneries, leather product factories, and third‑party material compliance laboratories.

Test Principle:

Finished‑leather specimens are pre‑conditioned (dry or wet state), then subjected to thousands of repeated folding cycles on a Bally Flexometer. Repeated flexing simulates real‑world bending stress. After completing target flex cycles, inspect the finish surface and assign a damage rank (1‑5 scale) to characterize coating flexibility, adhesion and mechanical strength. This is a qualitative‑ranking test rather than a purely numerical measurement.

After a preset number of cycles, the finish is inspected visually (with optional 6× magnification) and assigned a damage rank according to Table 1 (0 = no damage … 5 = finish cracks/peels/flakes off).

Test Specimen Information

Sampling: Follow ASTM D2813 (Practice for Sampling Leather for Physical and Chemical Tests);

Specimen size: 45 mm × 70 mm per piece.

Quantity & orientation: Two specimens per sample; one cut parallel to the leather backbone, the other cut perpendicular to the backbone, to capture anisotropic leather behaviour.

Test Equipment of ASTM D6182 Test Method for Flexibility and Adhesion of Leather

Bally Flexometer

Comply with ISO 32100; operating speed fixed at 100 cycles per minute.

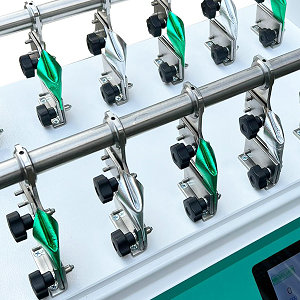

ASTM D6182 Test Method for Flexibility and Adhesion of Leather

Cutting die

To punch test specimens to dimension 45 mm × 70 mm

Auxiliary tools

1. Magnifying glass: magnification of 6 ± 1×, for finish damage inspection after flexing

2. Auxiliary supplies: distilled / deionized water, blotting paper/paper towels for wet‑test blotting.

Key Test Parameters and stipulations:

Flexing frequency	100 cycles / min (Bally flexometer)
Wet‑soaking duration	20 min ± 1 min immersion in distilled / deionized water
Specimen dimension	45 mm × 70 mm
Inspection magnification	6 ± 1 times (magnifying glass)
Evaluation output	Damage rank 1‑5 (non‑quantitative visual rating)

Two official conditioning modes are defined:

1. Dry leather test: Condition specimens according to ASTM D1610 (Practice for Conditioning Leather and Leather Products for Testing);

2. Wet leather test: Immerse specimens in distilled or deionized water for 20 min ± 1 min; remove and blot excess surface water with blotting paper before mounting for flexing;

3. If custom non‑standard conditioning is adopted, the exact conditions must be fully documented in the final test report.

Test Procedures of ASTM D6182 Test Method for Flexibility and Adhesion of Leather

1. Move the upper clamp of Bally Flexometer to its uppermost position.

2. Fold the test piece in half along its major axis, with the finished‑coated surface facing inward at the fold.

3. Insert folded specimen into the top clamp and securely tighten the top clamp.

4. Wrap the specimen downwards around the top‑clamp assembly.

5. Gently pull the leather to eliminate slack, position the downward folded segment vertically into the bottom clamp, then tighten the bottom clamp. Proper mounting must ensure zero tension between top and bottom clamps (see Figure 1 in standard document);

6. Reset cycle counter to zero and set cut‑off value to the target number of flex cycles.

7. Run flexing until the preset cycle count is reached.

8. After stopping the instrument, examine finish damage by naked eye or with the 6 ± 1× magnifying glass.

9. Assign damage rank according to below Table of the standard.

Rank	Damage Description
1	No damage
2	Discoloration or thin cracks only within the top finish coat
3	Cracks extending into base coats of finish
4	Large cracks exposing the underlying leather substrate
5	Finish cracks, peels back or flakes off

Industry / Application Fields

This test applies to all finished‑leather categories, widely used in leather quality‑control laboratories for footwear uppers, leather apparel, furniture upholstery leather, bags and accessories leather. It is used for incoming‑material inspection, finish‑formulation development, batch‑release verification and product‑performance comparison. Wet‑blue semi‑tanned leather is excluded from this test scope.

Footwear (upper leather)

Leather goods / handbags / belts

Automotive and furniture upholstery leather

Garment leather

Anywhere coating durability under bending (wear, folding, creasing) matters.

Related & Similar Standards

ISO 3376	Leather — Determination of tensile strength and elongation
ISO 32100	Rubber- or plastics-coated fabrics — flex resistance by flexometer (the Bally apparatus basis).
ASTM D2209	Standard Test Method for Tensile Strength of Leather
ASTM D6182	Standard Test Method for Flexibility and Adhesion of Finish on Leather
ASTM D2210	Standard Test Method for Grain Crack and Extension of Leather by the Mullen Test
ISO 5402-1	Leather — Determination of flex resistance — Part 1: Flexometer method
QB/T 2714	Physical and mechanical testing of leather Determination of folding fastness

Why the Test Is Important for the Material

Finished leather’s aesthetic and functional life depends on the finish system (top coat, base coat, adhesion to substrate). Poor flexibility/adhesion causes:

Cracking at flex points (toe box, finger joints, seat creases)

Peeling/flaking of coating

Discoloration and early visual failure

ASTM D6182 gives brands, tanneries, and QA labs a repeatable, comparative workflow to screen finish formulations, compare dry vs. wet performance, and reject leather that would fail in real use — without needing expensive quantitative instrumentation.

Keywords: ASTM D6182 leather finish flexibility adhesion tester, leather surface coating cracking delamination test, repeated flexing leather finish evaluation machine, dry wet finished leather visual rating test, 0‑5 damage rank leather coating test rig, leather finishing bending resistance tester, footwear upholstery garment leather quality test instrument, tannery leather cosmetic failure inspection equipment, automotive leather finish peeling test machine, non‑quantitative visual leather flex test apparatus, finished leather surface durability testing system, leather coating discoloration resistance test device

Bally Leather Flex Resistance Tester simulates repeated daily bending, folding, and flexing movements of leather products during long-term use, accurately detecting surface cracking, coating peeling, powdering, crease damage, and adhesive failure of leather samples after specified flex cycles.

WDW Series Computer Control Electronic Universal Testing Machine made by UNITEDTEST range from 100N to 600KN load capacity with various models like single columns, table type, door frame type etc., is used to perform tension, compression, flexure/bending, shearing, peeling etc., test for metal and nonmetal specimens.

Snubbing and Capstan grips are all engineered to perform high strength tensile tests where the test samples are long compared to their cross-sectional area, such as wire, rope and strapping.

Q1: What is ASTM D6182‑23 test used for, and why is it important for leather industry?

A: ASTM D6182‑23 evaluates finish flexibility, coating‑to‑leather adhesion and finish strength for finished leather by repeated flexing on Bally Flexometer. It simulates real‑life bending stress from footwear uppers, leather bags, upholstery and leather apparel. Static visual inspection cannot detect hidden coating weakness. This test catches risks of cracking, delamination, peeling and discoloration before mass production, reduces product complaints, supports supplier qualification and finish formulation R&D. Note: this standard does NOT apply to wet‑blue leather.

Q2: What equipment do I need to run ASTM D6182‑23?

A: Primary instrument is Bally Flexometer complying with ISO 32100, running at fixed speed of 100 cycles/minute. Additional accessories: cutting die for 45 mm × 70 mm specimens, 6±1× magnifying glass, distilled/deionized water, blotting paper for wet‑test blotting.

Q3: What are the specimen requirements for ASTM D6182‑23?

A: Specimen dimension: 45 mm × 70 mm. Two specimens per sample: one cut parallel to leather backbone, one cut perpendicular to backbone, to cover leather anisotropic performance. Sampling must follow ASTM D2813 sampling practice.

Q4: What is the difference between dry‑leather test and wet‑leather test in this standard?

A: - Dry test: Condition specimens following ASTM D1610 standard conditioning procedure.

- Wet test: Immerse specimens in distilled/deionized water for 20 min ±1 min, blot off surface free water before mounting for flexing.

Wet test simulates real‑world moisture exposure; many leather finishes lose adhesion under wet condition. If you use custom conditioning other than defined procedures, you must document all conditions in test report.

Q5: Why is sample mounting so critical for ASTM D6182‑23? What common mounting mistakes cause bad results?

A: Specimen must fold along major axis with finished side inward, mount between top and bottom clamps without pre‑tension between two clamps.

Common mistakes: over‑stretching leather during clamping, slack not removed, wrong folding direction (finish side outward). Improper mounting will create artificial stress and lead to premature cracking or inconsistent ranking.

Q6: How do I judge test results? What is rank 1‑5 damage scale?

A: After finishing preset flex cycles, inspect surface with naked eye or 6±1× magnifier, assign rank per Table 1:

1 = No damage

2 = Discoloration or thin cracks only in top finish coat

3 = Cracks extend into finish base coats

4 = Large cracks exposing leather substrate

5 = Finish cracks, peels back or flakes offASTM Inter....

This is a qualitative visual ranking test, not quantitative numerical measurement.

Q7: Does ASTM D6182‑23 specify a fixed number of flex cycles for testing?

A: No. The standard does not define mandatory cycle count. Lab or buyer sets target flex cycles according to product specification. Report must clearly state cycle number, conditioning mode and rank for each specimen in final report.

Q8: Can I use ASTM D6182‑23 for wet‑blue leather?

A: No. Scope explicitly excludes wet‑blue (semi‑tanned intermediate leather). It applies only to fully finished leather goods raw materials.

Q9: What typical industries run ASTM D6182‑23 testing?

A: Footwear upper leather, leather bags & accessories, furniture upholstery leather, automotive interior leather, leather garment factories, third‑party testing laboratories, leather finish chemical R&D labs.

Q10: Why buyers choose UnitedTest ASTM D6182 Bally Flexometer — Leather Finish Flexibility & Adhesion Tester?

UnitedTest is a professional manufacturer of Bally Flexometer (leather flex resistance tester), fully built to satisfy ASTM D6182‑23 Standard Test Method for Flexibility and Adhesion of Finish on Leather, also conforming to ISO 32100, ISO 5402‑1 and other global leather‑testing standards.

Our Bally flex tester runs at standard 100 cycles/min flexing speed, supports both dry‑condition and wet‑soaking test workflows required by ASTM D6182‑23. It evaluates finish cracking, discoloration, delamination and peeling of finished leather under repeated flex cycles, widely used for quality control, incoming‑material inspection, leather finish formulation R&D in footwear, leather bag, furniture upholstery, automotive leather and leather apparel industries.

Key features of UnitedTest ASTM D6182 Bally Flexometer:

✅ Strictly follows ASTM D6182‑23 specimen‑mounting requirement, no pre‑tension sample clamping design

✅ Adjustable preset cycle counter, auto‑stop when target flex cycles reached

✅ Multiple‑station options for parallel testing of multiple 45 mm × 70 mm leather specimens

✅ Stable servo‑driven system keeps constant 100 cycles/min test speed

✅ Supports both dry leather test and wet‑leather flex test as per standard requirements

✅ Stainless‑steel clamping fixtures, easy sample loading‑unloading

✅ Complete technical documentation for ASTM‑standard lab audit

If you need reliable ASTM D6182‑23 testing machine for your leather laboratory or production QC line, contact UnitedTest for quotation, technical datasheet and custom configuration solution.

We offer customization to meet your specific needs. Our expert team will collaborate with you to develop the perfect product for you
