ASTM D4027 Modified-Rail Shear Tester for Structural Adhesive Shear Properties | UnitedTest

UnitedTest produces ASTM D4027-compliant universal tensile testing machines equipped with dedicated modified-rail shear fixtures, designed to precisely test shear modulus and ultimate shear strength of structural adhesive interlayers for automotive, aerospace, construction adhesive labs and factory quality control. Our custom modified-rail test rigs fully meet all fixture geometry and loading specifications laid out in ASTM D4027.

ASTM D4027 Standard Test Method for Measuring Shear Properties of Structural Adhesives by the Modified-Rail Test delivers a standardized laboratory testing protocol to characterize core shear mechanical properties of structural adhesives. The standard leverages a specialized modified-rail shear test tool to evaluate adhesive films sandwiched between two rigid adherend substrates.

This modified-rail test setup enables accurate extraction of two fundamental adhesive performance metrics: shear modulus and shear strength. Unlike lap shear methods that suffer from uneven peel stress interference, the ASTM D4027 modified rail configuration creates uniform pure shear stress across the entire bond line, capturing the intrinsic shear behavior of the adhesive layer alone. Reliable test data supports structural adhesive formulation comparison, bonding layer thickness optimization, and bonded structural component design validation.

Specific Test Method — Modified-Rail Shear Test

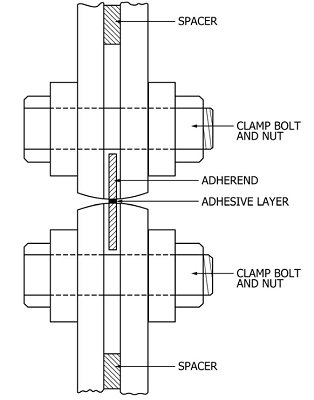

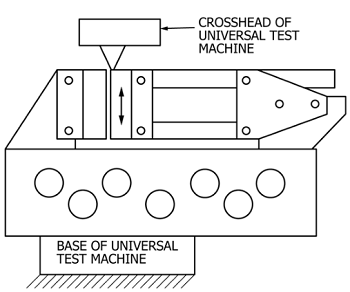

The method uses a modified-rail shear tool: the adhesive-bonded specimen (two adherends with the adhesive layer between them) is firmly clamped between two pairs of rigid rails — one pair fixed, the other movable. The movable pair is attached to counter-moment pivot arms that restrict the rails (and the clamped adherend) to collinear motion relative to the fixed rails. This geometry yields nearly uniform shear stress/strain distribution in the bondline and suppresses unwanted adherend bending or deformation during the test.

ASTM D4027 Modified-Rail Shear Test for Structural Adhesives

The tool can be configured for:

Pure shear — measuring shear modulus and shear strength.

Combined stress — by using a calibrated adjuster screw to apply a constant normal force (tension or compression) perpendicular to the bondline, generating shear + tension or shear + compression biaxial states.

Cyclic loading — evaluating the effect of strain history on shear properties.

Creep compliance — characterising time-dependent shear behaviour.

The basic output is the bond shear strength (shear stress at failure) and a stress–strain diagram derived from a simultaneous plot of load vs. shear displacement (slip).

Test Equipment required:

Universal testing machine

Minimum load capacity: 8900 N (2000 lbf); crosshead speed adjustable 0.317–10.16 mm/min (0.0125–0.40 in/min).

Internal vertical clearance ≥508 mm, horizontal clearance ≥305 mm to fit the shear fixture.

Electronic load cell with readout resolution of ±4.5 N (±1.0 lbf) for simultaneous load-deformation data logging.

Modified-Rail Shear Test Fixture

Composed of fixed/movable rail clamps, counter-moment pivot arms, load cell, calibrated threaded adjuster bolt (equipped with strain gauge to quantify normal preload);

spacer plates, clamping bolts, base deck plate, and weight balancing blocks.

ASTM D4027 Modified-Rail Shear Test for Structural Adhesives

Test Specimen Information:

1 Adherend Substrate Materials

Preferred standard substrate: high-density hard maple wood (specific gravity ≥0.63).

Substrate requirement: straight grain, knot-free, crack-free, no decay/discoloration within bonded zone; nominal 25.4 mm flat-sawn lumber with tangential flat grain bonding surface.

2 Specimen Dimension Ranges & Standard Sizes

Parameter	Allowable Test Range	Mandatory Standard Specimen Dimension
Specimen width	1.59–12.70 mm (0.0625–0.500 in)	3.18 mm (0.125 in)
Specimen length	102–203 mm (4–8 in)	203 mm (8 in)
Adherend thickness	13–25 mm (0.50–1.00 in)	19 mm (0.75 in)
Bondline thickness	0.15–3.18 mm (0.006–0.125 in)	0.79 mm (0.031 in)

Minimum 3 bonded billets per test condition for gap-filling construction adhesives with high bondline variability.

Exactly 8 replicate specimens tested under each identical set of environmental/loading parameters for statistical validity.

Test Parameters

Variable	Recommended levels (bold = standard)
Adherend species	Douglas-fir, hemlock, southern pine, hard maple, yellow birch
Moisture content at bonding	6 %, 15 %, soaked
Bondline thickness control	Shims in, shims out, jig
Bondline thickness	0.10, 0.50, 1.0, 2.0 mm
Cure temperature	5, 23, 60 °C
Cure time	7, 14, 28, 56 days
Crosshead speed	0.1, 1.0, 10.0 mm/min
Wood moisture at test	6 %, 15 %, soaked
Cyclic stress (for secant modulus)	0–10, 0–20, 0–50 % of est. shear strength
Normal stress (for shear strength)	0, 20, 40, 60 % of est. shear strength

Test Procedures of ASTM D4027 Modified-Rail Shear Test for Structural Adhesives:

Pre-test measurement: Measure bondline width at specimen center and both ends with precision micrometer; measure adhesive layer thickness via graduated microscope eyepiece.

Fixture clamping: Mount specimen fully into rail clamps to ensure the entire adhesive bondline is exposed, with each adherend fully seated inside its dedicated fixed/movable rail.

Normal stress setup:

Pure shear test: Loosen calibrated adjuster bolt to eliminate perpendicular preload; pivot arms move freely normal to bondline.

Combined shear+tension/compression test: Tighten calibrated strain-gaged adjuster bolt to apply constant target normal stress perpendicular to the adhesive layer, calibrated pre-test.

Load application: Activate universal test machine crosshead at specified constant speed:

Single-cycle monotonic test: Ramp load continuously until specimen bond failure.

Cyclic fatigue test: Load to defined stress ceiling, unload at matching crosshead speed; repeat for specified cycle count.

Data acquisition: Real-time synchronous recording of load (Y-axis) and rail slip displacement (X-axis) onto linear chart paper or digital data logger to generate load-slip curves.

Controlled-environment testing: Encase fixture and specimen inside temperature/humidity chamber for non-ambient testing conditions.

Post-test characterization: Weigh fractured specimens immediately post-failure and measure post-test wood moisture content via ASTM D4442; record failure surface morphology (cohesive, adhesive, substrate wood failure).

Industry Fields & Applications

ASTM D4027 serves multiple industries where structural adhesives are engineered to carry load:

Building & construction — especially wood-based structural assemblies (glulam, laminated beams, wood composite panels); the standard was developed under ASTM Subcommittee D14.70 on Construction Adhesives.

Aerospace & automotive — for metal, plastic, and reinforced-plastic adherends where structural adhesives replace or supplement mechanical fasteners.

Civil infrastructure — bridges, marine structures, and seismic retrofit where wood, composites, or multi-material bonded joints are used.

Adhesive product R&D and manufacturing — developing new formulations, optimising shear strength & durability, and qualifying adhesives to customer or regulatory specifications.

Failure analysis — diagnosing joint failure under combined shear + tension/compression states.

Finite element analysis (FEA) input — shear modulus and shear strength are essential parameters for cohesive zone models (CZM) and continuum models of bonded joints.

Related Stadard:

ISO 4587	Adhesives - Determination of tensile lap-shear strength of rigid-to-rigid bonded assemblies.
ASTM D1002	Standard Test Method for Apparent Shear Strength of Single-Lap-Joint Adhesively Bonded Metal Specimens by Tension Loading (Metal-to-Metal)
ASTM D905	Compression-loaded shear test for adhesive bond strength (alternative wood adhesive shear method, compression-driven loading instead of modified rail tension shear).
ASTM D4896	Guide for Use of Adhesive-Bonded Single Lap-Joint Specimen Test Results.
ASTM D6465	Guide for Selecting Aerospace and General Purpose Adhesives and Sealants.
ASTM D3165	Standard Test Method for Strength Properties of Adhesives in Shear by Tension Loading of Single-Lap-Joint Laminated Assemblies
ASTM D4027	Standard Test Method for Measuring Shear Properties of Structural Adhesives by the Modified-Rail Test

Keywords: UnitedTest ASTM D4027 tester, ASTM D4027 modified-rail shear tester, structural adhesive shear modulus test machine, modified rail shear fixture for adhesive testing, ASTM D4027 rigid adherend sandwiched adhesive shear property analyzer, modified rail shear test rig for structural adhesive shear strength measurement, pure uniform shear stress ASTM D4027 laboratory testing equipment, structural adhesive intrinsic shear modulus test machine, custom modified-rail fixture UTM for ASTM D4027 compliance

A single column tensile tester is a sophisticated material testing instrument designed for measuring mechanical properties of various materials under tension, compression, bending, shear, and other loading conditions. As the name suggests, it features a single vertical column supporting a moving crosshead that applies force to test specimens.

Vice Tensile test fixture for plastics is based on the test standatd ASTM D638, determination of the tensile properties of unreinforced and reinforced plastics in the form of standard dumbbell-shaped test specimens when tested under defined conditions of pretreatment, temperature, speed.

ASTM D4027, also known as the Standard Test Method for Measuring Shear Properties of Structural Adhesives by the Modified-Rail Test, is the leading ASTM International standard for determining the shear modulus, shear strength, creep compliance, and combined-stress failure criteria of structural adhesives bonded between rigid adherends. As a manufacturer of testing machines, UnitedTest provides universal testing machines (UTMs), precision load frames, and customized modified-rail shear fixtures that help laboratories worldwide comply with ASTM D4027.

Q1: What is ASTM D4027 Test?

A1: ASTM D4027 defines the modified-rail shear test method for structural adhesives. It uses a dedicated two-rail shear fixture mounted on a universal testing machine to measure adhesive bond shear strength, secant shear modulus, shear creep compliance, cyclic strain effects, and biaxial failure criteria under combined shear + tension/compression loading. High-density hardwood (hard maple) is the standard adherend substrate, with allowable adherends including wood composites, metal, plastic, and fiber-reinforced plastics.

Q2: Why is ASTM D4027 Test important for structural adhesive materials?

A2: 1) Shear modulus and shear strength are the core mechanical parameters for bonded structural joint engineering design based on elasticity theory. Most load-bearing adhesive joints bear dominant shear force in service; without D4027 test data, engineers cannot accurately calculate joint load capacity and safety margins.

2) It solves the practical limitation of ASTM E229 torsion shear test: torsion tests require custom thin-walled tubular adherends which are impossible to fabricate for timber, large composite panels and construction lumber, while D4027 uses flat rectangular adherends matching real-world building bonding forms.

3) Unique biaxial loading capability: Unlike single pure-shear tests (lap shear, D905 compression shear), D4027 simulates real multi-axial stress states (shear + tension/compression) widely seen in glued beams, timber frames, and composite structural components, generating reliable failure envelopes for safety analysis.

4) Supports environmental & fatigue evaluation: The standard formalizes controlled temperature, moisture, bondline thickness, and cyclic loading test parameters to quantify long-term adhesive degradation, critical for predicting outdoor construction joint service life.

5) Standardized, repeatable testing rules enable fair side-by-side comparison of different structural adhesive formulations for R&D, quality control, and third-party product certification.

Q3: What industries use ASTM D4027 modified rail shear testing?

A3: Primary applicable fields:

Wood construction & glulam timber engineering (main target industry for the standard)

Structural adhesive manufacturing (solvent-based gap-filling construction adhesives, epoxy structural glues, PU wood adhesives)

Composite material bonding labs (metal-FRP, wood-plastic composite joints)

Furniture, marine lightweight structural component production

Aerospace lightweight bonded assembly R&D

Third-party material testing & certification laboratories

University civil engineering, materials science research institutes

Q4: What core calculations are required by ASTM D4027?

A4: 1. Secant Shear Modulus = Shear Stress / Shear Strain; Shear Strain = Adhesive Slip / Bondline Thickness

2. Ultimate Shear Strength = Maximum Failure Load / Bonded Contact Area

3. Statistical analysis for replicates: Mean value, sample standard deviation, standard error of the mean (all must be included in formal test reports).

Q5: What common test errors affect ASTM D4027 result accuracy?

A5: 1) Specimen misalignment in rail clamps: Causes uneven shear stress, premature edge failure, lower measured shear strength. Solved by UnitedTest fixture’s built-in positioning guide blocks.

2) Uncalibrated strain-gage adjuster bolt: Inaccurate normal preload distorts biaxial test failure data. UnitedTest fixtures ship with factory calibration certificates.

3) Uncontrolled bondline thickness: Shim/jig thickness errors lead to large modulus deviation; the standard requires full thickness control method documentation in reports.

4) Non-compliant crosshead speed: Too fast loading overestimates shear strength, too slow causes creep-induced softening; UnitedTest UTM software locks preset standard speed profiles.

5) Insufficient specimen replicates (less than 8): Poor statistical confidence of mean test values, fails third-party audit requirements.

Q6: What’s the advantage of UnitedTest’s modified rail shear fixture over generic third-party fixtures?

A6: 1) Strictly follows the full detail drawings from USDA Forest Products Laboratory referenced in ASTM D4027, ensuring minimal uneven shear stress distribution as required by the standard.

2) Integrated strain-gage adjuster bolt with pre-calibration function to accurately set superimposed normal stress for biaxial shear+tension/compression tests.

3) Counter-moment pivot arm design restricts adherends to pure collinear slip, eliminating extra bending deformation that distorts shear modulus test results.

4) Hardened steel rail clamping surfaces prevent specimen slippage during cyclic and failure testing, improving data repeatability.

5) Modular structure compatible with all UnitedTest UTM models, easy disassembly for specimen loading and cleaning.

Q7: Why choose UnitedTest to purchase ASTM D4027 compliant testing systems?

A7: 1) Full ASTM standard compliance: UTM frames, modified rail shear fixtures, and test software all engineered strictly per ASTM D4027 specifications, accepted by third-party material certification labs worldwide.

2) Customization capability: Modify fixture size, UTM load capacity, and environmental chamber range for unique adhesive or adherend test requirements.

3) Integrated intelligent test software: Auto calculates all ASTM D4027 required parameters, generates standardized exportable test reports to save lab manpower.

4) Global after-sales support: Remote calibration guidance, on-site installation, operator training, spare parts supply, and periodic equipment maintenance services.

5) Cost-effective one-stop package: Bundled UTM + modified rail shear fixture + sensors at competitive factory-direct pricing, eliminating third-party fixture sourcing costs.

Q8: Can UnitedTest customize modified rail shear fixtures for special high-modulus adhesives up to 690 MPa?

A8: Yes. ASTM D4027 notes the maximum measurable adhesive shear modulus with hard maple adherends is ~690 MPa. UnitedTest designs high-rigidity rail shear fixtures with thickened alloy steel clamping rails and reinforced pivot arms for high-modulus structural epoxy adhesives, preventing fixture deformation during high-load testing to guarantee accurate modulus readings.

Q9. How does UnitedTest support ASTM D4027 compliance?

ASTM D4027 Requirement	UnitedTest Capability
≥ 8 900 N load capacity	WDW-10Y (10 kN), WDW-20Y (20 kN), WDW-50Y (50 kN) and higher — all exceed the minimum
Crosshead speed 0.317 – 10.16 mm/min	Full WDW series covers 0.0017 – 1016 mm/min, with closed-loop servo control
Vertical space ≥ 508 mm	All dual-column models provide far greater clearance (up to 1066 mm)
Horizontal space ≥ 305 mm	Column gaps of 406 – 560 mm accommodate the shear tool
Electronic load cell readout	USA Vishay Celtron load cells, overload capacity 150%, resolution up to 1/500,000
ASTM E4 load-weighing compliance	Load weighing system meets/exceeds ASTM E4, EN 10002-2, BS 1610, DIN 51221, ISO 7500-1
Simultaneous load-deformation recording	STC8800 digital control system with 24-bit A/D, real-time curve display, ACCESS/SQL data storage
Adhesive testing experience	Explicitly listed among supported applications: "adhesives — tensile, shear, peel, tear"

Q10. How does the modified-rail test differ from a lap shear test (ASTM D1002)?

Aspect	ASTM D4027 (Modified-Rail)	ASTM D1002 (Lap Shear)
Stress state	Nearly pure shear; parasitic bending minimized	Mixed shear + peel + bending
Adherend constraint	Rigid rails enforce collinear motion	No external constraint; adherends flex
Measurable properties	Shear modulus and shear strength; also creep, cyclic, biaxial	Primarily shear strength
Combined stress capability	Yes — shear + tension / compression	No
Preferred for design data?	Yes — provides modulus for FEA/CZM	Limited — strength-only, engineering approximation
