ASTM D1434 Gas Permeability Tester | Differential Pressure GTR Test Machine | UnitedTest

UnitedTest manufactures professional ASTM D1434 compliant gas permeability testers to accurately evaluate the gas barrier performance of plastic films, sheets, and composite packaging materials for industrial quality control and laboratory testing.

ASTM D1434 Standard Test Method for Determining Gas Permeability Characteristics of Plastic Film and Sheeting adopts a precise electronic manometric differential-pressure method to test three essential barrier performance metrics: Gas Transmission Rate (GTR), gas permeance, and material permeability. Notably, material permeability results are only valid for homogeneous plastic materials.

This widely accepted ASTM standard covers an extensive range of test specimens, including plastic films, plastic sheets, multi-layer laminates, plastic-coated paper, and plastic-coated fabrics. Fully aligned with WTO TBT international standardization principles, ASTM D1434 delivers consistent, internationally recognized gas barrier test data for packaging material certification and R&D validation.

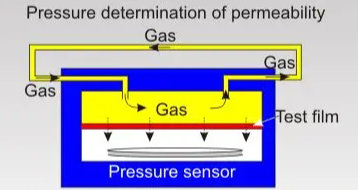

Test Principle

The plastic specimen is clamped airtight between high-pressure and low-pressure chambers, forming a semi-permeable gas barrier partition.

Both chambers are fully evacuated sequentially to eliminate residual air and volatile contaminants from the system.

Dry pure test gas is injected into the upstream high-pressure chamber and held at constant pressure (standard 1 atm).

Driven by the fixed pressure differential, gas diffuses through the polymer matrix into the sealed downstream low-pressure chamber, gradually raising downstream pressure.

Electronic pressure sensor continuously logs pressure values against elapsed time to generate a pressure-time curve.

The initial non-linear adsorption phase (gas absorbed into polymer) is discarded; only the linear steady-state slope dp/dt is used for mathematical calculation of GTR, permeance and permeability.

ASTM D1434 Gas Permeability Test of Plastic Film and Sheeting

Specific Test Methods

ASTM D1434 only retains the electronic manometric differential-pressure method (old mercury capillary and volumetric procedures removed in recent revisions). No gas chromatography variant is included.

Core logic: Create a stable gas pressure differential across the specimen; monitor pressure accumulation in the evacuated low-pressure chamber via calibrated electronic vacuum gauges to capture steady-state permeation slope dp/dt for GTR calculation.

Key upgrade from legacy D1434 editions: Mercury hardware eliminated for lab safety; automated pressure recording and digital data logging supported.

Limitation: Only tests single pure dry gases; cannot separate mixed gas components (unlike ISO 15105-1 Annex B GC method).

Test Specimen Requirements

Shape & Size: Generally circular discs, sized larger than the cell’s gasket seal to avoid gas bypass leakage.

Sample Quantity: Minimum three identical specimens per material unless all parties mutually agree to fewer replicates.

Test Equipment of ASTM D1434 Gas Permeability Test of Plastic Film and Sheeting

Recommend UnitedTest Gas Permeability Tester - Gas Permeation Analyzer;

Core Test Cell Assembly

Split transmission cell with two sealed independent chambers:

High-pressure upstream chamber: Test gas inlet, smooth flat sealing surface with O-ring for airtight clamping; gas permeation diameter range 10–150 mm.

Low-pressure downstream chamber: Flat support surface, compatible with filter paper backing for thin films, connected to pressure sensor.

Uniform clamping fixture to apply consistent sealing pressure on specimen gaskets/O-rings.

Pressure Measurement & Gas Supply

Calibrated electronic vacuum gauge (pressure sensor): Resolution accurate to 13 Pa, auto data logging of pressure vs time curves.

Gas feeder reservoir tank with needle valve and high-pressure manometer (0–333 kPa absolute) to maintain constant upstream test gas pressure (typically 1 atm / 101 kPa).

Vacuum pump: Capable of evacuating low-pressure chamber to ≤26 Pa initial vacuum.

Multi-way isolation, venting and vacuum control valves for chamber switching.

Adjustment & Consumable Hardware

Cell volume control adapter / filler blocks: Reduce fixed downstream chamber volume to amplify pressure rise rate for ultra-low barrier films, extending instrument measurable range.

Dry pure test gas (purity ratio ≥100:1 of supply volume vs total permeated gas volume over test).

Low-volatility high-vacuum grease for sealing surfaces.

Qualitative filter paper (0.2–0.3 mm thickness, same area as permeation zone) to support thin flexible films and prevent sagging under vacuum.

Standard Test Parameters

Pressure Conditions

Upstream test gas pressure: Standard 101 kPa (1 atm); custom pressures allowed with full documentation.

Initial downstream vacuum target: ≤26 Pa.

Gas Specifications

Test gas must be dry (0% moisture for standard testing) and high purity; mixed gas testing not supported by this method.

Calculation Metrics & Standard Units

Gas Transmission Rate (GTR)

SI unit: mol/(m²·s); common industrial unit: mL(STP)/(m²·d) at 1 atm differential pressure.

Permeance (Pn)

Ratio of GTR to gas partial pressure difference across film; SI unit: mol/(m²·s·Pa).

Permeability Coefficient (P’)

P’ = GTR × average specimen thickness d; only valid for homogeneous polymers; SI unit: mol·m/(m²·s·Pa).

Key Test Stipulations

Leak verification: If downstream pressure rises immediately after full evacuation (before test gas injection), the cell has air leakage or severe specimen outgassing; re-mount specimen and re-evacuate completely.

Steady-state requirement: Testing continues until pressure-time curve forms a consistent straight line; unstable early-stage permeation data is excluded from calculations.

Permeability coefficient caution: Do not report P’ unless multiple thickness samples confirm consistent thickness-permeation relationship; polymer morphology, crystallinity and thermal history alter permeability even for visually homogeneous plastics.

Referee test limitation: This method detects all outgassed volatiles (water, residual solvents) alongside target test gas, which may create deviation from gas-specific sensor methods. Not recommended for third-party referee testing unless buyer and seller align on acceptable precision tolerances.

Detail Standard Test Procedures of ASTM D1434 Gas Permeability Test of Plastic Film and Sheeting

Install volume filler blocks inside the low-pressure chamber if testing ultra-low barrier films.

Place filter paper matching the permeation area flat on the downstream test plate.

Apply thin uniform vacuum grease only on cell sealing surfaces; avoid contact with filter paper to prevent blocking gas flow.

Mount pre-conditioned specimen flat without creases or slack, then fit rubber O-ring gasket and upper high-pressure cell half.

Clamp cell evenly to achieve full vacuum-tight seal.

Activate vacuum pump to evacuate both chambers sequentially until downstream pressure ≤26 Pa; close vacuum valves and shut pump.

Check for spontaneous downstream pressure rise; re-seal and re-evacuate if leaks or heavy outgassing occur.

Open gas supply valve to fill high-pressure chamber to target pressure (1 atm default), record upstream pressure value.

Continuously record downstream pressure readings against time to build pressure-time curve.

Stop testing once linear steady-state slope is confirmed over multiple consecutive time intervals.

Calculate dp/dt from linear curve segment, compute GTR, permeance and permeability using the standard ideal gas law formula.

Vent system, remove specimen, clean cell sealing surfaces and filter paper for next test.

Industrial Application Fields

ASTM D1434-23 is the primary US standard for barrier performance testing across packaging and polymer manufacturing sectors:

Flexible food packaging: PE, PP, polyester laminates, snack films, fresh produce wrapping, meat barrier films to quantify oxygen/CO₂ transmission for shelf-life prediction.

Pharmaceutical packaging: Medical blister films, drug barrier laminates, plastic-coated medical packaging to prevent oxidation of active ingredients.

Agricultural plastics: Greenhouse thin films, silage wrap, crop protection polymer sheets.

Cosmetic & chemical packaging: Thin lidding films for volatile essential oils, solvent-based cosmetic formulations.

Electronics protective packaging: Low-permeation barrier films for semiconductor and electronic component storage.

Related Test Standard:

ISO 15105-1	Plastics - Film and sheeting - Determination of gas-transmission rate - Part 1: Differential-pressure methods
ISO 15105-2	Part 2 – Equal-pressure method. adopting carrier gas equal-pressure principle instead of differential vacuum; complementary testing route for gas permeability measurement.
GB/T 1038.1	Plastics—Film and sheeting—Determination of gas-transmission rate—Part 1:Differential-pressure methods
ISO 2556	Plastics - Determination of the gas transmission rate of films and thin sheets under atmospheric pressure - Manometric method
ASTM D1434	Standard Test Method for Determining Gas Permeability Characteristics of Plastic Film and Sheeting
JIS K 7126-1	Plastics -- Film and sheeting -- Determination of gas-transmission rate -- Part 1: Differential-pressure method
DIN 53380-1	Testing of plastics - Determination of gas transmissions rate - Part 1: Volumetrical method for testing of plastic films
ISO 2782-1	Rubber, vulcanized or thermoplastic — Determination of permeability to gases — Part 1: Differential-pressure methods

Keywords: UnitedTest ASTM D1434 tester, ASTM D1434 gas permeability tester, differential pressure GTR test machine, plastic film gas barrier testing equipment, electronic manometric gas transmission rate test ASTM D1434, homogeneous plastic material permeability tester, multi-layer laminate gas permeance testing machine, plastic coated paper and fabric barrier performance test, WTO TBT compliant plastic film GTR test equipment

Gas Permeability Tester is a multi-functional lab instrument dedicated to gas barrier performance testing, gas transmission rate (GTR). Conform to ISO 15105-1, ISO 2556, ASTM D1434, Widely adopted as standard QC testing equipment for flexible packaging, plastic manufacturing and new energy sectors.

Adopts advanced electrochemical coulometric detection method for accurate, time-efficient oxygen transmission rate analysis for medium and high barrier packaging materials. Conform with ISO 15105-2, ASTM D3985. Key testing indicators Oxygen Transmission Rate (OTR), oxygen volume passing through.

Q1: What is ASTM D1434, and what core principle does it adopt?

A1: ASTM D1434 is the latest US standard (published June 2023) for measuring gas barrier performance of plastic films, laminates, coated paper/fabric via an electronic differential manometric method. The core principle: A specimen seals two chambers. The low-pressure side is fully evacuated; pure test gas fills the high-pressure chamber at ~1 atm. Gas permeates through the film and raises pressure in the sealed low-pressure chamber. A calibrated vacuum sensor records pressure vs time curves, and the linear steady-state slope dp/dt is used to calculate GTR, permeance, and permeability coefficient. All mercury hardware from older D1434 versions is removed for lab safety.

Q2: What three core metrics can ASTM D1434 calculate? What is the difference between them?

A2: GTR (Gas Transmission Rate): Raw permeation value for finished film, SI unit mol/(m²·s); independent of thickness.

Permeance: GTR divided by pressure differential (mol/(m²·s·Pa)), reflects barrier performance regardless of material thickness.

Permeability (P’): Permeance × average specimen thickness. Only valid for homogeneous plastics to represent intrinsic polymer bulk property; unreliable for multi-layer, coated or oriented films.

Q3: What materials can ASTM D1434 test? Which materials are excluded?

A3: Applicable: Single-layer plastic films, coextruded/laminated barrier sheets, plastic-coated paper, plastic woven fabrics.

Excluded: Rigid thick plastic blocks, open-cell foams, pure metal foil, glass, complex multi-component mixed gas packaging (cannot separate mixed gas fractions).

Q4: Does ASTM D1434 support mixed gas testing like ISO 15105-1 Annex B?

A4: No. ASTM D1434 only tests single pure dry gases. It measures all volatile outgassing (water, residual solvent) alongside target gas, so it cannot isolate individual gas components from mixtures.

Q5: How many specimens are required per material batch under ASTM D1434?

A5: A minimum of three identical specimens is mandatory. Fewer replicates are allowed only with written mutual agreement of all involved parties (supplier, buyer, lab).

Q6: Why must we mark the specimen’s gas-facing side?

A6: Many films (coated, metallized, laminated) have asymmetric barrier performance. Marking replicates real packaging service orientation (e.g., outside atmosphere vs food interior) and avoids biased low/high GTR readings from reversed mounting.

Q7: What thickness measurement rules does the standard require?

A7: Measure thickness at minimum five evenly distributed points across the permeation zone with ±2.5 μm precision. Record min, max and average thickness values. Gravimetric thickness calculation is an alternative for fully homogeneous films only.

Q8: What is the function of low-pressure volume filler blocks/adapters?

A8: They reduce the fixed volume of the downstream chamber, accelerating pressure accumulation for ultra-low barrier films (very slow permeation), improving data readability and shortening test duration.

Q9: Why is filter paper placed under the specimen in the low-pressure cell?

A9: Thin plastic films sag under vacuum suction. The 0.2–0.3 mm qualitative filter paper supports the sample flat without blocking gas flow and ensures the full defined permeation area is active for measurement.

Q10: Why must we discard the early non-linear segment of the pressure-time curve?

A10: The initial non-linear phase corresponds to gas absorption into the polymer matrix, where permeation flux is unstable. Only after the curve becomes a straight line (steady state) does gas adsorption-desorption equilibrium occur, ensuring accurate dp/dt slope calculation for reliable GTR results.

Q11: What purity and humidity rules apply to test gas?

A11: Test gas must be dry (0% moisture for standard testing) and high purity. The gas feeder reservoir volume should be at least 100× the total gas volume permeated during the test to maintain constant upstream pressure (typically 101 kPa / 1 atm).

Q12: What are the key differences between ASTM D1434-23 and ISO 15105-1?

A12: Gas analysis: ASTM D1434 only single-gas testing; ISO 15105-1 Annex B adds GC for mixed gas separation.

Global recognition: ASTM D1434 primary US/North American standard; ISO 15105-1 global international standard.

Precision clauses: ISO 15105-1 explicitly notes missing interlab data; ASTM D1434 provides full round-robin CV precision tables.

Hardware: Both use electronic pressure sensors (mercury-free).

Limitation: ASTM D1434 detects all specimen outgassing; ISO 15105-1 GC isolates target gas signals.

Q13: How is ASTM D1434 different from legacy ISO 2556 mercury manometric standard?

A13: ISO 2556 relies on toxic manual mercury capillary columns with high human reading error. ASTM D1434-23 eliminates mercury, uses automated digital pressure logging for higher repeatability and lab safety compliance.

Q14: When should I select ASTM D3985 instead of ASTM D1434 for oxygen testing?

A14: Choose ASTM D3985 (coulometric oxygen-specific sensor) for official referee OTR testing. D3985 only detects oxygen and ignores water/solvent outgassing interference, delivering more accurate oxygen-only data than D1434’s universal pressure measurement method.

Q15: Why is ASTM D1434 testing critical for plastic film manufacturers and packaging engineers?

A15: Standardized barrier benchmarking: Provides uniform numerical GTR data to grade raw polymer films and compare coating/lamination performance.

Shelf-life prediction: Quantifies oxygen/CO₂ ingress that causes food oxidation, flavor loss, and pharmaceutical active ingredient degradation to optimize packaging structure and extend product stability.

North American regulatory compliance: Recognized standard for US factory QC, third-party packaging certification and cross-border supply chain material validation.

Safe modernized workflow: Mercury-free electronic hardware complies with global laboratory health & safety rules, unlike older mercury-based manometric standards.

Process optimization: Test data guides adjustments to extrusion, film orientation and coating thickness to reduce gas permeation while controlling material production costs.

Unified unit conversion framework: Comprehensive SI/imperial conversion tables eliminate calculation inconsistencies across different regional laboratories.

Q16: After full evacuation, low-pressure chamber pressure rises rapidly before introducing test gas — what is the cause?

A16: Two root causes:

Physical system leakage: Damaged O-rings, uneven vacuum grease, wrinkled specimens, insufficient clamping pressure. Re-seal and re-clamp the cell.

Heavy specimen outgassing: Hygroscopic or solvent-rich films release volatiles even after 48 h drying. Extend conditioning time or use nitrogen purge pre-treatment.

Q17: Pressure-time curve never forms a stable straight line, with erratic slope fluctuations.

A17: Common triggers:

Test cell temperature fluctuates beyond ±2°C during measurement.

Thin specimen creases create variable effective permeation area.

Excess vacuum grease overflows onto filter paper and partially blocks gas transmission.

Vacuum pump or valve micro-leaks introduce continuous background air ingress.

Q18: Test results show much higher GTR values than expected for a known high-barrier film.

A18: Possible issues:

Specimen mounted slack, increasing actual exposed permeation area.

Insufficient pre-drying leading to massive water vapor outgassing.

Cell volume filler blocks not installed for low-permeation materials, amplifying measurement noise.

Calibration drift on vacuum pressure sensors. Recalibrate instruments and re-test conditioned samples.

Q19: Quick trio comparison of ISO 2566, ISO 15105-1 and ASTM D1434?

A19:

	ISO 2556	ASTM D1434	ISO 15105-1
High side	Atmospheric only	~1 atm	~1 atm, both sides evacuated first
Detection	Mercury U-tube + capillary (manual h)	Electronic vacuum gauge, automated (Hg retired in -23)	Electronic pressure sensor or GC
Mixed gas?	No	No	Yes (Method B, GC)
Scope	Film/sheeting	Film/sheeting/laminates/coated papers	Film/sheeting
Range	1–20 000	Not explicitly capped (volume adapter extends)	Widest (Method A expandable)
Honesty on precision	Silent	Very candid — 5.2 warns all-gases interference, not for referee	Quiet (normal ISO style)
Status	Legacy, Hg-based	Active, modernized 2023	Current ISO preferred

We offer customization to meet your specific needs. Our expert team will collaborate with you to develop the perfect product for you
