ASTM C1176 Roller-Compacted Concrete Cylinder Specimen Preparation Machine | UnitedTest

UnitedTest supplies testing equipment following ASTM C1176, the standard practice for fabricating roller-compacted concrete (RCC) cylinder specimens with vibrating table and static surcharge load for zero-slump concrete lab testing.

ASTM C1176 is a standard practice focused on specimen preparation rather than generating direct test measurement values. It outlines laboratory procedures to produce 150 mm × 300 mm cylindrical test samples for stiff, zero-slump roller-compacted concrete (RCC). Specimens are manufactured using a vibrating table combined with static surcharge load to simulate roller compaction conditions for reliable concrete performance evaluation.

Test / Molding Principle

A cylindrical mold is rigidly clamped to a vibrating table. Fresh RCC is placed in three equal lifts, and each lift is consolidated under a 9 kg [20 lb] cylindrical steel surcharge sliding in a guide sleeve.

The endpoint for each lift is visual: a mortar ring forms completely around the perimeter of the surcharge in the annular space between the 145 mm surcharge and the 150 mm mold wall. When the ring closes, vibration stops.

This replaces rodding/internal vibration, which cannot properly consolidate concrete of this consistency. The vibration + surcharge combination reproduces, in a standardized way, the compactive effort a vibratory roller applies in the field — so the finished cylinder is representative of the in-place RCC.

Specific Test Methods

	Method A	Method B
Mold	Type A — reusable steel/hard-metal mold, 150 × 300 mm, per C470/C470M	Type B — single-use plastic mold, 150 × 300 mm, per C470/C470M
Extra hardware	Mold has permanently affixed slotted brackets on baseplate for bolting straight to the table	Plastic mold inserted into a hinged metal sleeve (min. wall 3 mm, baseplate 6 mm), which is clamped to the table; sleeve ID 3 ± 1.5 mm larger than mold OD, sleeve height 6–13 mm less than mold height
Lubricant	Required (bond breaker) before casting	Not required (mold is single-use)
Handling	Specimen stripped from mold	Sleeve is hinged → opens to release the plastic mold for curing/transport

Specimen Information

Shape/size: cylinder 150 mm [6 in.] diameter × 300 mm [12 in.] high

Material: freshly mixed concrete, stiff to extremely dry consistency (RCC)

Nominal maximum aggregate: ≤ 50 mm [2 in.]; oversize removed by wet sieving over a 50 mm sieve per C172

Number of lifts: three, each ≈ one-third of mold volume after consolidation

Mass per lift: ≈ 4.5 kg [9.5 lb] for the first lift.

Testing Equipment Required for ASTM C1176 Vebe Vibrating-Table Test — Roller-Compacted Concrete Cylinders

Concrete Test Vebe Consistometer

Recommend UnitedTest Concrete Test Vebe Consistometer, consist of:

Vibrating (Vebe) Table: Steel deck ~380 mm × 250 mm, total mass of vibrator plus table ≥90 kg; must be anchored firmly to concrete base to eliminate shifting during vibration.

Must deliver sinusoidal vibration meeting defined frequency‑amplitude requirements.

Molds & accessories:

- Type‑A: Reusable steel cylinder mold 150 mm diameter × 300 mm height (complies with ASTM C470/C470M), fitted with slotted clamping brackets for rigid mounting to the vibrating table. Aluminum molds are forbidden.

- Type‑B: Disposable plastic cylinder mold 150 mm × 300 mm plus hinged rigid steel sleeve (wall ≥3 mm, base‑plate ≥6 mm thickness). The sleeve holds plastic mold vertically without deformation.

Swivel arm and guide‑sleeve assembly: Supports the surcharge metal shaft, permits free vertical sliding; can swing out of the way for sample filling, locks to keep surcharge aligned above mold centre.

9 kg (20 lb) surcharge assembly: Cylindrical steel mass with vertical metal shaft (shaft length ≥460 mm, diameter 16 ± 2 mm). Total assembly mass: 9.0 ± 0.25 kg; surcharge outer diameter: 145 ± 3 mm. Manual‑grip short‑shaft version is allowed for hand‑holding operation.

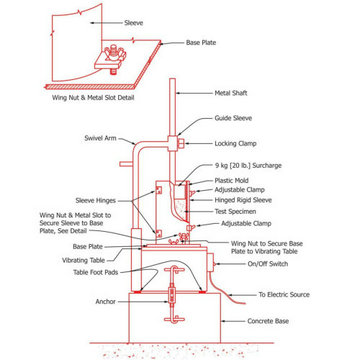

ASTM C1176 Vebe Vibrating-Table Test — Roller-Compacted Concrete Cylinders

Tools

1. 50‑mm (2‑in) test sieve: conforming to ASTM E11 for wet‑sieving over‑size aggregates.

2. trowels, square‑ended shovel, scoops, wrench, tamping rod, flashlight for visual inspection of mortar ring formation.

Key Test Parameters & Stipulations

Vibration frequency	60 ± 2 Hz (3600 ± 100 vibrations/min)
Double vibration amplitude	0.43 ± 0.08 mm (measured with 27 kg simulated load bolted on table centre)
Surcharge mass (C1176 only)	9.0 ± 0.25 kg (20 ± 0.5 lb)
Specimen cylinder size	150 mm diameter × 300 mm height
Mold‑sleeve inside clearance (Method‑B)	3 ± 1.5 mm larger than plastic‑mold outer diameter
Maximum allowed delay post‑mixing	45 minutes to finish specimen making
Maximum nominal aggregate size	50 mm; oversized aggregate must be wet‑sieved out
Table‑vibrator total mass	≥90 kg; table must be anchored to concrete base
Table calibration interval	Initial commissioning, annually, after repair, or when test results are suspicious

Standard Test Procedures of ASTM C1176 Vebe Vibrating-Table Test — Roller-Compacted Concrete Cylinders

Pre‑check and calibrate vibrating‑table vibration parameters; inspect molds, surcharge assembly and accessories. Lubricate reusable Type‑A steel molds. For Method‑B, insert disposable plastic mold into hinged metal sleeve and clamp the assembly firmly to vibrating‑table deck.
Obtain representative fresh‑concrete sample complying with ASTM C172; wet‑sieve to remove aggregates >50 mm if needed; ensure specimen‑making completes within 45 min after mixing.
Fill mold with the first lift (approximately one‑third mold volume). Swing surcharge assembly over mold centre, release clamp and gently lower 9‑kg surcharge onto loose concrete surface.
Activate vibrating table. Observe the annular gap between surcharge edge and mold inner wall. Stop vibration once a continuous full‑perimeter mortar ring appears. If surcharge binds, manually hold surcharge shaft perpendicular, apply no extra hand pressure.
Repeat filling‑vibration cycle for second lift (two‑thirds volume). Third lift over‑fills mold. Consolidate under vibration‑plus‑surcharge. Add extra concrete if consolidation pulls material below mold top. Use surcharge to screed surface level with mold rim, avoid holding surcharge stationary in one spot. Optionally vibrate 4 ± 1 seconds without surcharge for surface finishing (skip if alternative vibrating‑table hardware risks specimen disturbance).
Remove mold/sleeve assembly from vibrating‑table. Finish specimen top surface with steel trowel or wooden float, do not dislodge surface aggregate particles.
Demold cylinders and cure specimens following ASTM C192/C192M (lab‑curing) or ASTM C31/C31M (field‑curing). Then perform compressive‑strength test ASTM C39/C39M or splitting‑tensile‑strength ASTM C496/C496M.

Industrial & Engineering Application Fields

RCC dams and dam rehabilitation / overtopping protection — mass concrete strength verification

RCC pavements — highways, ports, airports, intermodal yards, heavy industrial pavements

Cement-treated aggregate / cement-treated base

Soil-cement type mixtures

Laboratory RCC mix proportioning — comparing trial mixtures at equal compactive effort

Field QA/QC — verification cylinders taken alongside placement

Ready-mix/RCC producer laboratories, university & research institutes, third-party inspection labs, and testing-equipment manufacturers supplying vibrating-table cylinder-making systems

Related Test Standard:

ASTM D1557	Modified‑effort laboratory soil compaction test
ASTM C143	Standard Test Method for Slump of Hydraulic-Cement Concrete
ASTM C1170	Standard Test Method for Determining Consistency and Density of Roller-Compacted Concrete Using a Vibrating Table
ASTM C1176	Standard Practice for Making Roller-Compacted Concrete in Cylinder Molds Using a Vibrating Table
EN 12350-3	Testing fresh concrete - Part 3: Vebe test
BS 1881-104	British Vebe consistency methods (slump-cone based, not RCC cylinder making)

Importance of This Test for Fiber‑Reinforced‑Concrete Material

Without it, RCC cylinders cannot be made at all. Rodding (C31) simply cannot consolidate a no-slump mix — the specimen would be honeycombed and the strength result meaningless.

Compaction governs RCC properties. For RCC, achieved density/compaction dominates strength, permeability, durability and lift-joint bond far more than for conventional concrete. A specimen-making method that does not reproduce field compactive effort produces numbers that do not represent the structure.

It standardizes the compactive effort — fixed 9 kg surcharge, fixed frequency/amplitude, fixed three lifts, fixed visual endpoint — so cylinder results are comparable between labs, batches and projects.

It closes the C1170 → strength loop. C1170 tells you the fresh mix consistency (Vebe time) and density; C1176 turns that same fresh mix into specimens; C39/C496 turn those into strength data. Together they are the RCC quality-control chain used to accept or reject a mix and to validate the design.

It flags bad concrete early. The mortar-ring criterion doubles as a diagnostic: a ring that refuses to form exposes segregation, poor sampling or bad proportioning before you waste curing time and machine capacity.

Keywords: ASTM C1176,roller compacted concrete,RCC specimen preparation,zero slump concrete,concrete cylinder mould,vibrating table concrete test,static surcharge load,concrete lab specimen making,roller compacted concrete test equipment,concrete sample fabrication,construction material testing machine,concrete compression specimen,concrete laboratory apparatus,UnitedTest concrete tester

Vebe Consistometer determines the consistency and density of low slump roller-compacted concrete. The sample is placed in the mold and the surcharge weight is placed on top. The vibrator is started and the time for the concrete to consolidate and form a mortar ring is recorded.

Fiber reinforced concrete (FRC) Flexural Testing Machine can according ASTM C1550 determines the flexural toughness of fiber-reinforced concrete. Flexural toughness is the maximum stress (put) onto a specimen before it cracks or breaks.

Q1: What is ASTM C1176? Why is this practice important for roller‑compacted concrete (RCC)?

A1: ASTM C1176/C1176M‑20 is a standard practice to fabricate 150 × 300 mm cylindrical test specimens for stiff, zero‑slump roller‑compacted concrete by vibrating table with a 9 kg (20 lb) surcharge load. Conventional rodding or internal vibration (ASTM C31) cannot properly consolidate very‑dry RCC, which will produce under‑compacted cylinders and falsely low strength test values. Specimens made per C1176 simulate field roller compaction conditions in lab. These cylinders are further tested for compressive strength (ASTM C39) and splitting tensile strength (ASTM C496). Test results are critical for RCC mix design, dam and pavement quality control, and construction project acceptance.

Q2: What is the difference between ASTM C1170 and ASTM C1176? Can I use one machine for both standards?

A2: ASTM C1170: Test method to measure Vebe consistency (workability) and consolidated density of fresh RCC, uses 12.5 kg or 22.7 kg surcharge mass. It outputs numerical test data about fresh concrete properties.

ASTM C1176: Practice for making strength‑test cylinder specimens, uses fixed 9 kg (20 lb) surcharge mass, no direct numerical reading; the finished cylinders go for later destructive strength testing.

The same vibrating‑table hardware can serve both standards, by swapping different surcharge assemblies and molds. UnitedTest’s multi‑function vibrating‑table system supports both C1170 and C1176 test workflows.

Q3: What are Method A and Method B in ASTM C1176? When should I select each method?

A3: Method A: Uses reusable steel cylinder molds directly clamped to vibrating table. Aluminum molds are strictly forbidden. Suitable for labs with high‑volume repeated specimen production, reusable steel molds bring long‑term cost benefits.

Method B: Uses disposable single‑use plastic cylinder molds, which must be fitted inside a rigid hinged metal sleeve; the whole sleeve assembly is clamped onto the vibrating table. Preferred for field‑oriented testing or when demolding difficulties are expected.

Both methods produce 150 mm × 300 mm cylinders and follow identical filling‑vibration‑consolidation steps. Report clearly which method you adopt in test records.

Q4: What aggregate size limitation applies for ASTM C1176 specimen preparation? How do I handle over‑size aggregates?

A4: Nominal maximum aggregate size shall not exceed 50 mm (2 in). If concrete contains aggregate particles larger than 50 mm, perform wet‑sieving over a 50‑mm sieve following ASTM C172, discard over‑size fraction and test only the passing material.

Q5: What is the time limit for completing specimen preparation after concrete mixing?

A5: All cylinder fabrication steps shall finish within 45 minutes after mixing completion, unless special project specification defines other time limits. Fresh stiff RCC changes workability quickly with elapsed time; delayed operations cause non‑representative test specimens.

Q6: How do I judge the consolidation endpoint during vibration for C1176 cylinders?

A6: Observe the annular gap space between surcharge outer edge and mold inner wall. Stop vibration when a continuous full‑perimeter mortar ring forms around the surcharge circumference. Local small rock pocket without full mortar ring may be accepted after visual inspection upon demolding; large‑area missing mortar ring indicates segregation or poor mix proportioning and the specimen shall be rejected.

Q7. What do I do if the mortar ring doesn't close?

A7: If a rock pocket prevents the ring at one small location while it has formed everywhere else, you may stop vibration and add the next layer. If a significant portion of the ring does not form, that indicates insufficient mortar from improper sampling, segregation, or improper mixture proportioning. In that case, strip the specimen from the mold, visually inspect it, then decide to accept or reject.

Q8. Can I use a different vibrating table instead of the Vebe table?

A8: Yes, provided it meets the sinusoidal vibration specification (60 ± 2 Hz, 0.43 mm double amplitude under a 27 kg load). One caveat: with an alternative table, large-amplitude low-frequency oscillation at switch-off may disturb the compacted specimen. If that happens, keep the surcharge in place until the table has completely stopped.

Q9: Why choose ASTM C1170 & C1176 Vibrating Table Vebe Consistometer / RCC Tester from UnitedTest?

A9: UnitedTest manufactures ASTM C1170 / C1176M compliant vibrating‑table test system for roller‑compacted concrete. Measure Vebe consistency, density and prepare RCC strength‑test cylinders. Complete surcharge sets for 9 kg,12.5 kg,22.7 kg; steel molds & hinged metal sleeve assembly for civil engineering laboratory and on‑site QC testing of RCC, cement‑treated aggregate and soil‑cement mixtures.

UnitedTest is a professional manufacturer of civil‑engineering concrete laboratory instruments. Our multi‑functional **Vebe vibrating‑table test system fully complies with ASTM C1170 and ASTM C1176 standards, designed for roller‑compacted concrete (RCC) quality evaluation.

Roller‑compacted concrete is zero‑slump, stiff‑to‑extremely‑dry concrete widely adopted for RCC dams, heavy‑duty pavements, industrial slabs and transportation infrastructure. Conventional slump test and standard cylinder‑making procedures cannot handle this dry‑consistency material. UnitedTest integrated vibrating‑table system supports two core RCC lab workflows:

1. ASTM C1170 workflow: Measure Vebe consistency time and consolidated density of fresh RCC for workability assessment.

2. ASTM C1176 workflow: Fabricate representative 150 × 300 mm cylindrical test specimens for subsequent compressive‑strength and splitting‑tensile‑strength testing.

Core Machine Features

- Strictly meets ASTM vibration specifications: 60 Hz ± 2 Hz frequency, double amplitude 0.43 ± 0.08 mm under simulated test surcharge load. Total table‑vibrator mass ≥90 kg; pre‑drilled anchor holes for secure mounting onto concrete base to eliminate displacement in operation.

- Complete interchangeable surcharge assemblies:

✅ 22.7 kg (Procedure A for C1170)

✅12.5 kg (Procedure B for C1170)

✅9.0 kg (20 lb surcharge dedicated for ASTM C1176 cylinder‑making)

- Full mold kit: Reusable steel Type‑A cylinder mold (Method A for C1176); hinged rigid metal sleeve assembly for disposable plastic Type‑B molds (Method B for C1176); C1170 large cylindrical test mold with centering spacers.

- Swivel‑arm and guide‑sleeve mechanism: surcharge can swing away for easy sample filling and maintains perfect vertical free sliding during vibration.

- Supplied with standard accessories: 50 mm test sieve, strike‑off plate, hand tools, flashlight for mortar‑ring visual inspection.

- Suitable for laboratory trial‑mix development as well as field‑sampled fresh RCC, cement‑treated aggregate and soil‑cement‑type stabilized materials.

What you can do with UnitedTest ASTM‑compliant vibrating‑table system

✅ Determine Vebe workability & compacted density (ASTM C1170)

✅ Produce standard RCC strength‑test cylinders (ASTM C1176 Method A / Method B)

✅ Mix proportion validation for roller‑compacted concrete

✅ Batch‑to‑batch quality control for dam and pavement RCC projects

✅ Test cement‑treated aggregate and soil‑cement stabilized mixtures
