ASTM D790 Bending Test Flexural Properties of Unreinforced and Reinforced Plastics

Share:

ASTM D790 Flexural Properties Tester for Plastics & Insulation | UnitedTest

UnitedTest manufactures ASTM D790 three-point bending test machines to measure flexural properties of unreinforced plastics, reinforced plastics, composites and electrical insulating materials for QC and material development.


ASTM D790: Standard Test Methods for Flexural Properties of Unreinforced and Reinforced Plastics and Electrical Insulating Materials

ASTM D790 determines flexural (bending) properties for unreinforced plastics, reinforced plastics, high-modulus composites and electrical insulating materials using three-point bending on simply-supported rectangular beam specimens. This standard covers rigid and semi-rigid materials. Flexural strength cannot be calculated if the specimen does not yield or fracture on its outer surface before reaching 5% maximum outer-fiber strain. UnitedTest supplies reliable testing instruments fully compliant with ASTM D790 for plastic and insulating material flexural testing.


Test Principle

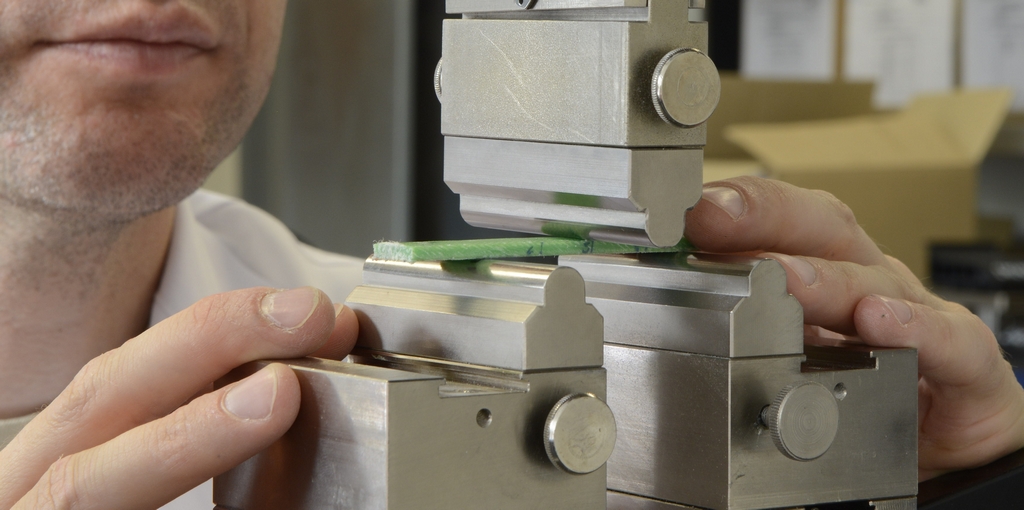

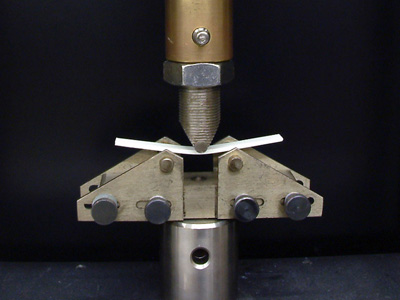

A rectangular specimen rests flatwise on two supports; a loading nose applies load at midspan. The outer surface at midspan experiences the maximum axial fiber stress (tension on the lower face, compression on the upper face). A constant crosshead speed is imposed until rupture on the outer surface or 5.0 % outer‑fiber strain, whichever occurs first.

Stress/strain are derived from simple (homogeneous) beam theory:

SpecEquationNotes
Flexural stressσ_f = 3PL / (2bd²)Eq 3, valid only for small strains / near‑Hookean behavior
Stress at large span‑to‑depth (deflection > 10 % of span)σ_f = [3PL/(2bd²)]·[1 + 6(D/L)² − 4(d/L)(D/L)]Eq 4, corrects for end forces
Flexural strainε_f = 6Dd / L²Eq 5
Tangent modulusE_B = L³m / (4bd³)Eq 6, m = slope of the steepest initial straight line, N/mm
Chord modulusE_f = (σ_f2 − σ_f1)/(ε_f2 − ε_f1)Eq 7

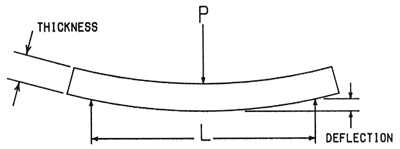

where P = load, L = support span, b = width, d = depth, D = midspan deflection.

ASTM D790 Bending Test Flexural Properties of Unreinforced and Reinforced Plastics


Specific Test Methods

Two main test procedures (Procedure A / Procedure B) and two deflection‑measurement types (Type I / Type II) are defined

  1. Procedure A: Preferred general‑purpose procedure for materials that fracture at relatively small deflections; outer‑fiber strain rate = 0.01 mm/mm/min. It yields lower scatter for tangent flexural modulus and is required unless material specifications specify otherwise.

  2. Procedure B: For ductile materials that do not yield or break under Procedure A before 5 % strain; outer‑fiber strain rate = 0.10 mm/mm/min (10× faster strain rate).

  3. Type I deflection measurement: Uses crosshead travel position for deflection reading, widely used for factory quality‑control. Machine compliance correction is recommended for high‑stiffness materials to compensate frame deformation error.

  4. Type II deflection measurement: Uses a deflectometer contacting specimen mid‑span for direct, higher‑accuracy specimen deflection measurement, eliminating machine‑compliance influence.

Terminate all tests when outer‑fiber strain hits 5 % OR specimen fracture occurs, whichever comes first


Test Equipment required for ASTM D790 3-Point Bending Test for Plastics & Composites

Recommend UnitedTest Universal Testing Machine and Bending fixtures.

Universal testing machine

Constant‑speed crosshead drive; total system elastic deformation ≤ 1 % of specimen deflection (or apply compliance correction).

Load reading accuracy ± 1 % of indicated load, calibrated per ASTM E4.

Three-point bending fixture

- Cylindrical loading nose and two cylindrical supports; default radius = 5.0 ± 0.1 mm.

Alternative radii are permitted (minimum support radius ≥ 3.2 mm), and must be reported in test reports.

- Loading nose must sit exactly midway between supports; cylinder axes must remain parallel.

ISO 1209-2 Flexural Strength

Deflection‑measuring hardware

Type I: Crosshead‑position system complying with ASTM E2309 Class B requirements.

Type II: Deflectometer complying with ASTM E83 (Class B‑2 for modulus, Class C for strain measurement).

Dimension‑measuring micrometersMeet requirements from ASTM D5947 for measuring specimen width and thickness (depth) to high precision.


Test Specimen Information

Testing machine

Constant‑rate‑of‑crosshead‑motion UTM; fixed member carrying supports, movable member carrying the loading nose.

Total elastic deformation of the system must not exceed 1 % of the specimen deflection, or corrections must be made.

Loading nose & supports

Cylindrical surfaces; radius 5.0 ± 0.1 mm unless otherwise specified. Alternatives: support radius ≥ 3.2 mm; for specimens ≥ 3.2 mm deep, radii up to 1.6× depth;

loading nose radius ≤ 4× specimen depth (large radii used for laminates with low through‑thickness compressive strength).

Any deviation from 5 mm must be reported and the result labelled as a modified method.

Drive mechanismUniform, controlled velocity per Procedure A or B.
Load indicatorEssentially inertia‑free, accurate to ±1 % of indicated value; verified per ASTM E4.
Deflection device

Type I: crosshead position, verified per E2309, minimum Class B.

Type II: deflectometer, verified per E83, minimum Class B‑2 for modulus and Class C for other strain values (assume an effective gauge length of 50 mm for E83 checks).

MicrometersPer ASTM D5947 (physical dimensions of solid plastics specimens).


Key Test Parameters:

Support span‑to‑depth ratio16:1 (± 1) default; 32:1, 40:1 or 60:1 for laminates/composites as above
Span settingWithin 1 % of the determined value; measured to 0.1 mm (span < 63 mm) or 0.3 mm (≥ 63 mm); the actual measured span is used in all calculations
Strain rate Z0.01 mm/mm/min (A) or 0.10 mm/mm/min (B)
Crosshead speedR = ZL² / (6d); actual rate within ± 10 %
TerminationAt break, or at 5 % outer‑fiber strain, where D = rL² / (6d) with r = 0.05
Dimension measurementWidth/depth to 0.03 mm at midspan; 0.003 mm for depth < 2.54 mm
ConditioningPractice D618 Procedure A (standard lab atmosphere); test at the same temperature/humidity as conditioning — unless the material specification (e.g. via Classification System D4000) overrides
Notes on influencesResults vary with specimen depth, temperature, humidity and strain rate


Details Test Procedures of ASTM D790 3-Point Bending Test for Plastics & Composites

  1. Prepare specimens and perform environmental conditioning per ASTM D618.

  2. Measure actual specimen width and depth (thickness) precisely near mid‑span location.

  3. Set support span and verify fixture alignment; set crosshead speed calculated from formula according to Procedure A or B.

  4. Center specimen flat‑wise on supports; align specimen long‑axis perpendicular to loading nose.

  5. Start test, record continuous load‑deflection data.

  6. End test either upon specimen break OR upon calculated deflection corresponding to 5 % outer‑fiber strain.

  7. Apply toe compensation correction to load‑deflection curves.

  8. Calculate flexural stress, strain, modulus, average value and estimated standard deviation.

  9. Discard results from specimens with accidental flaw and perform retest as required.


Test Application (Industry & Material Scope)

ASTM D790 flexural test is widely used across industries where plastics, composites and electrical insulating materials are applied under bending loads:

  1. Plastics & compounding industry: R&D, incoming‑material inspection, batch‑to‑batch quality‑control for thermoplastics and thermosets.

  2. Automotive: Interior plastic brackets, trim components, reinforced composite parts.

  3. Electrical‑electronics: Plastic enclosures, electrical insulating laminates, vulcanized fiber, glass‑mica insulating materials.

  4. Aerospace: High‑modulus fiber‑reinforced composite laminates.

  5. Consumer goods: Plastic housings, structural supports.

  6. Material‑certification laboratories: Generate flexural‑property data for material data‑sheets and product specifications.


Related Standard:

ASTM D790
Standard Test Methods for Flexural Properties of Unreinforced and Reinforced Plastics and Electrical Insulating Materials
ISO 14125Fibre-reinforced plastic composites -- Determination of flexural properties
ASTM D6272

Standard Test Method for Flexural Properties of Unreinforced and Reinforced Plastics and Electrical Insulating Materials by Four-Point Bending

ASTM D7264Standard Test Method for Flexural Properties of Polymer Matrix Composite Materials
ISO 178Plastics — Determination of flexural properties
GB/T 9341Equivalent to using ISO 178
JIS K 7171Japan standard Basically consistent with the technical content of ISO 178. (プラスチック-曲げ特性の求め方)
ISO 1209-1Rigid cellular plastics - Determination of flexural properties - Part 1: Basic bending test
ISO 1209‑2Companion part of the same series; determines flexural strength and apparent flexural modulus of elasticity for rigid cellular plastics (calculates formal flexural mechanical properties)
ASTM D2344Short‑beam strength — when a short span makes a composite delaminate, you are measuring interlaminar shear, not flexural strength.
EN 12089

Thermal insulating products for building applications — Determination of bending behaviour.

Three-point loading, Method A on full-size products and Method B on specimens (thickness ≤ 100 mm, length 5×thickness + 50 mm, width 150 mm);

support diameters 80 ± 3 mm or 30 ± 3 mm; span 300–1200 mm (A) / 200–500 mm (B); ≥ 3 specimens; conditioning ≥ 6 h at (23 ± 5) °C;

repeatability ≈ 5 %, reproducibility ≈ 15 %.

It is the European product-level counterpart (harmonised under the Construction Products Regulation), whereas ISO 1209-2 is a material-level method.

DIN 53423Germany corresponding bending test for rigid foams.
ASTM C203Standard Test Methods for Breaking Load and Flexural Properties of Block-Type Thermal Insulation, commonly used in North America as the functional counterpart for insulation boards.


Keywords: ASTM D790 tester,ASTM D790 flexural test machine,three point bending tester for plastics,plastic flexural properties tester,reinforced composite bending test,electrical insulating material flexural tester,unreinforced plastic flexural strength test,rigid plastic three point bend machine,plastic beam bending test,polymer flexural modulus tester,ASTM D790 test equipment,composite material flexural test instrument,UnitedTest material testing machine,semi-rigid plastic bending tester,plastic lab flexural property testing machine

Related products and device

ASTM D790 Plastics Flexural 3-Point Bending Universal Testing machine

WDW Series Computer Control Electronic Universal Testing Machine made by UNITEDTEST range from 100N to 600KN load capacity with various models like single columns, table type, door frame type etc., is used to perform tension, compression, flexure/bending, shearing, peeling etc., test for metal and nonmetal specimens. Matched with UNITEDTEST design and produced various test fixture, like peel, flexure, puncture, tear, pneumatic grip, belt tension etc., this UTM can be used to almost all materials include but not limited to steel rod, rubber, steel wire, plastic, seat belt, textile, wood, panel etc., mechanical performance inspection.

ASTM D790 reinforced composite bending test,electrical insulating material flexural tester

A single column tensile tester is a sophisticated material testing instrument designed for measuring mechanical properties of various materials under tension, compression, bending, shear, and other loading conditions. As the name suggests, it features a single vertical column supporting a moving crosshead that applies force to test specimens.

ASTM D790 test equipment, composite material flexural test instrument

Three-point bending test fixture for fiber-reinforced plastic composites, designed in accordance with ISO 14125, provides a standardized method for determining the flexural properties of composite materials using a three-point bending test.

Related Standard

ISO 178 Plastics flexural / bending test –

ISO 178 Plastics - Determination of flexural properties

ISO 178 specifies a method for determining the flexural properties of rigid and semi-rigid plastics under defined conditions. A standard test specimen is defined, but parameters are included for alternative specimen sizes for use where appropriate. A range of test speeds is included.


ISO 178 test method is used to investigate the flexural behaviour of the test specimens and to determine the flexural strength, flexural modulus and other aspects of the flexural stress/strain relationship under the conditions defined. It applies to a freely supported beam, loaded at midspan (three-point loading test).

ISO 1209-2 Flexural Strength & Apparent Flexural Modulus Testing for Rigid Cellular Plastics –

ISO 1209-2 Rigid cellular plastics - Determination of flexural properties - Part 2: Determination of flexural strength and apparent flexural modulus of elasticity

ISO 1209-2 specifies a three-point bending test method to determine, on rigid cellular plastics: Flexural strength (R) — the maximum fibre stress the foam develops in bending; Apparent flexural modulus of elasticity (E) — the stiffness in bending.

The word "apparent" is deliberate: cellular plastics are not homogeneous continua — the measured stiffness includes shear deflection and local cell-wall crushing/indentation under the loading and support edges, so E is an engineering, configuration-dependent value, not a true material constant valid for all geometries.

ISO 1209-1 Bending test for rigid cellular plastics –

ISO 1209‑1 Rigid cellular plastics — Determination of flexural properties — Part 1: Basic bending test

ISO 1209‑1 is an simple three‑point‑bending test to evaluate bending performance of rigid cellular plastic bars. This test measures load at specified deflection or breaking load, but it cannot calculate flexural strength or apparent flexural modulus because small specimens do not establish pure‑bending stress state; those mechanical parameters are covered in ISO 1209‑2. It applies only to foams ≥20 mm thickness and is invalid for materials showing obvious crushing during testing.

ISO 14125 Three points bending test of Fiber-Reinforced Plastic Composites –

ISO 14125 Fibre-reinforced plastic composites -- Determination of flexural properties

ISO 14125 specifying test methods to measure flexural properties of fibre‑reinforced plastic composites, covering both thermoplastic and thermoset composite materials (glass, carbon, aramid‑fibre reinforced laminates, SMC, BMC, GMT etc.). It defines two loading configurations: Method A (three‑point flexure) and Method B (four‑point flexure). It is intended for material screening and quality‑control rather than direct structural design input.

ASTM C203 Flexural Testing for Block-Type Thermal Insulation –

ASTM C203 — Standard Test Methods for Breaking Load and Flexural Properties of Block-Type Thermal Insulation

ASTM C203 evaluates breaking load and flexural properties (flexural strength / modulus of rupture) of pre‑formed block‑type thermal insulation and cellular plastics by simple‑beam bending tests.


ASTM D790 Flexural Testing — FAQ

Q1. What is ASTM D790?

A three-point bending test method used to determine the flexural (bending) properties of unreinforced and reinforced plastics, high-modulus composites and electrical insulating materials. A rectangular bar rests on two supports and is loaded by a nose at midspan until it ruptures on the outer surface or reaches 5.0 % outer-fiber strain.


Q2. Which properties can it report?

Flexural stress, flexural strength, flexural stress at break, flexural offset yield strength, stress at a given strain, flexural strain, and flexural modulus of elasticity (tangent, secant or chord).


Q3. Which materials are in scope?

Rigid and semi-rigid plastics (thermoplastics and thermosets), reinforced plastics and high-modulus composites, and electrical insulating materials such as laminated thermosets, vulcanized fiber and glass-bonded mica.


Q4. Which materials are NOT suitable?

Materials that neither break nor yield in the outer surface within the 5.0 % strain limit — flexural strength cannot be reported for them. Such materials are better tested by ASTM D6272 (four-point bending) or ASTM D638 (tensile).


Q5. Why is the flexural test so widely used?

Because most plastic parts work in bending in service (clips, housings, panels, stiffeners), the specimen needs no gripping or dog-bone machining, and flexural modulus is the stiffness number used for wall-thickness and FEA design. It is also highly sensitive to skin quality, fiber orientation, moisture and molding conditions, which makes it excellent for QC and lot release.


Q6. What is the standard specimen size?

For molding materials the preferred specimen is 127 × 12.7 × 3.2 mm (5.0 × 0.5 × 0.125 in.), tested flatwise on a 16:1 span. Sheets ≥ 1.6 mm use a 16:1 span with width ≤ ¼ span; sheets < 1.6 mm use a 50.8 × 12.7 mm specimen on a 25.4 mm span.


Q7. What is the span-to-depth ratio?

16:1 (±1) by default. For laminates and highly orthotropic composites it is increased to 32:1 or 40:1 so that failure occurs in the outer fibers from bending rather than shear, and to 60:1 when modulus data are needed on highly anisotropic laminates.


Q8. What radius do the loading nose and supports use?

5.0 ± 0.1 mm cylindrical surfaces unless otherwise specified. Alternatives are permitted (support radius ≥ 3.2 mm; up to 1.6 × specimen depth for specimens ≥ 3.2 mm deep; loading nose ≤ 4 × depth, e.g. large radii for laminates with low through-thickness compressive strength). Any deviation must be reported and the result labelled a modified method.


Q9. How many specimens are required?

At least five per sample for isotropic or molded materials; for anisotropic sheet, at least five cut in each direction tested (lengthwise = stronger, crosswise = 90° to it), with the direction recorded.


Q10. Are flexural strength and flexural stress at break the same?

Only when the specimen breaks without yielding (Fig. 1, Curve a). If the material yields first, flexural strength is taken at the yield point Y and stress at break at the break point B — two different values.



Q11. How does ASTM D790 differ from ISO 178?

They address the same subject but differ technically, and fixtures are not automatically interchangeable. ISO 178 uses a preferred 80 × 10 × 4 mm specimen on a 64 mm span, a customary speed of 2 mm/min, a loading-edge radius of 5.0 ± 0.2 mm but a support radius of 2.0 ± 0.2 mm for h ≤ 3 mm, takes modulus as a secant between 0.05 % and 0.25 % strain, conditions per ISO 291 (23 °C / 50 % RH), and discards breaks outside the central third. National equivalents include GB/T 9341 (China), JIS K 7171 (Japan) and EN ISO 178.


Q12. What is the difference between Procedure A and Procedure B?

Both are the same test at different speeds. Procedure A uses an outer-fiber strain rate of 0.01 mm/mm/min and is the preferred, default procedure (lower scatter in tangent modulus). Procedure B uses 0.10 mm/mm/min and is for materials that do not break or yield within the 5 % strain limit under Procedure A; the higher rate may induce yielding or rupture.


Q13. What is the difference between Type I and Type II?

It concerns how deflection is measured. Type I uses crosshead position (typical for production QC; includes machine compliance, seating and indentation). Type II uses a deflectometer in contact with the specimen at midspan (more accurate, mandatory for good modulus data). Deflectometer and crosshead data differ, so the type must always be reported — e.g. "ASTM D790-A-I".


Q14. How fast should the crosshead move?

R = ZL² / (6d), where Z = 0.01 (Procedure A) or 0.10 (Procedure B) mm/mm/min, L = support span and d = depth. The actual rate must be within ±10 % of the calculated value.


Q15. When is the test stopped?

At specimen break, or when the outer-surface strain reaches 5 % — i.e. at deflection D = rL²/(6d) with r = 0.05 — whichever occurs first.


Q16. What is "toe compensation" and is it mandatory?

Yes (Annex A1). The initial curved "toe" of the load-deflection curve is an artifact of slack take-up and seating, not a material property. It must be corrected before modulus, strain or offset-yield values are calculated — by extending the linear region back to the zero-stress axis, or, for materials with no linear region, by using the tangent at the inflection point.


Q17. What about four-point bending?

ASTM D6272 is the four-point version of D790, better suited to materials that do not rupture within 5 % strain. In three-point bending the peak fiber stress is on a single line under the nose; in four-point bending the whole region between the noses is under maximum moment.


Q18. Why is the test important for a material?

It gives the stiffness and strength that govern how a part bends in service; it is the property printed on datasheets and used for grade selection, lot release and specification compliance; and because the outer fibers carry the peak stress, it is a sensitive indicator of processing quality, orientation, moisture, filler/fiber content and degradation. Caveat: the numbers are not intrinsic constants — they depend on span-to-depth ratio, specimen depth, radii, strain rate, temperature and (for laminates) ply stacking sequence, so they are comparable only when those parameters are identical.


Q19. Why choose ASTM D790 Flexural Testing Machine & 3‑Point Bend Test Solutions from UnitedTest?

UnitedTest manufactures high‑precision ASTM D790‑17 flexural testing machines and 3‑point bend fixtures for plastics, reinforced composites and electrical insulating materials. Meet Procedure A / B, Type I & II deflection measurement requirements for lab QC and R&D.


ASTM D790‑17 is the globally‑recognized three‑point bending test standard to characterize flexural strength, flexural modulus, yield strain and bending behaviour of unreinforced plastics, filled thermoplastics, fiber‑reinforced high‑modulus composites and electrical‑insulation materials. It is essential for quality‑control labs, polymer R&D departments, automotive component manufacturers, aerospace composite workshops and electrical‑material suppliers worldwide.


UnitedTest is a professional manufacturer of material‑testing equipment, supplying fully‑compliant universal testing machines and ASTM D790 three‑point bend fixture kits for plastic flexural tests. Our test systems fully follow ASTM D790‑17 requirements, supporting both Procedure A (0.01 mm/mm/min strain rate) and Procedure B (0.10 mm/mm/min strain rate) test work.


UnitedTest’s ASTM D790‑compliant testing platforms support both Type I crosshead‑position deflection measurement for high‑volume production quality‑control and Type II deflectometer (extensometer) direct mid‑span deflection measurement for high‑accuracy flexural‑modulus determination. Built‑in software functions include toe compensation, machine‑compliance correction, automatic calculation of flexural stress, flexural strain, tangent modulus, secant modulus and chord modulus. Test reports export fully match ASTM D790‑17 reporting checklists.

Key features of UnitedTest ASTM D790‑17 flexural test system

  1. Standard three‑point bend fixture with 5 mm radius loading nose and support rollers; custom‑size rollers and adjustable support‑span designs available for composite‑laminate testing (16:1 / 32:1 / 40:1 / 60:1 span‑depth ratios).

  2. Pre‑configured ASTM D790‑17 test templates; software auto‑calculates crosshead speed from span‑depth input according to standard formula.

  3. Force‑measurement accuracy meets ASTM E4 requirement (± 1 % indicated reading). Supports deflectometer complying with ASTM E83 standard for Type II testing.

  4. Automatically terminates tests when outer‑fiber strain reaches 5 % or upon specimen fracture, strictly following D790‑17 test‑stop rules.

  5. Generate complete audit‑ready test reports with all mandatory reporting items: material information, specimen dimension, span‑depth ratio, test procedure type, deflection‑measurement method, mean value and standard deviation of test results.

Suitable industries & materials for UnitedTest ASTM D790 flexure testers

  • Thermoplastic & thermoset plastics (injection‑molded parts, extruded sheets)

  • Glass‑fiber / carbon‑fiber reinforced composite laminates

  • Electrical insulating materials, vulcanized fiber, glass‑bonded mica

  • Automotive plastic brackets and trim components

  • Consumer‑product plastic housings and structural supports

  • Aerospace high‑modulus composite components


If you also need four‑point bending capability, UnitedTest provides optional ASTM D6272 four‑point bend fixture upgrades for the same universal test machine platform. Our engineering team can help you configure the optimal load‑cell capacity, fixture accessories and software settings to fit your specimen geometry and lab‑testing.
