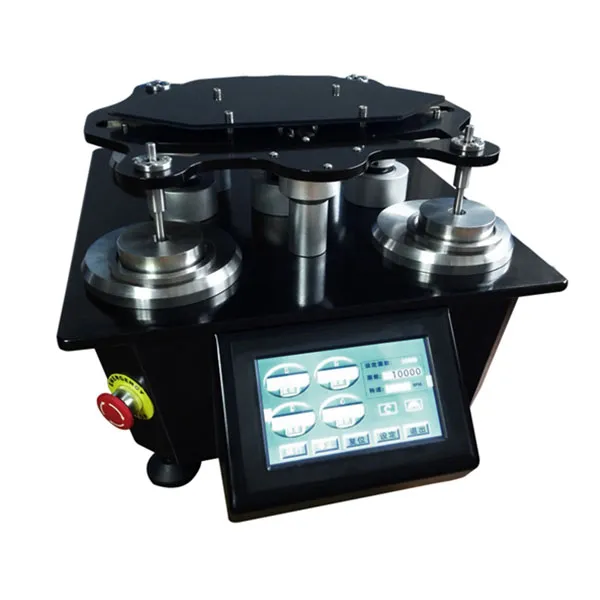

Martindale Abrasion Tester

Model: UT4073, ASTM D4966, ASTM D4970, ISO 12947, ISO 12945-2

Martindale Abrasion Tester (often called a Martindale machine or pilling/abrasion tester) is a universal, precision laboratory instrument used to assess the abrasion resistance and pilling propensity of fabrics, leather, upholstery, and other materials. It simulates real-world wear and friction in a controlled, accelerated manner to predict a material's durability and appearance retention over time. It is suitable for testing the abrasion resistance and pilling tendency of knitted fabrics, woolen fabrics, artificial leather, and synthetic leather under pressure.

General Introduction

UnitedTest is a professional manufacturer of Martindale abrasion tester, integrated for textile abrasion resistance and pilling fuzzing test. Our Martindale machine fully supports multi-standard switching: ASTM D4970, ISO 12947 series, ISO 12945-2, EN 13770, widely used in textile QC laboratory, furniture upholstery factory, footwear lab, garment and nonwoven testing.


What Is a Martindale Abrasion Tester?

The Martindale abrasion tester — also called a Martindale abrasion and pilling tester, Martindale wear tester, Martindale rub tester — is a bench-top instrument that predicts how long a fabric will survive real-world rubbing. A circular specimen is clamped in a holder, loaded with a calibrated weight, and rubbed against a standard abradant cloth mounted on the abrading table. The motion is a continuously changing Lissajous figure (a figure-eight-like trace), so the fabric is attacked from every direction rather than along one yarn axis.

Martindale Abrasion Tester

Because the same drive platform can be switched between a 60.5 ± 0.5 mm abrasion stroke and a 24 ± 0.5 mm pilling stroke, one machine covers two different quality questions: "How long until the fabric wears through?" and "How quickly will it pill, fuzz or mat?"

Modern instruments are typically offered with 4, 6, 8 or 9 working positions, PLC + colour touchscreen control, individual station counters, count-up/count-down modes, preset batch counters and an end-of-test alarm — features that let a lab inspect one specimen without stopping the other stations.


Main features

  • Features
  • Standard
  • Common Applications & Industries
  • Applications — Who Buys a Martindale Abrasion Tester?
  • Test Procedure
  • Keywords
  • Reading the Result: Rub Counts, Grades & Martindale vs Wyzenbeek
  1. Multi-station optional: 4 / 6 / 8 / 9 test stations for parallel testing, high lab throughput

  2. Digital touchscreen control, preset cycle counter, auto stop when reaching target cycles

  3. Standard Lissajous motion track: 24×24 mm and 60.5×60.5 mm trajectory switchable

  4. Precision loading weights set: 12 kPa, 9 kPa, 4 kPa and customized weights for different standards

  5. Quick-change fixture design, easy conversion between abrasion test and pilling test

  6. Stable oscillating speed 90 ± 1 cycles per minute, consistent friction motion

  7. Built-in alarm and pause function, overload protection

  8. Support mass loss test, breakdown test, pilling visual assessment

  9. Calibration traceable, CE certified, suitable for third-party testing laboratories

  10. OEM & ODM service, custom fixture for special materials like leather, synthetic leather, coated fabric



ISO 12947-1Textiles - Determination of the abrasion resistance of fabrics by the Martindale method - Part 1: Martindale abrasion testing apparatus
ISO 12947-2Textiles - Determination of the abrasion resistance of fabrics by the Martindale method - Part 2: Determination of specimen breakdown
ISO 12947-3Textiles - Determination of the abrasion resistance of fabrics by the Martindale method - Part 3: Determination of mass loss
ISO 12945‑2pilling & fuzzing on the modified Martindale apparatus — same machine family, different end point
ISO 5470-1Rubber- or plastics-coated fabrics - Determination of abrasion resistance - Part 1: Taber abrader
ISO 5470-2Rubber- or plastics-coated fabrics. Determination of abrasion resistance. Martindale abrader
ASTM D4966Standard Test Method for Abrasion Resistance of Textile Fabrics (Martindale Abrasion Tester Method).
ASTM D4970

Standard Test Method for Pilling Resistance and Other Related Surface Changes of Textile Fabrics: Martindale Tester

GB/T 21196.3Textiles-Determination of the abrasion resistance of fabrics by the Martindale method-Part 3:Determination of mass loss
JIS L 1096, M&S P19other commonly referenced abrasion/pilling methods
GBT 4802.2

Textiles - Determination of fabric propensity to surface fuzzing and to pilling - Part 2: Modified Martindale method


ASTM D4970: Standard Test Method for Pilling Resistance and Other Related Surface Changes of Textile Fabrics (Martindale Tester). Focus on fabric pilling, fuzzing, surface matting evaluation, widely adopted by North America textile mills, apparel and upholstery suppliers.

ISO 12947 series: Textiles — Determination of abrasion resistance by Martindale method.

  - ISO 12947-1: Apparatus specification

  - ISO 12947-2: Specimen breakdown endpoint

  - ISO 12947-3: Mass loss measurement

  - ISO 12947-4: Appearance change assessment

  This is the core global standard for fabric abrasion resistance test.


ISO 12945-2:2020: Modified Martindale method for fabric pilling, fuzzing and matting. Different loading and cycle setting compared with abrasion test, for pilling grade rating with reference photographs.

EN 13770:2002: European standard for abrasion resistance of knitted footwear products such as socks and tights, dedicated for hosiery abrasion test with special sample holding fixtures.

  • Upholstery fabric, sofa fabric, curtain, automotive interior textile

  • Apparel fabric, knitwear, shirt fabric, outerwear, lining fabric

  • Hosiery, socks, tights (EN 13770 test)

  • Nonwoven fabric, geotextile, cleaning cloth

  • Leather, PU leather, PVC coated fabric, synthetic leather

  • Carpet, bedding textile, mattress fabric

  • Shoe upper and shoe lining material

  • Third-party textile testing lab, brand QC, textile university laboratory


IndustryTypical samplesStandards most often cited
Apparel & knitwear millsShirting, denim, jersey, sweaters, sportswear, uniformsISO 12947-2, ISO 12945-2, ASTM D4966, ASTM D4970
Upholstery & contract furnitureSofas, hotel seating, office chairs, curtains, beddingISO 12947-2 @ 12 kPa, 40,000+ rubs, M&S P19, NEXT 18
Automotive interiorsSeat covers, headliners, door trims, nonwovensISO 12947, ISO 12945-2, OEM-specific Martindale methods
Footwear & hosieryShoe uppers, linings, socks, tights, glovesEN 13770 Method A, SATRA TM31, EN ISO 20344 6.12, BS EN 388
Technical & coated textilesPU/PVC-coated fabric, geotextiles, protective clothing, laminatesISO 5470-2, DIN 53863, BS 3424/5690, EN 530
Leather & accessoriesUpholstery leather, bags, collars, cuffs, straps, carpetsMartindale leather abrasion & edge abrasion kits
Third-party labs / universitiesBuyer-spec compliance, R&D, failure analysisFull multi-standard coverage + traceable consumables


1. Mounting

Place a Ø140 mm woven felt and Ø140 mm standard wool abradant (SM25) on the abrading table, flatten with the 2.5 ± 0.5 kg mounting/pressing weight, and lock the clamping ring.

For abrasion, punch a Ø38 mm specimen (Ø38 mm cutter + cutting mat + spare blades), fit it face-down into the Ø28.65–28.8 mm effective-friction abrasion holder over a felt/PU-foam disc, and add the required loading piece.

For pilling, fit the Ø90 mm pilling holder with felt disc and specimen, add the 260 ± 1 g stainless-steel loading disc, and set the 24 mm stroke; the rubbing partner may be the same fabric or the standard wool abradant.


2. Running the abrasion test (ISO 12947-2 / ASTM D4966)

Select 9 kPa (595 ± 7 g total) for apparel or 12 kPa (795 ± 7 g total) for upholstery/technical use, set the cycle count, and start. Inspect at defined intervals — commonly every 1,000 rubs up to 5,000, every 2,000 up to 20,000, every 5,000 above 20,000 — and stop at the first confirmed endpoint (two yarn breaks in wovens, a ≈0.5 mm hole / broken loop in knits and nonwovens). Report the standard, pressure, endpoint and individual counts.


3. Mass loss and appearance (ISO 12947-3 / -4)

For ISO 12947-3, weigh Ø38 mm specimens on a 1 mg balance before and after each rub interval, brush off debris, recondition, and plot mass loss vs rub count (abrasion index). For ISO 12947-4, grade surface colour, lustre and texture change visually after a fixed cycle count.


4. Running the pilling test (ISO 12945-2 / ASTM D4970)

Run the 24 mm modified Lissajous stroke to the first assessment stage, grade the specimen in the holder against EMPA / SM 50 photographs under a D65 / cool-white viewing cabinet, then continue to the next stage. Report the mean pilling, fuzzing and matting grades separately, rounded to the nearest half grade, with the abradant type, pressure and cycle stages stated.


5. EN 13770 sock method

Stretch Ø38 mm specimens cut from heel and sole over the modified rubber-sphere holder (≈20 mm flat test area), abrade at ≈12 kPa against ≥Ø140 mm reference abradant with a ≈2.5 kg pressing weight, replace the abradant at the start of the test or after 50,000 rubs, and record rubs to thinning and to hole separately.

Martindale abrasion tester, Martindale pilling tester, ASTM D4970 Martindale tester, ISO 12947 abrasion test machine, ISO 12945-2 modified Martindale, EN 13770 sock abrasion tester, Martindale wear tester, textile abrasion resistance tester, fabric pilling testing machine, Martindale test fixtures, Lissajous motion Martindale tester, Martindale tester manufacturer, UnitedTest Martindale tester

Martindale abrasion tester for upholstery fabric, Martindale tester standard fixtures and abrasive discs, how to run ISO 12947 Martindale abrasion test, ASTM D4970 fabric pilling test procedure, EN 13770 knitted sock abrasion tester, Martindale tester 4 station 6 station 9 station, textile lab Martindale wear resistance equipment, Martindale tester for leather and coated fabric



Typical buyer benchmarks (always state standard + pressure + endpoint in the tech pack):

End use

Typical Martindale target

Everyday apparel

10,000–20,000 rubs

Workwear, uniforms, denim, outerwear

20,000–40,000+

Light domestic upholstery

10,000–15,000

General / heavy domestic seating

15,000–30,000

Contract, hotel, office (ACT heavy-duty)

40,000+ at 12 kPa

Lobby / 24-hour public seating

100,000+

Three pitfalls worth publishing on your page: a cycle count without an endpoint and pressure is meaningless; 9 kPa and 12 kPa results are not comparable; and ISO 12947-3 mass loss is not ISO 12947-2 breakdown.

Martindale vs Wyzenbeek: Martindale (ISO 12947 / ASTM D4966) uses a multi-directional Lissajous motion and reports rubs/cycles; Wyzenbeek (ASTM D4157) rubs linearly along warp and weft and reports double rubs. There is no reliable conversion factor — request the certificate that matches the destination market instead of converting.

Also note a fabric can pass 40,000 abrasion rubs and still fail pilling at Grade 2 — abrasion and pilling are separate specs, which is exactly why a dual-mode Martindale abrasion and pilling tester is the economical lab choice

Main Technical Specification

Number of Stations4 (6, 9 optional)
Counting Range0–999,999 times
Maximum Travel RangeHorizontal: 60±0.5mm;
Vertical: 24±0.5mm
Total Effective Mass for Friction Loada)   (795±7)g (Nominal Pressure 12kPa): Suitable for workwear, upholstery fabrics, bedding linens, industrial fabrics (optional)
b) (595±7)g (Nominal Pressure 9kPa): Suitable for apparel and household textiles (excluding upholstery fabrics and bedding linens); also suitable for non-apparel coated fabrics
c) (198±2)g (Nominal Pressure 3kPa): Suitable for coated fabrics for apparel (optional)
Effective Friction Diameter of Sample FixtureType A: Φ28.65±0.05mm
Type B: Φ90mm (optional)
Relative Movement Speed Between Clamp and Abrasion Table47.5±2.5r/min (speed adjustable)
Sample Diameter38mm
Dimensions885×600×410mm
Power SupplyAC 220V 50Hz 500W
Weight150kg


Main accessories (Standard delivery with machine)

1. 1 main unit
2. 1 set of Type A clamps (4 pieces), optional Type B clamps
3. 1 set of weights (4 pieces), optional other two types
4. 10 pieces of sandpaper
5. 1 product manual
6. 1 product certificate
7. 1 product warranty card
8. 1 product brochure

Standard

ISO 12947-1 Martindale Abrasion Test for textile fabrics –

ISO 12947-1 Textiles — Determination of the abrasion resistance of fabrics by the Martindale method — Part 1: Martindale abrasion testing apparatus

ISO 12947-1 defines mandatory construction, dimensional, performance and auxiliary‑material requirements for Martindale abrasion testers, which are used to carry out the practical test procedures laid down in ISO 12947‑2,‑3,‑4. It is the specification for the machine and the consumables — the "hardware norm". The actual abrasion procedures live in Parts 2, 3 and 4, and Part 1 is written to guarantee that a Martindale result obtained in one lab is physically comparable to one obtained in another.


ISO 12945-2 Martindale Pilling Test for Fabric Pilling, Fuzzing & Matting –

ISO 12945-2 Textiles — Determination of fabric propensity to surface pilling, fuzzing or matting — Part 2: Modified Martindale method

ISO 12945-2 specifies a method for determining the resistance to pilling, fuzzing and matting of textile fabrics using a modified Martindale machine. It ranks fabrics in the same order of surface-change propensity as is likely to occur in end-use wear.


ASTM D4966 Martindale Abrasion Test for Fabric Abrasion Resistance –

ASTM D4966 Standard Test Method for Abrasion Resistance of Textile Fabrics (Martindale Abrasion Tester Method)

ASTM D4966 determination of the abrasion resistance of textile fabrics using the Martindale abrasion tester; generally applicable to knit, woven and nonwoven fabrics — material thickness may limit suitability because of specimen-holder capacity. It applies to woven, knit and non‑woven textiles, though excessive fabric thickness may restrict testing due to specimen‑holder physical limits.

ASTM D4970 Martindale Pilling Test for Surface Changes of Textile Fabrics –

ASTM D4970 Standard Test Method for Pilling Resistance and Other Related Surface Changes of Textile Fabrics: Martindale Tester.

ASTM D4970 is the Martindale (Lissajous‑motion) fabric‑on‑fabric pilling test used to predict how badly a fabric will pill, fuzz or otherwise change its surface appearance in wear, reported on an arbitrary 5‑to‑1 rating scale (5 = no pilling, 1 = very severe pilling).


ISO 12947-3 Mass-Loss Abrasion Test by Martindale Abrasion Tester –

ISO 12947-3 Textiles — Determination of the abrasion resistance of fabrics by the Martindale method — Part 3: Determination of mass loss

ISO 12947-3 applies to all textile fabrics including nonwovens, and is used to determine the mass loss of specimens after controlled abrasion. It is explicitly not intended for fabrics where the specifier states the end performance is a deliberately low abrasion wear life.


ISO 12947-2 Fabric Breakdown Abrasion Testing by Martindale Abrasion Tester –

ISO 12947-2 Textiles - Determination of the abrasion resistance of fabrics by the Martindale method - Part 2: Determination of specimen breakdown

ISO 12947-2 measuring how many abrasion cycles — or "rubs" — a fabric withstands before itreaches a defined end point. A circular specimen is mounted in a holder under a defined loadand rubbed against a standard woven wool abradant in a translational movement tracing a Lissajous figure, while the holder rotates freely about its own axis. The abrasion resistance isreported as the number of rubs at the last inspection interval before specimen breakdownoccurs.

Because the end point is defined inside the standard — two broken threads for woven fabrics,one for knitted fabrics, a fully worn-off area for pile and flocked fabrics, a hole of at least 2.5mm for nonwovens — results are objective and comparable between laboratories. That is whythe Martindale figure is the durability number most often written into upholstery and contracttextile specifications.


ISO 17704 Martindale Abrasion Test for Footwear — Uppers, Linings & Insocks –

ISO 17704 Footwear — Test methods for uppers, linings and insocks — Abrasion resistance

ISO 17704  is method for determining the resistance of uppers, linings and insocks — irrespective of material — to wet and dry abrasion, in order to assess suitability for the end use. Note the standard deliberately gives no pass/fail criteria; it produces a description and rating of damage at prescribed rub counts.


EN 13770 Test — Abrasion Resistance of Knitted Footwear Garments Explained –

EN 13770 Textiles‑Determination of the abrasion resistance of knitted footwear garments

EN 13770 define two test methods for the abrasion resistance of knitted footwear garments — e.g. ankle socks, socks, heavy tights — applicable irrespective of size, composition and construction. the two methods are independent. The method must be chosen before starting the test and recorded in the test report, because results from the two methods cannot be compared with each other.

EN 16094 Micro-Scratch & Polishing Resistance Test for Laminate Floor Coverings –

EN 16094 Laminate floor coverings — Test method for the determination of micro-scratch resistance

EN 16094 defines three test procedures (A, B for micro‑scratch resistance; C for polishing resistance) to evaluate fine‑scratch performance of laminate floor coverings. Procedure C is specially intended for mat surfaces (60° reflectometer value R′ ≤ 7).


ISO 5470-2 Martindale Abrasion Test for Rubber or Plastics-Coated Fabrics –

ISO 5470-2 — Rubber- or plastics-coated fabrics — Determination of abrasion resistance — Part 2: Martindale abrader

ISO 5470-2 specifying laboratory abrasion‑resistance evaluation for coated fabrics using a Martindale‑type tester, covering both dry‑abrasion and wet‑abrasion test conditions. It is used for quality control, product development and coating-formulation comparison, type approval, and contractual specification compliance.

FAQ of Martindale Abrasion Tester

Q1: What is the difference between ISO 12947 and ISO 12945-2 on Martindale tester?

A1: ISO 12947 is for abrasion resistance, evaluating how many rubs until fabric breaks or mass loss. ISO 12945-2 is modified Martindale for pilling and fuzzing, using lighter load and different cycle setting to check surface pill formation. Same machine, different fixtures, weights and evaluation rules.

Q2: Can one UnitedTest Martindale machine run ASTM D4970, ISO 12947 and EN 13770?

A2: Yes. Our universal Martindale abrasion and pilling tester supports all these standards. You only need to switch fixtures, backing material and loading weights. EN 13770 requires the optional sock holding fixture for knitted hosiery samples.

Q3: How many stations should I choose for my lab?

A3: 4-station model is suitable for small factory QC. 6-station and 9-station versions are popular for commercial testing labs with high daily test volume. All stations run independently.

Q4: What consumables need regular purchase?

A4: Standard Martindale wool abrasive cloth, backing felt, foam pads, cutting blades. These directly affect test accuracy; UnitedTest provides matching original consumables.

Q5: Is the Martindale result comparable with Taber abrasion test?

A5: Not directly comparable. Martindale uses planar Lissajous multi-direction friction for textile fabric; Taber tester uses rotary wheel abrasion, more common for hard plastic and coating surface.

Q6: Does UnitedTest provide calibration and after-sales support?

A6: Yes. We supply operation manual, calibration guide, one-year warranty, lifetime technical support and spare parts supply. Oversea installation guidance and remote training are available.

Require More Customized Solutions?

We offer customization to meet your specific needs. Our expert team will collaborate with you to develop the perfect product for you
Customize Now

Beijing United Test Co., Ltd.
