EN 1719 Loop tack measurement for coated pressure-sensitive adhesives

EN 1719:1999: Adhesives for paper and board, packaging and disposable sanitary products – Tack measurement for pressure-sensitive adhesives – Determination of loop tack.

EN 1719 specifies test method to quantify the loop tack of coated pressure-sensitive adhesives (PSAs)—a critical property for adhesives used in applications requiring rapid, low pressure, initial bonding (e.g., labels, tapes, disposable hygiene products). The standard aligns with European Committee for Standardization (CEN) requirements and is intended for quality control, research, and regulatory compliance in the adhesive and packaging industries.

EN 1719 Test Principle and Test Methods

The core principle is to quantify loop tack as the maximum force (in Newtons, N) required to separate, at a specified speed, a loop of adhesive-coated material (adhesive side outermost) from a defined surface area. The test simulates real-world PSA applications (e.g., applying a label) by:

1), Forming a loop with the adhesive facing outward.

2), Bringing the loop into controlled contact with a flat surface.

3), Separating the loop at a constant speed while recording the peak force.

Per the definition, loop tack reflects the adhesive’s ability to form an immediate, measurable bond—with higher values indicating stronger initial adhesion.

Test methods:

Loop tack measures the instantaneous bond strength of PSA under minimal contact conditions (no applied pressure, no dwell time):

A PSA loop is lowered onto the rigid substrate at 5 mm/s, making full 25×25 mm contact.

Upon contact, the loop is immediately retracted upward at 5 mm/s.

The maximum force required to fully separate the loop from the substrate is recorded as the loop tack value (units: N/25 mm or N/cm).

Test Device for the EN 1719 Loop tack test

The apparatus consists of four essential components, all calibrated for precision:

Tensile Testing Machine: A constant-rate-of-extension machine with a reversing function.

Key specs:

Vertical jaw separation rate: 5 mm/s (±2% accuracy).

Maximum load capacity: 100 N.

Load measuring cell accuracy: ±2%.

Flat Rigid Plate: Made of glass or metal, with minimum dimensions 30 mm × 30 mm × 3.0 mm. The surface finish is defined, and plates must be thoroughly cleaned before use.

Jig: Attaches the plate horizontally to the lower jaw of the tensile tester.

Coating Equipment: Ensures a consistent dry adhesive coating weight of (25 ± 2) g/m² (deviations must be reported).

Test Specimen

Specimens are adhesive-coated strips prepared.

Base Material	50 μm thick polyester film
Coating	Adhesive is applied to the film to achieve a dry weight of (25 ± 2) g/m², then covered with release paper.
Dimensions	Strips are (25 ± 0.5) mm wide and (175 ± 2) mm long (machine direction). Cuts must be clean and straight.
Quantity	Minimum of 5 strips per test.
Conditioning	Strips are stored for (24 ± 4) hours at standard climate (23 ± 2°C, 50 ± 5% relative humidity, RH). Cleaned plates are conditioned for ≥30 minutes under the same conditions (handled only by edges).

EN 1719 Adhesives Loop Tack Test Procedure:

The step-by-step process is conducted at standard climate:

Prepare the Loop: Immediately before testing, remove the release paper from a strip. Hold the ends, fold the strip into a loop (adhesive side out), and join the ends.

Clamp the Specimen: Secure the loop’s ends (10 ± 1 mm) into the tensile tester’s upper jaw, leaving a free-hanging loop length of (155 ± 4) mm. Protect the jaw sides from adhesive contamination.

Mount the Plate: Fix the cleaned plate to the lower jaw using the jig.

Contact and Separate: Start the machine—bring the loop into contact with the plate at 5 mm/s. When the contact area reaches ~25 mm × 25 mm, immediately reverse direction and separate the loop at 5 mm/s (see Figure below).

Record Data: Capture the maximum force (N) required to fully separate the loop from the plate. Report the average loop tack value (N) of 5 strips.

Test Report:Includes standard reference, adhesive details (manufacturer, grade, batch), coating method/weight, substrate info, plate surface, results (average, min/max), visual observations (e.g., adhesive transfer), and test date.

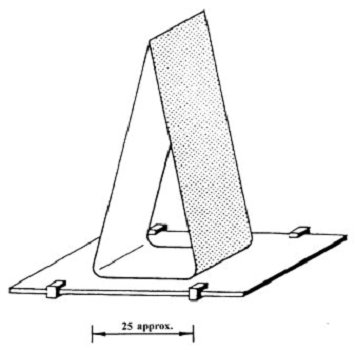

EN 1719 Loop tack measurement for coated pressure-sensitive adhesives

Test Application (Industry Fields)

Industry	Key Applications	Why It Matters
Paper & Board	Envelope adhesives, bookbinding, packaging labels	Ensures secure, instant sealing without manual pressure
Packaging	Food packaging seals, shipping labels, tamper-evident tapes	Prevents premature opening and ensures product integrity
Disposable Sanitary Products	Diaper tabs, feminine hygiene product adhesives	Critical for user comfort and secure fit during use
Converting	Adhesive tapes, labels, and decals for consumer goods	Validates batch consistency for mass production

Related Standards

Standard	Relationship	Key Differences
ASTM D6195	Global equivalent for loop tack	Speed: 5 mm/s (EN 1719) vs. 300 mm/min (ASTM D6195); substrate flexibility
FINAT FTM 9	Label industry standard	Similar loop tack principle; specimen dimensions may vary slightly
PSTC 16	Pressure-Sensitive Tape Council standard	Aligns with EN 1719 for packaging adhesives; industry-specific tweaks
ASTM D3330	Peel adhesion test	Measures bond strength after pressure/dwell (vs. instant contact for EN 1719)

Related products and device

EN 1719 Adhesives Loop Tack Universal Testing Machine

WDW Series Computer Control Electronic Universal Testing Machine made by UNITEDTEST range from 100N to 600KN load capacity with various models like single columns, table type, door frame type etc., is used to perform tension, compression, flexure/bending, shearing, peeling etc., test for metal and nonmetal specimens. Matched with UNITEDTEST design and produced various test fixture, like peel, flexure, puncture, tear, pneumatic grip, belt tension etc., this UTM can be used to almost all materials include but not limited to steel rod, rubber, steel wire, plastic, seat belt, textile, wood, panel etc., mechanical performance inspection.

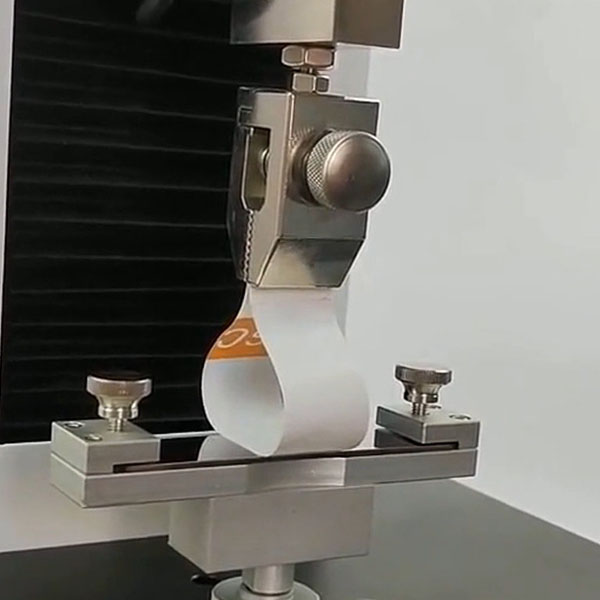

EN 1719 Adhesives Loop Tack Test Fixture

Loop Tack Test Fixture is designed to measure the initial tack (quick stick) of pressure-sensitive adhesives (PSAs) by forming a standard loop with the adhesive surface facing outward, bringing it into controlled contact with a test panel, and measuring the peak force required for separation.

Related Standard

ASTM D6195 Adhesives Loop Tack Strength Test –

ASTM D6195 provides procedures to quantify the loop tack property of pressure-sensitive adhesives (PSAs)—a critical metric for adhesives that form rapid, measurable bonds upon contact (e.g., tapes, labels, stickers). The standard focuses on two test methods (A and B) and is widely used for quality control and research in packaging, labeling, and adhesive manufacturing. It provides a quantitative measure of an adhesive's ability to form an immediate bond upon brief, light contact with a substrate, simulating real-world application conditions where minimal pressure and dwell time are typical.

ASTM D1002 Lap Shear Test of Adhesively Bonded Metal Specimens –

ASTM D1002 is the most widely used standard test for measuring the apparent shear strength of metal‑to‑metal adhesive single‑lap joints under tension loading. It provides comparative data for adhesive selection, process control, and quality assurance in structural bonding applications. It is the most common test for evaluating adhesive shear performance.

ASTM D897 Tensile Test of Adhesive Bonds –

ASTM D897 prescribed a method for determining the comparative tensile properties of adhesive bonds in a standard specimen when tested under specific conditions. Its primary purpose was to measure the tensile strength of an adhesive bond between two rigid substrates (metal to metal).

ASTM D1781 Peeling Test for Climbing Drum Method for Adhesives –

ASTM D1781 Standard Test Method for Climbing Drum Peel for Adhesives

ASTM D1781 measures the peel resistance of an adhesive bond when a relatively flexible adherend is peeled from a rigid adherend, or when a flexible face sheet of a sandwich structure is peeled from its core.

It is especially used for adhesively bonded sandwich panels, e.g. aluminum or composite skin bonded to honeycomb, foam, or other lightweight core.

ASTM D1876 T-Peel Resistance Test of Adhesives –

ASTM D1876: Standard Test Method for Peel Resistance of Adhesives (T-Peel Test)

ASTM D1876 evaluates the relative T‑peel resistance of adhesive joints made of two flexible adherends. A T‑shaped test piece is pulled apart under constant‑rate tension to measure the force required to progressively separate the bonded interface. This method focuses on peel‑mode failure rather than shear‑mode failure of adhesive bonds.

ASTM D3167 Peel Resistance Adhesives Test - Floating Roller –

ASTM D3167 Peel Resistance Adhesives Test - Floating Roller

ASTM D3167 determines the relative peel resistance of adhesive bonds between one rigid adherend and one flexible adherend under specified preparation and testing conditions. It is designed to give good reproducibility at both low‑ and high‑strength levels while keeping specimen preparation and testing relatively simple. Although the introduction emphasizes “metal‑to‑metal peel strength,” the scope covers rigid‑to‑flexible adhesive assemblies in general; the default/reference material in the method is clad aluminum.

The method is used for acceptance testing and process control and can be used as an alternative to ASTM D1781 (climbing drum peel) when that equipment is not available. ASTM notes D3167 is “more severe” because the peel angle is greater.

ASTM D5041 Adhesives Splitting Shear Strength Test –

ASTM D5041: Standard Test Method for Fracture Strength in Cleavage of Adhesives in Bonded Joints

ASTM D5041 test method covers the determination of fracture strength in cleavage of adhesive bonds when tested on standard reinforced plastic specimens and under specified conditions of preparation and testing.

It describes the fracture strength testing of flat adhesively bonded reinforced plastic specimens. It involves imposing controlled cleavage stresses to split apart the specimen using a movable wedge.

ISO 11339 T-peel test for Adhesives –

ISO 11339 Adhesives — T-peel test for flexible-to-flexible bonded assemblies.

It specifies a T‑peel test for the determination of the peel resistance of an adhesive by measuring the peeling force of a T‑shaped bonded assembly of two flexible adherends. The ISO 11339 test method is suitable for self-adhesive tapes that are prepared under the relevant guidelines within this test standard. For a T-peel test for a flexible-to-flexible assembly, the force is applied to the unbonded ends of the specimen . The angle between the bond line and the direction of the applied force is not fixed.

ISO 8510-2 Adhesives 180 degree peel test for flexible-bonded-to-rigid test specimen assembly –

ISO 8510-2: Adhesives — Peel test for a flexible-bonded-to-rigid test specimen assembly Part 2: 180° peel.

ISO 8510-2 specifies a 180° peel test for determining the peel resistance of a bonded assembly where one adherend is flexible and the other is rigid. Measures the peel resistance of structural liquid adhesive bonds where one adherend is flexible and the other rigid. It only applies to cured structural adhesives (epoxy, PU, wood glue, contact adhesives) – not pressure-sensitive adhesive tapes. It provides repeatable comparative peel force data for R&D, factory quality control, supplier qualification and commercial dispute resolution.

FAQs about EN 1719 Loop Tack Test for Pressure-Sensitive Adhesives (PSAs)

Q1: Why is the EN 1719 test important?

A: The EN 1719 test is important because it is a standardized method (British Standard BS EN 1719:1999, aligned with European Standard EN 1719:1998) for quantifying the loop tack of coated pressure-sensitive adhesives (PSAs). This property is critical for adhesives used in applications requiring rapid initial bonding—such as labels, tapes, and disposable hygiene products. The test supports quality control, research, and regulatory compliance in the adhesive and packaging industries, ensuring consistent and comparable results across manufacturers and users.

Q2: What is the definition of "loop tack" in EN 1719?

A: For the purposes of EN 1719, loop tack is defined as: "the maximum force required to separate at a specified speed, a loop of adhesive coated material (adhesive outermost) which has been brought into contact with a specified area of a defined surface".

Q3: How are results expressed in EN 1719?

A: The loop tack value is expressed as the average in Newtons (N) of five strips tested.

Q4: What must be included in an EN 1719 test report?

A: The test report must include:

a) A reference to this European Standard (EN 1719);

b) Adhesive details (manufacturer’s name, grade, batch number, or other unique identifier);

c) Method of adhesive coating preparation;

d) Coating weight (if other than 25 ± 2 g/m²);

e) Specifications of the polyester film and release paper used;

f) Description of the flat rigid plate’s surface;

g) Loop tack value (in N);

h) Lowest and highest test results (in N);

i) Visual comments (e.g., adhesive transfer, lifting from the substrate);

j) Date of the test.

Q5: Is there dwell time in the test?

A: No dwell time — contact and immediate separation.

Q5: What are the main differences between EN 1719 and other loop tack test standards like ASTM D6195?

Item	EN 1719	ASTM D6195
Substrate & Coating	A 50 μm polyester film base with a consistent dry adhesive coating weight of (25 ± 2) g/m²	Allows unsupported adhesives (laminated to 2 mil PET film); uses a 1 in² (25×25 mm) ASTM A666 stainless steel surface.
Specimen Dimensions	strips 25 ± 0.5 mm wide × 175 ± 2 mm long	Method A (1×7 in./25×175 mm) Method B (1×5 in./25×125 mm)
Test Speed	5 mm/s contact/separation speed (300 mm/min)	5 mm/s (300 mm/min)
Equipment	single tensile testing machine	Two methods (tensile tester or dedicated loop tack tester)
Result Expression	reports the average of 5 strips	at least 3 replicates per method
