Metallic Sheet & Strip Room Temperature Shear Test Machine | UnitedTest

Standard room temperature shear test method for metallic sheet and strip measures maximum shear force and shear strength using punch-and-die fixtures. UnitedTest manufactures precision universal shear testing machines for thin flat metal material mechanical property testing and industrial QC.

This standardized room-temperature shear test method is designed to accurately determine the shear properties of metallic sheet and strip materials, with optimized applicability for thin flat metal products widely used in manufacturing, automotive, aerospace and metal processing industries. The testing procedure adopts a professional punch-and-die shear fixture, which can be installed on industrial presses or universal tensile testing machines to complete stable specimen shearing tests under standard room temperature conditions.

The core testing principle focuses on recording the maximum shear force generated during the metal specimen cutting process, allowing technicians to calculate precise shear strength data of metallic sheet and strip materials. This test method delivers reliable mechanical performance indicators, supporting raw material incoming inspection, metal product quality control, material formula verification, and production process optimization for various thin flat metallic materials.

UnitedTest specializes in manufacturing high-precision metallic sheet and strip room temperature shear testing machines equipped with standard punch-and-die shear fixtures. Our universal testing equipment provides stable and repeatable shear force measurement results, meeting industrial and laboratory requirements for metal shear strength detection, mechanical performance evaluation, and material compliance verification.

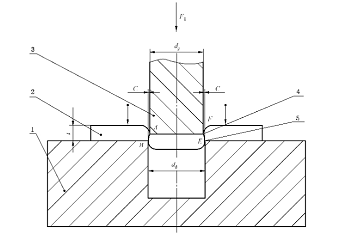

Test Principle

The test applies compressive force via matched punch‑die shear moulds to cut the sheet specimen until fracture occurs, and records the maximum shear resistance force to calculate shear strength.

Double‑edge shear configuration generates two parallel shear planes on one specimen. Shear strength is calculated as maximum shear force divided by twice the original single‑side shear cross‑sectional area of the specimen.

Metallic Sheet and Strip Compressive Shear Test

Specimen information

Typically a rectangular flat specimen cut from the actual sheet/strip, retaining the original rolled surface.

Thickness: product thickness, not machined down

Length: determined by die cavity; 70 mm recommended

Width B: preferred 40 mm; also 20, 25, 30, 35 mm allowed

Width tolerance: ±0.5 mm

Width variation: max–min difference ≤ 0.06–0.12 mm depending on width

Number: usually ≥ 3 specimens per group

Condition: no burrs, no obvious damage, rust, oil contamination that affects results; edges clean

Sampling: according to product standard or GB/T 2975

Area measurement:

Measure width and thickness at two ends and the middle, use averages

Thickness measuring resolution better than 0.005 mm

S₀=B*T

Test Equipment of Metallic Sheet and Strip Compressive Shear Test

Tensile testing machine:

Force‑measuring system shall meet GB/T 16825.1, accuracy class 1 or better.

Upper and lower compression platens shall be parallel. Punch axis shall align with machine loading axis to ensure smooth, vibration‑free loading.

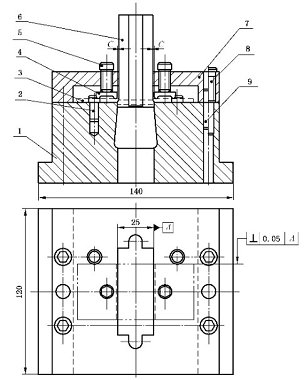

Double‑sided shear mould set

Including die, punch, blank holder, guide plate, locating pins and bolts.

Hardness requirement: Punch and die: 56‑60 HRC; blank holder, guide plate, locating pin: 38‑42 HRC.

Metallic Sheet and Strip Compressive Shear Test

Measuring tools

Calipers / micrometers with high resolution for specimen dimension measurement.

Key Test Parameters

Test speed	Default recommended: 15 mm/min; follow product specification if specified
Single‑sided clearance (C)	Calculated: t; select intermediate value of Class‑I. Relative clearance R is clearance expressed as percentage of sheet thickness
Punch dimension	d = die cutting edge dimension
Temperature	10 °C‑35 °C general; 23 °C±5 °C for strict‑condition tests
Zero‑setting	Reset force‑measurement zero after full fixture assembly before loading

Test Procedures

1. Measure specimen width and thickness at three positions and compute original cross‑section area S₀.

2. Inspect and clean the die cavity before mounting specimen.

3. Select proper single‑sided clearance and calculate punch size. Weigh punch mass and compute punch gravity G₁=9.8·m.

4. Place specimen against locating pin, clamp with blank holder, ensure blank holder avoids punch travel path.

5. Set test velocity, reset force‑measurement system zero point.

6. Apply compression load continuously; record maximum force reading F₁ until specimen is fully sheared off.

7. Calculate shear strength with formula τ_b=(F₁+G₁)/(2S₀).

8. Judge test validity: Discard results if specimen bends, incomplete shearing, sheared edge non‑perpendicular to locating edge, uneven fracture surface or mould damage occurs, retest with new specimens.

9. Take arithmetic mean of valid specimens as final test value; round off to 1 MPa.

10. Evaluate measurement uncertainty, reference Annex B for uncertainty assessment example.

11. Compile formal test report. Mandatory report contents include standard number, test conditions, specimen identification, material grade & batch info, sampling direction, abnormal phenomena and final results.

Industry Application Fields

This test serves sheet‑metal forming‑related industries:

- Steel & non‑ferrous metal material factories: Batch quality inspection for thin steel sheets, aluminium alloy strips and other rolled sheets.

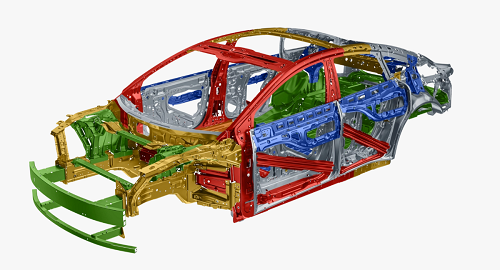

- Automotive industry: Evaluate stamping & blanking performance of automotive body sheets, calculate blanking force for press‑tool design.

- Aerospace sector: Characterize shear resistance of aviation thin‑wall sheets, reference for component cutting‑process simulation.

- Machinery & stamping manufacturing: Material selection, process parameter optimization for blanking, cropping and slitting production.

- R&D laboratory: Material performance research, failure analysis and numerical‑simulation model validation.

Metallic Sheet and Strip Compressive Shear Test

Practical uses:

Estimate blanking force / punching force

Select press capacity

Design die clearance

Predict burr height, edge quality, tool wear

Control material uniformity in rolling batches

Support specification compliance

Related Standards

ASTM B831	shear testing of thin aluminum alloy sheet products
ASTM B769	double-shear test for aluminum alloys, rod/bar-type geometry
GB/T 43115	Metallic materials—Sheet and strip—Shear test method at room temperature
DIN 50101 / DIN 50606	punching/shear testing of sheet and metallic materials
JIS Z 2241	style shear provisions in Japanese practice

Why the test is important for materials

Shear strength is not the same as tensile strength, though they are often correlated. Many sheet-metal failures in service and fabrication are related to cut edges, shear zones, burrs, and local deformation.

Direct relevance to cutting processes: blanking, punching, trimming, notching

Die and process design: correct clearance reduces burr, cracking, and tool wear

Press selection: peak shear force determines machine capacity

Material qualification: verifies batch-to-batch consistency

Formability and edge quality control: poor shear behavior can cause edge cracking in bending or flanging

Engineering data: provides comparable t_b values when testing conditions are standardized

Failure analysis: helps distinguish shear-dominated damage from tensile, fatigue, or ductile rupture modes

Keywords: metallic sheet room temperature shear test,metal strip shear strength testing machine,thin flat metal shear property analyzer,punch and die shear fixture tester,universal testing machine for metal shear test,room temperature metal shear force measurement,industrial metal sheet mechanical test equipment,automotive metal strip shear performance tester,aerospace thin metal material QC rig,metallic product shear strength verification instrument,metal processing factory shear test apparatus,flat metal specimen cutting force detector

Large capacity electronic universal testing machine is a high-precision mechanical property testing device designed for measuring the tensile, compressive, bending, shearing, peeling, and tearing properties of materials under static load conditions, with a maximum test force capacity of 600/1000KN.

Hydraulic Servo Universal Testing Machine is a high-precision mechanical property testing device that integrates hydraulic drive technology, servo control systems, and digital data acquisition/analysis.

Q1. Why is sheet shear testing important?

A: Because many sheet-metal parts fail or are manufactured by cutting, blanking, punching, trimming, and shearing. Tensile strength alone does not fully predict cutting force, edge quality, burr formation, or tool wear.

Q2. Is shear strength the same as tensile strength?

A: No. Shear strength describes resistance to cutting along a plane; tensile strength describes resistance to pulling apart. They are related but not interchangeable, and the measured value is method-dependent.

Q3. Can the surface be machined?

A: The specimen should retain the original rolled surface as far as relevant, with no obvious damage, rust, or burrs that would affect the result.

Q4: Can I calculate shear strength directly from tensile strength results?

A: Not recommended. Some engineers use an empirical factor (~0.6 × tensile strength) for rough estimation, but the deviation can be large for high‑strength steel, aluminium alloy and anisotropic rolled sheets. Direct shear test following GB/T 43115 delivers reliable shear‑strength data for engineering calculation.

Q5: Why do I get poor repeatability / big data scattering in my shear‑test results?

A: Common root causes:

1. Specimen edges with burrs, scratches or surface defects.

2. Mis‑alignment of punch‑die mould; specimen offset / loose clamping.

3. Wrong single‑sided clearance setting.

4. Improper test cross‑head speed.

5. Thickness or width measured at only one single point (need three‑point average).

6. Neglecting punch self‑weight correction in shear‑strength formula.

Q6: Who needs a sheet shear strength tester?

A: Steel mills, automotive stamping shops, aerospace material labs, appliance manufacturers, and QC laboratories that must verify cutting performance and material shear properties.

Q7: Why choose UnitedTest Sheet Strip Shear Testing Machine | Metal Double Shear Test Fixture | UnitedTest?

A: UnitedTest manufactures complete metal sheet and strip room‑temperature shear‑test solutions, including universal testing machines and matched double‑shear mould fixtures for 0.5‑3 mm thin metal sheets. Suitable for automotive, aerospace, steel‑mill quality‑control laboratory. Get reliable shear‑strength test data following Chinese national standard.

UnitedTest is a professional manufacturer of material mechanical‑property testing equipment. We supply full‑set solutions for metal sheet and strip shear test, including high‑accuracy electronic / electro‑hydraulic servo universal testing machines and standard double‑shear test fixtures (mould sets) complying with ISO, ASTM Standard.

Our testing system is widely used for carbon‑steel sheet, stainless‑steel strip, aluminium‑alloy sheet and other rolled thin‑metal materials with thickness from 0.5 mm to 3 mm (thicker plates are also supported by reference testing). It accurately measures maximum shear force and calculates material shear‑strength, helping laboratories and factories complete incoming‑material inspection, batch‑quality verification, stamping‑process‑parameter research and new‑material development work.

Key advantages:

1. UTM force‑measurement accuracy class 1 or better, satisfies ISO 7500-1 calibration requirement.

2. Custom‑made double‑shear fixture set: punch‑die hardness reaches 56‑60 HRC; strict parallel‑alignment control to avoid extra bending moment during testing.

3. UnitedTest test software supports automatic calculation for original cross‑section area, punch‑weight compensation, shear‑strength computation, value rounding and test‑report template pre‑configured for related standard.

4. Adjustable test speed range covers standard‑recommended 15 mm/min; supports custom‑parameter setting for special‑material research.

5. One machine multi‑function: besides sheet shear test, the same UTM platform can perform tensile, compression, bending tests by changing fixtures.

We offer customization to meet your specific needs. Our expert team will collaborate with you to develop the perfect product for you
