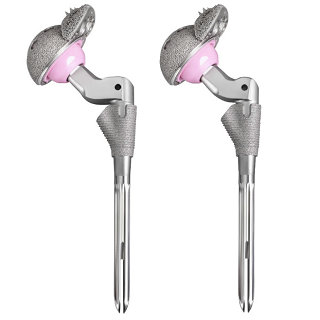

ISO 7206-10: Implants for surgery --Partial and total hip joint prostheses -- Part 10: Determination of resistance to static load of modular femoral heads.
It specifies a method for determining the static load resistance of the connection between a modular femoral head and a tapered cone of a femoral stem (the "head/cone junction") in hip joint prostheses. Include static compression (fracture) and tensile (disassembly) tests to quantify the load capacity of modular femoral heads with conical taper (Morse taper) connections.

ISO 7206-10 Test Methods and test principle:
A static compressive or tensile force is applied to the head/neck assembly of the hip-joint prosthesis and increased until either the head or the neck, or the connection between them, fails, or until the chosen maximum force has been applied without the occurrence of failure.
Two primary static load tests are defined:
Compression Test: Measures the compressive/fracture load that causes head/neck assembly fracture.
Tensile (Pull‑Off) Test: Measures the tensile disassembly load required to separate the head from the neck.
Testing Machine required for this test:
| Universal Testing Machine (UTM) | Capable of static axial tension/compression, calibrated per ISO 7500‑1ISO |
| Compression Test Fixture | Spherical seating fixture matching the head’s articular surface.
|
| Tensile Test Fixture | Gripping fixture for the stem neck and a pull‑fixture for the femoral head.
|
Test procedure:
1, Sampling: Each test specimen will consist of a femoral head assembled on a neck unit.
Sample numbers: At least 5 samples.
2, Assembly of test specimen according standard requirement.
3.1, Static compression test:

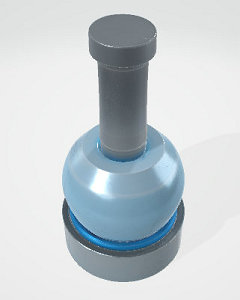

Load the femoral head through a conical loading bore, A copper ring shall be inserted between the femoral head and loading bore (Figure 3) to protect the contact surface of the head and the conical loading bore.
Apply a preload of 0,1 % of the maximum force of the testing machine (or between 50 N and 200 N) to the assembly. The compressive test force shall be applied at a loading rate of (0,5 ± 0,1) kN/s; or at a stroke rate of (0,04 ± 0,01) mm/s taking a record of the force/time, displacement/time, or force/displacement behaviour. It may be possible to shorten the test time by using a copper ring predeformed at the appropriate diameter.
Increase the force until one of the following occurs:
a) the fracture of the head; or
b) fracture or permanent deformation of the neck; or
c) the chosen maximum force has been applied.
Record the maximum force applied and explain the reason the test was terminated.
3.2, Static tension test:

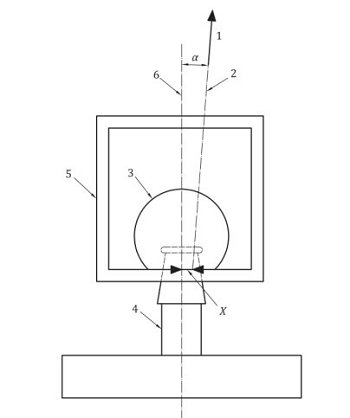

Place the head/neck assembly in a fixture, capable of holding the neck component securely, achieving uniform flat contact around the base of the head.
The design of the fixture used to pull against the head requires either an opening on one side or a modular design. This fixture shall be sufficiently rigid to prevent deformation which might apply a bending moment or torque to the neck.

Load the head by applying to the assembly a tensile force at a stroke rate of (0,04 ± 0,02) mm/s. Faster rates may be used if it can be demonstrated that they do not affect the result.
Terminate the test when the head is suddenly removed from the neck component or the loading force drops below 100 N after a higher peak.
Importance of ISO 7206-10 static strength test for the hip implant/femoral head:
This test is critically important for patient safety and implant reliability:
Prevents In Vivo Catastrophic Failure: It ensures the modular connection, often a mechanical taper lock, is strong enough to withstand extreme static loads without dissociating, which would be a severe clinical complication.
Evaluates Design & Manufacturing Integrity: It validates the design of the taper angles, surface finish, and the quality of the materials (e.g., metallic alloys, ceramics) used for the head and cone.
Quantifies Settlement: Measures permanent displacement during first-time loading, which is crucial for understanding the initial stability of the junction.
Risk Mitigation for Modularity: While modularity offers surgical flexibility, it introduces a potential mechanical interface for failure. This test is a key safeguard against static overload failure of that interface.
