ISO 21182 Light conveyor belts — Determination of the coefficient of friction

ISO 21182 specifies test procedures to measure static coefficient of friction (μs) and dynamic coefficient of friction (μD) for light conveyor belts. It enables consistent cross-brand comparison of belt surface frictional properties for quality control, product design and engineering selection. Quantify how "grippy" or "slippery" a belt cover surface is when sliding against a standardized steel panel under a defined normal load.

Core Test Principle

Two independent testing principles are defined for static and sliding friction:

1, Dynamic Coefficient of Friction (μD)

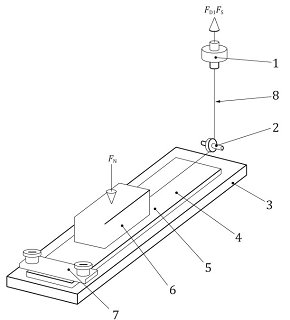

A belt test piece (clamped to a table) is slid against a metallic test panel under a given normal force.

The panel (with added mass) is pulled over the belt at a specified speed.

μD = FD / FN, where FD is the median dynamic frictional force measured over the last 200 mm of a 300 mm travel.

2, Static Coefficient of Friction (μS)

Same setup, but the pulling mechanism moves much slower.

Measurement stops as soon as the panel begins to move; μS = FS / FN, where FS is the break‑away (stiction) force — the first peak or the deviation point from the initial straight line on the force–path graph.

ISO 21182 coefficient of friction for light conveyor belts

Test Specimen Specification

Material: New, unused belt; not tested sooner than 5 days after manufacture; no contamination/damage. Separate specimens required for top cover and underside if both surfaces need friction testing.

Dimensions: 600 mm × 100 mm, cut from full belt thickness.

Direction: Longitudinal or transverse (or both); if both belt sides are tested, additional specimens required.

Quantity: 3 specimens per condition; each used once only.

ISO 21182 Light Conveyor Belts Coefficient of Friction (COF) Required Test Equipment

Basically, should be an COF (Coefficient of Friction Specialized Tester), or universal testing machine with an suitable test fixture:

Coefficient of Friction Tester	Recommend UnitedTest Coefficient of Friction Tester: suitable for measuring the static and dynamic friction coefficient when plastic film and sheet, rubber, paper, cardboard, woven bag, fabric etc.,
Tensile test machine	Recommend UnitedTest WDW series universal testing machine. Tensile tester or linear drive providing steady uniform motion for the metal panel. Load cell: range 0–100 N; force system calibrated to ISO 7500-1. Data recording instrument to capture continuous force-displacement curves.
COF Test Fixture	Horizontal test table: Flat platform for clamping belt specimens, adjustable to full horizontal alignment longitudinally and transversely. Steel mass block: Generates combined normal force of 50±1 N together with the metal panel; density 7.85 g/cm³, dimensions 120±0.2 mm ×75±0.2 mm ×71±0.2 mm. Deflection roller: Diameter 40–50 mm with ball bearings for smooth cable redirection. Low-elastic steel pulling cable (~1 mm diameter): Runs parallel to the sliding surface to avoid force angle errors. Clamps: Securely fasten belt specimens to the test table without surface deformation.
Metallic test panel	Thickness: 0.8 mm; dimension: 76±0.5 mm × 152 mm Valid sliding test area: 100±1 cm² (76±0.5 mm × 131.5±0.5 mm) Hardness HRB 60–70; surface roughness Ra 0.9–1.3 μm (ISO 21920-2 milled finish) Service limit: maximum 50 test runs or 1 working day, whichever comes first; non-stainless, stored dry, handled only by edges with clean cotton gloves to avoid contamination/rust.

Key Mandatory Test Stipulations & Control Parameters

1, Speed & Travel Distance Parameters

Dynamic friction (μ_D) test

Nominal pull speed: 1000±20 mm/min; if machine maximum speed is insufficient, minimum allowable speed is 500±20 mm/min.

Total sliding travel path: 300 mm; only force data from the final 200 mm of travel is used for calculation to exclude unstable startup friction.

Static friction (μ_S) test

Pull speed fixed at 100±10 mm/min; test stops immediately once the metal panel begins sliding.

2, Fixed Normal Force

Total vertical normal load applied on the metal panel is permanently 50±1 N, consistent for all static and dynamic friction measurements.

3, Mandatory Test Report Content

The official report must record: individual replicate values, arithmetic average, full belt material designation & production date, standard reference ISO 21182:2025, any deviation from standard procedure, lab temperature/humidity, conditioning duration, metal panel manufacturer/specification, actual pull speed (if different from nominal), separate top/underside friction data, abnormal test observations, and test execution date.

Details Test procedure of ISO 21182 Coefficient of Friction Testing:

1. Level the test table perfectly horizontal in both length and width axes.

2. Clamp the conditioned belt specimen firmly onto the table surface without wrinkles or movement.

3. Visually inspect the steel test panel to confirm zero rust, scratches or surface defects; replace if service life expires.

4. Attach pulling cable to the metal panel, place the standard steel mass block evenly on top of the panel to apply 50±1N normal force.

5. Perform dynamic friction test (if required):

Set drive speed to 1000±20 mm/min (or minimum 500 mm/min if limited); activate pulling to slide the panel full 300 mm path; record continuous force-displacement curve.

6. Perform static friction test (if required):

Reset equipment with new specimen and fresh panel surface; set pull speed to 100±10 mm/min; stop the test instantly as the panel initiates sliding and capture the breakaway peak force curve.

7. Repeat full procedure for 3 replicate specimens per direction/surface.

Application Industry Fields

Light conveyor belts under ISO 21182 are widely used in:

Food & beverage (processing, packaging lines)

Logistics / parcel sorting (airports, distribution centres)

Textile & tobacco processing

Paper, printing, packaging machinery

Wood, automotive component light‑duty transport

Any sector using light‑duty, fabric‑reinforced PVC/PU/polyester belts (vs. heavy steel‑cord mining belts) may reference this test.

Related Test Standard:

ASTM D1894	Standard Test Method for Static and Kinetic Coefficients of Friction of Plastic Film and Sheeting
JIS K 6378-2	Light conveyor belts -- Determination of the coefficient of friction
ISO 8295	Plastics - Film and sheeting - Determination of the coefficients of friction
GB/T 33205	Light conveyor belts—Determination of the coefficient of friction

Coefficient of Friction Tester is professionally suitable for measuring the static friction coefficient and dynamic friction coefficient when plastic film and sheet, rubber, paper, cardboard, woven bag, fabric etc., Conform with ISO 8295, ASTM D1894.

WDW Series Computer Control Electronic Universal Testing Machine made by UNITEDTEST range from 100N to 600KN load capacity with various models like single columns, table type, door frame type etc., is used to perform tension, compression, flexure/bending, shearing, peeling etc., test for metal and nonmetal specimens.

T-Peel Resistance Test Fixture for Adhesives is based on ASTM D1876 standard, used to measure the adhesion strength of adhesive maeterial. ASTM D1876 peel strength test method is commonly used to measure the strength of adhesive bonds between two sealed materials.

Q1: What is the core purpose of ISO 21182?

A1: It provides uniform, repeatable laboratory test methods to measure the static coefficient of friction (μ_S) and dynamic coefficient of friction (μ_D) of light conveyor belts defined in ISO 21183-1. It eliminates inconsistent test results from different labs or equipment for global quality comparison.

Q2: What products does this standard apply to? Are heavy-duty conveyor belts covered?

A2: Only light conveyor belts per ISO 21183-1 (PVC, PU, thin rubber lightweight transport belts). Heavy industrial rubber conveyor belts for mining/quarries follow separate friction test standards and are outside ISO 21182’s scope.

Q3: What are the specimen size and quantity requirements?

A3: Each specimen is 600 mm × 100 mm with full original belt thickness. Minimum 3 replicates per test direction (longitudinal / transverse) or per surface (top cover / underside). Each specimen can only be used once.

Q4: What total normal force is applied on the metal panel during all tests?

A4: Fixed normal force F_N = 50 ±1 N, generated jointly by the standard steel mass block and the metallic test panel, consistent for static and dynamic friction tests.

Q5: What if the test table is not fully horizontal?

A5: A tilted table creates extra vertical component force, distorting F_N and leading to inaccurate, high-variation friction coefficient results. The table must be levelled longitudinally and transversely before every test batch.

Q6: Why is ISO 21182 friction testing critical for light conveyor belt manufacturers and end users?

A6: Cargo slip control: μₛ determines whether goods stay stable on inclined conveyors; low static friction causes sliding, product damage and line downtime.

Energy & wear optimisation: μᴰ reflects running resistance; excessive dynamic friction raises motor power consumption and accelerates belt abrasion.

Uniform cross-supplier comparison: Standardised steel counter-surface removes inconsistent test variables, enabling fair procurement quality evaluation.

Product formulation design: Manufacturers adjust surface coatings, emboss patterns and polymer compounds to hit target friction values for custom applications (food anti-slip belts, low-drag sorting belts).

Quality certification: ISO 21182 test reports support ISO 9001 quality management, cross-border tender and product acceptance inspections.

Q7: When should a factory test both the top cover and the underside of a belt separately?

A7: Test both surfaces if both sides contact other materials during operation:

Top surface: Contacts transported goods (requires controlled μₛ for anti-slip conveying)

Underside: Contacts metal rollers/frames (low μᴰ reduces operational drag and wear)

Q8: Why do repeated tests on the same belt produce inconsistent friction values?

A8: Main causes:

Overused rusted/scratched steel test panel (exceeded 50 runs or 1 day service life)

Contaminated specimen surface (dust, oil, fingerprints)

Insufficient 24-hour pre-conditioning or unstable lab temperature/humidity

Reusing a single specimen multiple times

Unlevel test table or unparallel pulling cabl
