ISO 14879-1 Fatigue test of metallic tibial trays of total knee joint replacement system

Share:

ISO 14879-1 Implant Tester | Endurance & Fatigue Test for Total Knee Prosthesis Tibial Trays - UnitedTest

UnitedTest produces ISO 14879-1 surgical implant testing machines for total knee-joint prostheses. This system runs static load and cyclic fatigue tests on metallic tibial trays to measure stiffness, ultimate bearing load and long-term endurance performance for orthopedic implant development, quality control and regulatory compliance.


ISO 14879‑1 Implants for surgery — Total knee‑joint prostheses — Part 1: Determination of endurance properties of knee tibial trays. ISO 14879‑1 specifies a laboratory test method for evaluating the fatigue and endurance behaviour of the metallic tibial tray, the metal baseplate that supports the polyethylene plastic insert, adopted in total knee replacement prostheses. The standard defines two core test regimes for tibial tray assessment: static mechanical testing, which characterizes ultimate load-bearing capacity and structural stiffness of the metal baseplate; and cyclic fatigue endurance testing, which applies repeated physiological loading cycles to replicate in-vivo long-term service conditions and evaluate the component’s durability against fatigue failure.


UnitedTest delivers high-precision ISO 14879-1 tibial tray endurance testing equipment built for orthopedic implant laboratories, medical device manufacturers, third-party testing institutes, certification validation and new product R&D.


Test Principle:

The tray is clamped in a rig so that one condyle is supported and the other is left as a free cantilever. A cyclic compressive force is applied to the unsupported condyle through a plastic spacer and a spherical indenter. Loading continues until the specimen fails or the pre-set cycle count (runout) is reached; the specimen is then examined for load-induced defects.

This reproduces the clinically relevant worst case: loss of proximal bone support under one condyle (e.g., from wear-induced osteolysis or subsidence), which turns the tray into a cantilever beam and is one of the most frequently reported failure mechanisms of total knee replacements.

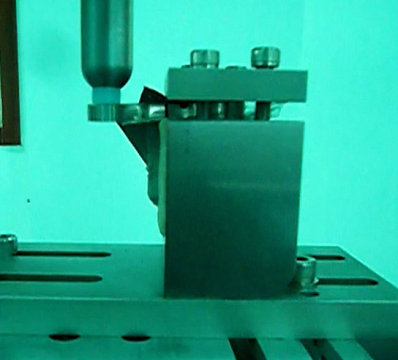

ISO 14879-1 Fatigue test of metallic tibial trays of total knee joint replacement system


Test specimen information

  • Specimen: finished tibial tray (the metal backing that supports and secures the plastic articulating surface/insert), with or without a central stem/keel.

  • Sample size: not fixed by the standard — defined by the submitting party (ISO 21536 sets the typical regulatory expectation: minimum 5 specimens).

  • Geometry reference: tibial width and tibial depth determined per ISO 7207-1 Figures 3 and 5 to establish the mediolateral (ML) and anteroposterior (AP) centrelines; report tray thickness, size, d and w per ISO 7207-1, plus materials of construction.

  • Worst-case selection: for asymmetric trays, the specimen must be oriented so the worst-case side is loaded, and the rationale (medial vs. lateral) documented.

  • Centreline definitions:

    • AP centreline — through the centre of the stem, parallel to the sagittal plane, perpendicular to the load line;

    • ML centreline — through the stem centre, parallel to the coronal/frontal plane;

    • ML moment arm d_ml — perpendicular distance from AP centreline to the load line (positive if loading point is medial);

    • AP moment arm d_ap — distance from ML centreline to the load line (positive if loading point is posterior).

  • Loading point:

    • biconcave trays → normal to tray through the deepest point of the articular recess;

    • all other designs → assemble femoral component + tibial insert + tray at 0° flexion and locate the centre of pressure (pressure-sensitive film, removable dye, 3-D CAD, or drawings); the load point lies on the normal through it.


ISO 14879-1 Test Equipment Required:

Fatigue testing machine

Sinusoidal dynamic loading waveform at the primary frequency; applied-force error ≤ ±2 % of max force (verified per ISO 7500-1); cycle counter.

Servohydraulic or electrodynamic frames with force control and high-cycle capability are typical.

Test fixture

Holds the specimen as a cantilever beam;

fixes the inferior surface (embedding with epoxy resin or bone cement per ISO 5833) and/or clamps the superior surface away from the mid-line — both may be combined;

supports the tray only up to the AP centreline, within ±1 mm linear / ±2° angular between the tray AP centreline and the fixture support line;

stem/keel supported only up to the AP centreline; load axis perpendicular to the undeflected superior surface; ≥5 mm clearance under the loaded compartment

ISO 14879-1 Fatigue test of metallic tibial trays of total knee joint replacement system

Spacer

Distributes load and reduces fretting. UHMWPE (ISO 5834-2 type 1 or 2), acetal co- or homopolymer; metal only if the plastic cannot transmit the force; may be glued to the tray.

Recommended Ø 13.0 ± 0.5 mm, minimum thickness 6.0 ± 0.5 mm at the load point;

must contain a spherical recess ≥ the indenter diameter to avoid spacer fracture; deviations must be reported.

Load applicator

Rod ending in a spherical indenter of 16 mm radius, metallic recommended, free to move transversely to the force direction;

may be modified for design features such as a peripheral rim.


Key Test Parameters

Control modeForce control; minimum force = 10 % of the maximum force (absolute values)
WaveformSinusoidal at the primary frequency (any other waveform requires rationale in the report)
Force error≤ ±2 % of F_max (ISO 7500-1)
Frequency≤ 10 Hz; higher allowed only with dynamic-calibration evidence of identical results vs. ≤10 Hz
F_maxSet by the submitter; ISO 21536 uses 900 N as the endurance benchmark, industry commonly 900–3000 N
RunoutSet by submitter; ISO 21536 specifies 10 × 10⁶ cycles (10 million)
AlignmentLoad axis orthogonal to undeflected superior surface within 2°
Support positionTray supported to the AP centreline only, ±1 mm, ±2°
Clearance≥ 5 mm between the loaded compartment underside and any fixture part; no contact during testing
Spacer replacementWhen thickness reduces to 3 mm or it fragments — record it, fit a new one, continue
InspectionVisual (normal/corrected vision) every 5 × 10⁵ cycles, without removing the tray
Terminationspacer ≤3 mm or fragmented; fracture; crack detected (visual or NDT); pre-set deflection limit exceeded; runout reached; machine cannot hold the force range
End of testRecord total cycles, reason for termination, and examine per the submitter's requested methods


Test Procedure for ISO 14879-1 Fatigue test of metallic tibial trays of total knee joint replacement system

  1. Measure tibial width and depth (per ISO 7207-1) → establish ML and AP centrelines.

  2. Clamp the tray as a cantilever per 5.2 c); for asymmetric trays choose the worst-case orientation; confirm ≥5 mm clearance and no fixture contact.

  3. Align so the load axis is orthogonal to the undeflected superior surface within 2°; place the load point so that the correct d_ml / d_ap moment arms reproduce the expected in-vivo loading at 0° flexion.

  4. Determine the loading point (biconcave recess method, or centre-of-pressure method at 0° flexion).

  5. Measure and record d_ap and d_ml.

  6. Insert the spacer between specimen and load applicator (Figures 1 / 2 for trays without / with a central stem).

  7. Start the machine; apply F_max at ≤10 Hz; inspect visually every 5 × 10⁵ cycles.

  8. Measure vertical deflection continuously/periodically.

  9. Run to one of the six termination events.

  10. Record cycles, termination reason, and perform the requested post-test examination.


Related Standard:

ASTM F1800

Standard practice for cyclic fatigue testing of metal tibial tray components of total knee joint replacements

ASTM F2083Specification for Knee Replacement Prosthesis, specifies reference load magnitude, specimen quantity and run‑out cycle counts for tibial tray testing.
ISO 14879-1

Implants for surgery — Total knee-joint prostheses — Part 1: Determination of endurance properties of knee tibial trays.

ASTM F3210Fatigue testing for knee femoral components
ASTM F2777endurance test for polyethylene tibial inserts.
ISO 21536Non-active surgical implants: specific requirements for knee-joint replacement implants
ASTM F3140Cyclic fatigue testing of metal tibial tray components of unicondylar knee replacements (direct sibling standard)
ASTM F3495

Static failure load of ceramic knee femoral components

ASTM F1814Guide for evaluating modular hip and knee joint components
YY/T 0810

Tibial tray fatigue performance test, harmonised in content with ASTM F1800


Industry Application Field

Orthopaedic implant manufacturers — design verification and design-comparison of tibial trays (material, thickness, keel/stem geometry, porous coating, additive vs. wrought manufacturing, modular locking features).

Regulatory submissions — the endurance data are part of the pre-clinical (design evaluation) package for CE/MDR technical documentation, FDA 510(k)/PMA, NMPA registration, etc.

Third-party and in-house testing laboratories (materials/structural test labs, notified bodies, national device testing centres).

Research & development / failure analysis — benchmarking new alloys (CoCrMo, Ti-6Al-4V), surface treatments, and evaluating retrieved or suspect designs.

Standards and conformity assessment chain — referenced by ISO 21536 for knee implant specific requirements.


Keywords: ISO 14879-1, total knee joint prosthesis test, tibial tray endurance tester, knee implant fatigue testing machine, metallic tibial baseplate static test, cyclic fatigue test for knee prostheses, orthopedic implant durability test, polyethylene insert support tray test, surgical implant mechanical loading rig, medical device regulatory test equipment, arthroplasty component fatigue evaluation, tibial tray stiffness measurement, ultimate load bearing test, physiological cyclic load simulation, total knee replacement implant lab tester, UnitedTest medical implant testing machine, knee prosthesis component quality inspection, implant long term endurance test, orthopedic prosthetic mechanical tester, surgical implant fatigue validation rig

Related products and device

ISO 14879-1 metallic tibial trays fatigue testing machine

Spinal Implant Constructs nail screw static and fatigue testing machine used to check the fatigue failure of medical nail, Loads are typically applied in a constant-amplitude, load-controlled sinusoidal waveform that runs more than 5 million times.

ISO 14879-1 surgical implant mechanical loading rig, medical device regulatory test equipment

Multi‐Axis Fatigue Torsional & Bending testing system understake this task, used to check the torsion and bending, tension test for the Intramedullary lengthening nail/Intramedullary leg lengthening implants nails.

Related Standard

ASTM F1800 Knee Tibial tray Fatigue testing –

ASTM F1800 Standard Practice for Cyclic Fatigue Testing of Metal Tibial Tray Components of Total Knee Joint Replacements

ASTM F1800 defines an in‑vitro cyclic constant‑amplitude force fatigue test for metallic tibial baseplates of total knee replacement implants. It simulates a worst‑case clinical scenario where one tibial condyle loses bone support, generating high bending moment on the metal tray. Test results serve for comparative laboratory ranking rather than direct prediction of in‑vivo clinical performance.

ASTM F2724 Test Method of Dislocation mobile bearing Knee –

ASTM F2724 provides a standardized in‑vitro method to evaluate whether a mobile‑bearing total knee can resist dislocation modes where the mobile insert either: spin‑out and spit‑out failure modes of the UHMWPE bearing insert.

ASTM F2722 Test of Mobile Bearing Knee Tibial Baseplate Rotational Stops –

ASTM F2722 is an in-vitro laboratory standard that assesses the mechanical performance and structural integrity of rotational stop features in mobile-bearing total knee replacement (TKR) prostheses under simulated deep-flexion daily activities.

ASTM WK51649 Femoral knee component fatigue testing system –

ASTM WK51649 Femoral knee component fatigue testing system - Fatigue Testing of Total Knee Femoral Components Under Closing Conditions

ASTM WK51649 is a draft standard (work item) under development by ASTM Committee F04.22 on Arthroplasty . It proposes a test method for evaluating the fatigue resistance of total knee femoral components under closing conditions, similar in scope to ASTM F3210. (ASTM F3210-22e1 Standard Test Method for Fatigue Testing of Total Knee Femoral Components Under Closing Conditions)


ASTM WK51649 Fatigue testing of the metal femoral component of a total knee joint prosthesis is conducted to establish the F-N curve at different load levels and to determine the fatigue limit of the sample under 10 million cycles.

ASTM F3210 Fatigue Testing of Total Knee Femoral Components – ASTM F3210 Fatigue Testing of Total Knee Femoral Components is intended to determine the fatigue behavior of knee femoral components under closing conditions. This test method simulates a clinically severe condition in which all bony support is lost, and one single condyle supports the complete load at 90° of tibiofemoral flexion.
ASTM F2777 knee bearing (tibial insert) endurance fatigue test and deformation under high flexion –

ASTM F2777 knee bearing (tibial insert) endurance fatigue test and deformation under high flexion


Used to evaluate the durability and deformation performance of knee joint pads under high bending load conditions. It simulates the stress and deformation of the knee joint during daily activities, such as walking, running, and the impact and pressure experienced during sports. During the tests, specific testing equipment and simulated physical movements are used to apply continuous and high-frequency loads to the knee joint, mimicking actual usage scenarios. By assessing the performance variations of knee joint pads under different bending cycles, such as deformation resistance, rebound performance, and durability, it is possible to determine the quality and lifespan of the pads, providing a basis for the design and improvement of knee protection products. This testing method is of great significance for the research and development as well as quality control of knee protection devices and sports goods.

FAQs for ISO 14879‑1 Tibial Tray Endurance Test

1. What is ISO 14879-1?

A: ISO 14879-1 is an International Standard titled Implants for surgery — Total knee-joint prostheses — Part 1: Determination of endurance properties of knee tibial trays (2nd edition, ISO 14879-1:2020). It specifies a laboratory test method for evaluating the fatigue/endurance behaviour of the metallic tibial tray (the metal baseplate that carries the plastic insert) used in total knee replacements. It was developed by ISO/TC 150/SC 4, Bone and joint replacement.


2. Which components are in scope, and what is excluded?

A: In scope: tibial trays that cover both the medial and lateral tibial plateaux — with or without a central stem/keel. Excluded: tibial components made solely of plastic (all-UHMWPE) components. The standard also does not specify how to examine or report the final condition of the specimen; that is agreed between the test laboratory and the party submitting the specimens.


3. How is the loading point determined?

A: Two routes are given: (a) for biconcave trays, at the intersection of the tray with a line drawn normal to the tray passing through the deepest part of the articular recess; (b) for all other designs, assemble the femoral component, tibial insert and tray at 0° flexion and determine the centre of pressure (pressure-sensitive film, removable dye, 3-D CAD or component drawings). The resulting ML moment arm (d_ml) and AP moment arm (d_ap) must be measured and reported.


4. How long does one test take?

A: At the standard maximum of 10 Hz, 10 million cycles take roughly 1 million seconds ≈ 11.6 days of continuous running per specimen. This is why the standard allows higher frequencies only with documented dynamic-calibration evidence, and why long-term stability, low drift and unattended operation are critical machine requirements.


5. Why is the test important for the material and the implant design?

A: Because fatigue — not static strength — governs tray survival. Each gait cycle applies a bending moment (F × moment arm) to the unsupported condyle, and failure occurs far below the static yield load. The test simultaneously exposes the influence of:

Material — alloy (CoCrMo, Ti-6Al-4V), heat treatment, cast vs. forged vs. additively manufactured;

Manufacturing — surface finish, residual stresses, porous coating or sintered bead layers, welds, notches and stress concentrations around the keel/stem junction;

Design — tray thickness, keel/stem geometry, peripheral rim, modular locking features.

It also delivers vertical-deflection data, giving an early signature of stiffness loss and crack initiation.


6. Why is standardisation of the method so important?

A: Only a fixed waveform, force accuracy, alignment tolerance, support position, spacer geometry, frequency and termination rule make results comparable and reproducible between laboratories and between designs. Both ISO 14879-1 and its US counterpart ASTM F1800 exist specifically so that fatigue data on tibial trays can be correlated across labs and used to compare different designs under similar conditions.


7. What is the difference between ISO 14879-1 and ASTM F1800?

A: They are parallel, technically equivalent practices. ASTM F1800 (Standard Practice for Cyclic Fatigue Testing of Metal Tibial Tray Components of Total Knee Joint Replacements, current version F1800-19) is the ASTM (F04.22) document; ISO 14879-1 is the ISO version. Both use the same cantilever, one-unsupported-condyle, constant-amplitude force concept and the same 10-million-cycle order of magnitude. Laboratories commonly configure a single test system to satisfy both, since the fixture, load frame and control requirements overlap heavily.


8. Can tested specimens be reused or implanted?

A: No. Clause 9 requires that tested prostheses never be used for clinical purposes. Care is also needed if they are reused for further mechanical testing, because the loading regime may already have altered their mechanical properties.


9. Does the test predict clinical (in-vivo) performance?

A: No — the standard explicitly states that correlation of test results with in-vivo performance has not been established. Results are a comparative design-verification and quality-control tool, not a life-prediction model. Environment can also affect fatigue for some materials, so the test environment must be defined and reported.


10. What must the test report contain?

A: Reference to the standard with year; sample size; specimen identity (thickness, size, d, w, materials); all test conditions — Fmax, runout, frequency (plus rationale if >10 Hz), waveform rationale, spacer material/diameter/thickness and deviations, indenter diameter, centreline locations, worst-case rationale, side of load application, d_ml, d_ap and fixation method; whether replacement spacers were used; results (cycles applied, failure mode, fracture location, end-of-test description); deflection limit, measurement method and measurement point if used; and the test environment.


11. What capacity of testing machine do I need?

A: Force levels are modest (typically 900–3000 N peak), so capacity is not the constraint — control accuracy, cycle count and long-duration stability are. In practice, laboratories choose a 1–5 kN class dynamic frame (electrodynamic or servo-hydraulic) with: force accuracy within ±2 % of Fmax, sinusoidal force control, 10 Hz+ capability, a counter that runs reliably past 10⁷ cycles, low inertial error (important when testing in a fluid bath), and a fixture interface that holds the ±1 mm / ±2° support tolerance.


12. Why choose ISO 14879‑1 Tibial Tray Endurance Fatigue Testing Machine from UnitedTest?

A: UnitedTest is professional manufacturer for ISO 14879‑1 knee tibial tray endurance testing machines. Our dynamic fatigue test system and complete fixture kits perform cantilever cyclic fatigue test for metallic total knee tibial baseplates, fully complying with ISO 14879‑1:2020 standard, supporting medical implant R&D, quality verification and regulatory documentation.


ISO 14879‑1:2020 specifies laboratory cyclic endurance test method for metallic tibial trays of total‑knee joint prostheses, evaluating fatigue resistance under simulated physiological cantilever bending loads. This test is essential pre‑clinical validation for orthopedic implant manufacturers for global medical device regulatory submissions.

UnitedTest supplies complete ISO 14879‑1 test solution including dynamic fatigue testing machine, custom cantilever test fixtures, standard R16 mm spherical load applicator, UHMW‑PE spacers and supporting test SOP documents.


✅ Core system features for ISO 14879‑1 compliance

  1. Precise sinusoidal cyclic force control, applied‑force error ≤ ±2 % at maximum test force, meets ISO 7500‑1 calibration requirement.

  2. Test frequency range: 0.1 Hz‑10 Hz for standard test; supports higher‑frequency testing with dynamic calibration validation.

  3. Full cantilever fixture set: holds tibial tray specimen as cantilever beam, meets linear & angular tolerance requirements for centreline alignment.

  4. Integrated cycle counting and real‑time vertical deflection measurement; auto‑stop function for fracture / crack / deflection‑limit events.

  5. Standard accessories: Φ13 mm spacer kit, spherical indenter (R16 mm), embedding tools for bone‑cement / epoxy resin specimen mounting.

  6. Long‑term stable running for up to 10 million high‑cycle fatigue test runs for run‑out requirement defined in ISO 21536.

  7. Custom fixture modification available for asymmetric tibial tray geometries, different tray sizes and stem/keel designs.


✅ Typical application scenarios‑ New knee implant product R&D & material comparison test ‑ Durability verification for titanium / cobalt‑chromium tibial baseplates ‑ Worst‑case condition fatigue assessment for medial / lateral condyle loading ‑ Generate objective test data for medical‑device regulatory reports ‑ In‑house quality control for orthopedic implant factories and accredited test laboratories


✅ Related supported standardsISO 14879‑1, ISO 21536, ISO 7207‑1, ASTM F1800 and other orthopedic implant fatigue test standards.

As a reliable testing‑machine manufacturer, UnitedTest delivers ready‑to‑use ISO 14879‑1 test setup, on‑site commissioning, operator training and after‑sales support for worldwide medical implant customers. Contact us for your tibial tray endurance fatigue test solution.
