ISO 10639 GRP UP Resin Piping System Test Machine | UnitedTest

ISO 10639 specifies requirements for glass‑reinforced thermosetting plastics (GRP UP resin) pressure and non‑pressure water supply piping systems including pipes, fittings and joints. UnitedTest manufactures full‑range ISO‑compliant GRP pipe testing machines for mechanical and hydrostatic‑pressure performance qualification.

ISO 10639 is an international standard for plastics piping systems for pressure and non‑pressure water supply, covering glass‑reinforced thermosetting plastics (GRP) systems built with unsaturated polyester (UP) resin. The standard applies to complete system components including pipes, various fittings such as bends, tees, reducers, saddles and flange adaptors, alongside flexible and rigid joints, both end‑thrust‑bearing and non‑end‑thrust‑bearing joint designs.

These GRP UP resin piping products are primarily intended for buried installation, and can also be deployed for above‑ground service with appropriate additional structural support design. Its nominal size scope covers DN 50 up to DN 4000, with a maximum service temperature of 50 °C for water conveyance applications.

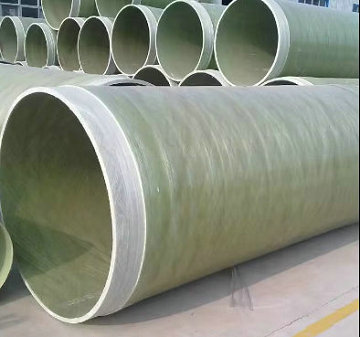

ISO 10639 Mechanical Test of GRP-UP Water-supply Piping

ISO 10639 outlines product requirements, classification rules and acceptance criteria, while referencing dedicated separate ISO standards to carry out detailed test procedures. For test equipment manufacturers like UnitedTest, key testing scopes cover critical mechanical performance tests including ring stiffness, ring deflection and tensile properties, together with hydrostatic‑pressure‑related tests such as short‑term burst pressure, sustained long‑term internal pressure, cyclic internal pressure and joint hydrostatic tightness evaluation.

UnitedTest designs and manufactures comprehensive testing machines compliant with ISO 10639 specifications, supporting full‑product‑range qualification, factory quality control and third‑party laboratory certification for GRP UP resin water supply piping systems.

Major Mechanical & Pressure‑related Tests Specified in ISO 10639

1, Initial Specific Ring Stiffness Test	Measure pipe resistance to external ring deflection; determine initial ring stiffness
Test standard	ISO 7685
Test Equipment	Ring‑stiffness compression test machine, flat parallel loading platens, high‑precision displacement transducers, dimension‑measuring tools . Two permissible operation modes: constant‑load method or constant‑deflection method.
Test Specimen info	Ring cut‑outs from production pipe; specimen length Lp=0.3m ± 5%; 2 pieces for type‑test.
Test Procedure	Compress pipe ring to controlled relative ring‑deflection (2.5 %‑3.5 %). Record force‑deflection data, calculate specific ring‑stiffness. The measured S0 shall not be lower than minimum value corresponding to SN class.
2, Initial Ring‑Deflection Failure Test	Verify pipe can sustain specified diametral compression without bore cracking and without structural failure (delamination, fibre breakage, wall buckling, liner separation).
Test standard	ISO 10466
Test Equipment	Same ring‑compression loading frame as ring‑stiffness test, displacement logging, visual‑inspection setup.
Test Specimen info	Ring segments of length 0.3 m ±5 %; 3 specimens per type‑test.
Test Procedure	Apply compression load to achieve tabulated minimum relative ring‑deflection corresponding to SN class. After reaching target deflection, inspect specimens without magnification: 1. No inner‑surface bore crack at the bore‑cracking‑threshold deflection; 2. No structural failure at higher structural‑failure‑threshold deflection.
3, Long‑term Ultimate Wet Ring‑Deflection Test	Get long‑term ultimate ring‑deflection under wet soaking condition; derive deflection regression ratio R_R,dv; extrapolate 50‑year deflection performance for buried external‑load design
Test standard	ISO 10471
Test Equipment	Compression loading frame, water immersion tank for wet‑condition ageing, displacement sensors, time‑recording system.
Test Specimen info	Pipe ring segments (0.3 m length); minimum 18 test‑pieces for regression analysis; failure times must be distributed across 0.3 h ~ > 10 000 h with at least one specimen exceed 10 000 h failure time.
Test Procedure	Run sustained‑deflection creep test under water‑soaked environment. Record failure time for each specimen. Use regression analysis per ISO 10928 to compute extrapolated 50‑year wet ultimate relative ring‑deflection.
4, Long‑term Specific Ring‑Creep / Relaxation Stiffness	Determine wet‑creep‑factor and wet‑relaxation‑factor; calculate 50‑year long‑term ring‑stiffness from initial stiffness for buried pipe external‑load design.
Test standard	ISO 10468, ISO 14828
Test Equipment	Ring‑loading test bench with sustained‑load (creep) or sustained‑deflection (relaxation) control, water‑soaking tank, long‑term displacement‑logging system for > 10 000 h monitoring.
Test Specimen info	Two ring‑specimens of 0.3 m length.
Test Procedure	- Creep test (ISO 10468): apply constant initial strain 0.13 %‑0.17 %; - Relaxation test (ISO 14828): apply constant initial strain 0.35 %‑0.40 %; Measure deflection over log‑time intervals, compute wet‑creep‑factor / wet‑relaxation‑factor as ratio of long‑term stiffness / initial stiffness. Manufacturer shall declare these factors for design use.
5, Longitudinal Tensile‑property Test	Measure pipe longitudinal tensile strength and elongation‑to‑break; verify capability to resist axial end‑thrust from internal pressure for end‑load‑bearing pipes.
Test standard	ISO 8513
Test Equipment	Universal tensile test machine for fibre‑reinforced plastics (ISO 527‑4 /‑5), extensometers, dimension‑measuring tools.
Test Specimen info	Machined tensile coupons cut from pipe wall; multiple samples from three different production pipes of same DN‑SN‑PN grade.
Test Procedure	Perform tensile test per ISO 8513. Requirement: minimum average specific longitudinal tensile strength and minimum elongation‑to‑break ≥ 0.25 %. For end‑thrust‑resisting pipes, strength shall satisfy formula‑calculated minimum value from design pressure and mean diameter d_m.
6. Initial Circumferential (Hoop) Tensile / Short‑term Burst‑pressure Test	Determine initial failure pressure p₀ (short‑term burst pressure) and hoop tensile strength; input parameter for pressure regression design calculation. Multiple allowed test methods (A‑F); method A is reference full‑pipe burst test.
Test standard	ISO 8521
Test Equipment	Hydrostatic burst test bench for GRP pipe, end‑closure fixtures (uni‑axial or bi‑axial stress condition depending on joint‑type design), pressure‑transducer, failure‑detection sensors.
Test Specimen info	Method A (full‑pipe burst): pipe segments with free‑length according to DN: DN ≤ 250: free‑length = 3·DN + 250 mm; DN > 250: free‑length = DN + 1000 mm. Specimens from three different pipes of same grade. Other methods use curved wall coupons of defined width (25 mm / 50 mm etc.).
Test Procedure	Pressurize specimen until burst failure; record failure pressure; convert hoop‑tensile strength to failure‑pressure value.
7, Sustained Internal‑pressure Long‑term Failure Test (Hydrostatic Regression Test)	Generate long‑term hydrostatic‑failure data for regression analysis, verify 50‑year long‑term pressure performance with specified safety‑factors for mean and 97.5 % lower‑confidence‑limit.
Test standard	ISO 7509
Test Equipment	Multi‑station sustained hydrostatic‑pressure test system, pressure‑control units, leak / burst‑failure detection, timer‑logging equipment, end‑closure fixtures.
Test Specimen info	Full pipe segments with free‑length same as ISO 8521 Method A; ≥ 18 test‑pieces. Failure times must distribute between 0.1 h to > 10 000 h; at least one specimen failure time > 10 000 h.
Test Procedure	Apply different constant internal‑pressure levels to specimens; record time‑to‑failure for each specimen. Process data with ISO 10928 regression method to get projected p6 (6‑min) and p50 (50‑year) failure pressure, calculate pressure‑regression‑ratio.
8, Cyclic Internal‑pressure Fatigue Test	Simulate surge / repeated pressure fluctuation in water‑supply pipeline; verify resistance to pressure‑cycling damage.
Test standard	ISO 15306
Test Equipment	Hydrostatic cyclic‑pressure fatigue test rig, water as pressure‑transmission medium, cycle‑count recorder.
Test Specimen info	One full‑pipe specimen; free‑length follow Table 15; DN ≤ 600 only for this test. End‑closures shall apply uni‑axial stress (non‑end‑load‑bearing joint design) or bi‑axial stress (end‑load‑bearing joint design) accordingly.
Test Procedure	Cycle pressure between 0.75 · PN bar and 1.25 · PN bar, mean pressure = PN. Requirement: no leakage / weeping after minimum 1 000 000 cycles.
9, Joint Performance Hydrostatic Tests	Different joint categories reference dedicated ISO test standards: 1. Flexible non‑end‑load‑bearing joints: ISO 8639; 2. Flexible locked socket‑spigot (end‑load‑bearing): ISO 7432; 3. Wrapped / cemented rigid joints: ISO 8533; 4. Bolted flange rigid joints: ISO 8483.

Industrial Application Fields

1. Municipal water‑supply Potable raw‑water transmission pipelines (buried main pipelines, distribution mains DN 50 ~ DN 4000). Mark‑letter “P” for drinking‑water grade pipe, must comply with national potable‑water material‑contact regulations.

2. Irrigation & agriculture: Large‑scale farm irrigation pressure / gravity pipelines.

3. Industrial water‑system: Cooling‑water, process‑water, salt‑water / seawater conveyance for power‑plant penstock, chemical‑plant, desalination project.

4. Pipe rehabilitation: Slip‑lining renovation of old water‑pipes.

5. Buried civil infrastructure: Mainly buried installation; also permitted for above‑ground / sub‑aqueous service if additional support and environmental‑degradation design is performed.

Note: ISO 10639 is for water‑supply. For sewer / drainage GRP‑UP piping the companion standard is ISO 10467
