ISO 3127 Thermoplastics pipes -- Determination of resistance to external blows -- Round-the-clock method
ISO 3127 specifies a method for the determination of the resistance to external blows of thermoplastics pipes of circular cross-section; it is called the round-the-clock method. It applied in the plastics piping industry, particularly for manufacturers and quality control laboratories dealing with fluid transport systems (e.g., water supply, drainage, gas pipelines). It is used for testing isolated batches of pipes as well as monitoring continuous production runs.

Test Principle

The core principle of the ISO 3127 test is to subject pipe specimens to controlled external blows using a falling weight (striker) dropped from a specified height. The striker hits predefined positions around the pipe's circumference (typically 12 positions, like a clock face).

The main goal is to estimate the True Impact Rate (TIR)—the percentage of blows that would cause the pipe to fail if the entire batch were tested. The test's severity can be adjusted by changing the mass of the striker or the drop height. A maximum acceptable TIR of 10% is the standard benchmark for pass/fail criteria. TIR is calculated as the total number of failures divided by the total number of blows, expressed as a percentage, representing the estimated failure rate for the entire batch.

ISO 3127 Plastics Pipe falling weight impact test

ISO 3127 Test Method

The round-the-clock method is a statistical impact test that subjects pipe specimens to controlled blows from a falling weight striker at multiple positions around the pipe circumference (hence the name "round-the-clock"). The test is primarily designed for isolated batches tested at 0°C (information is also provided for continuous production sampling).

Test Equipment required for ISO 3127:

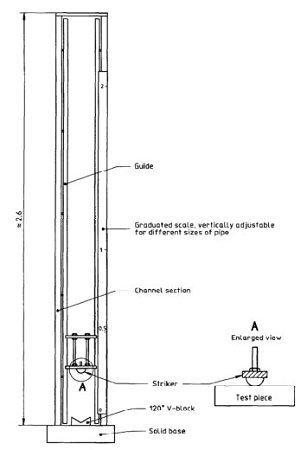

A UnitedTest Falling-weight testing machine for ISO 3127 comprising the following key components:

Component	Specifications
Falling-weight testing machine	Main frame with rigid vertical guide rails/tube; striker release mechanism ensuring free vertical fall; speed at impact ≥95% of theoretical free-fall speed.
Striker	Strikers weighing 0.5 kg and 0.8 kg must have a type d25 nose. Strikers heavier than 0.8 kg must have a type d90 nose. The nose is a hemispherical steel tip (minimum 5 mm wall thickness) mounted on a cylindrical stem. It must be free of visible scratches or dents. Specified dimensions based on mass.
Striker masses	Select from: 0.25kg, 0.5kg, 0.8kg, 1.0kg, 1.25kg, 2.0kg, 2.5kg, 3.2kg, 4.0kg, 5.0kg, 6.3kg, 8.0kg, 9.1kg, 10.0kg, 12.5kg, 13.6kg, 16.0kg, 20.0kg, 25.0kg
Support device	120° V-block or flat plate support matching pipe diameter; rigidly fixed to prevent movement during impact
Temperature control device	Environmental chamber or bath maintaining test temperature (0°C ± 1°C) for conditioning and testing
Measuring instruments	Calibrated height gauge (accuracy ±1 mm); balance for striker mass (accuracy ±0.5%); calipers for pipe dimensions (accuracy ±0.1 mm)

Test Specimen Information

Dimensions: Specimens are cut into lengths of 200 mm ± 10 mm.

Preparation: The cut ends must be perfectly square to the pipe's axis, clean, and undamaged.

Markings: For pipes with an outside diameter greater than 40 mm, equidistant longitudinal lines are drawn around the circumference to dictate the exact impact points. The number of lines depends on the pipe diameter (e.g., 3 lines for 50-63 mm pipes, up to 16 lines for pipes ≥ 315 mm). Pipes ≤ 40 mm do not require these markings as they only receive one blow per specimen.

Test Parameters details:

Parameter	Standard Value	Purpose
Test temperature	0°C ± 1°C (standard); -20°C (optional for lower temp testing)	Simulates cold weather conditions that reduce impact resistance
Drop height	Typically 2000 mm (adjustable based on pipe dimensions and material)	Controls impact energy (Energy = mass × gravity × height)
Impact positions	12 equally spaced positions (30° apart) around circumference	Ensures uniform assessment of circumferential impact resistance
Striker mass	Selected based on pipe diameter, wall thickness, and material type	Controls impact energy level appropriate for pipe characteristics
Impact energy	Calculated as mass × 9.81 m/s² × height (J)	Determines severity of impact test
Failure criteria	Any visible shattering, cracks, splits, or through-wall damage observed by naked eye	Defines unacceptable damage levels

Test Stipulations:

Temperature: The standard test temperature is 0°C ± 1°C. (If testing below zero is required, -20°C is recommended).

Conditioning: Specimens must be conditioned at the test temperature for a minimum period depending on their wall thickness:

Wall thickness ≤ 8.6 mm: 15 mins (liquid bath) or 60 mins (air).

8.6 mm < Wall thickness ≤ 14.1 mm: 30 mins (liquid bath) or 120 mins (air).

Wall thickness > 14.1 mm: 60 mins (liquid bath) or 240 mins (air).

Testing Window: To prevent temperature fluctuation, specimens must be tested within a very short time after removal from the conditioning environment (e.g., within 10 to 30 seconds, depending on wall thickness and conditioning medium). If this window is missed, the specimen must be re-conditioned for at least 5 minutes.

Definition of Failure: A failure is defined as shattering, or any crack/split on the inside of the pipe caused by the impact that is visible to the naked eye. Simple indentation is not considered a failure.

Details ISO 3127 test procedures:

1, Setup: Place the conditioned test specimen into the V-block support.

2, Single Blow (Pipes ≤ 40 mm): Drop the striker onto the specimen once.

3, Multiple Blows (Pipes > 40 mm): Drop the striker onto the first marked line. If the specimen survives (no failure), rotate it to the next marked line. Re-condition the specimen if necessary, and deliver another blow. Repeat this until the specimen fails or all marked lines have been tested.

4, Continuous Testing: If required, take subsequent specimens from the batch and subject each to a single blow until enough data is gathered.

5, Evaluation: Count the total number of blows and the number of failures. Compare these results against the statistical tables provided in the standard to determine if the batch passes (Region A), fails (Region C), or requires more testing (Region B) based on the 10% TIR limit.

Test Application (Industry Fields)

Water supply and distribution: PVC, PE, and PP pipes for potable water transmission

Gas distribution: HDPE pipes for natural gas and LPG transportation

Sewerage and drainage: Thermoplastic pipes for wastewater and stormwater systems

Chemical processing: Pipes for transporting corrosive fluids

Oil and gas industry: Pipeline transportation of hydrocarbons

Construction: Underground and above-ground piping systems

Agriculture: Irrigation and drainage pipe systems

Related test standard:

EN 744	European standard, Plastics piping and ducting systems. Thermoplastics pipes. Test method for resistance to external blows by the round-the-clock method
GBT 14152	China standard, equivalent with ISO 3127
ISO 11173	Thermoplastics pipes - Determination of resistance to external blows - Staircase method
EN 1411	PLASTICS PIPING AND DUCTING SYSTEMS. THERMOPLASTICS PIPES. DETERMINATION OF RESISTANCE TO EXTERNAL BLOWS BY THE STAIRCASE METHOD.
NF T54-9106	Plastics piping and ducting systems. Thermoplastics pipes. Determination of resistance to external blows by the staircase method.
TCVN 6144	Thermoplastics pipes. Determination of resistance to external blows. Round-the-clock method
EN 1705	Plastics piping systems — Thermoplastics valves — Test method for the integrity of a valve after an external blow‌
ASTM D2444	Standard Practice for Determination of the Impact Resistance of Thermoplastic Pipe and Fittings by Means of a Tup (Falling Weight)
ASTM D5628	Standard Test Method for Impact Resistance of Flat, Rigid Plastic Specimens by Means of a Falling Dart (Tup or Falling Mass)
ASTM D5420	Standard Test Method for Impact Resistance of Flat, Rigid Plastic Specimen by Means of a Striker Impacted by a Falling Weight (Gardner Impact)

Pipe Falling Hammer Impact Testing Machine for assessing the impact resistance and toughness of plastic and metal pipes, offering controlled hammer energy, accurate impact measurement, and reliable quality evaluation for industrial and laboratory testing.

Q1. What is the primary purpose of the ISO 3127 test?

A: The primary purpose of the ISO 3127 test is to evaluate the impact resistance of thermoplastic pipes (such as PVC, HDPE, and PP) when subjected to external blows. It simulates real-world scenarios where pipes might be dropped during transportation/handling or subjected to sudden mechanical shocks during installation and service. The test helps determine if a pipe batch meets the required durability standards to prevent catastrophic failures in the field.

Q2. What types of pipes are suitable for testing under ISO 3127?

A: This standard is specifically designed for thermoplastic pipes with a circular cross-section. It is widely used across various industries, including water supply, drainage, sewage, and gas distribution systems, to ensure the pipes can withstand external physical stresses.

Q3. How is the "True Impact Rate" (TIR) defined in this standard, and why is it important?

A: The True Impact Rate (TIR) is the percentage of total failures divided by the total number of blows, representing the estimated failure rate of the entire batch. According to ISO 3127, a pipe batch is generally considered acceptable only if its TIR is less than or equal to 10%. This statistical approach allows manufacturers and quality control labs to evaluate large production batches accurately without having to test every single pipe.

Q4. Why is the ISO 3127 test crucial for manufacturers and end-users?

A: This test is vital for two main reasons:

Quality Assurance: It acts as a reliable benchmark for manufacturers to maintain consistent production quality and detect potential weaknesses in their extrusion processes or material formulations.

Safety and Cost-Efficiency: Pipes that fail to meet the ISO 3127 impact resistance criteria are highly likely to crack or shatter under stress, leading to leaks, environmental hazards, and expensive repair works. Passing this test guarantees the longevity and structural integrity of the piping infrastructure.

Q4: Why set the standard test temperature at 0 °C?

A: 0°C is the typical critical low temperature in most regions. At this temperature, plastic pipes are most prone to brittle fracture, which can truly reflect the worst-case impact resistance performance.

Q5: What phenomenon is defined as test failure?

A: Visible cracks, splits, penetrating damage, breakage and shattering on pipe surface after impact are all judged as failure.

Q6: What is the difference between ISO 3127 and ISO 4422?

A: ISO 3127 = Round-the-clock multi-position impact method; ISO 4422 = Single point concentrated blow impact method, two alternative impact test standards for plastic pipes.

Q7: How long should the interval be between two impacts?

A: At least 10 seconds interval, to avoid local temperature rise affecting test accuracy.

Q8: What is the main influence factor of impact energy in this test?

A: Determined by striker mass and free drop height, higher mass or higher drop height means larger impact energy.

We offer customization to meet your specific needs. Our expert team will collaborate with you to develop the perfect product for you
