ISO 2505 Thermoplastic Pipe Longitudinal Reversion Tester | UnitedTest

UnitedTest is a professional manufacturer of ISO 2505 longitudinal reversion testers, designed to deliver accurate dimensional stability testing for thermoplastic pipes in compliance with the latest international standard requirements.

ISO 2505 specifies standardized test methods and technical parameters to evaluate longitudinal reversion — the heat-induced length change of thermoplastics pipes. The standard authorizes two reliable heating mediums for laboratory testing: heated liquid bath and air oven, enabling flexible and professional thermal performance evaluation for various plastic pipe products.

Updated version of ISO 2505 expands its applicable material scope, covering mainstream advanced pipe materials including PE 100-RC, PB-H, PB-R, PE-RT, PP-RCT and PE-UHMW. This test effectively assesses thermal deformation resistance and structural stability, serving as essential quality control and material verification criteria for thermoplastic pipe manufacturing.

Our UnitedTest ISO 2505 pipe reversion tester fully complies with updated 2023 standard rules, supporting both heating test modes and delivering consistent, repeatable longitudinal reversion test data for industrial pipe R&D and batch quality inspection.

The longitudinal Reversion rate of pipe materials refers to the percentage change in length of thermoplastic pipe materials under specific temperatures, used to assess the thermal contraction properties of the material. The measurement method is based on the national standard ISO 2505, GB/T 6671-2001, (TCVN 6148 standard equivlent with ISO 2505).

Test Principle

Thermoplastic pipes retain internal residual stress generated during extrusion and cooling. When exposed to controlled high temperature, internal stress releases and causes permanent length contraction (or minor elongation). The test principle follows three core steps:

1, Mark a fixed reference length on conditioned pipe specimens and measure the original distance L0 at standard ambient temperature 23±2°C;

2, Heat specimens in a temperature-controlled liquid bath or air oven for material & wall-thickness specified duration to fully release residual stress;

3, Cool specimens back to 23±2°C, re-measure the marked length L1, calculate length change ΔL = L0-L1;

ISO 2505 Thermoplastic Pipes Longitudinal Reversion Test (PF Heat Reversion Test)

Testing Methods

Method A (Liquid Bath Test): The sample is immersed in an inert liquid (such as glycerin or silicone oil) at 150±2°C. The insulation time is calculated based on the wall thickness (usually 1 min/mm). After cooling, the change in length is measured. This method is suitable for small-diameter pipes.

Method B (Air Oven Test): The sample is placed horizontally in an oven, with the temperature set according to the material type (e.g., 150±2°C for PVC, 110±2°C for PP). The time is also calculated based on the wall thickness, and after cooling, the length is measured.

This method is suitable for all pipe materials; large-diameter pipes need to be cut into four pieces for testing. Influencing FactorsThe longitudinal retraction rate is mainly influenced by the type of material, processing technology (such as extrusion speed and cooling rate), and wall thickness. UPVC pipes must be strictly controlled within standard limits (usually ≤5%) to ensure stability in use.

Test Specimen Information

Standard specimen length: 200±20mm; minimum marked test distance between two circumferential lines: 100 mm; minimum overall test length 180 mm;

Sample quantity: minimum 3 identical specimens per pipe batch for final average calculation;

Special rule for DN ≥250 mm large-diameter pipes: cut each specimen into four equal axial segments, test all 12 segments from three specimens; the maximum reversion among four segments represents one specimen’s result.

Test Equipment of ISO 2505 Thermoplastic Pipes Longitudinal Reversion Test (PF Heat Reversion Test)

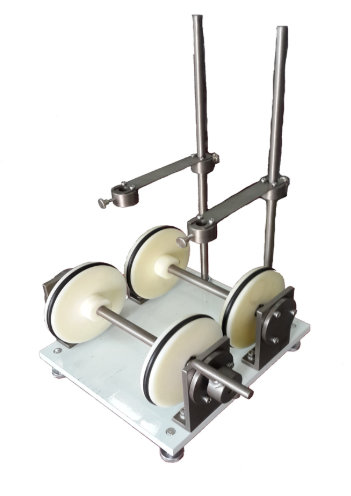

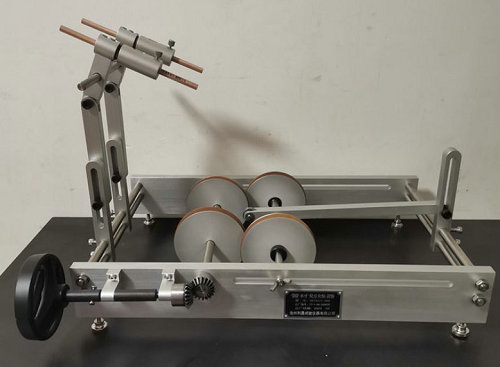

Recommend UnitedTest Longitudinal Reversion Tester (PF Heat Reversion Test Apparatus) for testing Pipes

Thermostatically controlled liquid bath	with volume and agitation to sustain uniform temperature during immersion;

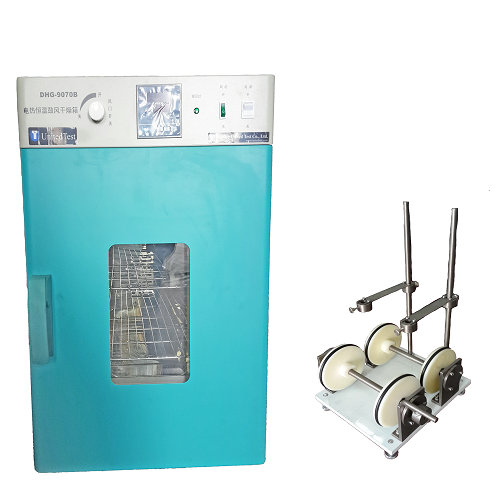

Thermostatic air oven	rapid temperature recovery, ±2°C temperature deviation tolerance;
Specimen holding fixtures	hangers or low-friction horizontal supports;

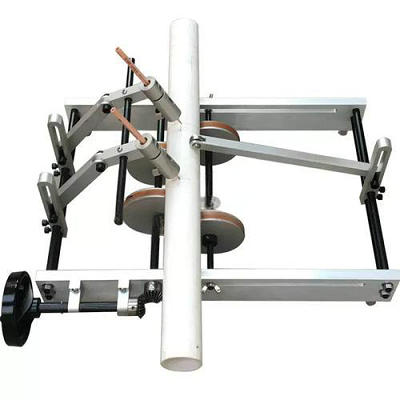

Scriber	to engrave clear circumferential axial reference marks on pipe outer surface
Vernier calliper	measurement uncertainty ≤0.1 mm for length reading;

Core Test Parameters

Material Group	Test Temperature T_R
PVC-U, PVC-C, PVC-HI, SAN+PVC, PP-H, PP-B	150±2°C
PP-R, PP-RCT, ASA	135±2°C
PE32/40, PE50/63	100±2°C
PE80, PE100, PE100-RC, PB-H, PB-R, ABS, PE-UHMW	110±2°C
PE-RT, PE-X	120±2°C
PA-U (only air oven permitted)	150±2°C

Wall thickness upper limit: only applicable for pipes with e<16mm;

Heating duration strictly determined by wall thickness and test method (liquid bath / air oven);

Full Standard Test Procedures

Pre-measurement at 23±2°C: record original marked length L0 with precision ≤0.25 mm;

Preheat liquid bath or air oven to material-specified T_R, stabilize temperature fully before loading specimens;

Load specimens freely without contact with equipment walls; maintain ≥30 mm liquid submersion depth for bath testing;

Start timing only after equipment recovers target temperature; hold for required exposure time;

Remove specimens and cool in the same orientation inside the bath/oven environment to avoid forced deformation;

After natural cooling to 23±2°C, hold for extra minimum 1 h to stabilize dimensions;

Measure maximum and minimum marked distances across diametric opposite sides, following pipe surface curvature;

Record visual defects (bubbles, cracking, discoloration) as failure evidence regardless of reversion percentage.

Recommended Maximum Reversion Limits

Material	Maximum Allowable Reversion
PVC-U, PVC-C, PVC-HI, SAN+PVC, ABS, ASA	<5%
All PE grades (PE32 to PE-UHMW), PE-RT, PE-X, PA-U	<3%
PB-H, PB-R, PP-H, PP-B, PP-R, PP-RCT	<2%

Test Application & Industry Fields

1 Applicable Pipe Scope

Eligible pipes: smooth inner & outer wall thermoplastic pipes with uniform constant cross-section, wall thickness <16 mm;

Excluded pipes: structured-wall corrugated plastic pipes (non-smooth surface).

2 Covered Thermoplastic Materials

PVC-U, PVC-C, PVC-HI, SAN+PVC, PA-U, all PE series (PE32/40/50/63/80/100/100-RC, PE-RT, PE-X, PE-UHMW), PB-H/PB-R, PP-H/PP-B/PP-R/PP-RCT, ABS, ASA.

3 Industrial Application Scenarios

Municipal water supply & drainage pipelines (PE, PP, PVC pressure & gravity pipes);

Domestic hot/cold plumbing systems (PP-R, PB, PE-RT, PE-X);

Industrial fluid transport plastic piping;

Irrigation plastic pipeline systems;

Factory incoming raw material inspection, extrusion production quality control, third-party product certification;

Engineering design and on-site material acceptance testing for thermal dimensional stability assessment.

Related Test Standard:

ISO 2505	Thermoplastics pipes — Longitudinal reversion — Test method and parameters
ISO 2506	Polyethylene pipes (PE); Longitudinal reversion; Test methods and specification
EN 743	Plastics Piping and Ducting Systems - Thermoplastics Pipes - Determination of the Longitudinal Reversion
TCVN 6148	Thermoplastics pipes.Longitudinal reversion.Test method and parameters
GB/T 6671	Thermoplastics pipes-Determination of longitudinal reversion
ISO 3478	Polypropylene (PP) pipes; Determination of longitudinal reversion
ISO 3480	Polypropylene (PP) pipes; Maximum permissible longitudinal reversion
JIS K 6814-1	Thermoplastics pipes -- Longitudinal reversion -- Part 1: Determination methods
NBN T 42	Plastic pipes - Determination of longitudinal reversion after heating

Keywords: UnitedTest ISO 2505 longitudinal reversion tester, thermoplastic pipe dimensional stability test machine, ISO 2505 2023 updated pipe testing equipment, PE100-RC PE-RT PP-RCT PE-UHMW thermal reversion tester, heated liquid bath air oven pipe heat deformation test, thermoplastic pipe longitudinal reversion test per ISO 2505, heat induced length change testing for plastic pipes, ISO 2505 new material pipe thermal stability test, PE 100-RC and PP-RCT pipe thermal deformation tester, air oven & liquid bath thermoplastic pipe reversion testing equipment, industrial thermoplastic pipe dimensional change quality control tester

Pipe Size Change Measuring Tester/ Longitudinal Reversion Tester suitable to measure various kinds of plastic pipe or plastic materials size change after heating, or used to heat the test sample. It can be used as a heating oven as well.

Q1: What is ISO 2505 used to test exactly?

A1: It measures the longitudinal thermal reversion (thermal shrinkage) of smooth-wall thermoplastic pipes after controlled heating. It quantifies the percentage length change caused by releasing residual extrusion stress, and also checks surface damage like cracks or bubbles after heating. It only applies to uniform smooth-wall pipes with wall thickness e < 16 mm, not structured corrugated pipes.

Q2: What is the difference between ISO 2505:2023 and the old 2005 version?

A2: Two major technical updates:

Added test temperature/parameter rules for six new pipe materials: PE 100-RC, PB-H, PB-R, PE-RT, PP-RCT, PE-UHMW;

New mandatory rule: coiled small-diameter pipes must be fully straightened before marking specimens for testing.

All other core test principles and calculation formulas remain unchanged.

Q3: Which two heating methods are allowed by ISO 2505, and which one takes priority during disputes?

A3: Liquid heating bath and circulating air oven.

Heated liquid bath is the reference arbitration method if test results from the two methods conflict;

Air oven is an alternative method for factory routine quality control, with longer holding time required.

Q4: Why do coiled pipes need straightening before marking?

A4: Coiled pipes have permanent bending curvature from winding. If tested without straightening, residual bending stress overlaps thermal shrinkage stress, leading to inaccurate, artificially high reversion values that do not reflect real pipe performance. Straightening removes bending stress to ensure only extrusion residual stress is measured.

Q5: How many test specimens do we need for one pipe batch? What about DN ≥250 mm large pipes?

A5: Minimum 3 full specimens (200±20 mm each) per batch normally.

For pipes with nominal diameter ≥250 mm, cut each specimen into four equal axial segments (12 segments total). The maximum reversion of four segments represents one specimen’s result, then average the three specimen values for the final report.

Q6: What is the standard conditioning time before testing, and why is conditioning required?

A6: Conditioning at 23±2°C depends on wall thickness e:

e < 3 mm: 1 h

3 mm ≤ e < 8 mm: 3 h

8 mm ≤ e < 16 mm: 6 h

Conditioning stabilizes specimen temperature and eliminates temporary dimensional fluctuations caused by transport, cutting or storage temperature changes, ensuring consistent initial length measurement L0.

Q7: What liquids are acceptable for the heating bath? Are there forbidden liquids?

A7: Approved media: glycerine, glycol, aromatic-free mineral oil, calcium chloride water solution.

Forbidden liquids: solvents that dissolve, swell or chemically degrade thermoplastics (e.g., aromatic oil, ketones, strong acids). The liquid must stay stable without decomposition at the target test temperature TR.

Q8: Why do liquid bath and air oven have different exposure durations for the same pipe wall thickness?

A8: Liquid transfers heat much faster and more uniformly to the pipe wall than air convection. Therefore liquid bath uses shorter soak time (15/30 min), while air oven requires longer heating (60/120 min) to fully release internal residual stress across the full pipe wall.

Q9: The pipe shows tiny bubbles or surface cracks after heating — does the test fail even if reversion percentage meets the limit?

A9: Yes. ISO 2505 requires no surface appearance change after heating. Bubbles, cracking, blistering or discoloration indicate material degradation or poor formulation, which counts as a failed test regardless of reversion value.

Q10: Why is the ISO 2505 longitudinal reversion test critical for plastic pipes?

A10: Four key reasons:

Detect extrusion defects: Excessive shrinkage signals uneven cooling, mismatched haul-off speed or incomplete stress relief during pipe production;

Predict in-service thermal performance: Pipes carrying hot water or laid in hot soil will shrink naturally; high reversion causes joint pull-out, leakage and pipeline breakage;

Validate new material formulations: Modified grades (PE100-RC, PP-RCT) rely on this test to prove low-shrinkage performance;

Global uniform quality benchmark: Standardized test rules eliminate cross-border testing discrepancies for trade certification and quality dispute resolution.

Q11: What real pipeline failures can high longitudinal reversion cause in construction?

A11: During seasonal temperature cycles or continuous hot fluid transport, over-shrinking pipes pull pipe fittings apart, create gaps at joints, trigger water/gas leakage, and even crack pipe bodies. Installers must design expansion compensation joints based on reversion data from ISO 2505 to avoid these failures.

Q12: Which pipes cannot be tested by ISO 2505?

A12: Two main excluded categories:

Structured-wall / corrugated plastic pipes with non-smooth inner/outer surfaces;

Thermoplastic pipes with average wall thickness e ≥ 16 mm.

Q13: Can this test be used for cross-linked polyethylene (PE-X) pipes?

A13: Yes. ISO 2505:2023 lists PE-X with a specified test temperature of 120±2°C and recommended maximum reversion <3%. It verifies cross-link uniformity and residual stress after PE-X pipe manufacturing.

Q14: Why do replicate specimens from the same pipe produce inconsistent reversion results?

A14: Common root causes:

Coiled pipe segments not fully straightened before marking;

Specimens touched oven/bath walls during heating, restricting free shrinkage;

Insufficient cooling holding time (less than 1 hour after cooling to 23°C);

Uneven liquid bath temperature with poor circulation.

We offer customization to meet your specific needs. Our expert team will collaborate with you to develop the perfect product for you
