Falling Hammer Impact for metal-clad / metal-sheathed cables UL 1569

Share:

UL 1569 Clause 5.10 vs CSA C22.2 No.123 Clause 6.15 Cable Impact Test Comparison | UnitedTest

UnitedTest supplies professional falling weight impact testing machines fully compatible with both UL 1569 and CSA C22.2 No.123 standards for metal-clad and metal-sheathed cable mechanical safety certification. Our test rigs support adjustable impact energy, interchangeable specimen fixtures and short-circuit monitoring systems to meet the distinct test parameters of each specification.

Falling Hammer Impact for metal-clad / metal-sheathed cables UL 1569


Part 1: Impact Test – UL 1569 (Clause 5.10, Metal-Clad MC Cables)

1. Test Principle

Simulate accidental heavy mechanical blows (construction collision, equipment impact, trench backfill impact) that MC cables endure during installation/service. Verify that impact damage cannot create short circuits between live conductors, or between live conductors and metal armor/grounding components, to prevent electric shock and fire hazards.

2. Test Application Industry Field

Building wiring & commercial construction (NEC Article 330 Type MC cable) in the United States and Mexico.

Power distribution in industrial plants, high-rise buildings, data centers, and hazardous (Classified) locations (with UL 2225).

Direct burial and wet location installations where the cable must resist mechanical shock from soil shifting, rocks, or handling impacts.

Feeders and branch circuits up to 600 V (thermoplastic) or 600/2000 V (thermoset).

3. Test Specimen:

Round cable: A single continuous length ≥ 3.35 m; ten impacts on that length.

Flat (or oval) cable: Two separate lengths; ten impacts flatwise (broad face to weight) on one length, ten impacts edgewise (narrow face) on the other.

Representative constructions:

3 × 2.08 mm² (14 AWG) – represents cables with conductor sizes 0.824–16.8 mm² (18 AWG – 5 AWG).

3 × 33.6 mm² (2 AWG) – represents cables with conductor sizes 21.2 mm² – 1010 mm² (4 AWG – 2000 kcmil).

4. Test Equipment:

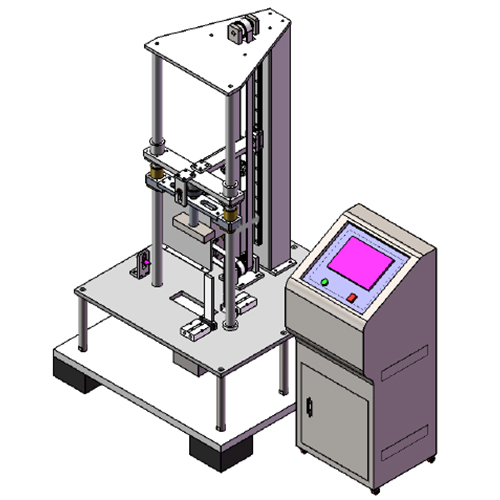

Recommend UnitedTest UT2028W Metal Sheathed Cables Falling weight impact tester UL 1569, it feature:
Fixed test baseSolid steel block (121×76×127 mm) mounted on concrete/heavy frame.
Support rod19 mm diameter solid steel rod fixed horizontally on the block’s top surface.
Drop impact weightLight weight: 4.54 kg (10 lb) for cables with ≤2 AWG conductors; drop height = 45.7 cm (1.5 ft), impact energy = 20.3 J

Heavy weight: 22.7 kg (50 lb) for cables with ≥2 AWG conductors; drop height = 30.5 cm (1 ft), impact energy = 67.8 J

Weight geometryRectangular steel block, 152 mm long × 51 mm wide striking face with 1.5 mm rounded edges; vertical guide rails for straight free fall, single-stop release mechanism to prevent repeated strikes.
Safety circuit120 V neon fault lamps to detect conductor-to-conductor / conductor-to-ground short circuits instantly upon impact.

5. Key Test Parameters

Cable Conductor SizeDrop MassDrop Vertical HeightImpact EnergyNumber of Strikes Per SpecimenAmbient Temp
≤2 AWG (2.08 mm²)4.54 kg457 mm20.3 J1024±8 °C
≥2 AWG (33.6 mm²)22.7 kg305 mm67.8 J1024±8 °C

6. Full Test Procedures

Secure the steel support rod centered on the base block, align weight vertical axis, rod axis and cable central axis on one vertical plane.

Lay the cable horizontally over the 19 mm rod at the first marked impact point, keep cable perpendicular to the rod.

Lift impact weight to specified fixed height, lock in guide rails.

Release weight for single free-fall strike on cable; record if neon lamp lights (signifies electrical short).

Lift weight back to starting position, advance cable to next 305 mm marked strike point, repeat strike and inspection.

Complete 10 sequential strikes per specimen; flat cables run two full sets (flatwise + edgewise).

7. Test Stipulation (Pass/Fail Criterion)

Test FAIL if the neon fault lamp illuminates at 2 or more of the 10 impact points on any specimen. Illumination proves insulation rupture and dangerous electrical contact between live parts/ground armor.


Part 2: Impact Test – CSA C22.2 No.123 Clause 6.15 (Metal Sheathed RA90/RC90 Cables)

1. Test Principle

A cylindrical steel impact component is dropped from a fixed height onto the cable specimen that is positioned over a 19 mm drill rod. The test uses an extra-low-voltage continuity indicator (lamp operating at 120 V) to detect short-circuits between insulated circuit conductors, or ground faults between any circuit conductor and the grounded metal sheath/grounded components.

2. Industry field of application

Canadian market – all RA90/RC90 metal-sheathed power cables installed per CSA C22.1 (Canadian Electrical Code, Part I).

Industrial, commercial, and institutional power distribution at up to 5 kV.

Underground and wet-location installations (RA90/RC90 are rated 90 °C dry and wet).

Feeder and branch circuits in mining, petrochemical, and heavy industrial settings where mechanical robustness is critical.

3. Test Specimen Information

Specimen quantity: Ten separate cable samples per construction type, each of sufficient length to span the test fixture.

Circuit pre-wiring: All non-neutral current-carrying conductors electrically bonded to metal sheath/test machine ground to form fault detection circuit.

4. Test Equipment:

Recommend UnitedTest UT2028W Metal Sheathed Cables Falling weight impact tester UL 1569, it feature:
Fixed support assemblyVertical trade size 4 steel conduit mounted to a thick 6.4 mm steel base plate, with a horizontally welded 19 mm diameter steel drill rod at the plate’s center.
Impact weights

Solid cylindrical steel mass with flat striking face, matching UL 1569 mass grading rules:

Cables <2 AWG: 4.54 kg drop weight

Cables ≥2 AWG: 22.7 kg drop weight

Drop impact weightLight weight: 4.54 kg (10 lb) for cables with ≤2 AWG conductors; drop height = 45.7 cm (1.5 ft), impact energy = 20.3 J

Heavy weight: 22.7 kg (50 lb) for cables with ≥2 AWG conductors; drop height = 30.5 cm (1 ft), impact energy = 67.8 J

Weight geometryVertical guide frame to restrict weight to vertical free fall from fixed height of 0.3 m above the cable surface.
Safety circuit120 V continuity fault tester with indicator to detect any short after each impact blow.

5. Key Test Parameters

Conductor Size ClassificationDrop MassFixed Drop HeightTotal Strikes (10 Specimens)
Smaller than No.2 AWG4.54 kg0.3 m10 separate samples, 1 strike each
No.2 AWG and larger22.7 kg0.3 m10 separate samples, 1 strike each

6. Full Test Procedures

Mount the 19 mm drill rod horizontally on the steel base plate inside the vertical conduit frame.

Place one cable specimen horizontally across the drill rod, cable axis perpendicular to the rod, centered for impact.

Raise the specified steel weight 0.3 m vertically above the cable’s top surface, lock in guides.

Release weight for single free-fall impact on the specimen.

After impact, connect the 120 V continuity tester between all live conductors and grounded metal sheath to check for short-circuit faults.

Replace with an undamaged new specimen, repeat the full impact + fault check cycle for all 10 test samples.

7. Test Stipulation (Pass/Fail Criterion)

The cable fails the test if any single specimen develops a short-circuit between live conductors and the metal sheath after impact, as detected by the continuity tester. Zero fault failures across all 10 specimens are required for compliance.


Why This Test Is Critical

MC cables are installed across job sites where falling tools, heavy construction materials, vehicle loads frequently strike cables. The impact test verifies the armor, inner jacket and conductor insulation form a robust mechanical barrier. Failure means short-circuit, ground fault, equipment burnout, fire risk or lethal electric shock for installers/occupants. It validates the cable’s mechanical safety margin for real-world field abuse.

Canadian job sites, underground burial and cable tray routing expose metal-sheathed RA90/RC90 cables to heavy mechanical shocks from excavation, heavy equipment and building materials. The impact test validates that the seamless/welded metal sheath and internal insulation maintain dielectric integrity after severe impact damage. Preventing short circuits eliminates arc flash hazards, equipment failure and fire risks for Canadian residential, commercial and industrial electrical systems required to meet CSA safety codes.


Side-by-side comparison

AspectUL 1569 §5.10CSA C22.2 No. 123 §6.15
Cable typeType MC, interlocking or smooth/corrugated armorType RA90 (Al) / RC90 (Cu) seamless or corrugated sheath
Specimen configurationOne ≥3.35 m length (round); two lengths for flat (flatwise + edgewise)Ten separate specimens, each tested once
Impacts per specimen10 impacts on a single long specimen (round)1 impact per specimen (total 10 specimens)
Drop height45.7 cm (14 AWG) / 30.5 cm (2 AWG)Fixed 0.3 m for all sizes
Impact mass4.54 kg (<2 AWG) / 22.7 kg (≥2 AWG)4.54 kg (<2 AWG) / 22.7 kg (≥2 AWG)
Impact energy20.3 J / 67.8 J~13.4 J (4.54 kg×0.3 m) / ~66.9 J (22.7 kg×0.3 m)
Acceptance criterion≤ 2 fault indications out of 10 impacts on any test lengthZero faults across all 10 specimens
Detection208 V AC supply + 3 W neon lamps per conductor120 V continuity tester with lamp
Referenced test methodUL 2556 / NMX-J-556-ANCECSA C22.2 No. 2556 (harmonized with UL 2556)
JurisdictionUS & Mexico (NEC Art. 330, NOM-001-SEDE)Canada (CSA C22.1)
Max voltage600 V (thermoplastic) / 600 V or 2000 V (thermoset)Up to 5000 V
