Basic Introduction of UTM Machine

A Universal Testing Machine (UTM) is a mechanical testing system used to evaluate the mechanical properties of materials. It is widely applied to measure properties such as tensile strength, compressive strength, bending (flexural) strength, and shear strength. The machine works by applying a controlled tensile or compressive force to a test specimen and recording how the material responds.

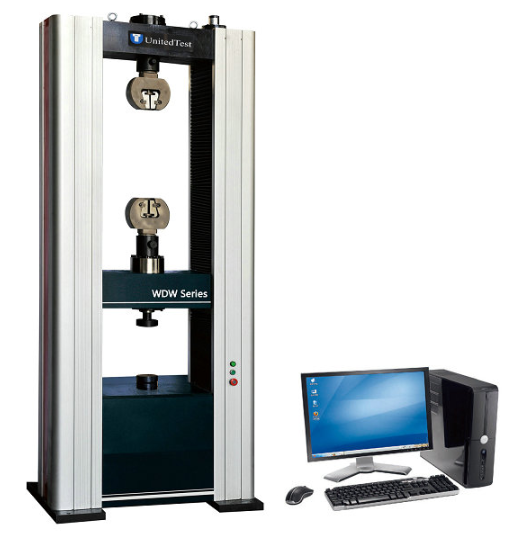

A typical UTM consists of two main components: the loading frame and the control panel. The loading frame applies the force to the specimen, while the control panel is used to set test parameters and record results.

Before testing begins, the specimen is prepared according to relevant standards for the specific material. It is then placed and securely fixed in the grips of the loading frame to ensure accurate testing.

Next, the operator sets the required test conditions through the control panel, including the type of test, loading rate, and duration. Once the machine starts, the load is gradually applied to the specimen at a controlled speed, while the system continuously records both the applied force and the resulting deformation.

After the test is completed, the machine automatically stops and displays the results on the control panel. These results typically include the maximum load the material can withstand before failure, the deformation or strain at failure, and the modulus of elasticity.

In addition to tensile testing, UTM machines can also perform other mechanical tests such as compression testing, flexural testing, and shear testing.

In summary, the Universal Testing Machine is an essential instrument for evaluating material performance. By analyzing how a specimen responds to controlled forces, it provides critical data for material selection, engineering design, and quality control.

What is a UTM Machine?

A UTM machine, also known as a Universal Testing Machine, materials testing machine, or material testing frame, is a widely used testing device designed to evaluate the mechanical properties of materials. It is commonly used to measure tensile strength and compressive strength, as well as other mechanical behaviors such as tension, compression, and transverse stress.

In addition to basic strength testing, UTM machines can perform a variety of tests, including peel tests, flexural tests, tension tests, bend tests, friction tests, and spring tests. Because of this versatility, UTM machines are often considered multi-purpose equipment used in research and development (R&D) laboratories as well as quality control (QC) departments.

Different UTM models are designed with varying capabilities and may be tailored for specific industries. They play an important role in the development and testing of infrastructure materials, roads, highways, and other engineering applications.

What Can a UTM Machine Do?

Tensile Test:

A tensile test measures how a material behaves when it is pulled apart. In this test, a sample is stretched from both ends until it breaks. The force required to break the material and the amount it stretches before failure are used to determine its tensile strength.

Compression Test:

A compression test evaluates how a material performs under pushing or crushing forces. This is the opposite of a tensile test. A controlled load is applied until the material deforms or fails. This test is commonly used to determine how much load structures such as bridge pillars, building beams, and construction materials can withstand.

In summary, a UTM machine is a versatile and essential testing instrument used to measure how materials respond to different forces, helping engineers ensure safety, performance, and reliability in real-world applications.

Other Functions of a UTM Machine

In addition to standard tensile and compression testing, a Universal Testing Machine (UTM) can also perform several specialized mechanical tests, including:

· Adhesion tests
· Pull-out tests
· Bending tests
· Hysteresis tests

These additional testing capabilities make the UTM suitable for a wide range of materials and engineering applications.

How Does a UTM Machine Work?

A UTM machine operates by applying a controlled force to a test specimen while measuring its response in terms of load and deformation.

When the start button is pressed, the system is activated and the extensometer begins recording data related to the tensile or compression test. UTMs are available in different load capacities, such as 300 kN to 1,000 kN, depending on the application requirements.

To better understand the principle, consider how rubber stretches when pulled by hand. A UTM works on the same basic concept but is designed to test much stronger materials such as iron, copper, and other engineering materials that cannot be tested manually.

The specimen is placed between two clamps (grips). These clamps gradually apply force either by pulling the material apart (tensile test) or compressing it (compression test), depending on the selected test mode and speed settings.

During the test, the machine continuously records the applied load and the corresponding displacement (how much the material stretches or deforms). In a tensile test, the machine slowly pulls the specimen from both ends until it elongates or breaks. The system measures the elongation strength and records all relevant mechanical data.

A digital control system captures and displays all results, including compression strength, tensile strength, load values, and deformation measurements, providing accurate and reliable material performance data.

How to Use a UTM Machine?

Different Universal Testing Machines (UTMs) may have different settings and levels of automation. In some models, the system can automatically calculate the displacement of the crosshead, which holds the specimen. During a tensile test, the machine also records both positive and negative slipping or movement of the specimen within the grips, ensuring highly precise measurements.

Basic Components of a UTM

A Universal Testing Machine typically includes the following main components:

· Load Frame – The main structure that supports and applies force to the specimen
· Load Cell – A sensor that measures the applied force
· Crosshead – The moving part that applies tensile or compressive load
· Extensometer / Deformation Measuring System – Measures elongation or deformation of the specimen
· Output Device – Displays and records test data such as load, displacement, and stress-strain results

Basic Working Steps

To use a UTM machine, the specimen is first placed securely between the grips attached to the crosshead. The test parameters (such as load type, speed, and duration) are then set through the control system.

Once the test begins, the crosshead moves either upward or downward depending on the type of test (tensile or compression). The machine applies a controlled force while continuously recording data from the load cell and extensometer.

During testing, the system monitors how the specimen behaves under load, including any stretching, compression, or slipping within the grips. This ensures accurate measurement of material performance.

Finally, the results are displayed on the output device, showing key data such as applied load, deformation, and stress-strain behavior, which are used for material analysis and quality evaluation.
