Universal Testing Machines: How and Why They Matter

What Is a Universal Testing Machine?

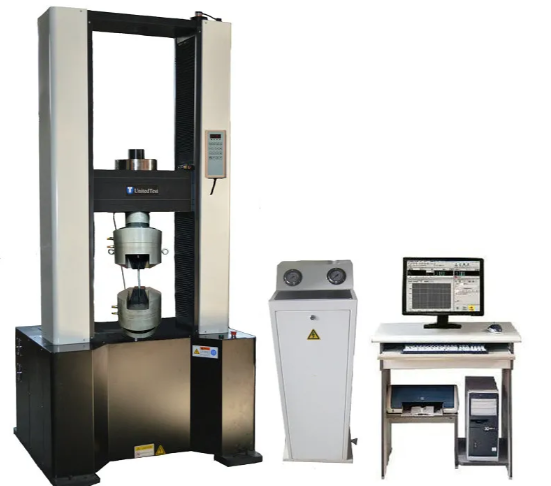

A Universal Testing Machine (UTM), also known as a materials testing machine, is used to evaluate the mechanical properties of materials, components, and finished products.

By applying a controlled tensile or compressive force, a UTM measures how a specimen behaves under specific loading conditions. The resulting data helps engineers determine properties such as tensile strength, compressive strength, elongation, deformation, stiffness, adhesion strength, and breaking force.

With suitable grips, fixtures, load cells, and testing software, a universal testing machine can perform a wide range of tests, including:

• ·   Tensile testing

• ·   Compression testing

• ·   Bending and flexural testing

• ·   Shear testing

• ·   Peel and adhesion testing

• ·   Friction testing

• ·   Component pull-out testing

• ·   Cyclic loading testing

UTMs are widely used in research and development, product validation, quality control, and compliance testing.

Main Types of Materials Testing

Materials testing methods can generally be divided into three categories.

Destructive Testing

Destructive testing applies force or impact until the specimen permanently deforms, fractures, or fails. It is used to determine the mechanical limits and failure behavior of a material or component.

Common destructive testing methods include:

• ·   Static tensile testing

• ·   Compression testing

• ·   Shear testing

• ·   Hardness testing

• ·   Creep testing

• ·   Bending and flexural testing

• ·   Fatigue and cyclic testing

• ·   Charpy impact testing

• ·   Izod impact testing

• ·   Ball-drop testing

• ·   Dart-drop testing

• ·   Instrumented puncture testing

Universal testing machines are primarily used for static and low-speed cyclic mechanical tests.

Non-Destructive Testing

Non-destructive testing, or NDT, evaluates materials and components without causing permanent damage.

Common NDT methods include:

• ·   Visual inspection

• ·   Surface inspection methods

• ·   Thermographic testing

• ·   Eddy-current testing

• ·   Ultrasonic testing

• ·   Radiographic testing

• ·   Acoustic-emission testing

These methods are generally performed with specialized NDT equipment rather than a universal testing machine.

Material Characterization Testing

Material characterization testing is used to examine the structure, composition, and physical characteristics of a material.

Typical methods include:

• ·   Microscopic analysis

• ·   Spectroscopic analysis

• ·   Macroscopic examination

• ·   Chemical composition analysis

• ·   Surface and structural analysis

These techniques are often used together with mechanical testing to provide a more complete understanding of material performance.

Common Static Tests Performed with a UTM

A universal testing machine can be configured for different test methods by changing the grips, fixtures, load cells, and software settings.

Tensile Testing

Tensile testing measures how a material responds when it is pulled apart. It can determine tensile strength, elongation, yield behavior, breaking force, and elastic modulus.

Compression Testing

Compression testing evaluates how a material or component behaves under a pressing or crushing force. It is commonly used for foam, plastics, packaging, medical devices, springs, and construction materials.

Bending and Flexural Testing

Bending testing measures a material’s resistance to deformation or fracture under a flexural load. Common methods include three-point and four-point bending tests.

Shear Testing

Shear testing determines how a material responds to forces that cause adjacent sections or layers to slide relative to one another.

Peel Testing

Peel testing measures the adhesion strength between bonded materials. Common configurations include 90-degree and 180-degree peel tests for tapes, films, laminates, labels, and adhesives.

Torsion Testing

Torsion testing evaluates the resistance of a material or component to twisting. This test normally requires a dedicated torsion testing system or a UTM equipped with a specialized torsion fixture.

Coefficient of Friction Testing

Coefficient of friction testing measures the resistance generated when one surface moves across another. It is frequently used for plastic films, packaging materials, paper, textiles, and coated surfaces.

Pull-Out and Insertion Testing

Pull-out, extraction, insertion, and detachment tests measure the force required to connect, disconnect, or remove a component. These tests are widely used for connectors, terminals, fasteners, medical devices, buttons, and wire harnesses.

Types of Materials Tested with a UTM

Universal testing machines are used to test raw materials, semi-finished materials, components, and finished products.

Metals

Metal testing includes tensile, compression, bending, shear, and fastener testing. These tests help verify structural strength, deformation behavior, and manufacturing consistency.

Plastics and Elastomers

UTMs are used to evaluate tensile strength, elongation, compression resistance, flexural properties, friction, and durability in plastics, rubber, films, and elastomeric products.

Composite Materials

Composite materials are tested for tensile strength, compression strength, flexural performance, interlaminar shear strength, and failure behavior. These tests are especially important in the aerospace, automotive, marine, and energy industries.

Foam

Foam testing measures compressive strength, indentation force, resilience, recovery, and performance under repeated loading.

Wire Harnesses and Connectors

Testing applications include terminal pull-out force, cable tensile strength, connector insertion and extraction force, crimp strength, and component durability.

Semiconductor Materials

Low-capacity testing systems can be used for bonding-wire tensile tests, small-component strength measurements, and mechanical property testing of epoxy molding compounds.

Ceramics

Ceramic testing is used to evaluate flexural strength, fracture behavior, compression resistance, and durability.

Textiles and Nonwoven Materials

Textile testing includes tensile strength, elongation, tear resistance, seam strength, puncture resistance, and durability testing.

Adhesives and Tapes

Adhesive materials can be evaluated through peel, tack, shear, and bond-strength tests.

Food and Packaging Materials

Texture and packaging tests include compression, puncture, tensile, seal-strength, breaking-force, and deformation measurements.

Industries That Use Universal Testing Machines

Materials testing is essential in industries where product strength, safety, consistency, and compliance must be verified.

UTMs are commonly used by:

• ·   Materials testing laboratories

• ·   Automotive manufacturers and suppliers

• ·   Aerospace manufacturers

• ·   Medical device companies

• ·   Plastics and rubber manufacturers

• ·   Metal processing companies

• ·   Electronics manufacturers

• ·   Packaging manufacturers

• ·   Construction and civil engineering laboratories

• ·   Universities and research institutions

• ·   Quality control departments

Typical UTM Applications by Industry

Medical Devices

Typical test items:

• ·   Syringes

• ·   Medical tubing

• ·   Implantable components

• ·   Tablets

• ·   Bandages

• ·   Catheters

• ·   Packaging seals

Common tests:

• ·   Syringe plunger force

• ·   Tensile strength

• ·   Compression force

• ·   Extrusion force

• ·   Adhesion strength

• ·   Puncture resistance

• ·   Material flexibility

Automotive and Aerospace

Typical test items:

• ·   Vehicle components

• ·   Seatbelt materials

• ·   Door handles

• ·   Control buttons

• ·   Aircraft composites

• ·   Tire rubber

• ·   Tire cord

• ·   Interior components

Common tests:

• ·   Tensile strength

• ·   Compression strength

• ·   Pull and push force

• ·   Flexural testing

• ·   Component detachment force

• ·   Material durability

• ·   Safety and compliance testing

Plastics and Elastomers

Typical test items:

• ·   Packaging films

• ·   Rubber seals

• ·   Plastic components

• ·   Flexible materials

• ·   Molded products

Common tests:

• ·   Tensile testing

• ·   Compression testing

• ·   Flexural testing

• ·   Coefficient of friction testing

• ·   Puncture testing

• ·   Cyclic loading

Metals

Typical test items:

• ·   Structural materials

• ·   Fasteners

• ·   Metal sheets

• ·   Wires

• ·   Welded components

Common tests:

• ·   Tensile testing

• ·   Compression testing

• ·   Three-point bending

• ·   Flexural strength testing

• ·   Shear testing

• ·   Fastener pull-out testing

Foam

Typical test items:

• ·   Cushioning materials

• ·   Seating foam

• ·   Insulation foam

• ·   Protective packaging

Common tests:

• ·   Compression strength

• ·   Indentation force

• ·   Resilience testing

• ·   Recovery testing

• ·   Repeated compression cycling

Electronics

Typical test items:

• ·   Electrical wire harnesses

• ·   Industrial cables

• ·   Printed circuit boards

• ·   Electronic components

• ·   Terminals

Common tests:

• Cable tensile testing

• ·   PCB bending

• ·   Terminal pull-out testing

• ·   Component push and pull testing

• ·   Connector insertion and extraction testing

Connectors

Typical test items:

• ·   Electrical connectors

• ·   Terminals

• ·   Fasteners

• ·   Plugs and sockets

Common tests:

• ·   Insertion force

• ·   Extraction force

• ·   Detachment force

• ·   Pull-out strength

• ·   Tensile strength

• ·   Durability testing

Semiconductors

Typical test items:

• Bonding wires

• ·   Semiconductor components

• ·   Epoxy molding compounds

Common tests:

• ·   Low-force tensile testing

• ·   Bonding-wire pull testing

• ·   Compression testing

• ·   Mechanical property evaluation

Food and Packaging

Typical test items:

• ·   Packaging films

• ·   Sealed packages

• ·   Noodles

• ·   Chips

• ·   Fruit

• ·   Prepared food products

Common tests:

• ·   Tensile testing

• ·   Compression testing

• ·   Puncture testing

• ·   Seal-strength testing

• ·   Breaking-force testing

• ·   Texture analysis

Textiles

Typical test items:

• ·   Clothing materials

• ·   Nonwoven fabrics

• ·   Disposable diapers

• ·   Protective textiles

• ·   Industrial fabrics

Common tests:

• ·   Tensile strength

• ·   Tear resistance

• ·   Elongation

• ·   Seam strength

• ·   Puncture resistance

• ·   Durability testing

Adhesives

Typical test items:

• ·   Adhesive tapes

• ·   Labels

• ·   Laminated materials

• ·   Bonded components

Common tests:

• ·   90-degree peel testing

• ·   180-degree peel testing

• ·   Adhesion-strength testing

• ·   Shear testing

• ·   Bond-strength evaluation

Why Is Materials Testing Important?

Materials testing helps manufacturers understand how materials and products will perform under actual operating conditions.

A properly designed testing program can help organizations:

• ·   Identify material or manufacturing defects

• ·   Compare alternative materials

• ·   Verify product specifications

• ·   Improve product quality and consistency

• ·   Reduce the risk of premature failure

• ·   Meet industry and regulatory requirements

• ·   Support product design and development

• ·   Improve product safety and reliability

• ·   Document performance for customers and certification bodies

Accurate test results also help engineers make informed decisions about material selection, product design, production processes, and quality standards.

When Should Materials Testing Be Conducted?

Materials testing can be performed throughout the product lifecycle.

Research and Development

Testing helps researchers evaluate new materials, compare formulations, investigate failure mechanisms, and develop new applications.

Product Development

Engineers use test data to optimize material selection, component dimensions, product structure, and manufacturing processes.

Design Verification and Validation

Testing confirms whether a product meets its intended performance, safety, and durability requirements before market release.

Compliance Testing

Materials and products may need to be tested according to international standards, industry specifications, customer requirements, or government regulations.

Incoming Material Inspection

Manufacturers can test raw materials and purchased components to verify that they meet the required specifications before entering production.

Production Quality Control

Routine testing helps maintain consistency between production batches and identify changes in materials or manufacturing processes.

Failure Analysis

When a component fails, mechanical testing can help determine the cause and support corrective actions.

Selecting the Right Universal Testing Machine

The appropriate UTM configuration depends on the material, specimen dimensions, required force range, test method, testing speed, and applicable standard.

Important selection factors include:

• ·   Maximum testing force

• ·   Required load measurement accuracy

• ·   Crosshead travel

• ·   Testing speed range

• ·   Available test space

• ·   Specimen size and shape

• ·   Grip and fixture requirements

• ·   Extensometer requirements

• ·   Temperature or environmental testing conditions

• ·   Testing standards

• ·   Data acquisition and reporting requirements

Selecting the correct load cell and fixture is especially important. A load cell should provide sufficient capacity for the expected maximum force while maintaining the sensitivity needed to measure smaller changes accurately.

Why Choose a United Test Universal Testing Machine?

United Test provides universal testing machines for material research, product development, quality control, and production inspection. Our product range includes single-column tensile testers, dual-column electronic universal testing machines, floor-standing material testing systems, and high-capacity testing equipment for different materials and load requirements.

By changing the grips, fixtures, load cells, and extensometers, one testing system can be configured for tensile, compression, bending, shear, peel, tear, puncture, and other mechanical tests. United Test machines are suitable for testing metals, plastics, rubber, composites, textiles, wires, belts, wood products, and industrial components.

Features and Benefits of United Test Universal Testing Machines

Accurate Force Measurement
Selected United Test universal testing machines provide Class 0.5 force-measurement accuracy in accordance with ISO 7500-1, supporting reliable material-property evaluation and quality-control testing.

Multiple Machine Configurations
Single-column, bench-top dual-column, floor-standing, and higher-capacity systems are available to accommodate different specimen sizes, test forces, and laboratory requirements.

Versatile Testing Capabilities
With the appropriate grips and fixtures, the machine can perform tensile, compression, bending, shear, peel, tear, puncture, and other static mechanical tests.

Flexible Load Cell and Fixture Options
Different load cells, manual or pneumatic grips, wedge grips, compression platens, bending fixtures, and application-specific accessories can be selected according to the specimen and testing standard.

Direct Strain Measurement
Optional extensometers are available for applications requiring accurate measurement of strain, elastic modulus, yield strength, or elongation.

Professional Testing Software
United Test software supports machine control, real-time curve display, test-data analysis, result calculation, report generation, batch comparison, and test-data storage.

Customizable Testing Solutions
Machine capacity, test space, crosshead travel, fixtures, extensometers, software functions, and other system configurations can be adapted to specific materials, specimen dimensions, and testing methods.

United Test universal testing machines combine accurate measurement, flexible configurations, and practical testing functions in one system. Whether you are testing low-force films and textiles or higher-strength metals and industrial components, the machine can be configured around your required load, specimen size, test standard, and result parameters.

Explore the United Test universal testing machine range or provide us with your material, specimen dimensions, expected maximum force, and applicable testing standard. Our team will recommend a suitable machine, grip, load cell, and extensometer configuration for your application.
