Guide to Pipeline Hydrostatic Testing

Pipeline Hydrostatic Testing: Procedure, Requirements, Benefits, and Limitations

Pipeline systems transport water, oil, gas, chemicals, and other fluids under pressure. Before a new pipeline enters service—or an existing pipeline returns to operation after repair or modification—its strength and leak tightness must be verified.

Hydrostatic testing is one of the most widely used methods for evaluating pipeline integrity. By filling an isolated section with water and raising it to a controlled test pressure, operators can identify leaks, weak joints, welding defects, material problems, and other conditions that could affect safe operation.

This guide explains how pipeline hydrostatic testing works, when it is required, what equipment and preparation are involved, and what limitations must be considered.

What Is Pipeline Hydrostatic Testing?

Pipeline hydrostatic testing is a pressure test used to confirm the structural integrity and leak tightness of a pipeline or other pressure-containing system.

During the test, the pipeline is filled with water or another compatible liquid. The pressure is then increased above the pipeline’s normal operating pressure and maintained for a specified period. Pressure readings, temperature changes, visible leakage, and other conditions are monitored throughout the test.

A successful hydrostatic test demonstrates that the tested section can withstand the required pressure without unacceptable leakage, deformation, or pressure loss.

Although water is normally preferred because it is relatively incompressible and stores less energy than compressed gas, another test fluid may be selected when the pipeline material, internal coating, process requirements, or environmental conditions make water unsuitable.

What Is the Purpose of Hydrostatic Testing?

The main purpose of a hydrostatic test is to verify that a pipeline is suitable for its intended operating conditions. The test can support several important objectives.

Confirm Pipeline Strength

The test subjects the pipeline to a controlled pressure above normal operating conditions. This helps confirm that the pipe body, welds, flanges, fittings, valves, and connections can withstand the required pressure.

Detect Leaks and Weak Points

Hydrostatic testing can reveal visible leaks, defective joints, incomplete welds, damaged fittings, holes, gaps, and other pressure-related weaknesses before they cause an operational failure.

Verify Leak Tightness

Maintaining stable pressure during the required hold period helps determine whether the isolated pipeline section is sufficiently leak-tight for service.

Support Commissioning and Recommissioning

New pipelines are commonly tested before commissioning. Existing pipelines may also be tested after repairs, replacements, alterations, pressure uprating, or extended periods out of service.

Support Regulatory and Code Compliance

Test pressure, hold time, instrumentation, acceptance criteria, documentation, and safety controls may be governed by applicable pipeline regulations, piping codes, project specifications, or owner procedures.

Reduce Operational and Environmental Risk

Finding weaknesses before operation can reduce the likelihood of leaks, unplanned shutdowns, equipment damage, environmental releases, and costly emergency repairs.

When Is Pipeline Hydrostatic Testing Required?

Hydrostatic testing may be performed at different stages of a pipeline’s service life, including:

• ◆  Before commissioning a newly constructed pipeline

• ◆  After installing new pipe sections or pressure-containing components

• ◆  Following welding, repair, or replacement work

• ◆  After significant pipeline modifications

• ◆  Before increasing the pipeline’s operating pressure

• ◆  As part of a pipeline integrity management program

• ◆  After a pipeline has remained inactive for an extended period

• ◆  When required by regulations, codes, insurers, clients, or project specifications

• ◆  When previous inspection results indicate that pressure validation is necessary

The appropriate testing frequency depends on the pipeline’s service, age, material, condition, operating history, location, applicable regulations, and risk profile. Hydrostatic testing should therefore be planned according to the specific pipeline rather than applied at an arbitrary interval.

Common Applications of Hydrostatic Testing

Hydrostatic pressure testing is used for more than transmission pipelines. It can also be applied to various pressure-containing systems and industrial equipment.

Oil, Gas, Water, and Process Pipelines

Newly constructed, repaired, or modified pipelines can be tested to verify pressure capacity and identify leaks before operation.

Plumbing and Fluid Distribution Systems

Water supply, industrial fluid, and utility piping systems can be hydrostatically tested after installation or modification.

Storage Tanks and Pressure Vessels

Tanks, cylinders, and pressure vessels may be tested to evaluate the integrity of the vessel body, welded joints, nozzles, and connected components.

Heat Exchangers

Hydrostatic testing can help verify that heat exchanger tubes, shells, joints, and pressure boundaries can tolerate their intended operating conditions.

Compressed-Air Systems

Compressors, receivers, and distribution piping may require pressure testing to confirm the integrity of the pressure-containing system.

Fire Suppression Systems

Fire protection piping may be tested to verify that it can maintain the required pressure and deliver water reliably when needed.

Industrial Process Equipment

Reactors, vessels, piping assemblies, and other process equipment may undergo hydrostatic testing during manufacturing, installation, maintenance, or recommissioning.

How Does Pipeline Hydrostatic Testing Work?

The exact procedure varies according to pipeline design, material, diameter, length, elevation profile, test medium, applicable code, and project requirements. However, most pipeline hydrostatic tests follow the same general stages.

1. Develop the Hydrostatic Test Plan

A detailed test plan should be prepared before field work begins. It normally defines:

• ◆  The pipeline section to be tested

• ◆  Design pressure and intended operating pressure

• ◆  Required test pressure

• ◆  Pressurization stages and maximum allowable pressure

• ◆  Pressure-hold duration

• ◆  Test medium and water source

• ◆  Filling and discharge locations

• ◆  Temperature and elevation considerations

• ◆  Instrument types and locations

• ◆  Calibration requirements

• ◆  Leak inspection procedures

• ◆  Acceptance and rejection criteria

• ◆  Depressurization and drainage procedures

• ◆  Water treatment or disposal requirements

• ◆  Drying and recommissioning procedures

• ◆  Personnel responsibilities and communication methods

• ◆  Emergency response and exclusion-zone requirements

The test pressure should not be selected using a universal multiplier alone. It must be calculated according to the applicable code, pipeline material, design conditions, elevation, temperature, component ratings, and project specifications.

2. Isolate the Test Section

The pipeline section must be separated from operating systems and equipment that should not be exposed to the test pressure.

Isolation may involve closing and verifying valves, installing test heads or plugs, disconnecting equipment, and using blinds or other approved isolation devices. Pumps, instruments, relief devices, meters, and components with lower pressure ratings may need to be removed or protected.

The boundaries of the test section should be confirmed before filling begins.

3. Clean and Prepare the Pipeline

Existing products, loose debris, welding residue, scale, oil, and other contaminants should be removed where necessary. Cleaning may involve flushing, pigging, swabbing, or another method appropriate for the pipeline.

Cleaning improves test reliability and reduces the likelihood that debris will interfere with valves, instruments, drainage points, or visual inspection.

All vents, drains, fittings, temporary connections, test manifolds, and pressure-monitoring points should be checked before introducing the test fluid.

4. Install and Calibrate Test Equipment

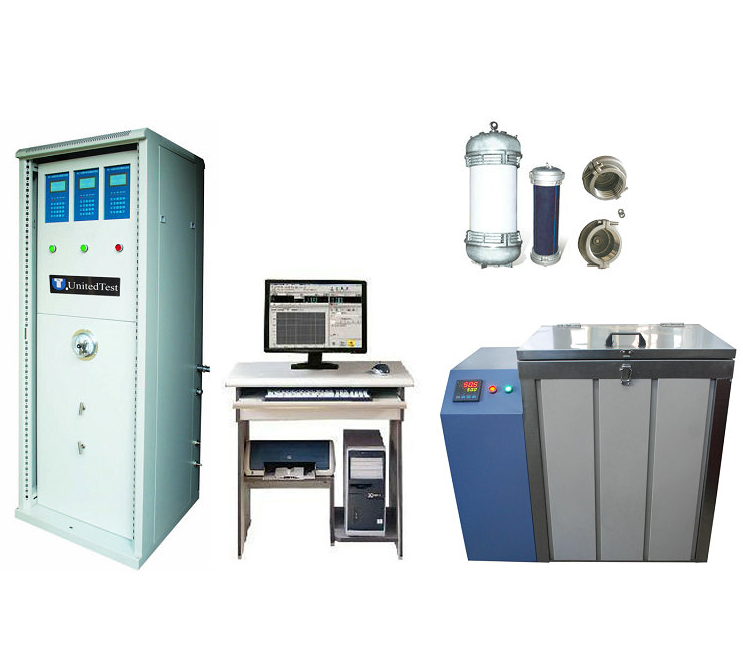

Typical hydrostatic testing equipment may include:

• ◆  High-flow filling pumps

• ◆  High-pressure test pumps

• ◆  Pressure gauges

• ◆  Deadweight testers

• ◆  Digital pressure recorders

• ◆  Data loggers

• ◆  Temperature sensors

• ◆  Flowmeters

• ◆  Test manifolds

• ◆  Relief valves

• ◆  Temporary test heads

• ◆  Hoses and rated connections

• ◆  Water storage and filtration equipment

• ◆  Dewatering and drying equipment

Pressure gauges and data-recording instruments should have suitable ranges, accuracy, and current calibration records. Instruments should be positioned so that readings can be taken safely and accurately.

5. Fill the Pipeline with Water

The isolated section is gradually filled with clean water or another approved test liquid. The water source should be evaluated for availability, cleanliness, temperature, chemical composition, compatibility, treatment requirements, and permitted discharge options.

Water should normally be introduced from a low point while air is released through vents at high points. Controlled filling helps reduce trapped air and ensures that the pipeline is completely filled.

Fluorescent or other approved tracers may sometimes be added to help locate small leaks, provided their use is compatible with the pipeline and environmental requirements.

6. Remove Trapped Air

Removing air is essential because trapped air can compress during pressurization. This may:

• ◆  Distort pressure readings

• ◆  Make pressure stabilization more difficult

• ◆  Increase stored energy and safety risk

• ◆  Complicate the interpretation of pressure loss

• ◆  Reduce the accuracy of test results

High points, fittings, branches, valves, and changes in elevation require particular attention. Venting should continue until water flows steadily without visible air.

7. Stabilize the Test Section

Before the formal pressure test begins, the pipeline and test water may need time to reach a stable temperature.

Water temperature can change during filling, especially when the source water temperature differs from the surrounding soil, air, or pipe temperature. Because temperature changes can alter pressure, inadequate stabilization may be mistaken for leakage.

The required stabilization period depends on pipeline size, length, burial conditions, water temperature, ambient conditions, and project specifications.

8. Pressurize the Pipeline Gradually

After filling and venting, a high-pressure pump raises the internal pressure in controlled stages.

Gradual pressurization allows the test team to:

• ◆  Check temporary connections

• ◆  Identify early leakage

• ◆  Confirm instrument performance

• ◆  Observe pressure response

• ◆  Prevent uncontrolled overpressure

• ◆  Verify that the test section behaves as expected

The pressure at all points along the pipeline should remain within the permitted range. Elevation differences must be considered because hydrostatic head can produce different pressures at high and low points.

The pressure at the lowest point may be substantially higher than the pressure shown at an elevated monitoring location. Failure to account for elevation can expose part of the pipeline to excessive pressure.

9. Hold and Monitor the Test Pressure

Once the required test pressure is reached, it is held for the specified period. Depending on the applicable standard and project requirements, the test may include separate strength-test and leak-test stages.

During the hold period, personnel monitor:

• ◆  Pressure readings

• ◆  Water and pipe temperature

• ◆  Ambient temperature

• ◆  Pressure changes over time

• ◆  Visible leakage

• ◆  Wet areas along the route

• ◆  Movement or deformation

• ◆  Temporary connections and test heads

• ◆  Instrument behavior

• ◆  Any abnormal sound or physical condition

Pressure and temperature should be recorded at defined intervals. Digital data loggers can provide continuous records and help identify small variations that may not be obvious from occasional manual readings.

10. Inspect the Pipeline for Leaks

Where access is possible, the pipeline route, exposed joints, valves, flanges, fittings, welds, test heads, and temporary connections should be inspected.

Signs of a possible leak include:

• ◆  Visible water discharge

• ◆  Wet soil or unexplained surface water

• ◆  Pressure loss not explained by temperature

• ◆  Leaking flanges or threaded connections

• ◆  Seepage around welds

• ◆  Unusual deformation

• ◆  Unexpected pump volume required to maintain pressure

If a leak or unacceptable pressure change is detected, the test should be stopped or evaluated according to the approved procedure. The system may need to be safely depressurized, repaired, and retested.

11. Evaluate the Test Results

Test results are assessed against the acceptance criteria established in the applicable code, project specification, or owner procedure.

A pressure reduction does not automatically prove that the pipeline is leaking. Test pressure can be affected by:

• ◆  Changes in water temperature

• ◆  Changes in pipe-wall temperature

• ◆  Pipeline expansion

• ◆  Trapped air

• ◆  Elevation differences

• ◆  Instrument accuracy

• ◆  Ground movement

• ◆  Water absorption by internal materials

• ◆  Minor changes in test volume

• ◆  Leaks from temporary test equipment

Pressure, temperature, volume, and field observations should therefore be reviewed together before determining whether the pipeline has passed or failed.

12. Depressurize the Pipeline Safely

After the test is completed, pressure should be reduced gradually and in a controlled manner.

Sudden depressurization can damage seals, valves, temporary equipment, and connected components. It may also create unsafe water movement or unexpected forces within the test system.

Personnel should remain clear of test heads, hoses, fittings, and other potential release points until the system has been confirmed as fully depressurized.

13. Drain and Dispose of the Test Water

The pipeline is drained through approved discharge points. Test water may require filtration, sampling, treatment, collection, transport, or controlled discharge depending on:

• ◆  The source and quality of the water

• ◆  Internal pipeline contaminants

• ◆  Added corrosion inhibitors or tracers

• ◆  Local discharge permits

• ◆  Environmental requirements

• ◆  The receiving location

• ◆  The pipeline’s previous service

Water should not be released until the applicable environmental and project requirements have been confirmed.

14. Dry and Prepare the Pipeline for Service

Residual water can promote internal corrosion, contaminate the transported product, interfere with downstream processing, or cause hydrate and freezing problems in some gas pipeline applications.

Drying may involve:

• ◆  Foam or sealing pigs

• ◆  Swabbing

• ◆  Air blowing

• ◆  Heated air

• ◆  Vacuum drying

• ◆  Desiccant-dried air

• ◆  Nitrogen purging

The required dryness level depends on the pipeline service and commissioning specification. Dew-point measurements or other acceptance criteria may be used to confirm that drying is complete.

After drying, the pipeline may undergo final inspection, inerting, product introduction, or other commissioning activities.

Factors That Can Affect Hydrostatic Test Accuracy

Hydrostatic testing requires more than filling a pipeline and observing a pressure gauge. Several environmental and technical variables can influence the results.

Temperature Changes

Heating causes the test liquid and pipeline to expand, while cooling causes contraction. These changes may raise or lower pressure even when no leak is present.

Elevation Differences

Static head creates higher pressure at low points and lower pressure at high points. Pressure limits and instrument locations must reflect the pipeline’s elevation profile.

Trapped Air

Compressed air can make the system behave unpredictably, reduce test accuracy, and increase the energy stored inside the pipeline.

Water Quality

Sediment, salts, microorganisms, oxygen, and incompatible chemicals may affect internal coatings, pipeline materials, valves, or post-test cleanliness.

Instrument Accuracy

Incorrectly selected, damaged, or uncalibrated instruments can create misleading results. Pressure and temperature devices should be appropriate for the required measurement range.

Pipeline Material and Expansion

Different pipe materials respond differently to pressure and temperature. Elastic expansion, viscoelastic behavior, and movement at joints should be considered during test interpretation.

Test Equipment Leakage

Pressure loss may come from temporary hoses, valves, manifolds, fittings, plugs, or test heads rather than the permanent pipeline.

Benefits of Pipeline Hydrostatic Testing

Reliable Pressure Validation

Hydrostatic testing provides direct evidence that the tested section can withstand a controlled pressure above normal operating conditions.

Early Identification of Defects

The test can identify leaks, weak welds, defective connections, damaged fittings, and other significant weaknesses before commissioning.

Improved Pipeline Safety

Finding pressure-related weaknesses before operation reduces the risk of product loss, equipment damage, environmental impact, and injury.

Regulatory Support

Properly planned, performed, and documented testing can help demonstrate compliance with applicable pipeline regulations, piping codes, and project specifications.

Reduced Unplanned Downtime

Detecting problems during a scheduled test is generally more manageable than responding to a failure during operation.

Better Maintenance Planning

Test results can help operators decide whether repair, additional inspection, component replacement, or further integrity assessment is necessary.

Potential Lifecycle Cost Savings

Although hydrostatic testing requires planning, equipment, water, labor, and temporary downtime, it can reduce the cost of emergency repairs, product loss, environmental response, and extended shutdowns.

Limitations and Challenges of Hydrostatic Testing

Hydrostatic testing is a valuable integrity tool, but it does not provide a complete assessment of every possible pipeline defect.

Temporary Shutdown Is Usually Required

Existing pipelines normally have to be isolated, emptied, cleaned, and removed from service. This can affect production and may require careful outage planning.

Large Volumes of Water May Be Needed

Long or large-diameter pipelines can require substantial water volumes. Water sourcing, transport, storage, treatment, and discharge can become major project considerations.

Drying Can Add Time and Cost

After testing, the pipeline may need extensive dewatering and drying before it can return to service, particularly when it will transport gas or moisture-sensitive products.

Some Defects May Remain Undetected

Hydrostatic testing is effective at finding leaks and weaknesses that fail or become apparent under test pressure. However, very small, stable, or non-leaking defects may not be detected.

It generally does not provide precise information about the location, dimensions, orientation, or growth rate of every flaw.

Environmental Management Is Required

Test water may contain sediment, treatment chemicals, corrosion products, or residues from previous pipeline service. Its discharge must be managed responsibly.

The Test Can Affect Existing Defects

In some circumstances, pressure testing may cause an existing defect to grow without producing an immediate leak or rupture. This is one reason why test pressure, duration, material properties, and previous operating history must be evaluated carefully.

Results Require Technical Interpretation

Pressure variation may be caused by temperature, elevation, elastic expansion, trapped air, or temporary equipment leakage. A pressure chart alone may not provide enough information to determine the cause.

Combining Hydrostatic Testing with Other Inspection Methods

Hydrostatic testing confirms pressure-holding capability at the time of the test, but it does not fully characterize the condition of the pipeline.

A more complete integrity assessment may combine hydrostatic testing with:

• ◆  In-line inspection

• ◆  Smart pigging

• ◆  Ultrasonic testing

• ◆  Magnetic flux leakage inspection

• ◆  Radiographic examination

• ◆  Visual inspection

• ◆  Weld inspection

• ◆  Corrosion assessment

• ◆  Cathodic protection surveys

• ◆  Pipeline cleaning

• ◆  Condition analysis

• ◆  Leak detection monitoring

These methods provide different types of information. Hydrostatic testing verifies strength and leak tightness, while inspection technologies may identify and size corrosion, cracking, deformation, or other defects.

Combining pressure testing with inspection data can improve repair decisions, maintenance scheduling, and long-term integrity planning.

Benefits of Outsourcing Pipeline Hydrostatic Testing

Some operators perform testing with internal teams, while others use specialist contractors. Outsourcing may be appropriate when the operator lacks dedicated equipment, trained personnel, or experience with complex high-pressure testing.

Potential advantages include:

• ◆  Access to trained pressure-testing personnel

• ◆  Availability of calibrated pumps, gauges, recorders, and test manifolds

• ◆  Reduced need to purchase and maintain specialized equipment

• ◆  Support with test planning and documentation

• ◆  Experience with filling, pressurization, monitoring, dewatering, and drying

• ◆  Improved management of safety and environmental requirements

• ◆  Reduced burden on internal maintenance teams

• ◆  Better coordination of short outage periods

A testing provider should be evaluated according to relevant experience, safety performance, equipment capacity, calibration control, documentation procedures, environmental practices, and familiarity with applicable codes.

How to Select the Right Hydrostatic Test Approach

No single procedure is appropriate for every pipeline. A suitable test plan should consider:

• ◆  Pipeline purpose and transported product

• ◆  Pipe material and grade

• ◆  Diameter, wall thickness, and total length

• ◆  Design and operating pressure

• ◆  Maximum allowable operating pressure

• ◆  Elevation profile

• ◆  Age and operating history

• ◆  Weld and joint type

• ◆  Valve and fitting pressure ratings

• ◆  Internal lining or coating

• ◆  Water availability and quality

• ◆  Ambient and ground temperature

• ◆  Required test duration

• ◆  Applicable regulations and codes

• ◆  Environmental discharge restrictions

• ◆  Dryness requirements before service

• ◆  Available inspection and monitoring data

The final test parameters should be reviewed and approved by qualified personnel familiar with the pipeline and the governing requirements.

Hydrostatic Test Documentation

Complete documentation provides evidence that the test was conducted according to the approved procedure. A final test package may include:

• ◆  Approved test plan

• ◆  Pipeline and test-section identification

• ◆  Test boundaries

• ◆  Design and operating data

• ◆  Required and actual test pressures

• ◆  Pressure and temperature charts

• ◆  Filling and pressurization records

• ◆  Hold-period records

• ◆  Instrument identification

• ◆  Calibration certificates

• ◆  Water source and quality information

• ◆  Leak inspection records

• ◆  Repair and retest information

• ◆  Depressurization and discharge records

• ◆  Drying results

• ◆  Photographs

• ◆  Personnel and witness records

• ◆  Final acceptance statement

Accurate records are important for commissioning, compliance, future maintenance, and pipeline integrity management.

Conclusion

Pipeline hydrostatic testing is a controlled method for confirming the strength and leak tightness of new, repaired, or modified pipelines. The procedure involves more than simply applying water pressure. Reliable results depend on proper planning, isolation, cleaning, filling, air removal, temperature stabilization, staged pressurization, calibrated monitoring, controlled depressurization, responsible water management, and thorough drying.

Hydrostatic testing can identify significant leaks and pressure-related weaknesses, support regulatory compliance, and reduce operational risk. However, it cannot detect every type of defect and should not always be treated as a complete pipeline integrity assessment.

When combined with appropriate inspection, cleaning, monitoring, and maintenance methods, hydrostatic testing becomes an important part of a broader strategy for safe, reliable, and long-term pipeline operation.

Frequently Asked Questions

What is hydrostatic testing for pipelines?

Hydrostatic testing is a pressure-validation process in which a pipeline is filled with water or another compatible liquid, pressurized above normal operating conditions, and monitored for leakage, pressure loss, or structural weakness.

Why is water used for hydrostatic testing?

Water is relatively incompressible, which means it stores less energy than compressed gas at the same pressure. This generally makes hydrostatic testing safer than pneumatic testing. Water is also widely available and makes many external leaks easier to identify.

Is hydrostatic test pressure always 1.5 times the operating pressure?

No universal multiplier applies to every pipeline. Test pressure depends on the governing regulation or code, pipeline material, design pressure, operating temperature, elevation, component ratings, and project specifications. Some applications use ratios such as 1.25 or 1.5, but the correct value must be calculated for the specific system.

How long does a pipeline hydrostatic test take?

The pressure-hold period may last several hours, but the complete project can take considerably longer. Cleaning, filling, temperature stabilization, staged pressurization, inspection, drainage, drying, repair, and documentation all affect the schedule.

Can hydrostatic testing detect every pipeline defect?

No. It can identify leaks and significant weaknesses that become evident under test pressure, but it may not detect small, stable, subcritical, or non-leaking defects. Other inspection methods may be required to locate and characterize these conditions.

What causes pressure to drop during a hydrostatic test?

A pressure drop may result from leakage, cooling water, pipeline contraction, trapped air, temporary equipment leakage, instrument error, or other changes in test conditions. Pressure and temperature data should be evaluated together.

What happens if a pipeline fails the test?

The test section should be safely depressurized and inspected. The cause of the failure must be located and evaluated, necessary repairs completed, and the affected section retested according to the approved procedure.

What happens after hydrostatic testing?

The pipeline is gradually depressurized, drained, and dried. Test data are reviewed, records are completed, and the line is prepared for commissioning or return to service.

When should an existing pipeline be retested?

Retesting may be required after significant repairs, modifications, pressure changes, extended inactivity, or integrity concerns. The need and timing should be determined from applicable regulations, pipeline condition, operating history, and the operator’s integrity management program.

Should hydrostatic testing be combined with pipeline inspection?

Yes, where appropriate. Hydrostatic testing verifies pressure-holding capability, while in-line inspection and other examination methods can provide more detailed information about corrosion, cracking, deformation, weld defects, and other conditions.
