How is a Compression Testing Machine Different from a Tensile Testing Machine

In material testing, engineers, manufacturers, and scientists rely on precise instruments to evaluate the strength, durability, and performance of both raw materials and finished products. Among these, the two fundamental machines are the Compression Testing Machine (CTM) and the Universal Tensile Testing Machine (UTM). Although both fall under the category of mechanical testing equipment, they differ significantly in working principles, applications, and the type of results they produce.

This article explores the key differences between Compression Testing Machines and Tensile Testing Machines, their practical applications, and how they contribute to ensuring material quality and safety. Along the way, we’ll highlight related concepts such as material testing, mechanical properties, strength testing, stress analysis, deformation measurement, and quality control to provide a comprehensive understanding of these essential testing tools.

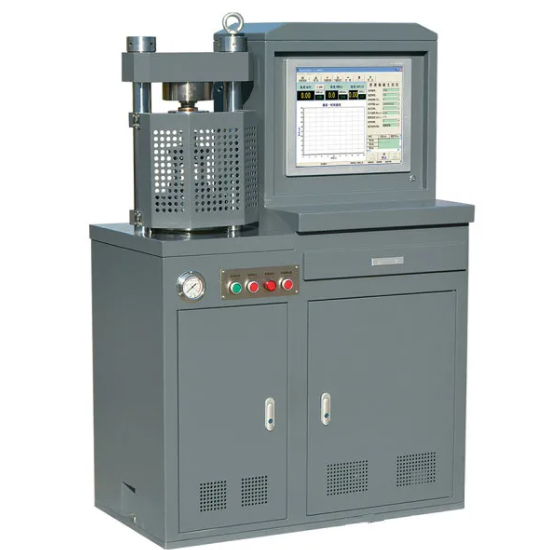

What is a Compression Testing Machine (CTM)?

A Compression Testing Machine, commonly abbreviated as CTM, is designed to evaluate the compressive strength of a material. It measures the resistance of a sample when subjected to a gradually increasing compressive load until the material deforms or fractures.

· Working Principle: The CTM applies an axial compressive force on a specimen, usually placed between two hardened steel plates or platens. The load is applied hydraulically or mechanically until the sample fails.

· Measured Properties: Compressive strength, crushing strength, deformation behavior, and failure point.

· Commonly Tested Materials: Concrete cubes, cement, bricks, stones, corrugated boxes, cartons, foam, wood, and certain plastic components.

Key Features of Modern CTM:

· Digital display for load measurement
· Automatic load control systems
· High-accuracy sensors and load cells
· Rigid steel frame construction for stability

In industries such as construction materials, a digital CTM is indispensable to verify whether cement blocks, concrete, or paving stones can withstand the compressive loads they will face during service.

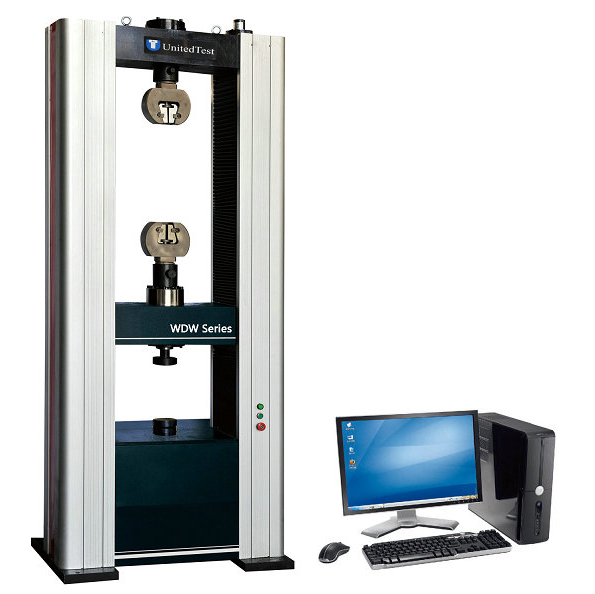

What is a Tensile Testing Machine?

A Tensile Testing Machine, often referred to as a Universal Testing Machine (UTM), is used to determine the tensile strength and elongation properties of materials. It works by pulling a specimen in opposite directions until it fractures.

· Working Principle: The sample is clamped at both ends, and a uniaxial tensile force is applied. The machine continuously records elongation and load until the specimen breaks.

· Measured Properties: Tensile strength, yield strength, elongation percentage, modulus of elasticity, and fracture point.

· Commonly Tested Materials: Metals, alloys, plastics, rubbers, textiles, wires, films, polymers, and composite materials.

Key Features of Modern UTMs:

· High-precision load cells and extensometers
· Servo-controlled drive systems
· Wide testing speed range
· Graphical data output and stress–strain curve plotting

In industries such as automotive, aerospace, and packaging films, a tensile testing machine ensures that raw materials and finished goods can withstand pulling, stretching, or tension during actual use.

Core Differences Between Compression Testing and Tensile Testing Machines

Although both belong to the material testing machine family, they differ in several key aspects, which can be summarized under the following parameters:

Aspect	Compression Testing Machine (CTM)	Tensile Testing Machine (UTM)
Primary Purpose	Evaluates compressive strength and crushing resistance.	Evaluates tensile strength and elongation properties.
Mode of Force Application	Axial compressive load (pushing force).	Axial tensile load (pulling force).
Specimen Type	Cubes, cylinders, blocks, cartons, rigid packaging, foams.	Dumbbell-shaped samples, wires, films, sheets, textiles.
Failure Behavior Studied	Crushing, buckling, compressive deformation.	Necking, elongation, tensile fracture.
Load Application System	Hydraulic or mechanical platens.	Screw-driven, servo-hydraulic grips or fixtures.
Industrial Applications	Construction, packaging, concrete testing, corrugated boxes.	Automotive, aerospace, metals, polymers, textiles.
Typical Output	Compressive strength (N/mm2), crushing value.	Stress–strain curve, tensile strength, elongation %

Why Industries Need Both Machines

Most manufacturing units use both compression testing machines and tensile testing machines as part of a complete quality assurance system. This is because a product may encounter both compressive loads and tensile stresses during its lifecycle.

Examples:

· Corrugated boxes: Must pass compression tests to verify stacking strength during transportation, while the liners and fluting paper must also pass tensile tests to confirm fiber strength.
· Automotive components: Rubber seals must withstand tensile elongation while resisting compressive deformation.
· Metals and alloys: Materials used in bridges and aircraft are exposed to both compressive and tensile forces under load conditions.

Advanced Material Testing with Digital Machines

The shift from analog to digital compression testing machines and digital tensile testing machines has revolutionized industrial quality control. Modern equipment now features:

· Microprocessor-based controllers for improved accuracy
· Data storage and computer connectivity for analysis
· Graphical representation of stress–strain behavior
· Programmable test cycles to ensure standard compliance

These advancements help manufacturers meet global testing standards such as ASTM, ISO, BIS, and DIN.

Applications Across Industries

Construction and Civil Engineering:

· CTM machines test concrete cubes, cement blocks, and pavement stones.
· UTMs verify the tensile strength of reinforcing steel bars and structural metals.

Packaging Industry:

· Compression testers evaluate carton stacking strength.
· Tensile testers measure the elongation of packaging films, tapes, and laminates.

Metals and Alloys:

· Tensile testing machines measure ductility, toughness, and yield strength.
· Compression machines test buckling behavior of metal components.

Polymers and Plastics:

· UTMs are widely used for tensile, peel, and tear testing of films and molded parts.
· CTMs test compressive behavior of foams, insulation, and rigid plastics.

Automotive & Aerospace:

· Tensile testing ensures fatigue resistance of metals and composites.
· Compression testing validates crash resistance of structural parts.

Concluding Thoughts

Both Compression Testing Machines (CTM) and Tensile Testing Machines (UTM) are essential for evaluating the reliability of materials across various industries. CTMs are designed to test compressive behavior such as crushing and buckling, while UTMs are used for stretching, pulling, and elongation.

It is not a matter of choosing one over the other—both are necessary for any company involved in quality control, R&D, or product certification. They provide complementary insights into how a material or product will respond to real-world stresses, ensuring safety, compliance, and performance in the final application.
