Choosing the Right Hydraulic Universal Testing Machine: Expert Tips and Advice

A hydraulic universal testing machine is designed to evaluate the mechanical properties of metals, construction materials, composites, and other high-strength specimens. With the appropriate grips and fixtures, it can perform tensile, compression, bending, and shear tests on steel bars, plates, fasteners, concrete specimens, welded joints, structural components, and many other materials.

However, selecting the right machine involves more than choosing the highest available load capacity.

United Test provides a range of hydraulic universal testing machines for industrial quality control, construction laboratories, universities, research institutes, inspection centers, and manufacturing facilities. This guide explains the most important factors to evaluate before purchasing a hydraulic UTM.

What Is a Hydraulic Universal Testing Machine?

A hydraulic universal testing machine uses hydraulic pressure to apply a controlled load to a specimen. Depending on the installed fixture, the same load frame can be used for several different mechanical tests.

Typical testing functions include:

• ·  Tensile testing of steel bars, plates, wires, fasteners, and welded specimens

• ·  Compression testing of metals, concrete, stone, and structural components

• ·  Three-point or four-point bending tests

• ·  Shear testing with a dedicated shear fixture

• ·  Measurement of yield strength, tensile strength, elongation, and deformation

• ·  Generation of force-displacement and stress-strain curves

Hydraulic systems are particularly suitable for tests requiring high force. Compared with smaller electromechanical machines, a hydraulic UTM can provide the load capacity and frame rigidity needed for large specimens and high-strength materials.

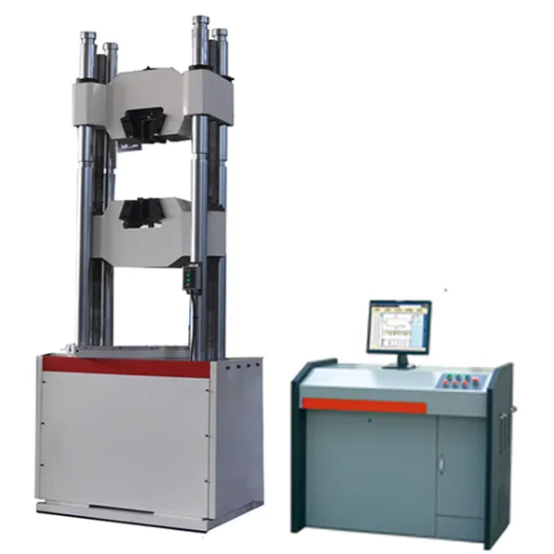

Selected United Test machines use a stable structure consisting of four columns and two lead screws. Separate working spaces allow tensile testing above the crosshead and compression or bending testing between the crosshead and worktable.

1. Identify the Materials and Specimens to Be Tested

The first step is to define the materials that will be tested. Different materials generate very different forces and require different gripping methods.

Common hydraulic UTM applications include:

• ·  Steel bars and reinforcing bars

• ·  Steel plates and metal sheets

• ·  Round rods and structural steel

• ·  Bolts, fasteners, and mechanical splices

• ·  Prestressing steel strands

• ·  Welded joints

• ·  Aluminum and other non-ferrous alloys

• ·  Concrete, cement, and stone specimens

• ·  High-strength composites

• ·  Industrial components and structural parts

The purchaser should provide the specimen shape, thickness, diameter, gauge length, overall length, and expected breaking force. A machine that can test a thin metal sheet may not have the correct grips or testing space for a large-diameter rebar specimen.

Material strength alone is not enough to determine capacity. The specimen’s cross-sectional area must also be considered. Two specimens made from the same steel grade can require very different testing forces if their diameters or thicknesses differ significantly.

2. Confirm the Required Test Types

A universal testing machine can perform multiple tests, but each test requires the correct fixture, control method, and software configuration.

Tensile Testing

Tensile testing determines properties such as:

• ·  Maximum tensile force

• ·  Tensile strength

• ·  Yield strength

• ·  Elongation

• ·  Elastic modulus

• ·  Reduction of area

The machine must have grips that match the specimen. Round bars, flat specimens, wires, steel strands, and finished components cannot always be tested with the same jaws.

Compression Testing

Compression tests require suitable platens and enough vertical test space for the specimen. The platen size, machine capacity, frame stiffness, and alignment should be evaluated according to the material and specimen dimensions.

Bending and Flexural Testing

Bending tests normally require a three-point or four-point fixture.

Shear Testing

Shear tests require a dedicated fixture designed for the specimen. Examples include shear testing of bolts, welded wire fabric, connectors, and mechanical joints.

Specialized tests such as fatigue, torsion, stress relaxation, and impact testing may require a dedicated testing system rather than a standard hydraulic UTM. These requirements should be clearly discussed with the equipment manufacturer before ordering.

3. Select the Correct Load Capacity

United Test offers commonly used hydraulic UTM capacities of 300 kN, 600 kN, and 1000 kN, with selected configurations available up to 2000 kN. The appropriate capacity depends on the expected maximum force of the specimen.

The selected machine should provide sufficient capacity above the highest anticipated test force, but buying the largest machine is not always the best solution. An oversized machine may increase the purchase price and may not provide the most suitable measuring range for lower-force specimens.

When determining capacity, consider:

• ·  Expected yield force

• ·  Expected breaking force

• ·  Variations among material batches

• ·  Maximum specimen cross-sectional area

• ·  Future testing requirements

• ·  Required safety margin

• ·  Verified force measurement range

The normal test force should remain within the machine’s calibrated and verified measuring range. Laboratories that test both low-force and high-force specimens may require additional load cells or more than one testing machine.

4. Compare the Available Control Systems

The control method affects testing accuracy, repeatability, automation, reporting, and price.

Digital Display Hydraulic Testing Machine

A digital hydraulic testing machine is suitable for routine tests that require basic force and deformation results. It offers straightforward operation and a lower initial investment.

This option is generally suitable for laboratories with standardized test procedures, moderate testing volumes, and limited requirements for automated control.

Computer-Display Manual Control Machine

The United Test WEW Series manual control hydraulic UTM combines manual hydraulic loading with computer-based data display and result analysis.

Common WEW Series capacities include 300 kN, 600 kN, and 1000 kN. It is a practical choice for laboratories that need computerized data acquisition but do not require fully automatic closed-loop servo control.

Computer-Controlled Hydraulic Servo Machine

The WAW Series hydraulic servo universal testing machine integrates hydraulic loading, servo control, and computerized data acquisition.

Depending on the configuration, the system can control load, displacement, or deformation. The software can display test curves in real time and calculate parameters such as yield strength, tensile strength, elongation, and elastic modulus.

Hydraulic servo control is generally more suitable for:

• ·  Laboratories requiring controlled loading rates

• ·  Tests involving load or strain holding

• ·  Research and development

• ·  Frequent batch testing

• ·  Detailed stress-strain analysis

• ·  Automatic report generation

• ·  Tests requiring better repeatability and process control

5. Check the Force and Deformation Measurement System

Maximum load capacity should never be the only performance specification considered.

• ·  Force measurement accuracy

• ·  Verified force range

• ·  Deformation measurement accuracy

• ·  Displacement resolution

• ·  Loading rate control

• ·  Sampling frequency

• ·  Extensometer type

• ·  Calibration requirements

• ·  Repeatability

For metal tensile testing, a clip-on extensometer may be required to measure strain accurately within the gauge length. Crosshead displacement alone may not provide sufficient accuracy for calculating properties such as elastic modulus or proof strength.

The selected machine should also support the calibration and verification requirements of the intended laboratory. United Test hydraulic UTM load measurement systems can be configured for standards such as ISO 7500-1 and ASTM E4. The exact accuracy class and calibration scope should be confirmed for the selected model.

6. Verify the Test Space and Specimen Range

A machine may have sufficient force capacity but still be unsuitable if the specimen cannot fit into the test space.

Important dimensions include:

• ·  Maximum tensile test space

• ·  Maximum compression test space

• ·  Effective test width

• ·  Distance between columns

• ·  Piston stroke

• ·  Crosshead adjustment range

• ·  Maximum round specimen diameter

• ·  Maximum flat specimen thickness

• ·  Compression platen dimensions

• ·  Bending support span

For example, current United Test WAW configurations provide different tensile spaces, clear widths, and jaw ranges according to model and capacity. Larger 1000 kN and 2000 kN systems are designed to accommodate larger specimens than the smaller 300 kN model.

7. Choose the Correct Grips, Fixtures, and Accessories

The fixture is the connection between the specimen and the machine. An unsuitable fixture can cause specimen slippage, premature failure, inaccurate results, or damage to the equipment.

A complete hydraulic UTM configuration may include:

• ·  Hydraulic tensile grips

• ·  Jaws for round specimens

• ·  Jaws for flat specimens

• ·  Compression platens

• ·  Three-point bending fixtures

• ·  Four-point bending fixtures

• ·  Shear fixtures

• ·  Bolt and fastener fixtures

• ·  Steel strand grips

• ·  Clip-on extensometers

• ·  Displacement sensors

• ·  Protective shields

• ·  High-temperature or low-temperature accessories

Hydraulic clamping is especially useful for high-strength and large-diameter specimens because it provides consistent gripping force and reduces the risk of specimen slippage.

When comparing quotations, check which fixtures and accessories are included in the standard supply. A lower machine price may not represent a lower total project cost if essential grips, extensometers, software modules, or calibration services must be purchased separately.

8. Match the Machine to the Applicable Testing Standards

The testing standard determines the specimen geometry, loading method, test rate, fixture design, measurement procedure, and required results.

Common standards associated with hydraulic universal testing include:

• ·  ISO 6892-1 for tensile testing of metallic materials

• ·  ASTM E8/E8M for tension testing of metallic materials

• ·  ISO 7500-1 for verification and calibration of static uniaxial testing machines

• ·  ASTM E4 for force verification of testing machines

• ·  ISO 15835 for reinforcing bar couplers

• ·  ISO 6934-4 for steel strand used in prestressed concrete

• ·  ISO 15630 for reinforcing and prestressing steel test methods

For laboratories focused on prestressing steel, a specialized 7-wire steel strand tensile testing machine may be more appropriate than a standard general-purpose configuration.

9. Evaluate Software and Data Management

For quality control and research laboratories, testing software is an important part of the system.

Useful software functions include:

• ·  Test method setup

• ·  Real-time force-displacement curves

• ·  Stress-strain curves

• ·  Automatic calculation of mechanical properties

• ·  Test result storage

• ·  Batch sample management

• ·  Custom report templates

• ·  Data export

• ·  User access management

• ·  Calibration records

• ·  Result traceability

10. Consider Installation, Safety, and Maintenance

High-capacity hydraulic testing machines are large and heavy. The laboratory must confirm the installation requirements before shipment.

Important considerations include:

• ·  Floor loading capacity

• ·  Machine dimensions and weight

• ·  Door and corridor dimensions

• ·  Lifting and unloading access

• ·  Required foundation or anchor bolts

• ·  Power supply and voltage

• ·  Laboratory temperature and humidity

• ·  Hydraulic oil requirements

• ·  Ventilation and noise

• ·  Space for the control cabinet and operator

Safety features should include emergency stop controls, overload protection, stroke limit protection, and protective devices appropriate for the specimen. Brittle specimens, prestressing steel, and high-strength metal samples can release considerable energy at failure, so an appropriate safety shield may be required.

Routine maintenance normally includes checking the hydraulic oil, filters, hoses, seals, jaws, sensors, and clamping system. Periodic calibration and verification are also necessary to maintain reliable test results.

11. Compare Total Cost Rather Than Purchase Price Alone

The price of a hydraulic universal testing machine depends on several factors:

• ·  Maximum load capacity

• ·  Digital, manual, or servo control

• ·  Force and deformation accuracy

• ·  Number and type of load cells

• ·  Frame dimensions

• ·  Gripping system

• ·  Fixtures and extensometers

• ·  Software functions

• ·  Calibration requirements

• ·  Customized test methods

• ·  Installation and training

• ·  Shipping and after-sales support

A low initial price can become expensive if the machine cannot test the required specimens or if essential accessories must be added later. The best purchasing decision is based on the complete testing configuration and long-term operating cost.

Why Choose a United Test Hydraulic Universal Testing Machine?

United Test provides hydraulic universal testing systems for routine quality control, high-load material testing, education, inspection, and research applications. Available options range from economical digital and manual-control systems to computer-controlled hydraulic servo machines.

The equipment can be configured with tensile grips, compression platens, bending fixtures, shear fixtures, extensometers, and application-specific software according to the material and testing standard.

Instead of selecting a machine only by maximum capacity, United Test can evaluate the complete testing requirement, including specimen dimensions, expected load, control method, test space, fixture design, and data reporting.

Conclusion

Choosing the right hydraulic universal testing machine requires a clear understanding of the material, specimen, test method, standard, expected force, and required measurement accuracy. Capacity is important, but it must be considered together with the control system, frame dimensions, grips, extensometers, software, safety features, and calibration requirements.

For routine industrial testing, a digital or manual-control hydraulic UTM may provide a practical and economical solution. For laboratories requiring closed-loop control, detailed test curves, repeatable loading rates, and automatic reporting, a hydraulic servo universal testing machine is generally the better choice.

Explore the complete range of United Test hydraulic universal testing machines or contact United Test with your material, specimen dimensions, testing standard, and expected maximum load. The technical team can help determine the appropriate capacity, fixtures, control system, and software configuration for your application.
