Bending Testing

UnitedTest supplies specialized bending testing machines for evaluating the bending strength, ductility and flexural performance of metals, reinforcing bars, steel pipes, concrete sleepers and fiber-reinforced concrete. The product range includes hydraulic servo-controlled bending systems, metal bend and rebend testers, steel pipe bending machines, and dedicated concrete flexural testing equipment.

Available configurations cover test loads from 300 kN to 1,000 kN, with model-specific bending angles, specimen dimensions, test load,  mandrel or support geometry, and bending or rotation speed. Relevant testing standards include ISO 7438, ISO 8491, ISO 1143, ASTM E290, ASTM C1550, EN 13230-2 and IEC 60794-1-21. For additional material testing solutions, explore our Compression Testing Machine.


UnitedTest Popular Bending testing machine

Optical Fiber Cable Warp Bending Testing Machine

Model: UTOF35-WB, IEC 60794-1-21 Method E11: Bend Test

Feature:

  • IEC 60794-1-21 Method E11: Bend Test
  • optical cables wrapping bending test

Key parameter:

  • Driving wheel diameter: 200mm, 300mm, 400mm
  • Winding speed: 1-10 cycles per minute
Details

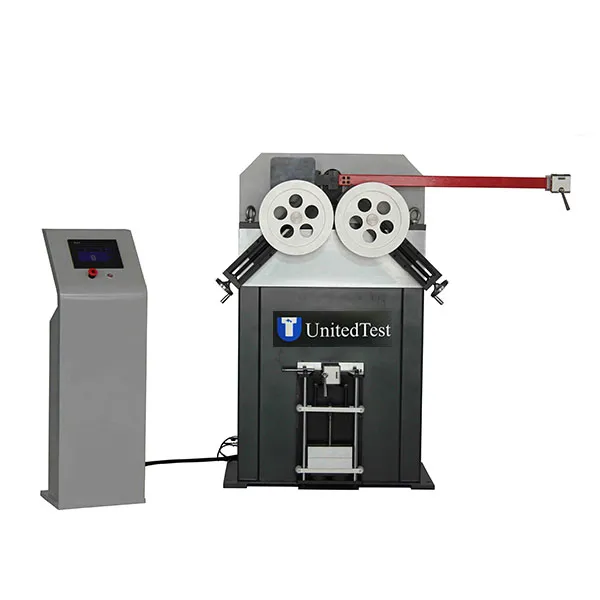

Optical Fiber Cable Repeat Bending Testing Machine

Model: UTOF35-RB, IEC 60794-1-21 Method E6: Repeat Bend Test

Feature:

  • IEC 60794-1-21 Method E6: Repeat Bend Test
  • optical cables repeat bending test

Key parameter:

  • Repeated bending angle: ±90°
  • Repeated bending speed: 10–35times/minute, adjustable
Details

Feature:

  • ISO 1143
  • break automatic shutdown protection.
  • Elastic clamps to hold the sample.

Key parameter:

  • loading force: 2000N.CM
  • Specimen length: 226mm
  • Rotate speed: 1500/3000/6000/12000 RPM
Details

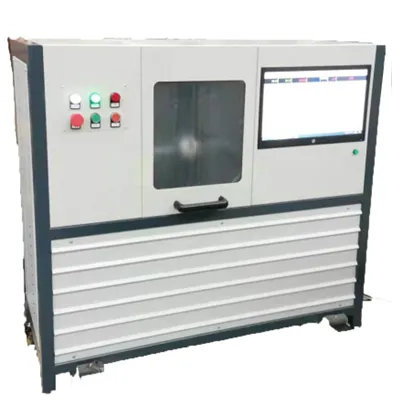

Rotating bar Bending Fatigue Testing machine

Model: UT1016A, DIN 50113, ISO 1143

Feature:

  • DIN 50113, ISO 1143
  • break automatic shutdown protection.
  • Elastic clamps to hold the sample.

Key parameter:

  • loading force: 2000N.CM
  • Specimen length: 226mm
  • Rotate speed: 1500/3000/6000/12000 RPM
Details

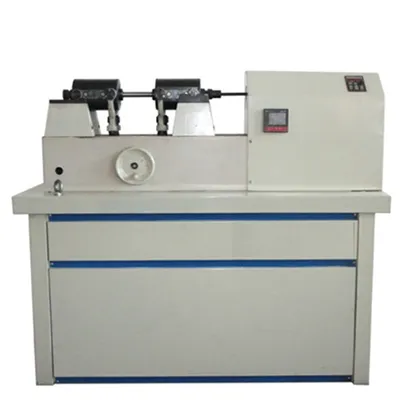

Rotating Beam Fatigue Tester – Pure bending moment

Model: UT1016SE, DIN 50113, ASTM F1160, EN 13261

Feature:

  • DIN 50113, ASTM F1160, EN 13261

Key parameter:

  • bending moment: 60N.m
  • Sample holding diameter: 8~18mm
Details

What's the bending test?

Bending testing is a core mechanical test that evaluates a material’s flexural strength, ductility, and resistance to fracture under static bending loads. It’s widely used for brittle or semi-brittle materials (e.g., metals, plastics, ceramics) and structural components.


Bending Test Principle:

Bending testing applies a three-point or four-point bending load to a standardized specimen, causing it to deform (elastic then plastic) until fracture or a specified deflection. The key principle is stress distribution across the specimen cross-section:

The outer surface of the bent specimen is in tension, the inner surface in compression, and the neutral axis (center) has no stress.

The test measures the maximum bending stress (flexural strength) the material can withstand before failure, or its deflection at a given load (reflecting ductility).


How the Bending Test Works?


Step 1: Specimen PreparationFabricate specimens to standard dimensions (e.g., rectangular bars for metals/plastics, prisms for concrete). Common sizes: 10mm×10mm×100mm (metals) or 40mm×40mm×160mm (cement mortar).Ensure the specimen surface is smooth, free of cracks or defects, and the cross-section is uniform.


Step 2: Test SetupChoose between two common loading methods:

Three-point bending: Place the specimen on two supports (span L), apply a single load at the midpoint. Simple setup, widely used for general materials.

Four-point bending: Place the specimen on two supports, apply two symmetric loads (equidistant from each end). Creates uniform bending stress in the middle section, ideal for brittle materials (avoids stress concentration).


Step 3: Loading & Data Collection

Apply load at a constant rate (specified by standards, e.g., 2mm/min for metals, 0.5mm/min for plastics) using a universal testing machine.Record the load-deflection curve in real time—tracks how the specimen deforms under increasing load.


Step 4: Calculation of Key Indicators

Flexural strength (σf): Maximum bending stress before fracture, calculated as:

Three-point bending:    90a1667d-d988-477f-949a-380eb549e85a.png (where F = maximum load, L = span, b = specimen width, h = specimen height).

Four-point bending:    cfbd93fe-a69c-4ad4-a5a2-6c1599e97c94.png

Flexural modulus (Ef): Stiffness of the material, derived from the linear elastic segment of the load-deflection curve.Deflection at fracture: Indicates ductility—larger deflection means better resistance to brittle fracture.


Main Applications

Bending testing is critical for materials and industries where flexural performance affects service safety:


  • Metals & Alloys: Steel bars, aluminum profiles, automotive chassis components. Tests ensure they can withstand bending loads during installation or use.

  • Plastics & Composites: Plastic pipes, fiber-reinforced composites (e.g., carbon fiber parts), electronic device casings. Evaluates flexibility and impact resistance.

  • Construction Materials: Concrete beams, cement mortar, bricks, stone slabs. Verifies load-bearing capacity in structural bending scenarios (e.g., floor slabs, bridges).

  • Ceramics & Glass: Ceramic tiles, glass panels, refractory materials. Assesses brittleness and resistance to breakage under bending.

  • Quality Control & R&D: Validates production processes (e.g., heat treatment of metals, fiber mixing in composites) and develops new materials with targeted flexural properties.


How to Select a Bending Testing Machine for Different Applications

Different bending tests require different loading arrangements, specimen fixtures and control methods. UnitedTest offers dedicated testing systems for metal products, construction materials, optical cables and rotating specimens.

1. Metal Bar, Sheet and Rebar Bending

For steel bars, reinforcing bars and metal sheets, the machine configuration should match the specimen diameter or thickness, required bending angle and applicable test method.

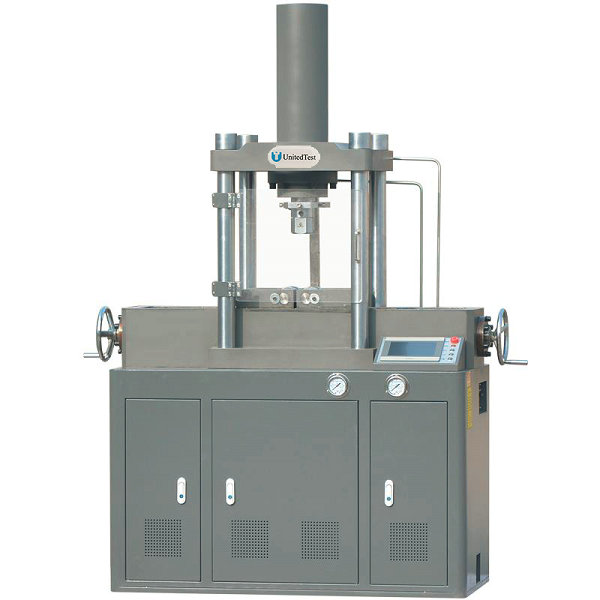

The GW-40C performs forward and reverse bending tests on reinforcing bars up to 40 mm in diameter, with forward bending from 0° to 180° and reverse bending from 0° to 90°. For other metallic specimens, the UT1017A and UT1014-S3 provide hydraulic bending and rebending configurations.

Relevant models:

2. Steel Pipe Bending Testing

Steel pipe bending tests evaluate the ability of tubular specimens to withstand specified bending deformation without unacceptable defects. The GGW-60H is designed for plane bending tests of metal pipes according to ISO 8491. Different pipe sizes can be accommodated by changing the corresponding bending sleeves and rollers.

◆  Explore the Steel Pipe Bending Testing Machine.

3. Concrete Sleeper and Fiber-Reinforced Concrete Flexural Testing

Concrete sleeper testing and fiber-reinforced concrete testing require different specimen support and loading arrangements.

The CWF series is designed for static load flexural testing of concrete railway sleepers, with 500 kN and 1,000 kN load configurations.

The UT1023 is designed for ASTM C1550 flexural toughness testing of fiber-reinforced concrete using a centrally loaded round panel supported at three points. This method evaluates the energy absorbed by the specimen in the post-cracking range.

Related equipment:

4. Optical Fiber Cable Bending and Repeated Bending

Optical fiber cable bending tests evaluate the cable's resistance to winding and repeated bending. Important configuration factors include bending wheel diameter, winding speed, bending angle and cycle count.

The UTOF35-WB supports optical cable wrapping tests under IEC 60794-1-21 Method E11, while the UTOF35-RB is designed for repeated bending tests under Method E6.

Related equipment:

5. Rotating Bending Fatigue Testing

Unlike static bend testing, rotating bending fatigue testing applies a bending moment to a rotating specimen to generate alternating tensile and compressive stresses. The test evaluates fatigue behavior through the number of cycles to failure or a specified test limit.

UnitedTest offers the UT1016A, UT1016B and UT1016SE rotating bending fatigue systems. Their configurations should be selected according to the required bending moment, specimen dimensions, rotational speed and applicable test method.

Related equipment:

For a suitable bending testing machine configuration, provide the specimen material, dimensions, required bending angle or cycle, test load and applicable standard. UnitedTest can help identify the appropriate testing system and accessories.


ISO & ASTM Standards

ISO Standards

  • ISO 178:2019: Plastics — Determination of flexural properties. Covers three/four-point bending for plastics, specifies specimen dimensions and loading rates.

  • ISO 7438:2016: Metallic materials — Bend test. For metal sheets, strips, and bars, defines bending angles and acceptance criteria for ductility.

  • ISO 679:2019: Cement — Determination of strength. Includes bending test for cement mortar prisms (40mm×40mm×160mm).

  • ISO 15630-1:2019: Steel wire — Bending test. Specifies bending procedures for steel wires used in construction or machinery.

ASTM Standards

  • ASTM D790-23: Standard Test Methods for Flexural Properties of Unreinforced and Reinforced Plastics and Electrical Insulating Materials. Core standard for plastic bending testing.

  • ASTM E290-23: Standard Test Methods for Bend Testing of Metallic Materials. Covers bend tests for metals to evaluate ductility and bending strength.

  • ASTM C348-22: Standard Test Method for Flexural Strength of Hydraulic Cement Mortars. Bending test requirements for cement mortar.

  • ASTM C1161-18: Standard Test Method for Flexural Strength of Advanced Ceramics at Ambient Temperature. For ceramic materials’ bending performance.


Require More Customized Solutions?

We offer customization to meet your specific needs. Our expert team will collaborate with you to develop the perfect product for you
Customize Now

Beijing United Test Co., Ltd.
