ASTM D648-18: Standard Test Method for Deflection Temperature of Plastics Under Flexural Load (Edgewise Position)

ASTM D648 is the globally recognized testing standard for measuring deflection temperature under flexural load (DTUL, also widely known as HDT) of rigid and semi-rigid plastic materials. This standard defines the critical heat deflection temperature as the heating temperature that triggers a specified 0.25 mm midspan deformation, when plastic test specimens bear fixed flexural stress under a steady, controlled heating rate.

DTUL/HDT values measured per ASTM D648 directly evaluate how rigid plastics retain mechanical load-bearing capacity under high-temperature working conditions, a core index for plastic material quality verification. The standard covers molded and extruded rigid thermoplastics, thermosetting plastics, filled and unfilled polymer composites with base thickness no less than 3 mm. Thin plastic sheets ranging 1–3 mm thick can be laminated into multi-layer composite test samples to satisfy the minimum specimen thickness testing requirements for ASTM D648 HDT testing machines.

keywords: ASTM D648 HDT test, DTUL deflection temperature test, HDT testing machine, rigid plastic heat deflection tester, heat deflection temperature under flexural load, 0.25mm midspan deformation test, rigid thermoplastic high-temperature load test, filled unfilled polymer composite HDT measurement, thin plastic sheet laminated specimen test, molded extruded plastic DTUL inspection

Test Principle

A rectangular bar is tested edgewise as a simple beam:

The specimen is supported on two rounded supports (span = 100 mm or 101.6 mm).

A load is applied at the center to produce a maximum fiber stress of 0.455 MPa or 1.82 MPa.

The assembly is immersed in a liquid heat‑transfer bath.

Temperature is raised at 2.0 ± 0.2 °C/min.

The bath temperature at the moment the specimen deflects 0.25 mm (0.010 in) is recorded: this is the deflection temperature.

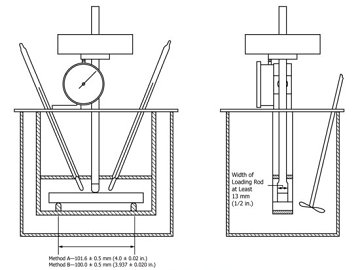

ASTM D648 Test for Heat Deflection Temperature (HDT) of Plastics

Two Specific Test Methods

ASTM D648 defines two exclusive test methods distinguished by the support span length between two specimen supports; results from Method A and B are not interchangeable:

Method	Span	Note
Method A	101.6 ± 0.5 mm (4.0 in)	Traditional inch‑based
Method B	100.0 ± 0.5 mm (3.937 in)	Metric

Specimen mounted edgewise (depth vertical to load direction, three-point bending setup)

Two mandatory fiber stress levels to select: 0.455 MPa (66 psi) ±2.5% or 1.82 MPa (264 psi) ±2.5%.

Test Specimen information:

Depth (vertical thickness under load): 12.7 ± 0.5 mm (0.500 ± 0.020 in) (critical dimension)

Width: 3 mm ~ 13 mm (note: specimens near 13 mm width read 2–4 °C higher DTUL due to poorer heat transfer)

Minimum length = support span + 12.7 mm (0.5 in) to extend over supports

Surface quality: smooth flat surfaces, no sink marks, flash, saw cuts or internal defects; dimensional tolerance along length ≤0.13 mm.

For thin sheets (1–3 mm): bond multiple laminae end-to-end, sand edges flat; loading direction perpendicular to laminate layers.

Quantity: at least two specimens per material per stress level for repeatability.

Test Equipment for ASTM D648 plastic heat deflection temperature test:

Recommend UnitedTest HVT series HDT/VICAT testing machine.

Liquid Immersion Heating Bath	Circulated heat transfer medium (silicone oil, mineral oil preferred; CO₂ cooling for low-temperature testing) Sufficient stirring to ensure temperature uniformity: within 1.0 °C within 10 mm of any specimen Fully submerse specimens; temperature probe positioned ≤10 mm from test bar without contact
Weight Loading System	Calibrated weight set plus loading rod mass counted as total load Force calculation formula: F=2Sbd/3L m_w=(F-F_s)/9.80665-m_r Where S=target fiber stress, b=specimen width, d=specimen depth, L=support span, F_s=dial gauge spring force, mr=loading rod mass Total applied load tolerance: ±2.5% of theoretical value.
Deflection Measurement Instrument	Dial gauge, LVDT, encoder displacement sensor allowed; calibration standard: gauge blocks accurate to 0.001 mm. Must compensate spring upward/downward force from the sensor into total applied load. Target deflection trigger: 0.25 mm.
Temperature Measurement Instrument	Digital system (primary recommended): RTD/platinum resistance thermometer or E608/E608M thermocouple, accuracy ≤±0.5 °C, resolution ≥0.1 °C.

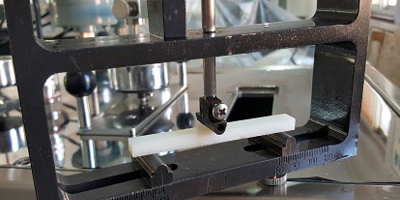

Three-Point Bending Fixture	Two support bars + central loading rod; all contact edges rounded to radius 3 ± 0.2 mm Loading rod minimum width: 13 mm Span length strictly follows Method A/B tolerance limits Auxiliary clips are permitted only if single-point contact and no extra clamping force on specimens.

Core Test Parameters:

Parameter	Standard Requirement
Support Span	Method A: 101.6±0.5 mm; Method B:100.0±0.5 mm
Specimen Depth	12.7±0.5 mm
Specimen Width	3–13 mm
Applied Fiber Stress	0.455 MPa (low load) / 1.82 MPa (high load), ±2.5% tolerance
Trigger Deflection	0.25 mm midspan bending
Heating Rate	2 °C/min ± tolerance; initial 10 min deviation acceptable
Pre-Test Hold Time	5 min static load at ambient temperature before heating
Bath Temperature Uniformity	≤1.0 °C within 10 mm of specimen
Temperature Sensor Accuracy	Digital probes ≤±0.5 °C; resolution ≥0.1 °C
Support/Loading Rod Radius	3 ±0.2 mm

ASTM D628 Mandatory Test Stipulations

Specimen alignment: load direction perpendicular to molding flow orientation to avoid anisotropy bias

Clips shall not restrict specimen bending or add extra compressive load (0.455 MPa testing highly sensitive to clip clamping force)

Temperature probe must not contact specimens; if stirring fails the 1.0 °C uniformity rule, relocate probe to specimen loading height within 10 mm

All spring forces from dial gauges (upward counter-load or downward additive load) must be mathematically offset when calculating added mass weight

Round-robin study confirms higher loads provide no testing advantage; only the two specified stress levels are valid

Results from Method A and B cannot be cross-referenced.

Step-by-Step Test Procedures

Specimen Measurement: Measure width and depth at three positions along span with calibrated micrometer, average values to calculate required applied load via the flexural force formula.

Apparatus Setup: Fill bath with heat transfer fluid, start circulation/stirring; calibrate total load weight including loading rod mass and dial gauge spring compensation.

Specimen Mounting: Place specimen edgewise on supports, align perpendicular to molding flow; use auxiliary clips minimally with single-point contact only.

Pre-Load & Ambient Hold: Apply full calculated load, hold for 5 minutes at room temperature to stabilize creep. Zero deflection sensor after hold period.

Controlled Heating: Activate heating system at constant 2 °C/min ramp rate; monitor bath temperature and specimen deflection continuously.

Record DTUL Value: Capture bath fluid temperature instantly when midspan deflection hits exactly 0.25 mm; stop heating immediately.

Repeat Testing: Complete minimum two replicate specimens per stress level; calculate average deflection temperature for final report.

Post-Test Inspection: Document abnormal specimen conditions (twisting, uneven bending, discoloration, swelling) for test report.

Common Heat Deflection Temperature Results of different kinds plastics:

ASTM D648 Test for Heat Deflection Temperature (HDT) of Plastics

Industry & Application Fields

ASTM D648 DTUL data serves three core industrial purposes: material comparison, incoming quality control, polymer formulation R&D; restricted to scenarios matching test loading/time/temperature conditions (not for long-term high-temperature endurance design prediction).

Main Application Sectors

Automotive Industry: Engine bay plastic brackets, radiator housings, interior structural parts exposed to engine heat; compare glass-filled vs unfilled PP, PA, PBT thermal load resistance

Electrical & Electronics: Terminal blocks, circuit board supports, power connector housings; validate high-temperature dimensional stability under assembly clamping load

Consumer Appliances: Oven/microwave plastic components, water heater internal parts, hot-air tool casings

Industrial Engineering: Pump housings, valve bodies, chemical equipment rigid plastic liners

Aerospace & Defense: Military-grade structural plastics (standard approved for U.S. Department of Defense material qualification)

Polymer R&D & Compounders: Evaluate impact of glass fiber, mineral fillers, flame retardants on thermal stiffness; screen new high-temperature polymer grades

Quality Control: Batch release inspection for molded plastic semi-finished products, raw resin incoming verification.

Test standard related:

ISO 75	Plastics - Determination of temperature of deflection under load
ISO 306	Vicat softening temperature; Measures temperature at which needle penetrates 1 mm under load
ASTM D1525	Standard Test Method for Vicat Softening Temperature of Plastics
ISO 20753	Multipurpose test specimens; Specifies standard specimen dimensions
ISO 2818	Plastics — Preparation of test specimens by machining (used for specimen preparation).
GB/T 1634	Chinese standard Equivalent to ISO 75
DIN 53461	Testing of plastics; determination of heat deflection temperature under load.

Heat Distortion Temperature Tester for accurate measurement of plastic materials’ heat deflection under load, ensuring reliable thermal performance evaluation, quality control, and compliance with international standards.

Q1: What is ASTM D648 testing measuring exactly?

A1: It measures the deflection temperature under flexural load (DTUL/HDT) of rigid plastics. When a standard plastic bar is edgewise bent under constant fiber stress and heated at a fixed rate, the temperature where the mid-span deflection reaches 0.25 mm is recorded as the DTUL value. It reflects the thermal stiffness of plastics under mechanical load.

Q2: Why is ASTM D648 test important for plastic materials?

A2: It offers a universal standardized index to compare heat resistance of different rigid plastics under loaded conditions, which simple melting point or Vicat softening cannot reflect.

Guides product design: It predicts the maximum short-term working temperature where plastic parts stay dimensionally stable under static bending loads, preventing warpage, deformation or assembly failure at high temperatures.

Supports material R&D: Evaluates how fillers, glass fiber, flame retardants, annealing or blending improve thermal rigidity.

Serves quality control: Consistent DTUL results verify uniform raw material formulation, stable molding process and controlled residual stress.

Meets industry compliance: Mandatory acceptance test for automotive, electrical, military and appliance plastic components.

Enables cross-lab data comparison via unified equipment, specimen and calibration rules with defined 95% confidence error limits.

Q3: What is the difference between HDT (ASTM D648) and Vicat Softening Temperature (ASTM D1525)?

A3: ASTM D648 HDT: Applies flexural bending stress (0.455 MPa / 1.82 MPa) on a bar specimen; simulates real service load-bearing scenarios. Focuses on thermal stiffness under load.

Vicat test: Only applies a small penetration indentation force without bending load; reflects bulk softening point of plastic with no mechanical bending stress.

The two values cannot be interconverted or substituted for engineering design.

Q4: Why two fixed stress levels (0.455 MPa and 1.82 MPa) instead of custom loads?

A4: Round-robin interlaboratory studies prove higher custom loads bring no test advantage. The two standardized stresses represent two common service scenarios:

0.455 MPa (low load): Light structural loads for general plastic parts (PP, ABS housings)

1.82 MPa (high load): Heavy load-bearing engineering plastics (nylon, polysulfone)

Fixed stress ensures global lab result consistency.

Q5: What are the mandatory specimen dimensions?

A5: Depth (vertical thickness under load): 12.7 ±0.5 mm (critical dimension)

Width: 3 mm ~ 13 mm

Minimum total length = support span + 12.7 mm

Surfaces must be smooth without sink marks, flash or cutting defects.

Q6: Why specimens close to 13 mm width produce 2–4 °C higher DTUL readings?

A6: Wider specimens have poorer heat transfer through the cross-section. The interior of the bar heats slower than narrow samples, so the deflection threshold is triggered at a higher bath temperature, leading to overestimated heat resistance. Standard suggests using narrower specimens (3–6 mm) for more representative results.

Q7: Do thin plastic sheets less than 12.7 mm depth meet the specimen rule?

A7: Single thin sheets cannot be used directly. Multiple thin laminates can be cemented together, sanded flat to reach 12.7 mm depth. The loading direction must be perpendicular to the laminate layers.

Q8: What is the standard heating rate and pre-load hold time?

A8: Heating ramp rate: 2 °C/min; minor deviation within the first 10 minutes is acceptable due to PID heating auto-tuning.

Ambient pre-load hold: 5 minutes after applying full load before heating starts, to offset short-term room-temperature creep of plastics.

Q9: Why must the temperature probe stay within 10 mm of the specimen without touching it?

A9: The bath liquid must maintain temperature uniformity within 1.0 °C around specimens. If the probe is too far away, recorded bath temperature cannot reflect the real temperature of the plastic bar, leading to inaccurate DTUL values.

Q10: How many specimens are required for one material and one stress level?

A10: At least two identical-width specimens must be tested to obtain average deflection temperature as the final result.

Q11: Waht's the differences Between ISO 75 and ASTM D648?

A11: Comparison Table: ASTM D648-18 vs ISO 75 (Heat Deflection Temperature Test)

Comparison Item	ASTM D648	ISO 75
Full Name	Deflection Temperature of Plastics Under Flexural Load (Edgewise)	Plastics — Determination of temperature of deflection under load (DTUL)
Specimen Mounting Direction	Edgewise (12.7 mm depth vertical under bending load)	Flatwise (4 mm thickness vertical under bending load)
Standard Specimen Size	Depth: 12.7±0.5 mm; Width: 3–13 mm; Min length = span +12.7 mm	Standard bar: 80 mm × 10 mm × 4 mm
Support Span Length	Two options:Method A: 101.6 mmMethod B: 100.0 mm	Single fixed span: 64 mm
Trigger Deflection Threshold	Fixed 0.25 mm midspan deflection	Thickness-dependent: ~0.34 mm for standard 4 mm flatwise specimen
Applied Fibre Stress Levels	Two stress options:0.455 MPa / 1.82 MPa	Three stress options:Method A: 0.45 MPaMethod B: 1.8 MPaMethod C: 8.0 MPa (for laminates)
Test Method Classification Rule	Split by support span length	Split by applied flexural stress value
Heating Rate	2 °C/min	2 °C/min (same heating rate)
Interchangeability of Results	DTUL values cannot be directly converted to ISO 75 data	DTUL values cannot be directly converted to ASTM D648 data
Typical Application Origin	North America, US military & automotive specs	EU, global ISO harmonized plastic material specifications

We offer customization to meet your specific needs. Our expert team will collaborate with you to develop the perfect product for you
