ASTM D642: Standard Test Method for Determining Compressive Resistance of Shipping Containers, Components, and Unit Loads

ASTM D642 test method covers compression tests on shipping containers (for example, boxes and drums) or components, or both. Shipping containers may be tested with or without contents. The procedure may be used for measuring the ability of the container to resist external compressive loads applied to its faces, to diagonally opposite edges, or to corners. This test method covers testing of multiple containers or unit loads, in addition to individual shipping containers, components, materials, or combination thereof.

Test Principle

The fundamental principle of ASTM D642 is to apply controlled, continuous vertical compressive load to shipping containers, their components or assembled unit loads under standardized laboratory conditions. By recording the load changes and corresponding deformation during the compression process, the maximum compressive resistance, load-deformation characteristics and failure modes of test specimens are determined. The test simulates the compressive forces that packaging encounters during stacking, storage, transportation and distribution, so as to evaluate the load-bearing capacity and structural stability of containers.

ASTM D642 Compressive Resistance Test for Shipping Containers, Carton box

Two types of platens are applied to reflect different service conditions: fixed platens make specimens fail at their strongest points, while swiveled (floating) platens tilt freely to locate the weakest structural points of containers and trigger failure there.

Scope / Test Methods

ASTM D642 applies to:

1), All rigid/semi-rigid shipping containers: corrugated fiberboard boxes (RSC style etc.), drums, wooden crates, plastic totes

2), Individual containers, sub-components (e.g. side panels, lids), combined material assemblies, and full unit loads (multi-box palletized stacks)

3), Testing with or without contents: empty box compression is used for baseline material/design validation; filled-container testing evaluates real-world load-sharing from inner products

Box compression tester, as defined by ASTM D642, use to determine if the packaging can endure the pressures of stacking, shipping, and long-term storage.

It main incldue three kinds:

A, Top-to-bottom compression testing for realistic stacking load conditions.

B, Edge-to-edge and corner-to-corner testing, especially useful for identifying weak points in packaging.

C, Face-to-face compression tests using either fixed or swivel platen machines.

Test Specimens

Test objects include individual shipping containers (corrugated boxes, solid fiberboard boxes, drums), packaging components, filled/empty containers, multiple combined containers and palletized unit loadsASTM International.

Specimens can be tested with original interior packaging and contents (when contents share compressive loads) or tested empty.

Quantity: Minimum 5 replicate specimens recommended for statistically reliable data.

Integrity: Specimens must be complete without pre-damage. Flaps, fasteners and closures are sealed and fixed strictly following actual shipping practices, as flap securing methods directly affect compression results.

Pre-Conditioning: Moisture-sensitive materials (fiberboard, paperboard) must be conditioned in standard atmospheres specified by ASTM D4332 (transit simulation) or D685 (box strength quantification). Special specimens may undergo water immersion or spray treatment per custom requirements.

ASTM D642 Testing Equipment required:

Compression test machine

The compression test machine choice will depend on the maximum specimen size that you need to test.

The size of the test sample will dertermine the vertical test space and the compression platen size.

Two kinds of the test platen.

Fixed type test platen

The upper and lower pressure plates are parallel and fixed in place.

When this type of pressure plate causes damage to the carton, the force is concentrated at the structurally strongest position, which allows for the measurement of the force at the strongest point of strength.

Can simulate the stress condition when the corners are subjected to force;

Flatness tolerance: ≤0.01 in (0.25 mm) per 12 in (304.8 mm) length

Parallelism maintained within ≤0.04 in (1 mm) per 12 in of length/width

Lateral movement of platens ≤0.05 in (1.3 mm) throughout test

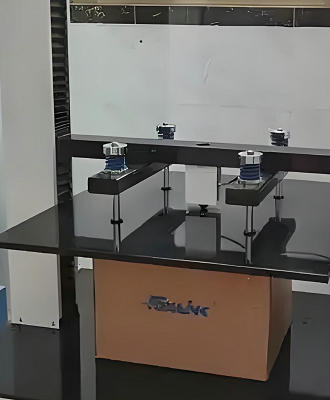

Free tilting type test platen

One pressure plate is fixed horizontally, while the other can be freely adjusted in all directions.

When this type of pressure plate causes carton damage, the force is concentrated at the structurally weakest point, allowing for the measurement of the weakest point's strength.

Simulates the real stress situation after stacking cartons.

ASTM D642 Compressive Resistance Test for Shipping Containers, Carton box

Key Test Parameters

Parameter Category	Specific Requirements
Pre-load	Single-wall corrugated box: 50 lbf (222 N); Double-wall: 100 lbf (445 N); Triple-wall: 500 lbf (2220 N). Applied at a speed ≤ 0.5 ± 0.1 in/min
Loading Speed	Constant speed of 0.5 ± 0.1 in/min (12.7 ± 2.5 mm/min) throughout the formal compression process
Compression Orientations	1, Face-to-face (top-to-bottom): applicable to both two platen types; 2, Edge-to-edge / Corner-to-corner: only fixed-platen machines allowed; 3, Unit loads: limited to top-to-bottom orientation
Termination Criteria	1, Load drops by 10% from the maximum load (force yield); 2, Total deformation reaches 4 in (19 mm); 3, Reaches the pre-set target load (for designated stacking tests)
Platen Tolerances	Flatness: 0.01 in per 12 in length; Parallelism: 0.04 in per 12 in length/width; Lateral movement: ≤ 0.05 in

Detailed Test Procedures of ASTM D642 Compressive Resistance Test for Shipping Containers, Carton box

Determine Test Termination Rules: Clarify whether the test stops by maximum load yield, deformation limit or specified target load according to test purposes.

Specimen Placement: Center the conditioned specimen on the lower platen to avoid eccentric loading, which causes test errors and equipment damage. Adjust the specimen to the required compression orientation (face, edge or corner loading).

Apply Pre-load: Run the movable platen to contact the specimen and apply the specified pre-load at the regulated speed to ensure full contact between platens and the container. Zero the load-deformation recorder.

Formal Compression: Keep the movable platen moving continuously at 0.5 ± 0.1 in/min until the termination condition is triggered.

Data Recording: Record load values every 0.1 in (2.5 mm) of deformation if no automatic recorder is used. For bottom-platen load sensors, deduct the container’s self-weight from peak load results.

Post-Test Inspection: Document container deformation, damage location, failure mode and status of internal contents after the test ends.

Industry Applications

Packaging Manufacturing: Evaluate the compressive strength of corrugated boxes, fiberboard containers and drums; optimize material selection, box structure and sealing designs.

Logistics & Warehousing: Simulate long-term stacking pressure in warehouses and cargo piles to verify whether packaging can resist stacking loads during storage and distribution.

Product Manufacturing (Food, Electronics, Daily Chemicals, Furniture): Test filled shipping containers to protect products from crushing damage during transit.

Unit Load Testing: Assess the overall compressive performance of palletized combined containers for intermodal transportation.

Quality Inspection & Third-Party Testing: Used for incoming inspection, product certification and comparative testing of different container designs.

Military Logistics: Approved by the U.S. Department of Defense for testing military transport packaging and containers.

Related Test Standard:

ISO 2234	Packaging — Complete, filled transport packages and unit loads — Stacking tests using a static load
GB/T 4857.3	Packaging. Basic tests for transport packages. Part 3: Stacking test methods using a static load
TAPPI T804	Most closely aligned peer standard for corrugated boxes;ASTM D642 and TAPPI T804 produce equivalent results when using fixed-platen machines. TAPPI T804 does notrecognize swiveled-platen testing, and has slightly different preload/specimen rules.
ISO 12048	Packaging — Complete, Filled Transport Packages — Compression and Stacking Test Using Compression Tester; ISO 12048 does not cover edge/corner loading, swivel platen methods, or component-level testing, and has less strict equipment calibration rules
ASTM D4577	Constant-load (creep/long-term stacking) compression test companion: used when evaluating container survival under sustained static load over hours/days instead of incremental ramp-to-failure.
ASTM D4169	Performance testing practice for shipping containers: ASTM D642 is the referenced test method for all compression/stacking related test cycles in ASTM D4169.

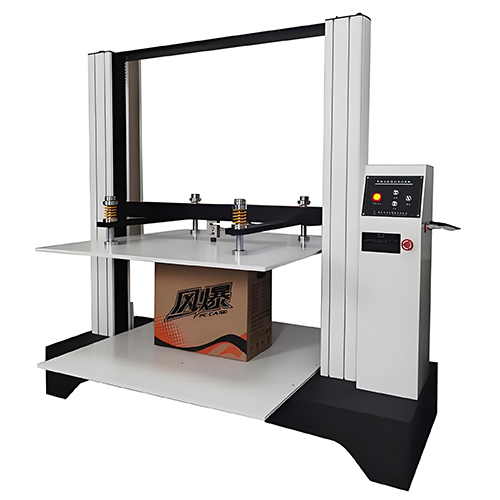

Packing carton box Compression Testing Machine is essential for evaluating the compressive strength of cartons and packaging materials. suitable for pressure resistance, deformation and stacking test of corrugated boxes, honeycomb plate boxes and other packaging parts.

Packing carton box Compression Testing Machine is the most direct test instrument for detecting the compressive strength of cartons or other packaging containers, and is used to determine the load-bearing capacity and superposition height of cartons.

Q1: What exactly does ASTM D642 measure?

A: It measures the compressive resistance of a shipping container (box, drum, crate, etc.), component, or full unit load by applying a slowly increasing vertical compressive load at a controlled rate until the specimen fails or a target load is reached. The key outputs are:

Peak load (maximum compression force sustained, reported in lbf or N)

Load–deformation curve (how the container bends/buckles as load increases)

Failure mode & location (panel buckling, corner crush, flap collapse, seam split, etc.)

It is fundamentally a simulation of warehouse stacking and palletized transport compression, not a high-speed impact crush test.

Q2: Why is this test so important? What happens if you skip it?

A: Compression failure is the #1 cause of stacked packaging collapse in storage and transit. The consequences are cascading:

Risk	Impact
Bottom-tier box buckles	Entire pallet/stack collapses → total product loss
Over-designed boxes	You're burning money on excess board grade, heavier freight, lower pallet density
Under-designed boxes	Shipment rejections from retailers (Amazon, big-box), claims, safety hazards
Unknown moisture sensitivity	A box that passes at the factory can lose 30–40%+ strength after 48 hrs in humid port conditions

ASTM D642 gives you defensible, repeatable data to set safe stacking heights, right-size your material spec, and prove compliance to customers and auditors.

Q3: Face-to-face, edge-to-edge, corner-to-corner — which one do I actually need?

A:Face-to-face (top-to-bottom) → 99% of use cases. Simulates normal stacking. Can use fixed orswiveled platen.

Edge-to-edge / corner-to-corner → Specialty cases: unusually tall narrow boxes, point-loading risk, or abusive handling evaluation. Must use fixed platen.

Unit loads (stacked pallet of boxes) → Almost always top-to-bottom only.

For daily QC work, face-to-face top-to-bottom is the standard approach.

Q4: How is "failure" defined? When do I stop the test?

A: D642 says you define the stop criterion upfront. The two typical industry defaults for corrugated boxes are given in Note 3:

Force yield: a ≥ 10% drop from the maximum load obtained, OR

Deformation limit: total compression of ¾ in. (19 mm)

You can also stop at a specified target load (e.g., "hold at 800 lbf for 1 hr" — though pure constant-load duration lives in companion standard ASTM D4577, not D642). Document your chosen failure definition in the report.

Q5: What is the difference between ASTM D642 and ASTM D4577?

A: ASTM D642 tests the ultimate compressive strength by continuously applying increasing load until container failure. ASTM D4577 evaluates the durability of containers under constant static load for a long period, simulating long-term warehouse stacking. The two standards are used for different test purposes.

Q6: Does the box sealing method affect ASTM D642 test results?

A: Definitely yes. Flap fastening, taping, stapling and strapping methods will change the container’s structural strength. All test specimens must be sealed and closed in exactly the same way as they are prepared for actual shipment. Unstandardized sealing will lead to large deviations in test data.

Q7: Why must the specimen be placed exactly at the center of the lower platen?

A: Off-center placement causes eccentric loading, which brings significant test errors. In severe cases, uneven force may also damage the test equipment.

Q8: How to judge whether a container passes the test?

A: Compare the measured maximum compressive load with the required stacking load in specifications or purchase contracts. If the container’s ultimate compressive strength is higher than the calculated actual stacking load, it is deemed qualified for normal storage and transportation.

Q9: Can ASTM D642 test filled containers with products inside?

A: Yes. If the contents and interior packaging share compressive loads during actual use, specimens shall be tested with full contents to simulate real service conditions.

Q10: Can we use ASTM D642 to test plastic containers or metal tanks?

A: The standard is primarily designed for fiber-based shipping containers, but its compression method can also be applied to drums and other rigid shipping containers. For specialized flexible plastic packaging, other targeted test standards are recommended.
