ASTM D5311 Standard Test Method for Load Controlled Cyclic Triaxial Strength of Soil

ASTM D5311 specifies procedures for evaluating the cyclic response and strength of saturated soils under load-controlled cyclic triaxial testing, primarily to assess liquefaction potential and dynamic behavior under earthquake or other cyclic loading conditions. The test is performed on isotropically consolidated, undrained (CIU) soil specimens, both intact (undisturbed) and reconstituted (laboratory-prepared).

Test Principle

The test simulates the undrained response of a soil element during earthquake‑induced cyclic loading. A specimen is first saturated and isotropically consolidated, establishing an effective confining stress $σ_{3 c}^{'}$ . Undrained cyclic loading generates excess pore‑water pressure, reducing effective stress and causing axial deformation. The cyclic strength is evaluated by relating the applied cyclic stress ratio (CSR) to the number of cycles required to reach a defined failure state (e.g., 100% pore‑pressure ratio or a limiting strain). The principle relies on measuring axial load, deformation, and pore pressure to derive stress‑strain behavior and identify liquefaction potential.

The test assumes uniform stress conditions, but in reality, non‑uniformities arise from end restraints and membrane compliance. Corrections or alternative tests (e.g., cyclic simple shear) are sometimes used to address these limitations.

Isotropic Consolidation: Apply equal confining pressure (σ₃) to the specimen to simulate in-situ overburden stress; allow drainage until volume/strain stabilizes.

Undrained Cyclic Loading: Seal specimen to prevent drainage; apply cyclic axial stress (σ₁-σ₃) at constant amplitude and frequency.

Response Monitoring: Record axial strain, pore water pressure, and stress-strain hysteresis loops during cycling.

Failure Criteria:

Strain-Based: 5% or 10% axial strain (common for liquefaction evaluation).

Pore Pressure-Based: Excess pore pressure = initial effective confining pressure (liquefaction initiation).

Property Calculation: Determine cyclic strength (CSR at failure), liquefaction resistance, and energy dissipation (damping ratio) from test data.

Test Methods

ASTM D5311 describes a load‑controlled cyclic triaxial strength test. A cylindrical soil specimen is subjected to an isotropic confining pressure, saturated, and then consolidated. Subsequently, a sinusoidal axial load is applied cyclically under undrained conditions. The test continues until:

**Double‑amplitude vertical strain exceeds 20%,

**Single‑amplitude strain in compression or extension exceeds 20%,

**500 load cycles are reached, or

**The load waveform deteriorates beyond acceptable limits.

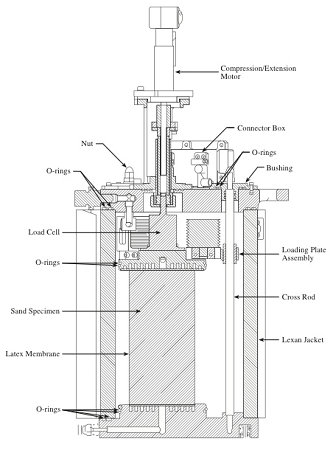

Test equipment and device for the ASTM D5311 Load Control Cyclic Triaxial Strength Test of Soil:

Cyclic triaxial testing machine	Capable of applying uniform sinusoidal loads at 0.1–2.0 Hz (1.0 Hz preferred). Must maintain load uniformity: unsymmetrical peaks, non‑uniform pulse duration.
Triaxial Compression Cell	Low‑friction piston seal with linear ball bushings to minimize friction and maintain alignment. Load rod diameter ≥ 1/6 of specimen diameter to prevent bending. Air‑bearing or equivalent seals to keep piston friction ≤ ±2% of maximum cyclic load. Top and bottom platens with strict parallelism and eccentricity limits.
Measurement Transducers	Load cell: Accuracy ±1% of axial load; capacity ≤5× maximum test load. Displacement transducers (LVDTs, etc.): Accuracy ±0.02% of initial specimen height. Pore‑water pressure transducer; Volume change devic.
Supporting Systems	Valves with minimal volume change during operation (ball valves recommended). Weighing device (±0.05% accuracy). Water de‑aeration system (boiling, vacuum spraying, etc.). Temperature‑controlled environment (fluctuations <±4°C).

Test Specimen

The sample should be cylindrical, minimum diameter 51 mm (2.0 in.), height‑to‑diameter ratio 2.0–2.5. Largest particle size <1/6 specimen diameter.

Types:

1), Intact specimens: Obtained via thin‑walled tube sampling (Practice D1587) and preserved per Practices D4220. Trimmed with minimal disturbance; ends must be flat and parallel. Frozen trimming is recommended for clean sands.

2), Reconstituted specimens: Prepared by one of three methods:

Pouring method: Soil saturated, poured underwater into a mold, and vibrated to density.

Dry/moist vibration: Soil placed in layers, vibrated to target density; layers scarified to ensure uniformity.

Tamping method: Soil hand‑tamped in layers.

Note:Different preparation methods yield different cyclic strengths; intact specimens are generally stronger.

Saturation: Achieved by applying back pressure; degree of saturation verified by Skempton’s B‑value (B ≥ 0.95).

Test procedure of ASTM D5311

1, Specimen Measurement: Determine initial dimensions, mass, and water content under vacuum.

2, Saturation:

Apply vacuum to drainage system, then percolate de‑aired water.

Incrementally increase back pressure while maintaining chamber pressure, ensuring the difference never exceeds the desired effective consolidation stress.

Verify saturation via B‑value (≥0.95) or stable pore pressure.

3, Consolidation:

Isotropically consolidate by raising chamber pressure (back pressure constant) to achieve target $σ_{3 c}^{'}$ .

Apply axial load to counterbalance piston uplift.

Monitor height and volume change until primary consolidation completes (typically 100% after one log cycle).

4, Cyclic Loading:

Create an air pocket in the cell to avoid pressure fluctuations.

Close drainage valves (undrained condition).

Apply sinusoidal cyclic load (first half‑cycle in compression) at 0.1–2 Hz.

Record axial load, deformation, and pore pressure continuously.

Continue until failure criteria are met.

5, Post‑Test: Remove specimen carefully, determine final dry mass, and compute dry unit weight.

Geotechnical true triaxial testing system is a specialized testing equipment used to study the mechanical properties of rocks under complex stress states. It is widely used in the fields of geological engineering, mining, and civil engineering.

Geotechnical Dynamic Triaxial Testing Machine can accurately simulate the true three-dimensional complex stress state of geotechnical materials in nature (σ₁ > σ₂ > σ₃), breaking the limitations of conventional triaxial tests (σ₂ = σ₃).

We offer customization to meet your specific needs. Our expert team will collaborate with you to develop the perfect product for you
