ASTM D4751 Standard Test Methods for Determining Apparent Opening Size of a Geotextile

ASTM D4751 test methods cover the determination of the apparent opening size (AOS) of a geotextile either by drysieving glass beads through a geotextile (Method A) or by using a capillary porometer (Method B). The AOS is a vital metric representing the approximate largest particle size that could effectively pass through the geotextile . Think of it as the "gatekeeper" specification: if the AOS is too large, soil will wash away; if it's too small, water won't drain properly. This standard provides two distinct methods (A and B) to measure this property, ensuring global consistency in geosynthetic quality control.

What's apparent opening size?

The apparent opening size refers to the size of openings in geotextiles that allow water to pass through. It affects the rate of water flow, the effectiveness of filtration, and the stability of soil. The smaller the effective aperture, the better the filtration effect, but water permeability may decrease; conversely, if the effective aperture is too large, it may lead to the loss of soil particles. Therefore, a reasonable effective aperture value is crucial for the selection and application of geotextiles.

Test Principle

The core principle revolves around quantifying the interaction between standardized particles and the geotextile pores:

For Method A (Mechanical Sieving): The principle relies on physical agitation. A geotextile specimen is placed in a sieve frame, and precisely sized glass beads are poured on top. A mechanical shaker imparts a vigorous lateral and vertical motion. This jarring action forces the beads to "bounce and turn," actively seeking openings to pass through. By measuring the weight of beads that successfully pass through versus those retained, the test identifies the exact bead size at which 95% are retained (the O₉₅ value).

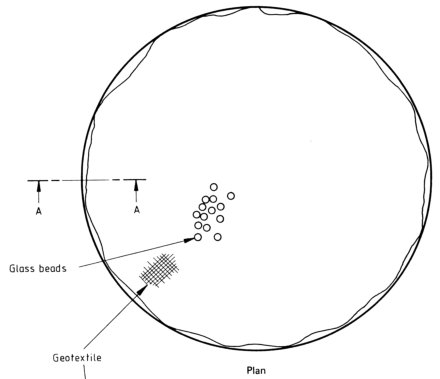

ASTM D4751 Geotextile apparent Opening Size Test of Dry sieving method

For Method B (Capillary Flow): This method uses fluid mechanics. First, the dry specimen's airflow rate and pressure are measured. Then, the specimen is wetted with mineral oil, and airflow is measured again under increasing pressure. Using standard capillary theory, the instrument calculates the pore throat sizes based on the pressure required to displace the liquid from the pores.

Test methods:

Method	Type	Purpose	Referee Status
Method A	Glass Bead Dry-Sieving	Determines exact AOS/O95 value by finding bead size with 5% passing	Primary referee method for disputesASTM International
Method A	This is the classic, mechanical approach where sized glass beads are shaken through a geotextile specimen. It is considered the referee method--meaning if there is any dispute between laboratories, Method A is the ultimate benchmark
Method B	Capillary porometer	Alternative for rapid testing	Requires pre-qualification & correlation with Method A
Method B	A more modern, instrument-based approach using airflow and mineral oil to calculate pore sizes via capillary theory. However, Method B cannot simply replace Method A unless a strict pre-qualification and correlation study is completed to prove equivalent results for that specific product type.

Testing equipment for ASTM D4751 Geotextile apparent Opening Size Test:

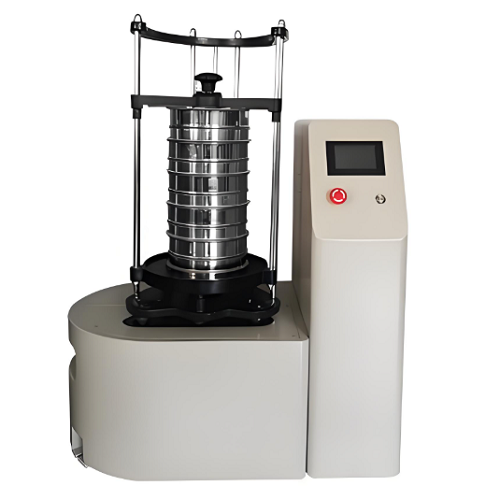

Recommend UnitedTest Apparent Opening Size Tester, consisit of:

Mechanical Sieve Shaker	A constant-frequency shaker equipped with a tapping arm. It must provide both lateral and vertical motion to make the glass beads bounce and reorient themselves constantly.
Sieve Frames & Accessories	200-mm (8-inch) diameter sieves, along with a pan and a cover to prevent bead loss during shaking.
Spherical Glass Beads	Calibrated beads divided into specific size fractions (ranging from 0.075 mm up to 2.0 mm). Each batch must be verified using standard testing sieves before use.
Precision Balance	Must be accurate to at least ±0.05 g to detect minute differences in bead passage.
Static Elimination Tools	Anti-static sprays or ionizing devices are highly recommended. Since geotextiles are often synthetic, static cling can cause beads to stick to the fabric, ruining the test accuracy.
Flexible Rubber Template	A 203-mm (8-inch) diameter flexible template used to trace perfect circles on the fabric for precise specimen cutting.

The Process of ASTM D4751 Dry Sieving Method

The dry sieving method is a commonly used technique for determining the opening size of geotextiles. It involves screening standard particles of different sizes to observe the flow of water through the geotextile and thus determine its opening size.

The specific steps are as follows:

2.1. Prepare the sample: Choose the geotextile sample to be tested, cut it into a standard size, typically 200mm x 200mm.

2.2. Select standard particles: Based on the characteristics of the geotextile, select standard particles of different size ranges (such as quartz sand), ensuring these particles are evenly distributed and have suitable shape and density.

2.3. Dry sieving experiment:- Place the geotextile sample on the screen of the dry sieve machine, ensuring the sample is fully spread out and free of wrinkles.- Evenly sprinkle the standard particles on the geotextile and start vibrating the sieve machine to allow particles to be screened through the geotextile.- Record the number of particles passing through the geotextile according to a preset time, and analyze the quantity and distribution of particles that remain after passing through.

2.4. Data analysis: Based on the screening results, use formulas to calculate the effective aperture and compare it with the standard values to assess the testing result of the geotextile.

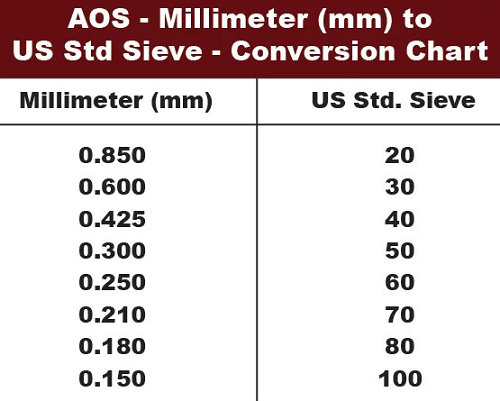

ASTM D4751 Geotextile apparent Opening Size Test of Dry sieving method

Advantages of the Dry Sieving Method

As an important method for determining the effective aperture of geotextiles, the dry sieving method has several notable advantages:- Simplicity: The dry sieving method is easy to operate, requires low equipment standards, and is easy for users to master.- Intuitive and reliable: Through visual observation and data recording, the dry sieving method can intuitively derive the filtration performance of geotextiles.- Wide applicability: The dry sieving method is suitable for various types of geotextiles, particularly non-woven fabrics and woven geotextiles.

Test Specimen:

Planar Geotextiles: Five specimens must be cut from a full-width swatch. They should be cut along a diagonal line of the fabric roll to account for any manufacturing variances. Each specimen must be large enough to fit securely into the 200-mm sieve holder .

ASTM D4751 Geotextile apparent Opening Size Test of Dry sieving method

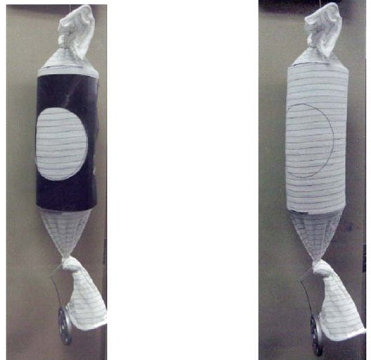

Circular-Knitted Sock Geotextiles: These require a specialized preparation process. The sock material is carefully stretched over a perforated pipe, weighted to ensure intimate contact, and then circles are traced using the flexible 203-mm template. The fabric is then cut into planar rectangles with the circle centered for testing.

Conditioning: Specimens must be submerged in distilled water for at least one hour, then brought to moisture equilibrium in a standard geosynthetic testing atmosphere (typically 21°C and 65% relative humidity) until the weight change is less than 0.1 g between successive weighings.

ASTM D4751 Test Applications (Industry Fields)

Civil Engineering: Geotextile selection for filtration, separation, and drainage systems

Road and highway construction (base/subbase separation)

Railway ballast stabilization

Landfill liners and leachate collection systems

Slope stabilization and erosion control

Environmental Engineering:

Stormwater management systems

Soil remediation projects

Sediment control structures

Geosynthetic Manufacturing:

Quality control during production

Product development and performance optimization

Compliance with industry specifications (AASHTO M288, etc.)

Related Test Standard:

BS 6906-2	Methods of test for geotextiles -- Determination of the apparent pore size distribution by dry sieving
IS 14294	Geotextiles-Method for Determination of Apparent Opening Size by Dry Sieving Technique
KS K 0754	Standard test method for determining apparent opening size of a geotextile
GB/T 14799	Geosynthetics-Determination of the effective opening size-Dry sieving method

AOS (Apparent Opening Size) is a property that is commonly tested on a variety of geotextile fabrics. Apparent Opening Size Test instrument are used for determining the effective apparent opening size of geotextiles and composite geotextiles by the dry sieving method. conform ASTM D4751, BS 6906-2.

Q1: What is ASTM D4751?

A: ASTM D4751 is the internationally recognized standard that defines how to measure the Apparent Opening Size (AOS) of geotextiles. It provides two test methods: Method A (dry sieving with glass beads) and Method B (capillary porometry). The AOS is a key property used to evaluate whether a geotextile will function correctly as a filter or drainage layer.

Q2: Why is the AOS so important in civil engineering?

A: The AOS tells you the approximate largest soil particle that can pass through the geotextile. This is critical because:

If the AOS is too large, soil particles will wash through, leading to erosion and loss of structural support.

If the AOS is too small, the geotextile will clog quickly, preventing water from draining and causing hydrostatic pressure buildup.

Getting the AOS right ensures long‑term performance of roads, retaining walls, landfills, and erosion control systems.

Q3: What does the “5% passing” criterion mean?

A: The AOS (also called O₉₅) is defined as the bead size at which 5% or less of the glass beads pass through the specimen. In other words, 95% of particles of that size are retained by the geotextile.

Q4: What precautions are taken to ensure accurate results?

A: Key precautions include:

Eliminating static electricity (using anti‑static sprays or ionizers).

Verifying bead sizes with standard sieves before each test.

Using a proper sieve shaker that imparts both lateral and vertical motion.

Avoiding distortion of the specimen when mounting.

For thick geotextiles (>2.3 mm), using a fresh specimen for each bead size to prevent bead trapping.
