ASTM D4521 — Standard Test Method for Coefficient of Static Friction of Corrugated and Solid Fiberboard

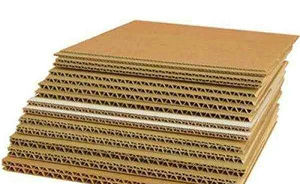

ASTM D4521 is specifically for corrugated fiberboard (corrugated cardboard) and solid fiberboard used in packaging. It measures only the static (starting) coefficient of friction — not kinetic/sliding COF. Currently withdrawn by ASTM, replaced by aligned TAPPI industry standards (T815, T816) for paperboard packaging friction testing.

Test materials: Corrugated fiberboard, solid paperboard, linerboard, medium paper, shipping sack paper and other rigid paper packaging substrates.

Two mutually acceptable test methods defined in one standard:

Method A: Horizontal Plane (Sled Pull) Method

Method B: Inclined Plane (Slide Angle) Method

Core Test Principle and methods:

Method A – Horizontal Plane Sled Pull Principle	A test specimen (cut from the board) is fixed to a horizontal plane. A smaller specimen is mounted on a weighted sled that rests on the fixed specimen. The plane (or the sled, depending on fixture design) is pulled horizontally at a slow, controlled speed. The force required to just break static contact (the peak pull force before motion starts) is measured directly. This is essentially a miniature version of the same sled-on-surface concept used in ASTM D1894/ISO 8295, but purpose-built for the rougher, permeable, anisotropic surface of fiberboard rather than smooth plastic films.
Method B – Inclined Plane Slide Angle Principle	A specimen is placed on an adjustable inclined platform covered with the test board surface. The platform angle is increased gradually and uniformly until the specimen just begins to slide. This is the classic physics-lab method — no load cell needed, just a protractor/goniometer and a smoothly tilting table.

Method A – Horizontal Plane Sled Pull Principle

A test specimen (cut from the board) is fixed to a horizontal plane. A smaller specimen is mounted on a weighted sled that rests on the fixed specimen.

The plane (or the sled, depending on fixture design) is pulled horizontally at a slow, controlled speed.

The force required to just break static contact (the peak pull force before motion starts) is measured directly.

This is essentially a miniature version of the same sled-on-surface concept used in ASTM D1894/ISO 8295, but purpose-built for the rougher, permeable, anisotropic surface of fiberboard rather than smooth plastic films.

Method B – Inclined Plane Slide Angle Principle

A specimen is placed on an adjustable inclined platform covered with the test board surface.

The platform angle is increased gradually and uniformly until the specimen just begins to slide.

This is the classic physics-lab method — no load cell needed, just a protractor/goniometer and a smoothly tilting table.

ASTM D4521 Coefficient of Static Friction of Corrugated and Solid Fiberboard

Test Specimen information:

Sampling Rules

Specimens sampled evenly across full board width per ASTM D585 sampling practice, avoiding edge creases, damaged, printed or coated uneven zones.

Minimum 3 replicate specimen pairs per material grade for statistical average calculation.

Specimen Dimensions

Horizontal Plane Method (A): Cut matched board pairs large enough to fully cover sled base and test table contact area, eliminate edge contact interference.

Inclined Plane Method (B): Two flat rectangular specimens; one fixed securely to the inclined ramp surface, the second placed freely on top without clamping.

Surface Handling Rules

Test surfaces must be free of dust, oil, fingerprints, ink smudges or loose paper fibers; contamination drastically shifts static friction values. Each specimen surface can only be tested once to prevent fiber abrasion altering surface roughness.

ASTM D4521 Coefficient of Friction Test Required Equipment

Equipment for Method A (Horizontal Plane)	Coefficient of Friction Tester Rigid flat horizontal test table: Non-slip, smooth uniform surface, level adjustable with bubble level. Standard weighted sled: Uniform flat base to attach lower fiberboard specimen; fixed mass to deliver consistent normal load. Constant-speed drive unit + force measuring recorder: Captures peak static pull force with fast response to avoid missing sliding initiation peak. Double-sided adhesive tape, specimen clamps, dust-free cleaning tools.
Equipment for Method B (Inclined Plane)	Variable-angle rigid inclined test platform: Smooth flat surface with precision angle scale (0°–90° resolution ≤0.5°). Slow, uniform motorized lifting mechanism to raise the plane at a steady low rate (no sudden tilting shocks). Flat rigid counterface sheet matching fiberboard material; no sled weight required (the upper board specimen’s own weight acts as normal load). Angle readout dial or digital angle encoder for accurate θ recording.

Equipment for Method A (Horizontal Plane)

Coefficient of Friction Tester

Rigid flat horizontal test table: Non-slip, smooth uniform surface, level adjustable with bubble level.

Standard weighted sled: Uniform flat base to attach lower fiberboard specimen; fixed mass to deliver consistent normal load.

Constant-speed drive unit + force measuring recorder: Captures peak static pull force with fast response to avoid missing sliding initiation peak.

Double-sided adhesive tape, specimen clamps, dust-free cleaning tools.

Equipment for Method B (Inclined Plane)

Variable-angle rigid inclined test platform: Smooth flat surface with precision angle scale (0°–90° resolution ≤0.5°).

Slow, uniform motorized lifting mechanism to raise the plane at a steady low rate (no sudden tilting shocks).

Flat rigid counterface sheet matching fiberboard material; no sled weight required (the upper board specimen’s own weight acts as normal load).

Angle readout dial or digital angle encoder for accurate θ recording.

Key Mandatory Test Stipulations & Control Parameters

Only static friction is measured; dynamic sliding friction is outside the scope of this standard.

Moisture control is critical: Paperboard absorbs ambient humidity, altering surface roughness and inter-fiber friction; strict pre-conditioning is mandatory.

Inclined plane lifting speed must be slow and uniform to prevent inertial sliding that generates false low angle readings.

No sudden impact when placing sled or upper specimen; shock loads change surface contact adhesion and skew results.

All deviations from standard setup (modified ramp speed, non-standard specimen size, altered conditioning environment) must be fully documented in the test report.

Test report must record replicate μₛ values, average static COF, sample source, board grade, conditioning parameters, and test method (A or B).

Deatls test procedure of ASTM D4521 Coefficient of Friction Testing for Corrugated and Solid Fiberboard

Procedure A: Horizontal Plane Sled Pull Test

Clean and level the horizontal test table; fix one fiberboard specimen flat on the table surface with clamps or double tape.

Attach the matching counter fiberboard specimen to the bottom of the standard weighted sled, ensure full flat contact without warping.

Place the sled gently on the lower specimen surface, connect sled to the force sensor via horizontal traction line (no vertical tilt).

Activate drive unit at constant slow speed and start force recording simultaneously.

Record the maximum force peak corresponding to initial sliding movement F_s.

Calculate static COF using u_s=F_s/W.

Discard both specimens, repeat with new sample pairs for minimum three replicates.

Procedure B: Inclined Plane Slide Angle Test

Secure one fiberboard specimen fully flat on the inclined metal ramp surface, remove all wrinkles.

Place the matching second fiberboard specimen flat on top of the lower specimen, no external weights added.

Activate the ramp lifting motor to raise the incline at a slow, uniform angular rate (no rapid acceleration).

Immediately stop ramp movement the moment the upper board specimen starts consistent downward sliding.

Read the critical slide angle θ from the calibrated scale.

Compute static friction coefficient as tangent of θ: u_s=tan(θ).

Reset ramp to horizontal, replace both specimens, repeat replicate tests.

Application Industry Fields

ASTM D4521 was widely adopted across paper packaging and logistics industries before withdrawal:

Corrugated box manufacturing: QC for shipping cartons, transit boxes, pallet unit loads

Solid fiberboard & paper container production: Heavy-duty paper drums, retail display boxes

Linerboard & medium paper raw material mills: Incoming raw paper batch friction inspection

Warehouse & logistics packaging: Pallet stretch wrapping compatibility, stacked box anti-slip performance evaluation

Automated packaging machinery factories: Verifying board slip performance for high-speed box erecting, stacking, conveyor transport lines

Food, beverage, e-commerce, consumer goods packaging quality certification

ASTM D4521 Coefficient of Static Friction of Corrugated and Solid Fiberboard

Related Test Standard:

ISO 8295	Standard Test Method for Static and Kinetic Coefficients of Friction of Plastic Film and Sheeting
JIS K 7125	Plastics -- Film and sheeting -- Determination of the coefficients of friction
TAPPI T815	Coefficient of Static Friction (Slide Angle) of Packaging and Packaging Materials (Inclined Plane Method)— for corrugated, solid fiberboard, paper
TAPPI T816	Coefficient of Friction of Paper and Paperboard (horizontal plane static + kinetic COF)
ASTM D1894	Standard Test Method for Static and Kinetic Coefficients of Friction of Plastic Film and Sheeting

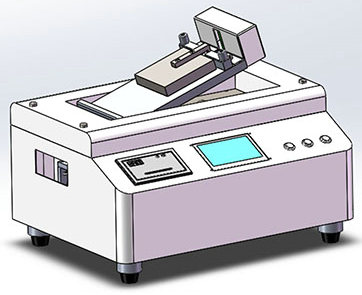

Coefficient of Friction Tester is professionally suitable for measuring the static friction coefficient and dynamic friction coefficient when plastic film and sheet, rubber, paper, cardboard, woven bag, fabric etc., Conform with ISO 8295, ASTM D1894.
