ASTM D3999: Standard Test Methods for the Determination of the Modulus and Damping Properties of Soils Using the Cyclic Triaxial Apparatus

ASTM D3999 applies to both intact and reconstituted soil specimens and focuses on hydrostatically consolidated, undrained conditions. The standard provides two test methods: one using constant cyclic load (Method A) and the other using constant cyclic deformation (Method B). These properties are essential for evaluating soil behavior under dynamic loads such as earthquakes, ocean waves, or blasts, and are used in geotechnical engineering analyses.

Test Principle

The cyclic triaxial test simulates the stress-strain response of a soil element under repeated loading. A cylindrical soil specimen is first saturated and then consolidated under an isotropic confining pressure. Subsequently, undrained cyclic loading (either stress- or strain-controlled) is applied. The resulting axial stress and axial deformation are recorded, forming hysteresis loops.

ASTM D3999 Soil Secant Modulus and Damping Coefficient by Dynamic Cyclic Triaxial Testing

Hysteresis loop curve generate by dynamic triaxial testing

The secant Young’s modulus (E) is calculated as the slope of the line connecting the extreme points of the hysteresis loop (double amplitude load divided by double amplitude deformation, normalized by specimen geometry).

The damping coefficient (D) is the ratio of energy dissipated per cycle (area of the hysteresis loop) to the maximum stored energy (area of a reference triangle), expressed as a percentage.

These parameters are strain-dependent and are typically plotted against the single amplitude axial strain to characterize soil dynamic behavior. The test is valid for shear strain levels below approximately 0.5%, beyond which results may be compromised by specimen instability (e.g., necking, membrane effects).

Test Methods

The standard defines two distinct test methods:

Test Method A (Constant Load): A constant cyclic deviator stress is applied to the specimen. This method is used to determine the secant Young’s modulus (E) and damping coefficient (D) under load-controlled conditions. The cyclic load is typically sinusoidal with a frequency between 0.1 and 2 Hz.

Test Method B (Constant Stroke): A constant cyclic axial deformation is applied to the specimen. This method determines Eand Dunder stroke-controlled conditions. The deformation is also sinusoidal within the same frequency range.

Both methods involve measuring axial stress, axial strain, and pore-water pressure during undrained cyclic loading. The secant modulus and damping coefficient are derived from hysteresis loops obtained from each cycle.

Testing machine and device required fot ASTM D3999

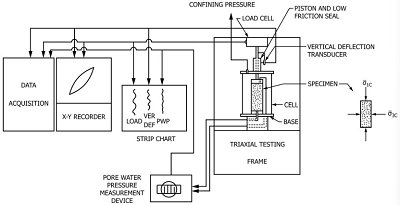

Cyclic triaxial testing machine	Apply uniform sinusoidal loads or deformations within 0.1–2 Hz. For load control, it should maintain cyclic load accuracy within 0.5% of double amplitude stress. For stroke control, it may range from simple cams to closed-loop electro-hydraulic systems.

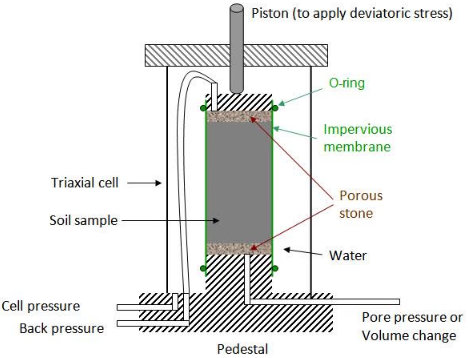

Triaxial Pressure Cell	Designed with tight tolerances for piston, top platen, and low-friction piston seal. Linear ball bushings to minimize piston friction and maintain alignment. Loading piston diameter at least 1/6 of specimen diameter to avoid bending. Minimal piston friction (≤ ±2% of maximum cyclic load) via specialized seals. Top and bottom platens aligned to strict parallelism and eccentricity limits
Measurement Transducers	Load cell: Accuracy within ±0.25% nonlinearity/hysteresis, capacity ≤5× maximum test load. Displacement transducers (LVDTs, potentiometers, eddy current sensors): High sensitivity and linearity.
Specimen Cap and Base	Rigid, noncorrosive, with drainage. Porous discs (permeability ~1×10⁻³ mm/s) embedded in cap/base to allow drainage without clogging.
Rubber Membrane	Thickness ≤1% of specimen diameter; unstretched diameter 90–95% of specimen diameter to minimize restraint.
Support Systems	Pressurizing/flushing panel, de-aired water system, temperature-controlled environment (fluctuations <±4°C), and data acquisition (analog/digital recorders with appropriate sampling rates).

Test Specimen

Cylindrical, minimum diameter 36 mm. Height-to-diameter ratio between 2 and 2.5. Largest particle size <1/6 specimen diameter.

Types: Intact (from field sampling) or reconstituted (laboratory compacted). Intact specimens preserve natural fabric; reconstituted specimens are prepared by methods such as:

1), Fluviation through water: Granular soil poured underwater and vibrated.

2), Dry screening: Sand poured through a screen into a membrane.

3), Dry or moist vibration: Layered compaction by vibration.

Preparation: Intact specimens are trimmed with minimal disturbance (e.g., frozen trimming). Ends must be flat and parallel. Density, water content, and dimensions are measured accurately.

Test Procedure of ASTM D3999 Soil Secant Modulus and Damping Coefficient by c Methods:

Specimen Mounting	Place specimen on bottom platen, enclose in rubber membrane, seal with O-rings. For reconstituted specimens, compaction may occur directly on the platen.
Saturation	Apply vacuum and de-aired water, then incremental back pressure while monitoring B-value. Maintain isotropic stress during back pressuring.
Consolidation	Increase chamber pressure to achieve desired effective confining stress (σ_3c^′). Apply static axial load to counteract piston uplift and maintain isotropic conditions. Monitor volume change and deformation until primary consolidation is complete (typically 100% after one log cycle of time).
Cyclic Loading	Create an air pocket in the cell to avoid pressure fluctuations. Close drainage valves (undrained condition). Apply 40 cycles of sinusoidal loading/deformation at 0.5–1 Hz. Record axial load, deformation, and pore pressure continuously. For staged loading, increase amplitude stepwise, allowing dissipation of excess pore pressure between stages.
Calculations	Damping coefficient, Secant modulus, Strain as below:
Post-Test Report	Measure final water content, sketch/photograph specimen, and report all required data (e.g., B-value, consolidation time, modulus/damping vs. strain plots).

Test Application (Industry Field)

Core use cases in geotechnical and civil engineering:

Seismic Engineering: Evaluate soil dynamic properties for building/bridge foundation design, earthquake-resistant infrastructure.

Transportation: Assess subgrade/embankment modulus under cyclic traffic loads for road, railway, and airport pavement design.

Water Resources: Analyze dam/levee stability under wave or seismic loading.

Offshore/Marine: Design foundations for offshore platforms, wind turbines, and coastal structures under wave-induced cyclic stresses.

Geotechnical Consulting: Material characterization for site investigation, foundation design, and ground improvement projects.
