ASTM D2924 Fiberglass Pipe External Pressure Resistance Tester | UnitedTest

ASTM D2924 test method measures external pressure resistance of fiberglass RTRP and RPMP pipes, evaluating buckling, compressive, and leaking failure modes. UnitedTest manufactures ASTM D2924 compliant external pressure testing machines for GRP pipe quality control and certification.

ASTM D2924 is a key industry standard test method dedicated to evaluating the external pressure bearing capacity of fiberglass glass-fiber-reinforced thermosetting-resin pipes used in underground drainage, sewage, and buried pipeline applications. This testing protocol systematically classifies and verifies three primary pipe failure modes under external loading conditions: structural buckling failure, material compressive failure, and joint or wall leaking failure, enabling comprehensive structural performance assessment of composite piping systems.

The standard covers two major categories of reinforced thermosetting resin piping products: RTRP (Reinforced Thermosetting-Resin Pipe) without aggregate filler, and RPMP (Reinforced Polymer Mortar Pipe) formulated with siliceous aggregate filler. ASTM D2924 test data validates pipe structural stability, external load endurance, and long-term buried service reliability, serving as essential quality evidence for pipe manufacturing batch inspection, engineering material selection, and third-party compliance certification.

UnitedTest designs and manufactures high-precision ASTM D2924 compliant fiberglass pipe external pressure resistance testing machines. Our professional test equipment accurately simulates underground external pressure loads, detects all standard failure modes, and delivers stable repeatable test results for RTRP and RPMP pipe manufacturers, civil engineering laboratories, and pipeline construction quality verification projects.

Test Principle

The test subjects pipe specimens to incrementally increasing external fluid pressure under controlled constant temperature until failure occurs. The pipe interior is filled with test fluid. Internal volume change is monitored by tracking displaced fluid volume/weight. A Cartesian plot of external pressure versus displaced‑fluid volume/weight is generated to identify failure points:

1. Buckling failure: Elastic instability; sharp slope discontinuity on pressure‑volume curve, accompanied by axial longitudinal cracks, typical for thin‑wall pipes.

2. Compressive failure: Material compressive strength exhaustion; sudden pressure drop without sharp axial cracking, typical for thick‑wall pipes.

3. Leaking failure: Continuous fluid volume increase without pressure rise, as test fluid permeates through pipe wall.

Scaling constants can be calculated from test data to predict external failure pressure for other pipe diameters under identical resin, reinforcement, wall‑thickness‑to‑diameter ratio and reinforcement pattern conditions.

ASTM D2924 External Pressure Resistance Test of Fiberglass Pipe

Test Specimen

1. Quantity: At least five valid specimens. Specimens failing timing criteria are discarded and replaced to retain minimum five valid replicates.

2. Specimen dimension: Use as‑fabricated inner/outer diameters, except for end‑closure zones within 2 in (50 mm) of pipe ends. The exposed length under external pressure shall take the larger value between:

- L=10D, or Roark’s long‑tube formula output;

- D: average outer pipe diameter; L: exposed test length; liner thickness is excluded from reinforced‑wall dimension calculation.

Test Equipment of ASTM D2924 External Pressure Resistance Test of Fiberglass Pipe

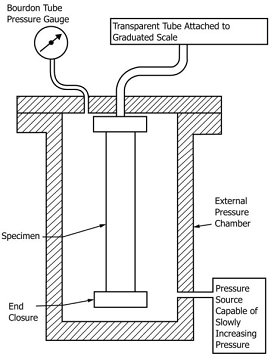

Two loading configurations are available: hoop‑and‑axial combined loading and hoop‑only loading;

Pressure test chamber	Pressure‑resistant external vessel for housing pipe specimens.
Pressurization system	Provides gradual incremental external fluid pressure. Equipped with a Bourdon‑tube pressure gauge (accuracy ±1 % full‑scale; anticipated failure pressure shall sit within the middle two‑thirds of gauge range).
Volume‑change measuring assembly	Transparent graduated tube connected to specimen interior; analytical balance (accuracy ±0.1 g) to weigh displaced fluid for tracking internal‑volume deformation.
Test fluid	Water or hydraulic oil.
Timer	Time‑recording device with 1‑second accuracy for recording time‑to‑failure.
Temperature regulator	Maintains specimen and test‑fluid temperature at target value ±2 °C for non‑ambient‑temperature testing.

Mandatory Test Parameters & Stipulations:

Pressure loading mode	Step‑wise incremental pressure increase; ensure ≥10 data readings collected before specimen failure
Temperature control	Ambient or specified temperature, tolerance ±2 °C
Failure judgment criteria	1. Sharp slope change on pressure‑displaced‑fluid curve (buckling or wall permeation); 2. Sudden pressure drop (compressive collapse); 3. Continuous fluid outflow without pressure growth (leaking).
Scaling constant rules	No scaling calculation permitted for leaking‑mode failures. Scaling constants apply only when resin, reinforcement, wall‑thickness‑diameter ratio and reinforcement layout remain unchanged across pipe sizes.
Precision	Hoop‑only loading: single‑specimen repeatability ±8.4 %; mean‑value precision ±4.9 %. Combined hoop‑axial loading: single‑specimen repeatability ±13.1 %; mean‑value precision ±7.6 % (95 % probability critical difference)
Safety note	The standard does not cover all safety risks; users bear responsibility for safety, health and regulatory compliance arrangements.

Step-by-Step Test Procedure of ASTM D2924 External Pressure Resistance Test of Fiberglass Pipe

1. Mount specimen in test chamber, fill both internal cavity and external chamber with test fluid; completely purge trapped air inside specimen (entrapped air invalidates test). Install transparent tube and fluid‑collection weighing setup; perform pre‑test conditioning per Section 8 of the standard.

2. Apply pressure incrementally; ensure at least 10 readings before failure. After fluid outflow stabilizes, record pressure and displaced‑fluid weight. Accelerating fluid‑displacement weight gain under small pressure rise signals imminent failure. Record time‑to‑failure value.

3. Post‑failure: Remove specimen from chamber; observe and document fracture appearance and failure morphology.

4. Plot chart of external pressure vs. displaced‑fluid weight to determine failure pressure and failure category (buckling / compressive / leaking).

5. Compute average failure pressure and average scaling constant from five‑specimen dataset; compile full test report as required by Section 11 of the standard.

Industry Fields & Applications

Fiberglass pipe manufacturers (RTRP/RPMP) for QC and design data

Buried pipeline engineering – sewer, stormwater, industrial drain where external soil/groundwater pressure dominates

Oil & gas, chemical plant underground conduit and effluent lines

Municipal infrastructure – GRP mortar pipe for trenchless or deep-burial installation

Marine/outfall pipelines subjected to hydrostatic collapse

Used by specifiers to verify external-collapse rating before installation

Related Test Standard:

ASTM D2412	External loading characteristics of plastic pipe via parallel‑plate loading (different test principle for external load evaluation).
ASTM D2992	Practice for establishing hydrostatic/pressure design basis for fiberglass pipe and fittings (internal‑pressure design baseline)
ASTM D3517	Product specification for fiberglass pressure pipe (uses D2924 test data for product qualification)ASTM Inter...
ASTM D3839	Underground installation practice for fiberglass pipe; relies on D2924 external‑pressure resistance data for burial‑depth design.

Keywords: ASTM D2924 fiberglass pipe external pressure tester,GRP pipe external load resistance test machine,RTRP pipe structural buckling test rig,RPMP siliceous aggregate pipe pressure resistance tester,fiberglass thermosetting resin pipe failure mode test,underground composite pipe compressive performance test,buried pipeline leaking failure detection equipment,reinforced polymer mortar pipe quality control tester,thermosetting resin pipe structural stability analyzer,pipeline engineering compliance testing instrument,fiberglass pipe batch performance verification machine,external pressure bearing capacity test apparatus
