ASTM D2444 : Standard Test Method for Determination of the Impact Resistance of Thermoplastic Pipe and Fittings by Means of a Tup (Falling Weight)

ASTM D2444 test method covers the determination of the impact resistance of thermoplastic pipe and fittings under specified conditions of impact by means of a tup (falling weight). Three interchangeable striking noses are used on the tup, differing in geometrical configuration. Two specimen holders are described. The mass of the tup shall be 6, 12, 20 or 30 lbs (2.7, 5.4, 9.1, or 13.6 kg) and shall fall from a maximum height of at least 10 ft (3.0 m) and a minimum of 2 ft (0.6 m).

ASTM D2444 specifies a method for the determination of the resistance to external blows of thermoplastics pipes of circular cross-section; it is called the round-the-clock method.

This method is applicable to isolated batches of pipe tested at 0 °C (information is also given for sampling from the continuous production of pipe).

Test pieces are subjected to blows from a falling striker, of specified mass and shape, dropped from a known height onto specified positions around the circumference of the test piece. The true impact rate of the batch, or production run from an extruder, is estimated.

Commonly the impact height 2000mm, impact hammer 6.3kg, 9.1kg, 13.6kg.

Test Principle

This test uses a controlled free-falling tup to strike test specimens at a specified energy level. It judges specimens as pass/fail based on visible failure (shattering, cracks, splits). Test results are plotted on normal probability paper to calculate the average impact resistance (50% pass/fail intercept) and standard deviation (difference between 16%/84% and 50% intercept), reflecting the material’s ability to resist impact damage.

Test equipment of ASTM D2444 test required:

1, Impact Tester with Drop Tube: A vertical guide tube (min. 10 ft / 3.0 m drop length) with a mechanism to hold and reproducibly release the tup. The tube ensures the tup falls freely and centers it onto the specimen.

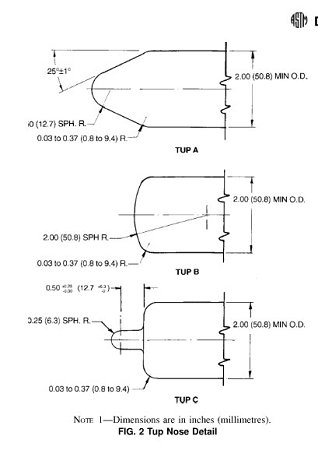

2, The Tup (Falling Hammer): The striking part, equipped with one of three interchangeable noses:

Tup A:0.50 in (12.7 mm) radius nose

Tup B:2.00 in (51 mm) radius nose

Tup C:0.25 in (6.3 mm) radius nose

The tup mass can be 6, 12, 20, or 30 lb (2.7, 5.4, 9.1, or 13.6 kg)

There are three interchangeable inserts for the tup:

Type A is a cone with a rounded point

Type B is a cylinder with a relatively flat surface

Type C has a 0.5" diameter “pin” with a rounded end

ASTM D2444 Pipe falling weight impact test standard

Two specimen supports (either a V-block or a Flat Plate) are defined in the standard. The combination of test variables which offers reasonably repeatable results with the test being easy to run with little or no hazard to personnel is the one that should be used.

The impact resistance of thermoplastic pipe and fittings relates to suitability for service and to quality of processing. Impact resistance may also provide a relative measure of a material's resistance to breakage during handling and installation and, for non-buried applications, to in-service breakage.

Test Specimen Information

Pipe specimens: Length equals nominal outside diameter, minimum 6 in (152 mm); burrs removed.

Fitting specimens: Tested unassembled or assembled with 6 in (152 mm) pipe segments.

Quantity: 20 specimens if not specified in product standards; if ≥4 fail, test 20 more. Acceptance: ≥17/20 or ≥32/40 pass.

Conditioning: 73°F ±4°F (23°C ±2°C), 50% ±10% RH for ≥40 h (per ASTM D618 Procedure A); test within 15 s after removal from conditioning environment.

Key Test Parameters

Tup nose radius: 6.3 mm (C), 12.7 mm (A), 51 mm (B)

Tup mass: 2.7, 5.4, 9.1, 13.6 kg

Drop height: 2 ft–10 ft (0.6 m–3.0 m), adjustable in 2 in (50.8 mm) steps

Test temperature: 23°C ±2°C

Impact point: Top of vertical diameter; random angular orientation for pipes; side position for unsymmetrical fittings

Failure criterion: Shattering, naked-eye visible crack/split (surface crease is not failure)

Results obtained by use of this test method can be used in three ways:

As the basis for establishing impact test requirements in product standards;

To measure the effect of changes in materials or processing;

To measure the effect of the environment.

Falling hammer impact is used to determine the energy required to break or rupture test specimens such as pipe, sheet, laminates, composites, ceramics, and nonferrous metals for material and component evaluation to international testing methods such as ISO 6603, ISO 3127, ASTMD2444, and UL 651 to name a few.

Round the Clock Method – Lengths of pipe from a batch or production run are subjected to blows from a known mass that falls from a specified height as per test standards ISO3127 & EN744.

Staircase Method – Lengths of pipe are subjected to blows from a known mass and shape but is dropped from differing heights depending on the results of each blow as per test standard EN1411.

Details Test Procedures of ASTM D2444:

Preliminary Test: Select optimal tup mass by testing 4 specimens from 5 ft (1.5 m). Adjust weight to achieve partial failure. Set two drop heights to get <50% and >50% failure rates, then plot results on probability paper to estimate final test heights.

Final Test: Split 100 specimens into two 50-specimen sets. Test one set at ~85% pass height, the other at ~85% fail height. Verify data acceptability (each set has ≥1 pass/fail; one set <50% failure; pass count difference ≥20). Plot to derive average impact resistance and standard deviation.

Optional Up/Down Procedure: Test 20 specimens, adjusting drop height stepwise based on prior pass/fail results to calculate median impact resistance.

Go/No-Go Procedure: For specification compliance: 10 specimens for pipes, 12 for unsymmetrical fittings; product fails if ≥2 specimens break.

Related test standard:

ISO 3127	Thermoplastics pipes - Determination of resistance to external blows - Round-the-clock method
GBT 14152	China standard, equivalent with ISO 3127
EN 1411	PLASTICS PIPING AND DUCTING SYSTEMS. THERMOPLASTICS PIPES. DETERMINATION OF RESISTANCE TO EXTERNAL BLOWS BY THE STAIRCASE METHOD.
EN 744	Plastics piping and ducting systems. Thermoplastics pipes. Test method for resistance to external blows by the round-the-clock method
NF T54-9106	Plastics piping and ducting systems. Thermoplastics pipes. Determination of resistance to external blows by the staircase method.
TCVN 6144	Thermoplastics pipes. Determination of resistance to external blows. Round-the-clock method
BS 2782-11: Method 1108C	UK implementation of EN 744
EN 1705	Plastics piping systems — Thermoplastics valves — Test method for the integrity of a valve after an external blow‌
ISO 11173	Thermoplastics pipes - Determination of resistance to external blows - Staircase method
ASTM D5628	Standard Test Method for Impact Resistance of Flat, Rigid Plastic Specimens by Means of a Falling Dart (Tup or Falling Mass)
ASTM D5420	Standard Test Method for Impact Resistance of Flat, Rigid Plastic Specimen by Means of a Striker Impacted by a Falling Weight (Gardner Impact)

Test Application (Industry Fields)

Plastic piping manufacturing (PVC, PE, ABS, etc.)

Construction, plumbing, and building drainage

Municipal water supply, gas distribution, and irrigation

Industrial fluid handling and non-buried piping systems

Quality control and certification of thermoplastic pipe & fitting products.

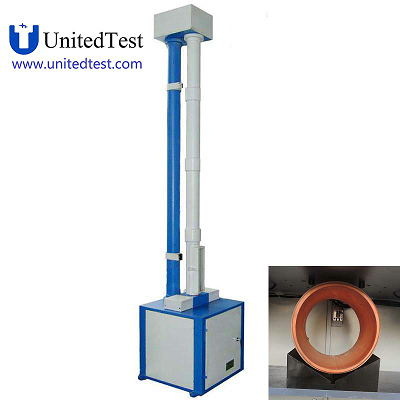

Pipe Falling Hammer Impact Testing Machine for assessing the impact resistance and toughness of plastic and metal pipes, offering controlled hammer energy, accurate impact measurement, and reliable quality evaluation for industrial and laboratory testing.

Both ISO 3127 and ASTM D2444 are falling-weight impact test standards for thermoplastic pipes, but differ sharply in test method, scope, equipment, specimen rules, statistics, and regional use.

Item	ISO 3127	ASTM D2444
Full Name	Thermoplastics pipes – Determination of resistance to external blows – Round-the-clock method	Standard Practice for Determination of the Impact Resistance of Thermoplastic Pipe and Fittings by Means of a Tup (Falling Weight)ASTM International
Scope	Only circular thermoplastic pipes; no fittings	Thermoplastic pipes + fittingsASTM International
Test Method	Round-the-clock (clockwise rotating) multi-point impact around pipe circumference	Single-point impact on top of vertical diameter; random angular orientation for pipes
Primary Unit	SI units (mm, kg, °C, J)	Inch-pound units (standard); SI for reference only
Regional Use	Global (Europe, Asia, Middle East, etc.)	North America (USA, Canada)

Why These Differences Matter

ISO 3127 is designed for batch quality control of pipes (circumferential impact covers more defects), widely used in international trade and European/Asian markets.

ASTM D2444 covers pipes + fittings, uses flexible holders and multiple strikers for material/process comparison, dominant in North American product specs.

Results between the two are not directly comparable due to striker shape, impact position, temperature, and statistics.
