ASTM D1781 Climbing Drum Peel Tester for Adhesive Bonds | UnitedTest

ASTM D1781 climbing drum peel test evaluates peel resistance of adhesive‑bonded joints and sandwich composite panels. UnitedTest supplies ASTM D1781 compliant climbing drum peel testing machines for honeycomb, foam‑core composite and aerospace bonded structure quality validation.

ASTM D1781 Standard Test Method for Climbing Drum Peel for Adhesives determines the peel resistance of adhesive bonds where a flexible adherend is peeled away from a rigid adherend. This test procedure is also widely applied to peel testing of flexible face sheets detached from the core of sandwich structures.

Commonly deployed for adhesively bonded sandwich panels, the ASTM D1781 test covers typical assemblies including aluminum or composite skins bonded to honeycomb, foam, and other lightweight core materials. It delivers repeatable peel‑resistance data used for material qualification, adhesive formulation comparison, incoming batch inspection, and finished‑part performance assessment across aerospace, transportation, and composite manufacturing sectors.

UnitedTest designs and manufactures high‑performance ASTM D1781 climbing drum peel testing machines built to generate accurate, reproducible peel‑load readings for bonded joints and sandwich composite constructions. Our test equipment supports laboratory R&D and production‑line quality control for adhesive‑bonded lightweight structural components.

Test Principle

A rectangular specimen is prepared so that one flexible face can be separated from the rigid side. One end of the flexible facing is clamped to a rotating flanged drum. The drum is connected by loading straps/cables to the moving crosshead of a universal testing machine.

As the machine pulls, the drum “climbs” along the specimen: the flexible skin wraps around the drum and is progressively peeled from the rigid substrate or core. The peeling force is recorded continuously.

The measured load is converted into an average peel torque per unit width:

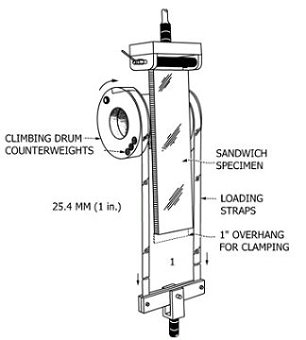

ASTM D1781 Peeling Test for Climbing Drum Method for Adhesives

r_o = flange radius, including half the strap/cable thickness

r_i = drum radius plus half the thickness of the peeled adherend

F_p = average measured peel load, including drum-assembly resisting torque

F_o = correction load to overcome drum/clamp/counterweight resisting torque

W = specimen width

Thus the drum does not simply measure linear force; it applies a controlled peeling moment with a roughly constant peel geometry.

Specific test method

The flexible skin is peeled by winding it around the climbing drum.

Peel is performed in tension using a UTM.

Load versus head movement—or load versus peeled distance—is recorded.

The reported value is usually the average peel torque over the central, steady portion of the trace.

Initial and final transient regions are excluded: calculation uses the 127 mm peel length between 25 mm and 152 mm of peel, corresponding to 0.25–1.5 in. of crosshead travel for the standard drum.

At least six specimens are tested, e.g. two or more from each of three bonded panels.

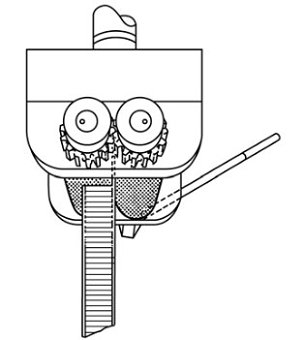

ASTM D1781 fixture	Fixture top clamping

Test Equipment of ASTM D1781 Peeling Test for Climbing Drum Method for Adhesives

CRE Universal Testing Machine (UTM)

Constant crosshead speed under fluctuating load; load accuracy within 1 %.

Select load range so specimen peak load occupies 15‑85 % of full‑scale capacity.

Autographic load‑displacement recording is recommended. Machine shall be verified following ASTM E4.

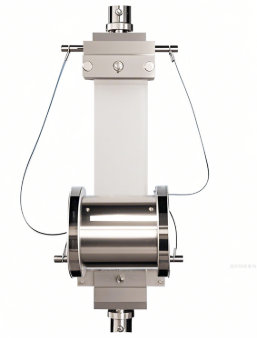

Climbing‑drum peel fixture

Drum outer radius: 51.00±0.13mm; flange radius 12.70±0.13mm larger than drum radius.

Counterweights for drum rotational balance, top specimen clamp, eccentric drum clamp, flexible loading straps/cables.

Total mass of drum‑clamp‑counterweight assembly ≤ 3.6 kg.

ASTM D1781 Peeling Test for Climbing Drum Method for Adhesives

Auxiliary Supplies

Auxiliary backing plates, fasteners for mounting laminate specimens, calibration substitute strips (thin fabric or matching adherend material) for fixture zero‑torque calibration.

Test Specimen Information

Two main specimen types:

1. Laminated assemblies: width = 25 mm, minimum length = 254 mm. Secure to rigid backing plate via machine‑screws to prevent substrate bending during peeling.

2. Sandwich‑structure specimens: width = 76 mm, minimum length = 305 mm, ~25 mm overhang of one facing at each end.

Standard reference sample: 0.51 mm clad 2024‑T3 aluminium face sheet, 12.7 mm core thickness. The rigid core must not bend during peeling test.

General rules:

Minimum 6 replicate specimens per adhesive formulation (preferably ≥2 specimens cut from each of ≥3 bonded panels).

For orthotropic honeycomb cores: half specimens peel parallel to core cell length direction, half parallel to width direction.

Cut specimens to avoid bond‑zone overheating or mechanical damage. Metal‑cut band‑saw is recommended for aluminium‑alloy panels.

Key Test Parameters

Crosshead speed: 25.40 ± 2.54 mm/min [1.00 ± 0.10 in./min]

With the standard drum, this peels the flexible member at about 102 mm/min [4 in./min]

Peel distance evaluated: at least 152 mm [6 in.] of bond

Calculated peel interval: 127 mm [5 in.] from 25–152 mm peel distance.

Load correction: determine F_o using thin fabric for no-bend correction, or same-material strip for approximate adherend-bending correction

Balance the drum assembly; correct for its resisting torque

Keep drum/clamp/counterweight mass ≤ 3.6 kg

Details Test Procedures of ASTM D1781 Peeling Test for Climbing Drum Method for Adhesives:

1. Complete specimen pre‑conditioning, cut specimens, mount laminate‑type specimens to rigid backing plates.

2. Perform fixture calibration to obtain baseline resisting‑torque load F_o.

3. Secure specimen: one end clamped by drum clamp, the other end fixed to top clamp; hang top clamp to UTM upper crosshead, zero the load‑measuring system, connect loading straps to lower crosshead fixture.

4. Apply initial pre‑load equal to calibrated F_o. Run tensile test at constant crosshead speed of 25.4 mm/min.

5. Record load versus crosshead displacement over at least 152 mm peeled distance. Without autographic recording, capture load values at fixed time intervals after initial peak.

6. Calculate average peel load over the stable 127 mm peeling segment, compute average peel torque per specimen.

7. Document failure mode (cohesive adhesive failure, interfacial adhesion failure on face‑sheet, interfacial failure on core, core‑material failure or mixed modes) for each replicate.

Applications by industry

ASTM D1781 is mainly used where delamination resistance of bonded panels matters:

Aerospace: honeycomb and foam sandwich panels, aircraft skins, interior structures, bonded repairs

Defense: composite and metal-bonded structural panels

Marine: lightweight composite decks, hull panels, sandwich structures

Automotive / rail: lightweight body panels, composite doors, interior sandwich panels

Construction: architectural sandwich walls, insulated panels, facade cladding

Adhesive R&D and QC: surface preparation, primer effects, cure evaluation, batch-to-batch consistency

It is particularly sensitive to surface preparation and can indicate degree of cure for relatively brittle adhesives—abnormally high peel values may suggest incomplete cure.

Related Test Standard

ASTM D1781	Standard Test Method for Climbing Drum Peel for Adhesives
ASTM D3167	Standard Test Method for Floating Roller Peel Resistance of Adhesives
GB/T 1457	Test method for climbing drum peel strength of sandwich constructions
ASTM D1876	T‑peel test for flexible‑flexible bonded assemblies.
ASTM D903	180° peel test; often for flexible adherend peeled from rigid substrate
ASTM D1002	Single-lap shear strength of adhesive-bonded metal joints; not a peel test, but frequently used alongside D1781 for structural adhesive qualification
EN 2243-3	Aerospace series - Non-metallic materials - Structural adhesives - Test method - Part 3: Peeling test metal-honeycomb core
DIN 53295	Sandwich structures: drum-assisted peel test

Keywords: ASTM D1781 climbing drum peel test,adhesive climbing drum peel tester,sandwich panel peel resistance testing machine,honeycomb core composite peel test equipment,foam‑core bonded structure peel analyzer,composite skin to core peel strength tester,aerospace adhesive bond evaluation rig,adhesive joint peel resistance measurement,lightweight sandwich structure quality test,aluminum honeycomb peel test apparatus,composite material adhesive performance tester,bonded assembly laboratory peel test system,adhesive formulation validation equipment

WDW Series Computer Control Electronic Universal Testing Machine made by UNITEDTEST range from 100N to 600KN load capacity with various models like single columns, table type, door frame type etc., is used to perform tension, compression, flexure/bending, shearing, peeling etc., test for metal and nonmetal specimens.

Climbing drum test fixture is a typical peel testing method used to determine the de-lamination characteristics of adhesives used to bond different materials together. The fixture consists of a flanged drum, flexible loading straps connected to an adapter, and clamps for holding the test specimen.

Q1: What is ASTM D1781 climbing drum peel test used for?

A1: It measures peel resistance of adhesive bonds between flexible‑to‑rigid adherends, especially for sandwich composite panels (flexible face sheet bonded to honeycomb / rigid core). It delivers comparative adhesion performance data for process control, material screening and batch acceptance, rather than absolute fundamental material fracture‑toughness values.

Q2: Why is ASTM D1781 important for bonded composite / adhesive materials?

A2: 1. This test is highly sensitive to adherend surface treatment and primer performance, making it ideal to validate surface preparation workflows.

2. For brittle structural adhesives, abnormal high peel torque values can signal incomplete adhesive curing status.

3. It simulates real‑world delamination risk of honeycomb sandwich panels widely used in aerospace lightweight structures; traditional 90° /180° peel cannot reproduce this loading geometry reliably.

4. It provides repeatable comparative ranking for adhesives, helping avoid catastrophic delamination failure for safety‑critical bonded assemblies.

Q3: What is fixture calibration F_o and why we must do it?

A3: F_o is the baseline resisting torque load generated by drum, clamps and counterweights of the climbing‑drum fixture. Two calibration approaches are available: thin low‑stiffness fabric strip (no bending compensation), or identical un‑bonded adherend strip (approximate bending compensation). Without subtracting F_o from total measured load F_p, final peel‑torque calculation will produce over‑estimated wrong peel‑resistance results.

Q4: What are typical test errors / troubleshooting tips for ASTM D1781?

A4: 1. Unstable, scattered load curve: Check drum counter‑balance, fixture alignment, specimen slippage in clamps.

2. Flexible facing tears before full delamination: Check adherend thickness, surface notch damage caused during specimen cutting.

3. Abnormally high peel torque: Verify fixture calibration value F_o; may indicate incomplete adhesive curing for brittle adhesives.

4. Invalid data: Avoid using initial peak load region; only calculate average torque on stable 127 mm peeling segment as defined by standard.

Q5. How does the climbing drum peel test work?

A5: One end of the flexible facing is clamped to a flanged drum. The drum is linked to the lower crosshead of a universal testing machine by loading straps or cables. As the machine pulls, the drum climbs along the specimen and peels the flexible skin from the rigid substrate or core. Load is recorded versus head movement or peeled distance.

Q6: Why choose UnitedTest ASTM D1781 Climbing Drum Peel Test Machine?

A6: UnitedTest designs and manufactures ASTM D1781 climbing drum peel test machines and adhesive peel testing systems for sandwich panels, honeycomb composites, and bonded structures. Accurate peel torque, drum fixtures, and UTM integration.
