ASTM D1761 Standard for Wood Mechanical Fastener Withdrawal & Lateral Resistance Testing | Compliant UTM Test Equipment Guide

ASTM D1761 Standard Test Methods for Mechanical Fasteners in Wood and Wood-Based Materials is the core industrial benchmark for calibrating wood connection strength with our dedicated wood fastener testing machine. This globally recognized standard establishes uniform test workflows to measure two critical mechanical indicators: fastener axial withdrawal resistance and lateral shear resistance for fasteners embedded inside timber substrates.

Following ASTM D1761 compliant test procedures enables side-by-side performance comparison across diverse fastener styles and dimensions, delivering consistent, repeatable data for product R&D and factory quality control. The standard quantifies the structural connection performance of an extensive range of hardware fasteners, including nails, staples, wood screws, bolts, lag screws and engineered timber connectors. All spike fasteners are classified under the nail category within this standard’s testing scope.

Applicable wood test substrates cover solid lumber, plywood, oriented strand board (OSB), fiberboard and all other wood composite panels. UnitedTest universal material testing machine paired with ASTM D1761 certified screw withdrawal fixtures fully meets all loading, specimen and data recording requirements specified in this standard for structural timber, furniture and engineered wood manufacturing labs.

Keywords: ASTM D1761 fastener testing machine, wood screw withdrawal resistance tester, wood fastener lateral shear test equipment, UTM for timber connector pull-out test, wood-based material fastener holding strength test, lag bolt withdrawal resistance measurement, OSB plywood nail shear test, structural timber connector mechanical performance inspection, ASTM D1761 compliant universal testing machine.

Three Specific Test Methods & Core Test Principles

Test	What it measures
Withdrawal Resistance Test (Axial Pull-Out Test)	Resistance to axial extraction from wood
Test Principle	Apply uniform tensile force parallel to the fastener’s insertion axis to extract fasteners vertically from wood substrates. Record the ultimate peak pull-out load to quantify the holding power between fastener shank and wood fiber matrix.
Lateral Resistance Test (Single Fastener Shear Test)	Load–slip behaviour under shear/lateral loading of a single fastener joint
Test Principle	Apply transverse tensile load perpendicular to the fastener’s shank axis across an overlapping double-member joint. Measure load–displacement curves to evaluate single fastener shear bearing capacity, wood crushing resistance and lateral slip stiffness under horizontal offset loads, simulating wind, seismic and live lateral loads in timber construction.
Bolted & Timber Connector Joint Test (Multi-Member Connection Test)	Strength & stiffness of bolt-only or bolt+split-ring/shear-plate joints (2- or 3-member joints, compression or tension)
Test Principle	Test two-member or three-member wood assemblies joined by bolts, split-ring connectors or toothed plate connectors under monotonic compression or tension (loading parallel and perpendicular to wood grain). Capture joint deformation evolution, peak failure load and failure modes to assess full connection rigidity, bearing capacity and edge/end distance effects.

Test Specimen Requirements (Wood & Fastener Specimens)

Specimen Dimension Rules by Test Type

(1) Withdrawal Test Specimens

Single wood prisms; fasteners driven perpendicular to the wood surface, with sufficient shank length exposed for fixture clamping.

If testing through-metal-plate assemblies, fasteners penetrate the attached overlay fully into the base wood member to replicate service installation.

(2) Lateral Resistance Test Specimens

Two overlapping wood members: main member thickness ≥ 6× fastener diameter; side member thickness matches engineering application thickness.

Overlap length ≥ 4 in (100 mm); fastener installed at the overlap center, 2 in (50 mm) away from the overlapping end.

Main member tangential face faces fastener insertion as standard grain orientation.

(3) Bolt & Timber Connector Joint Specimens

Standard test uses three-member joints (two outer side members + one central main member); two-member joints only for targeted research.

Bolt hole clearance: Hole diameter 1/32–1/16 in (0.8–1.6 mm) larger than bolt shank, smooth perpendicular bore holes.

Standard washer between wood and bolt head/nut; nuts tightened only finger-tight before testing.

Fastener Specimen Specifications

Nails/spikes/staples: Comply with ASTM F1667; hand-driven fasteners cleaned to strip factory surface coatings unless coating performance is the test variable. Collated fasteners retain inter-fastener bonding coating with clear reporting.

Wood screws: Conform to ASME B18.6.1 inch-series wood screw standard; paraffin lubrication permitted for installation with documentation.

Bolts & timber connectors: Full metal material property data recorded; proprietary connectors follow manufacturer groove/hole sizing recommendations.

Mandatory Test Equipment stipulated in ASTM D1761 Mechanical Fasteners Test in Wood

Universal Testing Machine

Movable crosshead tensile/compression tester calibrated per ASTM E4, with force accuracy of ±1% full scale.

Capable of constant-speed crosshead travel for monotonic loading; cyclic/pulsating loading heads permitted for supplementary deformation monitoring.

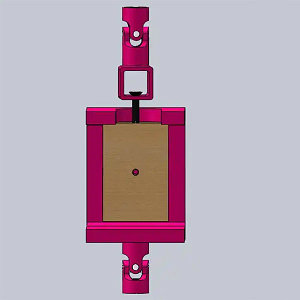

Screw withdrawal test fixture

Fastener head grips: Custom-machined clamps matching nail heads, staple crowns and screw heads to avoid slippage during pull-out.

Specimen clamping platens: Rigid steel jigs to fix wood members firmly to the machine’s stationary crosshead.

Alignment roller supports: For lateral joint tests to eliminate eccentric bending in two-member assemblies.

ASTM D1761 Test Methods for Mechanical Fasteners in Wood

Key Test Parameters & Mandatory Test Stipulations

1 Loading Speed Parameters

Withdrawal test: Constant uniform pull-out crosshead speed (standard rate ~0.035 in/min / 0.9 mm/min).

Lateral test: Specimens loaded within 1 hour after assembly; consistent tensile crosshead speed for shear displacement.

Bolt/connector joint test: Crosshead speed controlled so ultimate failure load occurs between 5–20 minutes (target 10 min to peak load); crosshead speed fully documented in reports.

2 Data Recording Parameters

Withdrawal test: Record ultimate maximum withdrawal load (3 significant figures); optional displacement at staged load points for load-slip curves.

Lateral test: Simultaneous load & displacement logged at deformations of 0.01, 0.015, 0.05, 0.1, 0.2, 0.3 in plus peak maximum load.

Joint test: Continuous deformation readings from test start until ultimate load or total deformation of 0.60 in (15 mm); record initial load relaxation point, failure mode and peak joint load.

3 Statistical & Sampling Stipulations

Sample quantity: Minimum 5 replicate specimens per test variable; 10 replicates preferred for reliable statistical analysis.

Reporting mandates: All deviations from standard procedures, fastener coating details, wood species, moisture content, specific gravity, specimen dimensions and failure modes must be fully documented in formal test reports.

Step-by-Step General Test Procedures of ASTM D1761

1. Specimen Preparation & Conditioning	Cut wood members to standardized dimensions, remove defects, then condition in controlled environmental chambers until moisture equilibrium. Clean test fasteners (retain collating coatings if required), measure and record all fastener geometric dimensions.
2. Fastener Installation	Drive/drill fasteners perpendicular to wood surfaces following standard penetration depth, lead hole sizing and edge spacing rules; replicate field installation methods (hand hammer or power driver) with full documentation.
3. Test Machine Setup	Install matching fixture grips, align specimens to eliminate eccentric loading.
4. Monotonic Loading Execution	Activate crosshead at specified constant speed; continuously record load, displacement and visual specimen behavior throughout loading. Stop testing once ultimate failure load is reached or maximum deformation threshold is exceeded.
5. Post-Test Specimen Characterization	Collect residual wood samples to measure moisture content (ASTM D4442) and oven-dry specific gravity (ASTM D2395); document failure modes (wood splitting, fastener pull-through, shank shear, bolt bearing crush).
6. Data Compilation & Formal Test Reporting	Calculate average failure load, statistical variance, replicate scatter; compile all mandatory report items.

Related Test Standard:

ISO 27528	Wood-based panels - Determination of resistance to axial withdrawal of screws
EN 320	Particleboards and fibreboards - Determination of resistance to axial withdrawal of screws
EN 1382	Timber Structures - Test methods - Withdrawal capacity of timber fasteners
GOST R 57176	Timber structures. Test methods for withdrawal capacity of timber fasteners
BS 6948	Methods of test for mechanically fastened joints in timber and wood-based materials
GB/T 17657	Test methods of evaluating the properties of wood-based panels (equivalent to ASTM D1037 domestic implementation standard)
ASTM D143	Small Clear Timber Specimen Mechanical Test Methods
ASME B18.6.1	Inch-Series Wood Screw Specification
ASTM D1037	Test Methods for Wood-Base Fiber and Particle Panel Materials

Test Application / Industry Fields

ASTM D1761 data feed directly into:

Timber / mass timber construction (glulam, CLT, LVL, DLT) – fastener design values in building codes.

Residential framing – nail/screw withdrawal & shear for platform framing, sheathing connection.

Furniture & cabinet (wood-based panels: plywood, particleboard, MDF, hardboard).

Packaging & pallet (nail/staple holding power in low-grade lumber).

Prefab / offsite construction – engineered joints with bolts or timber connectors.

Forensic / failure investigation – comparing as-built vs. design fastener performance.

WDW Series Computer Control Electronic Universal Testing Machine made by UNITEDTEST range from 100N to 600KN load capacity with various models like single columns, table type, door frame type etc., is used to perform tension, compression, flexure/bending, shearing, peeling etc., test for metal and nonmetal specimens.

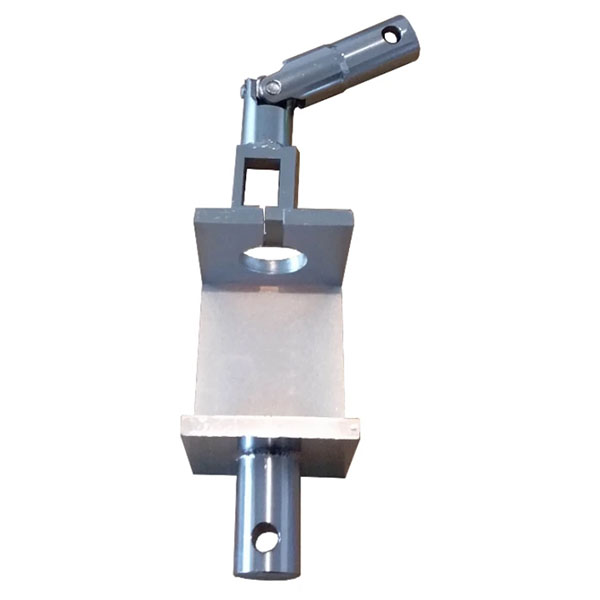

Screw withdrawal test fixture, also widely named screw pull-out jig execute the accurate maximum screw withdrawal resistance (screw holding strength) test results for furniture, construction timber and engineered wood labs. Conform with ASTM D1761, ISO 27528 stabdard,

Q1: What is ASTM D1761 used for, and why is this test critical for wood and engineered wood materials?

A: ASTM D1761 defines three standardized lab test suites to measure axial withdrawal resistance, lateral shear resistance, and bolt/timber connector joint capacity for nails, staples, screws, bolts, and timber connectors in solid wood, plywood, OSB, MDF, particleboard, and other wood-based composites.

It is essential for three core reasons:

Timber connections are the weakest link in wood structures; uniform test data generates reliable design load values to prevent pull-out, shear failure, or joint collapse under wind, seismic, and live loads.

It eliminates lab-to-lab procedural variability, enabling fair, repeatable comparisons across wood species, engineered panels, fastener coatings, and fastener geometries.

North American timber design codes (NDS) and U.S. Department of Defense construction projects mandate D1761-compliant data to establish allowable connection strengths for code compliance and procurement approval.

Q2: What's the "9× diameter" rule?

A: For withdrawal tests, the fastener must penetrate the holding member ≥ 9 × its diameter (9 × leg thickness for staples). This ensures the failure is withdrawal, not "pulled out because it was too shallow". Thin products (<9×) get driven through; penetration is reported as actual thickness.

Q3: Can I reuse a nail, staple, screw, or bolt for multiple D1761 test replicates?

A: No. Every fastener shall be used only once. After one test, fasteners experience permanent plastic deformation that skews pull-out, shear, or joint load results

Q4: What are the minimum dimensional rules for lateral resistance test specimens?

A:Main wood member (receiving fastener point): Thickness ≥6× fastener diameter/thickness.

Overlap length between side and main members ≥4 in (100 mm).

Fastener installed at overlap center, 2 in (50 mm) away from the overlapping end.

Standard grain setup: Fastener penetrates the tangential face of the main wood member

Q5: What size clearance gap is required between bolt holes and bolt shanks for joint tests?

A: Bolt holes must be bored 1/32–1/16 in (0.8–1.6 mm) larger than the bolt diameter, with smooth, perpendicular bore surfaces to ensure uniform bolt bearing contact on wood

Q6: What crosshead speed and timing rules apply to bolt/timber connector joint tests?

A: Adjust crosshead speed so the specimen reaches ultimate failure load between 5–20 minutes, with a target peak-load time of 10 minutes. A crosshead travel rate of 0.035 in (0.9 mm)/min is typical. The exact crosshead speed used must be recorded in the report

Q7: How soon after fastener installation must lateral resistance specimens be tested?

A: Specimens shall be tested within 1 hour after assembly. If longer hold periods are required for research variables, the elapsed time between installation and loading must be fully documented

Q8: What minimum number of replicate specimens does D1761 require per test variable?

A: At least 5 replicates for each test variable; 10 replicates are recommended for reliable statistical analysis. Fastener test data typically has a coefficient of variation of 15–30%, with a target test precision of 5–10% at 75% or 95% confidence levels (per ASTM D2915 sampling guidance)

Q9: What industries rely on ASTM D1761 test data?

A:Structural timber construction (residential frames, mass timber, military wood facilities)

Engineered wood panel manufacturing (OSB, plywood, MDF quality control)

Fastener R&D (nail, screw, bolt, timber connector product development)

Wood preservation & fire retardant treatment manufacturers

Furniture, modular prefabricated wood product factories

Forestry and structural engineering academic research labs.
