ASTM D1204 Standard | Air Oven Linear Thermal Dimensional Change Tester for Thermoplastic Film & Sheet | UnitedTest

ASTM D1204 Standard Test Method for Linear Dimensional Changes of Nonrigid Thermoplastic Sheeting or Film at Elevated Temperature is a globally recognized air-bath thermal stability testing standard, and UnitedTest manufactures fully compliant convection oven testing machines dedicated to this specification.

This standardized procedure quantifies total linear dimensional variation—including thermal shrinkage and thermal expansion—of flexible thermoplastic film and sheet after controlled exposure to preset high temperature and fixed dwell time inside circulating hot air. It exclusively applies to nonrigid thermoplastic substrates manufactured via calendering or extrusion production lines, relying on mechanical convection air ovens as the core heating medium.

A core distinguishing technical detail separates ASTM D1204 from ASTM D2732 thermal shrink testing: ASTM D1204 utilizes air convection heating, while ASTM D2732 adopts liquid immersion heating baths; test results generated from the two methods are not interchangeable and serve distinct lab compliance requirements. Our UnitedTest air-type thermal dimensional change tester delivers accurate, repeatable linear shrinkage/expansion data that fully satisfies all specimen setup, temperature control and measurement protocols laid out in ASTM D1204 for plastic factories, flexible packaging R&D labs and third-party material inspection facilities.

Test Principle

Extrusion, calendering, and stretching manufacturing lock residual internal strain inside nonrigid thermoplastic films. When exposed to uniform hot air in a convection oven, these frozen internal stresses relax, triggering permanent dimensional change (shrinkage or thermal elongation).

The test isolates air-heat-induced dimensional shift by heating unrestrained specimens, cooling fully to room temperature, then measuring length differences in machine (parallel) and transverse directions.

Positive calculation output = thermal expansion

Negative calculation output = thermal shrinkage

This air-heating setup mimics real-world dry heat processing environments (oven curing, hot-air printing, dry heat sterilization) that liquid-bath ASTM D2732 cannot replicate.

Test Specimen Requirements

Size: 25 × 25 cm (10 × 10 in) square

Quantity: 2 pieces — cut from sample as per Fig. 1: one from either transverse edge + one from center of sheet

Replication: Multiple specimens per batch to calculate average dimensional change for reliable quality reporting.

Cut with template to ensure squareness.

ASTM D1204 Plastic Films Dimensional stability testing at high temperature

ASTM D1204 Thremal Shrinkage Test Required Test Equipment

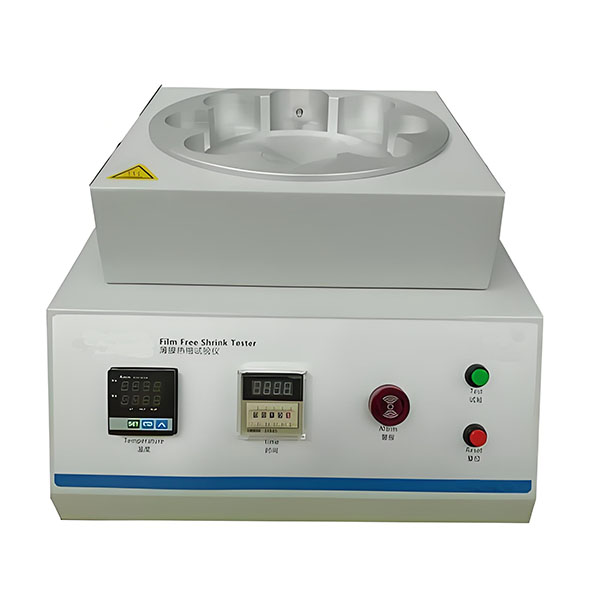

Recomend UnitedTest Hot blast Oven with filme size change measuring tools:

Mechanical Convection Oven	Capable of stable temperature control at 100 ±1 °C; forced air circulation ensures uniform heat distribution across all specimens.
Precision Thermometer	Marked in 1 °C increments, temperature range matching target test oven temperatures.
Heavy blank paper + talc powder + paper clips	~40 × 40 cm (15 × 15 in), smooth, wrinkle-free.
Template	25 × 25 cm (10 × 10 in) for cutting specimens.

Key test parameter:

Parameter	Requirement (D1204)
Heating medium	Air – mechanical convection oven
Oven temperature	100 ± 1 °C (212 ± 1.8 °F) unless material spec says otherwise
Exposure time	Per material specification (common default 30 min in practice, but standard defers to ASTM material spec; if none, default conditions apply)
Specimen size	25 × 25 cm (10 × 10 in) — much larger than ASTM D2732's 100×100 mm
Number of specimens	2 (one from each transverse edge + one from center of sheet, per Fig. 1)
Conditioning	23 ± 2 °C, 50 ± 10 % RH, ≥ 40 h, D618 Procedure A; disagreement tolerance ±1 °C, ±5 % RH
Reconditioning after oven	≥ 1 h at conditioning T/RH before final measurement (shorter allowed if proven equivalent)
Measurement precision	0.25 mm (0.01 in)

Complete Test Procedures of ASTM D1204 Plastic Films Dimensional stability testing at high temperature

Specimen Sandwich Assembly: Dust two sheets of heavy paper evenly with talc powder; place specimen between the two dusted paper layers, fasten paper edges loosely with paper clips (avoid clamping the film surface).

Oven Preheat & Loading: Stabilize convection oven to target test temperature; lay paper-film sandwiches horizontally on oven racks with zero overlapping/stacking to allow full air circulation.

Controlled Hot Air Exposure: Close oven door and hold specimens for the pre-determined dwell time tracked by calibrated timer.

Room-Temperature Stabilization Cooling: Remove paper sandwiches from oven, place flat on a clean bench, cool undisturbed for at least 60 minutes to lock final dimensions.

Post-Heat Dimension Measurement: Separate paper layers gently without stretching the film, measure the distance between original reference marks to record final length \(D_f\) for MD and TD separately.

Calculation & Averaging: Compute percentage linear change for each replicate specimen, then average results across all samples.

Negative value = thermal shrinkage (final length shorter than original)

Positive value = thermal expansion (final length longer than original)

Mandatory Test Report Content:

Full material identification (resin type, thickness, batch number, production process: extrusion/calender).

All test conditions: oven temperature, air exposure time, specimen pre-conditioning parameters.

Average percentage linear dimensional change for machine (parallel) and transverse directions separately.

Industrial Application Fields

ASTM D1204 targets materials exposed to dry hot air in manufacturing and end-use, widely adopted across these industries:

Flexible Printing & Lamination Films: BOPP, BOPET, PVC printing substrates; evaluates dimensional stability under hot air drying, gravure printing, and thermal lamination to eliminate print register shift and wrinkling.

Dry Heat Sterilization Packaging: Medical blister films, pharmaceutical barrier sheets; simulates autoclave dry heat cycles to prevent seal failure and package warping.

Construction & Decorative Sheeting: Calendered PVC decorative films, vinyl wall coverings; assesses shrinkage under high-temperature interior installation and sunlight exposure.

Industrial Protective Liners & Membranes: Plastic pond liners, equipment protective films; predicts dimensional distortion during oven curing and high-temperature storage.

Heat-Shrink Label Precursor Films: Raw label base film quality control (dry heat shrink behavior before liquid-bath shrink wrapping operations).

Electrical Insulation Films: Polyester insulation sheets for motor windings; tests stability under continuous dry heat operation.

Food Packaging Non-Shrink Films: Bakery oven packaging, heat-resistant wrapping films that experience prolonged dry air heating.

Related Standard:

ASTM D2732	Standard Test Method for Unrestrained Linear Thermal Shrinkage of Plastic Film and Sheeting.
ASTM D1042	Standard Test Method for Linear Dimensional Changes of Plastics Caused by Exposure to Heat and Moisture
ISO 11501	Plastics Film and sheeting Determination of dimensional change on heating. ASTM D2732 enforces fully unrestrained free shrink; ISO 11501 allows optional restrained test modes. Test data from the two standards lack direct comparability, as clearly noted in the D2732 standard text.
GB/T 12027	Plastics--Film and sheeting--Determination of dimensional change on heating
GB/T 13519	Polyethylene heat-shrinkable film for packaging applications
ES 4395	Plastics-Film and sheeting - determination of dimensional change on heating.
ISO 14616	Plastics - Heat shrinkable films of polyethylene, ethylene copolymers and their mixtures - Determination of shrinkage stress and contraction stress
GB/T 34848	Determination of shrinkage character for heat-shrinkable films.
DIN 53369	Testing of plastic films; determination of the shrinking stress.

Key Differences of ASTM D1204 VS ASTM D2732:

Heating medium: D1204 = hot air convection oven; D2732 = constant-temperature liquid bath (water/glycerin/PEG).

Thickness limit: D2732 only for films ≤0.76 mm; D1204 applies to all nonrigid sheets without thickness cap.

Heat transfer speed: Liquid bath delivers near-instant uniform heating; air oven heats slowly and gradually.

End-use simulation: D1204 replicates dry air heat processes; D2732 replicates liquid immersion shrink wrapping.

Result compatibility: Data from the two standards cannot be directly compared for material acceptance.

Keywords of ASTM D1204: UnitedTest ASTM D1204 tester, air convection oven thermal dimensional change machine, nonrigid thermoplastic film shrinkage expansion tester, ASTM D1204 compliant plastic sheet heat stability equipment, linear dimensional change under elevated temperature test, calendered extruded thermoplastic sheet thermal test, air bath vs liquid bath shrink test ASTM D1204 ASTM D2732 comparison, plastic film thermal expansion shrinkage measurement, convection oven dimensional stability tester.

Suitable to measure various kinds of plastic pipe or plastic materials size change after heating, or used to heat the test sample. It can be used as a heating oven as well.

Professional film heat shrink tester is precision lab equipment engineered to evaluate thermal shrinkage characteristics and thermal dimensional stability of diverse raw materials, including plastic films. compliant with international testing standards ASTM D2732 and ISO 11501.

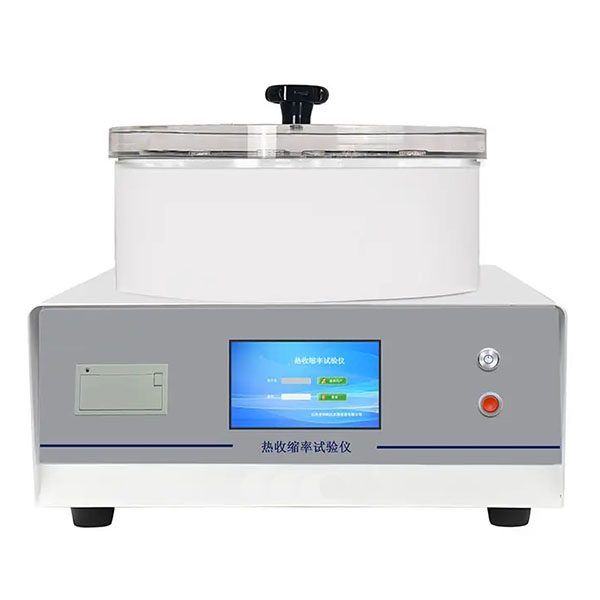

Integrated Film Thermal Shrinkage Performance Tester, simultaneously captures real-time test data including temperature, thermal shrinkage force, residual shrinkage force and shrinkage displacement, Conform with ISO 14616, DIN 53369, ASTM D2732 as a shrink force tester or comprehensive shrink tester

Q1. What does ASTM D1204 actually measure?

A1: It measures linear dimensional change (shrinkage or expansion) of nonrigid thermoplastic sheeting/film when exposed to a specified elevated temperature and time in air (mechanical convection oven). Reported separately for the direction parallel and transverse to processing (calender/extrusion). Change can be negative (shrink) or positive (expand).

Q2: What materials and thicknesses does ASTM D1204 apply to, and what materials are excluded?

A2: Applicable materials: All nonrigid, flexible thermoplastic film and sheeting produced by extrusion or calendering (PVC, BOPP, BOPET, medical barrier films, decorative vinyl, insulation sheets, etc.). There is no maximum thickness limit.

Excluded materials: Rigid plastic panels, thick molded plastic parts, and materials where dimensional change is caused solely by solvent loss (not thermal stress relaxation).

Q3: Why is long room-temperature cooling required after taking specimens out of the oven?

A3: Hot plastic polymers remain thermally active immediately after oven exposure and will continue minor dimensional adjustment as they cool down. A minimum 1-hour undisturbed cooling period at ambient temperature fully stabilizes the polymer structure and locks the final dimension. Measuring while the film is still warm will capture incomplete dimensional change and produce inconsistent, inaccurate readings between replicates.

Q4: Can I stack multiple paper-film specimen sandwiches together inside the convection oven?

A4: No. Stacking creates physical contact and mechanical restraint between specimens and paper layers. Restraint blocks full stress relaxation, prevents free dimensional movement, and generates measurement errors. All specimen sandwiches must be laid flat, separated, and unstacked on oven racks to allow full circulating hot air flow around every sample.

Q5: What is the default oven temperature for ASTM D1204 testing, and can I use other temperatures?

A5: The standard default test temperature is 100 ±1 °C (212 ±1.8 °F). Custom temperatures and oven dwell times are fully permitted if specified in relevant ASTM material specifications, customer product requirements, or to simulate actual end-use heat exposure conditions. Material-specific rules always take priority over the default 100 °C setting.

Q6: What is the relationship between ASTM D1204 and ISO 11501? Can test data be mutually referenced?

A6: Both standards evaluate thermal dimensional change of plastic films and share the same core testing purpose, but their technical procedures differ significantly in specimen preparation, heating duration, cooling rules, and restraint design. The standard explicitly clarifies that test results from D1204 and ISO 11501 cannot be directly compared for material acceptance, contract compliance, or quality control. Users must select one single standard consistently for all related testing.

Q7: Why is ASTM D1204 critical for evaluating lot-to-lot consistency of flexible thermoplastic films?

A7: Dimensional change under dry heat directly reflects the amount of locked-in residual strain generated during extrusion and calendering production. If test results vary widely between batches, it indicates unstable manufacturing parameters (uneven stretch ratios, inconsistent cooling temperatures, fluctuating line speeds). This test acts as an incoming raw material quality checkpoint to screen out inconsistent film batches before they enter printing, lamination, or packaging production lines, reducing scrap waste.

Q8: What will happen if I stretch the cooled specimen when measuring D_f

A8: After heating and cooling, thermoplastic films lose manufacturing tension and become soft and easily deformable. Manual stretching artificially lengthens the specimen’s measured final length, which reduces the calculated shrinkage percentage (or falsely increases expansion readings). This creates misleading “pass” results for out-of-spec films that will shrink excessively during customer processing, leading to downstream production failures.

We offer customization to meet your specific needs. Our expert team will collaborate with you to develop the perfect product for you
