ASTM C78 : Standard Test Method for Flexural Strength of Concrete (Using Simple Beam with Third-Point Loading)

ASTM C78 is the standard method for determining the flexural strength (modulus of rupture) of concrete specimens using a simple beam subjected to third-point loading. It is mainly applied to concrete for slabs and pavements.

The test principle:

A plain concrete beam of specified dimensions is supported near its ends. Two equal loads are applied at the third points of the span (i.e., at points one-third of the span length from each support). This configuration creates a region of constant maximum moment and zero shear in the middle third of the span. The test continues until the beam fractures. The flexural strength is calculated from the maximum load at failure, the span length, and the beam's cross-sectional dimensions.

Test Specimen Information of ASTM C78:

Parameter	Requirements
Typical Sizes	150 mm x 150 mm x 530 mm (6 in. x 6 in. x 21 in.). This is the most common size. Alternative Sizes: Other cross-sections (e.g., 100 mm x 100 mm) are permitted for smaller maximum aggregate size, but the span must be three times the depth. Span length usually 18 in. (457 mm) with a span - to - depth ratio ≥2:1.
Span Length (L)	Standardized at 450 mm (18 in.) for a 150 mm deep beam. In all cases, the span length is three times the specimen depth
Type	Prismatic beam.
Sampling & Curing	Specimens must be fabricated and cured in accordance with ASTM C31/C31M (Standard Practice for Making and Curing Concrete Test Specimens in the Field).
Number of Specimens	Usually 3 specimens per test to ensure result reliability.

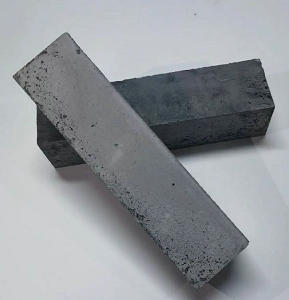

ASTM C78 Flexural Strength of Concrete Beams

Test Equipment associated with ASTM C78 concrete flexural test:

Compression Testing Machine	Complies with ASTM E4; capable of continuous loading without shock; able to record/hold peak load with ±1% accuracy; Hand - operated machines with discontinuous pumps are not allowed.
Compression Testing Machine	Third - point loading setup with bearing blocks perpendicular to the specimen face, extending across the specimen width; case - hardened bearing surfaces with flatness tolerance ≤0.002 in. (0.05 mm); blocks height ≤2.5 in. (64 mm) from pivot axis.
Measuring Device	A device (like a dial gauge or electronic transducer) for measuring the mid-span deflection (optional but often performed).
Weighing and Measuring Tools	For verifying specimen dimensions.

Why The Compressive Strength Is Important in Concrete Engineering?

While concrete is primarily specified for its compressive strength, its tensile strength is its weak point. The flexural strength test (like ASTM C78) directly measures this critical weakness by evaluating how well concrete resists bending and cracking.

This test is especially important for structures where concrete is subjected to bending forces, such as:

Pavements & Slabs: Roadways, airport runways, and industrial floors are constantly under bending from traffic loads. Flexural strength is the key design parameter for slab thickness. A higher modulus of rupture means a thinner, more economical slab can be used, or the slab will last longer under load.

Structural Elements: Beams, girders, and elevated decks all experience bending. The test helps ensure they can carry their intended loads without failing in tension.

Beyond design, it's crucial for quality control and durability. A concrete mix with good flexural strength is typically more homogeneous, well-proportioned, and has better paste-aggregate bonding. This directly translates to greater crack resistance, lower permeability, and better long-term durability against water and chemical intrusion.

In many cases, flexural strength is a more sensitive indicator of field performance for pavements than compressive strength. Two mixes with the same compressive strength can have very different flexural strengths and, consequently, vastly different service lives when used in a slab.

In short, the flexural strength test ensures concrete can withstand the real-world bending stresses it will face, making it essential for the design, economy, and long-term performance of concrete structures that are not just squashed, but bent.

Test Procedure (Step-by-Step details):

Conditioning: Immediately prior to testing, the specimen's bearing surfaces (where loads and supports contact) must be smooth and parallel. Any loose grains or fins are removed.

Measurement: Accurately measure the width and depth of the specimen at the section of expected failure (near mid-span). Record the average dimensions to the nearest 0.2 mm (0.01 in.).

Setup: Place the specimen in the testing machine, centered on the supporting blocks.

The span length (L) is set to three times the depth (e.g., 450 mm for a 150 mm beam).

The load-applying and support blocks/rollers must make contact along lines parallel to the longitudinal axis of the specimen.

Loading: Apply the load continuously and without shock.

The rate of loading is controlled such that the extreme fiber stress increases at 0.9 to 1.2 MPa/min (125 to 175 psi/min). For the standard 150x150x530 mm beam, this translates to a total load increase of approximately 4.0 to 5.3 kN/min (900 to 1200 lbf/min).

Failure: Continue loading until the specimen fractures. Record the maximum applied load (P) at failure.

Calculation: Compute MOR using MOR = (PL)/(bd²); use the modified formula if failure is within 5% of span ends outside the middle third.

Inspection: Examine the fractured surface. If the fracture is outside the middle third of the span by more than 5% of the span length, the result may be discarded or noted as non-standard. (The test is valid as long as the fracture initiates in the tension face within the middle third).

Calculation of Flexural Strength (Modulus of Rupture):

The flexural stress (f) is calculated using the standard elastic formula for a beam under third-point loading:

Formula:

f = P * L / (b * d²)

Where:

f = Modulus of rupture (flexural strength) in MPa or psi.

P = Maximum applied load at failure (N or lbf).

L = Span length (mm or in.).

b = Average width of the specimen (mm or in.).

d = Average depth of the specimen (mm or in.).

Note: This formula assumes a linear elastic stress distribution and is valid regardless of where the fracture occurs, as long as it's within the middle third.

Related standard with the ASTM C39 for concrete compression testing:

BS EN 12390-5: Testing hardened concrete-Flexural strength of test specimens

ASTM C513: Standard Test Method for Obtaining and Testing Specimens of Hardened Lightweight Insulating Concrete for Compressive Strength

ASTM C580: Standard Test Method for Flexural Strength and Modulus of Elasticity of Chemical-Resistant Mortars, Grouts, Monolithic Surfacings, and Polymer Concretes

KS F 2408: Method of test for flexural strength of concrete

JIS A 1106: Method of test for flexural strength of concrete

ASTM D1635: Standard Test Method for Flexural Strength of Soil-Cement Using Simple Beam with Third-Point Loading

BS 1881: Testing concrete-Method for determination of compressive strength using portions of beams broken in flexure (equivalent cube method)

AASHTO T 177: Standard Method of Test for Flexural Strength of Concrete (Using Simple Beam with Center-Point Loading) (ASTM Designation: C293-16)

Main Test Application:

This test is crucial for evaluating the tensile strength of concrete in applications where it resists bending, such as:

Concrete pavements and slabs (it is a critical design and quality control test for roadways and airport runways).

Structural members subjected to transverse loads.

Assessing the suitability of concrete mixtures for flexural applications.

Research and development of concrete materials.

ASTM C78 vs ASTM C39: Flexural Strength vs Compressive Strength

ASTM C78 and ASTM C39 are both widely used concrete strength tests, but they measure different performance characteristics. ASTM C78 evaluates flexural strength using beam specimens and third-point loading, while ASTM C39 measures compressive strength using cylindrical specimens under axial load.

Most CMT labs run both tests as part of pavement and structural concrete programs, which is why UnitedTest supports compressive strength testing and flexural strength testing within the same connected platform.

UnitedTest Hydraulic Compression Strength Testing Machine to test cement, brick and concrete is offered by United Test. Use hydraulic power driving, intelligent measuring and control meter to collect and process data, consist of frame, oil source, control system, test fixture. Accuracy class 1, max. test load 2000KN, 3000KN.

Q1: What is the core purpose of ASTM C78?

A1: To determine concrete’s modulus of rupture (flexural strength) via third-point loading on simple beams, quantifying its resistance to bending-induced tensile stress.

Q2: Why is ASTM C78 more critical than compressive strength for pavements/slabs?

A2: Concrete is weak in tension; pavements/slabs experience bending (not just compression) under traffic/live loads. ASTM C78 measures real-world flexural performance, while compressive strength only reflects axial load resistance.

Q3: What is the standard specimen size for ASTM C78?

A3: The most common is a prismatic beam of 6 in.×6 in.×20 in. (150 mm×150 mm×500 mm) with a test span of 18 in. (457 mm); span-to-depth ratio must be ≥2:1.

Q4: Can specimens be sawed from in-place concrete for ASTM C78?

A4: Yes, sawed beams are permitted if prepared and tested in accordance with ASTM C42/C42M (drilled cores and sawed beams standard).

Q5: What load rate is required for a 150 mm deep ASTM C78 specimen?

A5: A constant rate of 0.15 ± 0.025 mm/min (0.006 ± 0.001 in./min); adjust proportionally for specimens of different depths.

Q6: What if the concrete beam fails outside the middle third of the span?

A6: If failure is within 5% of the span ends (outside the middle third), use a modified MOR calculation formula; failures beyond 5% invalidate the test result.

Q7: Must specimens be in a saturated surface-dry (SSD) state for testing?

A7: SSD is the standard condition (per ASTM C78) to eliminate moisture-related strength variability; other conditions are allowed only if specified in project requirements.

Q8: How many specimens are needed for a valid ASTM C78 test?

A8: A minimum of 3 replicate beams per test batch to ensure statistical reliability of flexural strength results.

Q9: What is the key difference between ASTM C78 and ASTM C293?

A9: ASTM C78 uses third-point loading (pure bending in the middle third); ASTM C293 uses center-point loading (higher stress concentration). C78 yields a more conservative (lower) modulus of rupture for the same concrete.

Q10: If a beam breaks outside the middle third, is the test invalid?

A10: Not necessarily. The standard states that if the fracture is outside the middle third by more than 5% of the span length, the result should be noted but can still be used. However, a fracture initiating very close to the loading point may indicate a flaw or improper bearing and could be discarded. The calculation remains the sameregardless of the break location, as long as it's within the acceptable zone.

Q11: Can we use this test for fiber-reinforced concrete (FRC)?

A11: Yes, but with a key limitation. ASTM C78 measures the first-crackor peak load strength. For plain concrete, this is the failure point. For FRC, the fibers provide post-crack residual strength, which C78 does not capture. For a complete performance picture of FRC, ASTM C1609 (which measures load-deflection behavior and toughness) is the required standard.

We offer customization to meet your specific needs. Our expert team will collaborate with you to develop the perfect product for you
